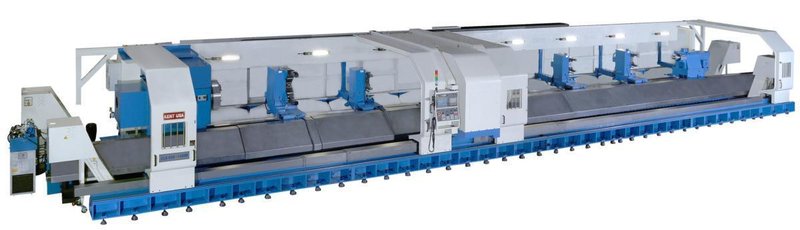

NEW KENT USA CLB 5-AXIS MILLING TURNING CENTER

Brand
KENT USA
Category
Lathes & Turning Machines
Type
Lathes, CNC
Model
CLB
Stock #
19237
Year
Not specified
Condition
New
Location
Not specified
NEW KENT USA CLB 5-AXIS MILLING TURNING CENTER

Product Highlights

The Kent CNC 5-Axis Milling Turning Center provides 2 excellent configurations for complex multi-tasking milling and turning. The sub-spindle system is built on an independent guideway to provide maximum support. Both 5-axis milling turning centers are also equipped with a 20 ATC system for multi-tasking processing.



Maximum Cutting Diameter 37.4″
Center Height 27″
Distance Between Centers 118.1″-551.2″
Control Fanuc 0i-TF
Bed Width 43″
Bed Way 2 Box way for Carriage; 1 V-Way and 2 flat way for tailstock and steady rest
Spindle Bore 6″ (Opt. Up to 16″)
Spindle Nose A2-11 (Opt. Up to A2-28)
Spindle Speed 9-900 to 5-250 RPM
Spindle Center MT#6
Spindle Power 40/50 HP
Quill Diameter 7.87″ (Opt. 9.8″)
Quill Stroke 9.8″
Quill Movement Hydraulic
Tailstock Center MT#6

X-Axis Feed Rate 197 ipm
X-Axis Ballscrew Diameter 50mm x P5
X-Axis Stroke 22″
Z-Axis Ballscrew Diameter 80mm x P10
Z-Axis Stroke 118″ up tp 551″
Y-Axis Feed Rate 197 ipm
Y-Axis Ballscrew Diameter 40mm x P5
Y-Axis Stroke ±3.9″



Boring Bar Compound with Tailstock
Control Fanuc 0i-TF
X2 Servo Motor 5.4 HP
Z2 Servo Motor 9.4 HP
Boring Bar Diameter 5.9″ (Opt. 9.8″)
Internal Holte Maximum Cutting Diameter 9.8″ – 33″ (Opt. 13.8″ – 37″)
Internal Hole Maximum Cutting Depth 59″ (Opt. 98.4″)
X2 Rapid Traverse 197 ipm
X2 ballscrew Diameter 40mm x P5
X2 Stroke 11.8″
Z2 Rapid Traverse 197 IPM
Z2 Ballscrew Diameter 63mm x P5
Z2 Stroke 118″
