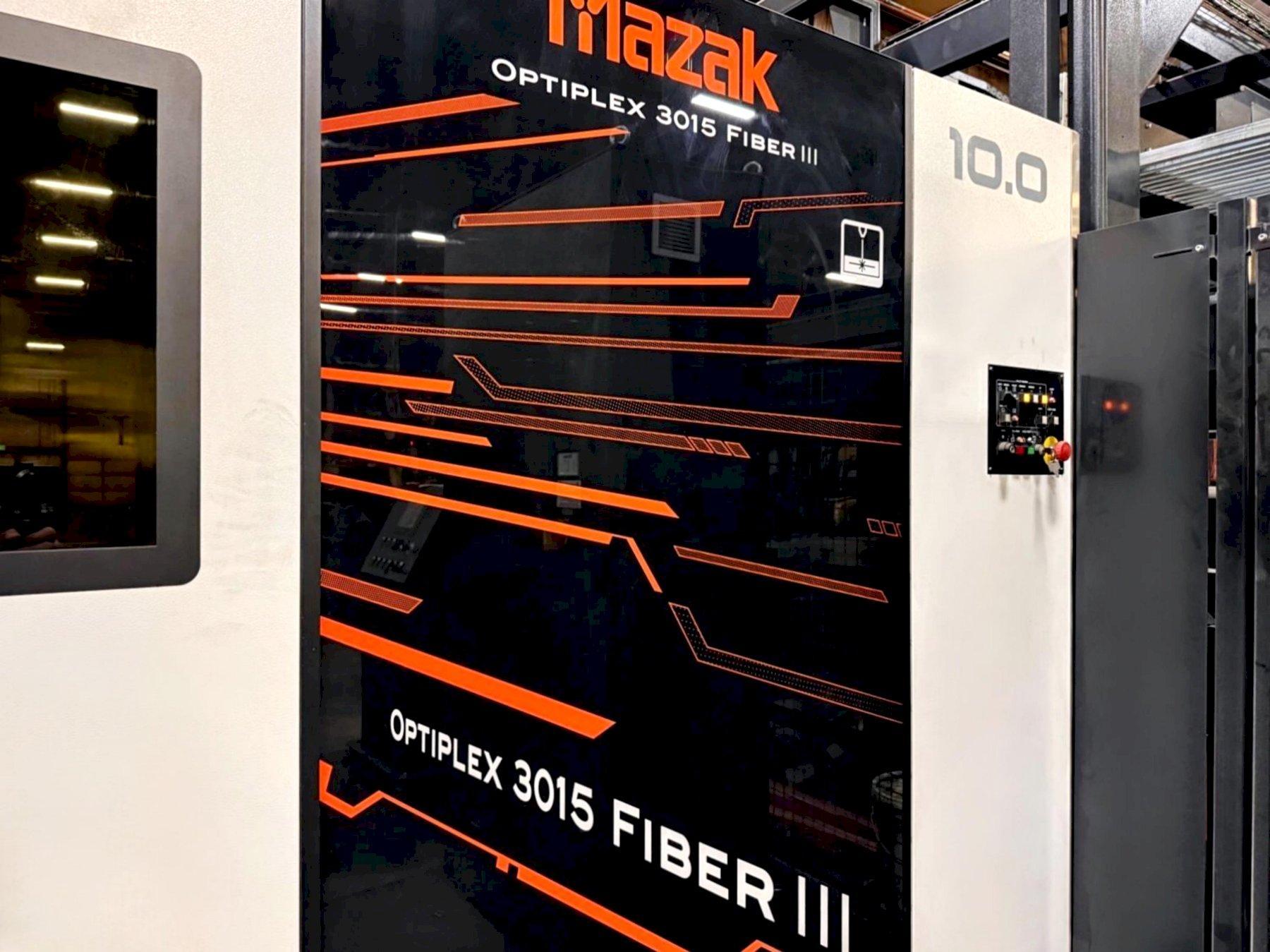

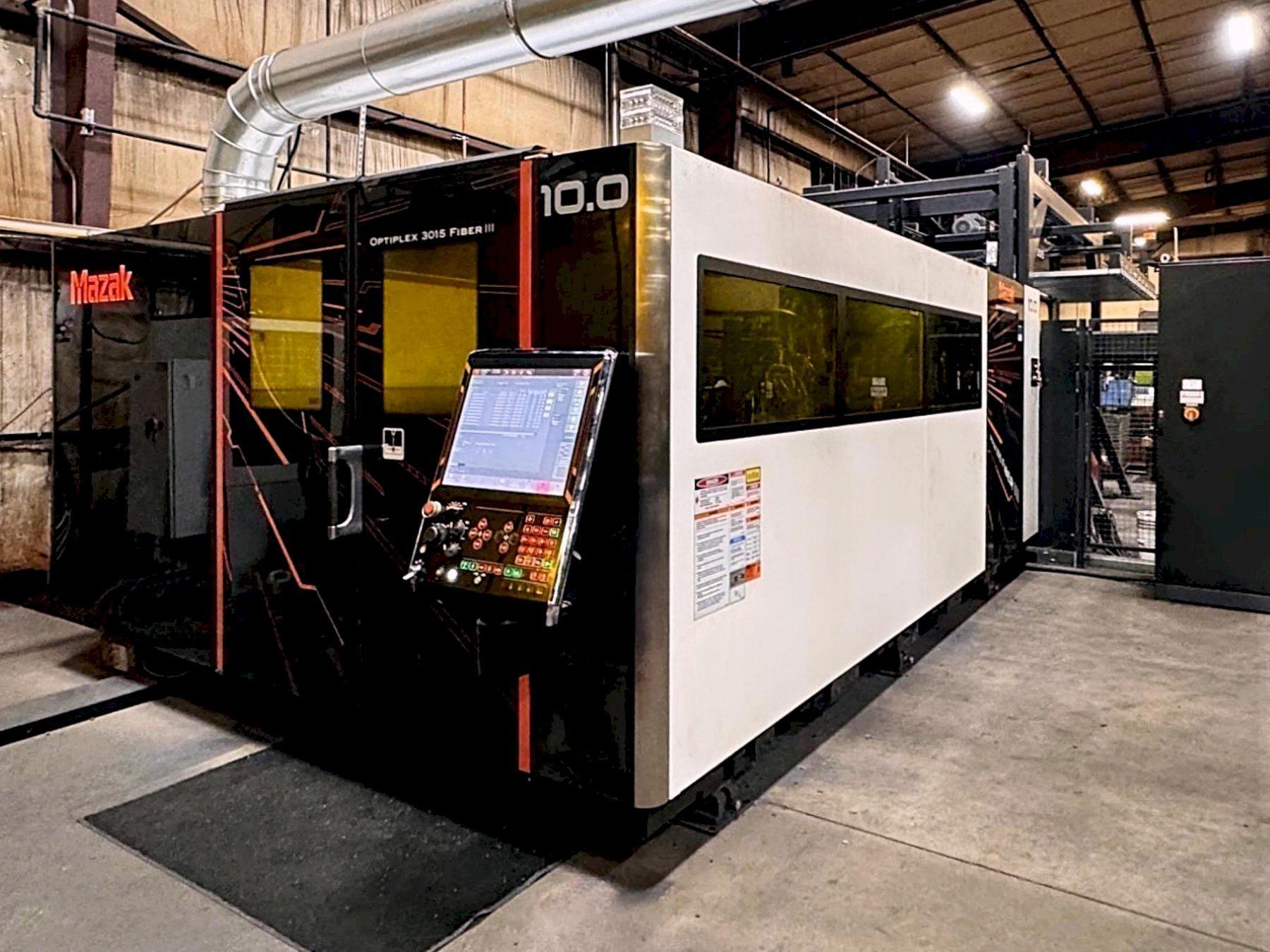

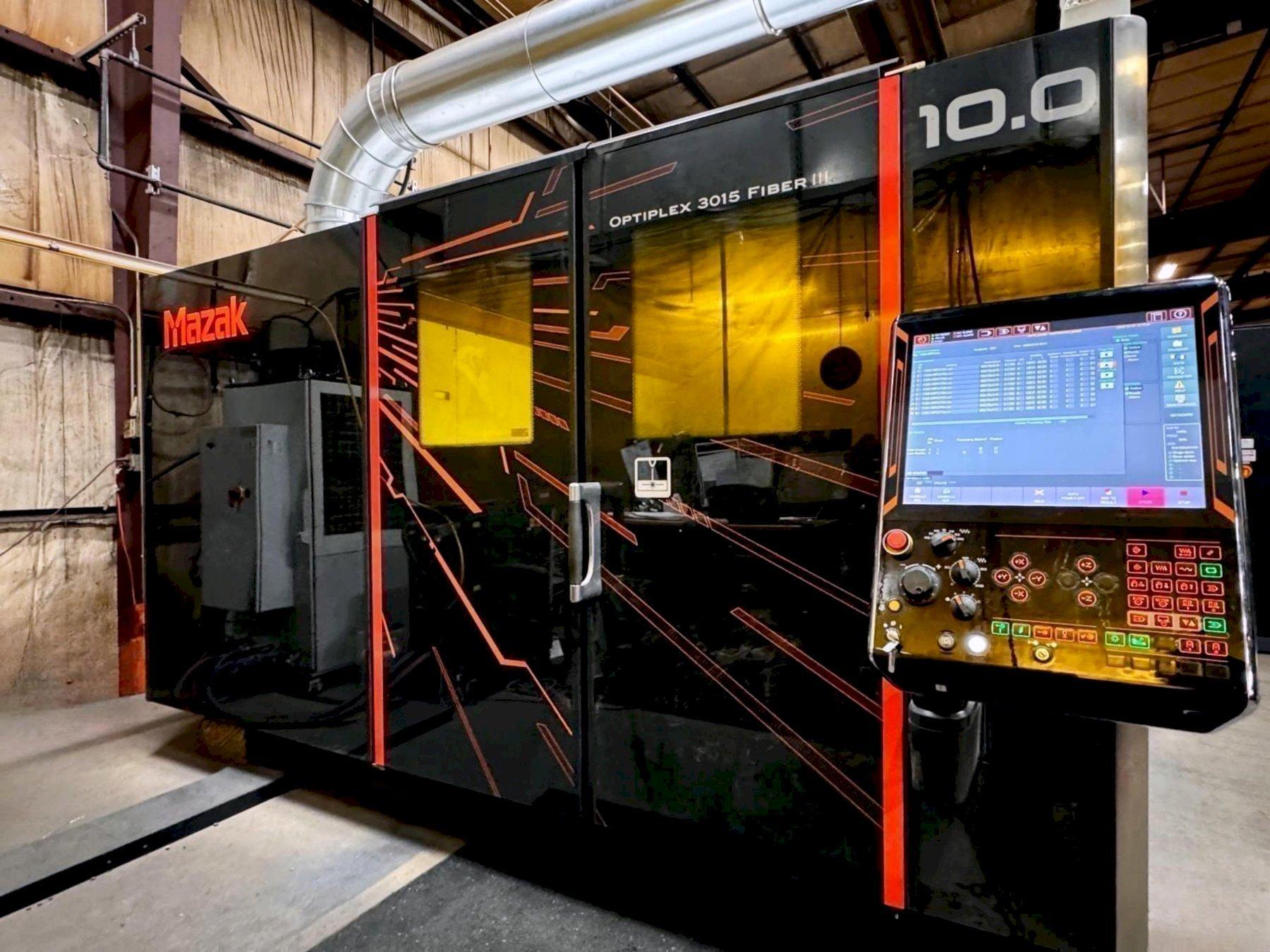

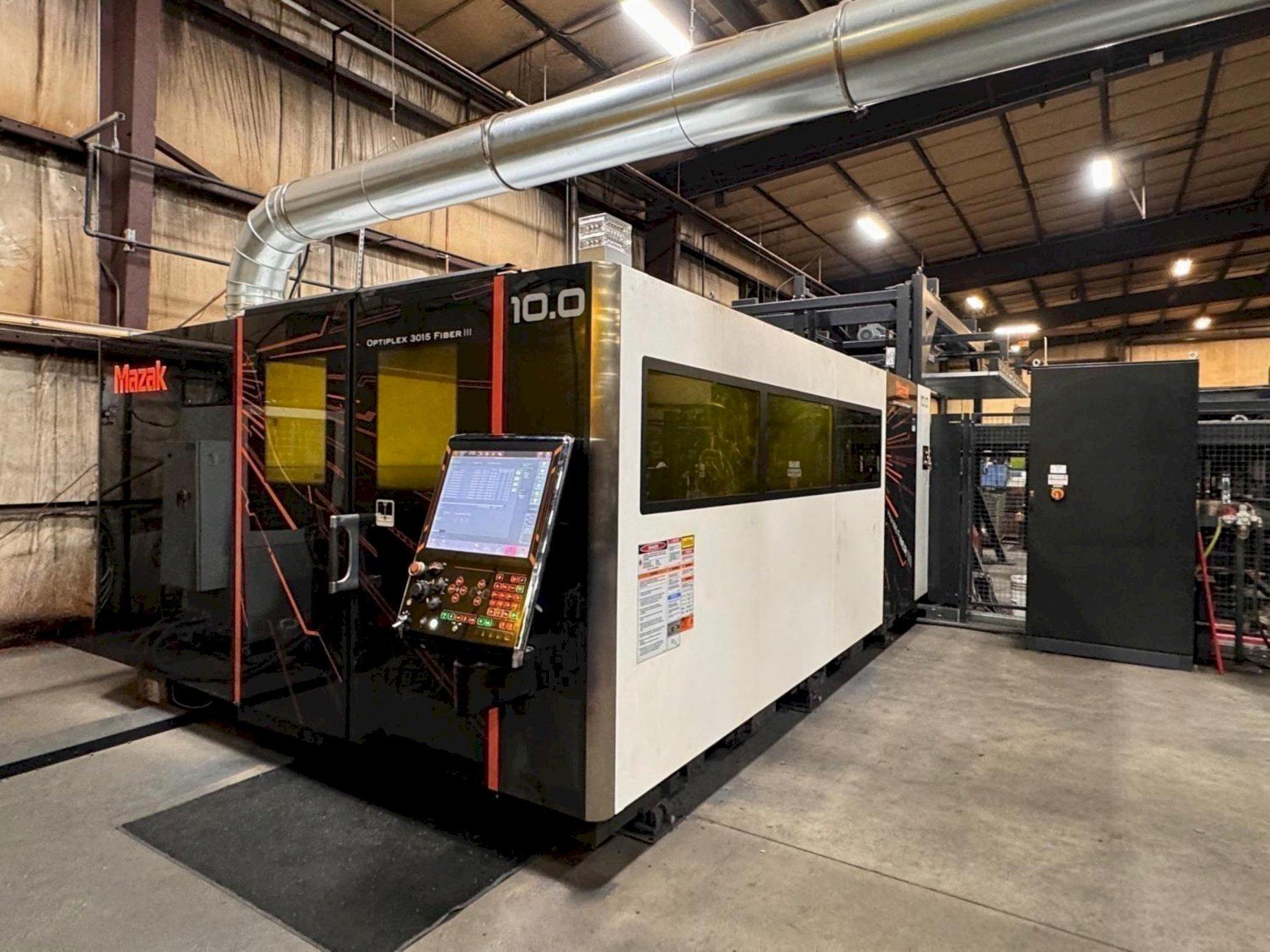

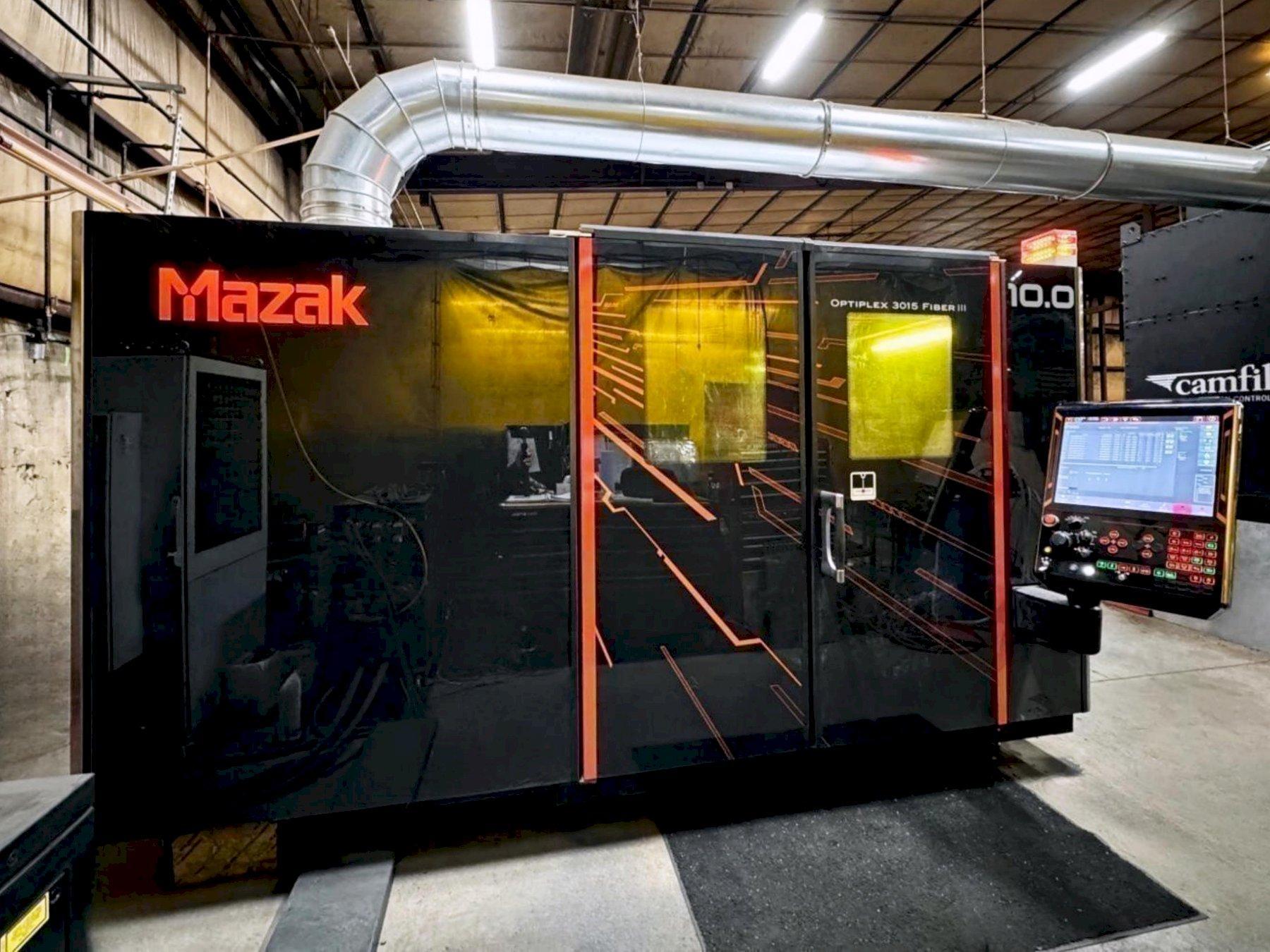

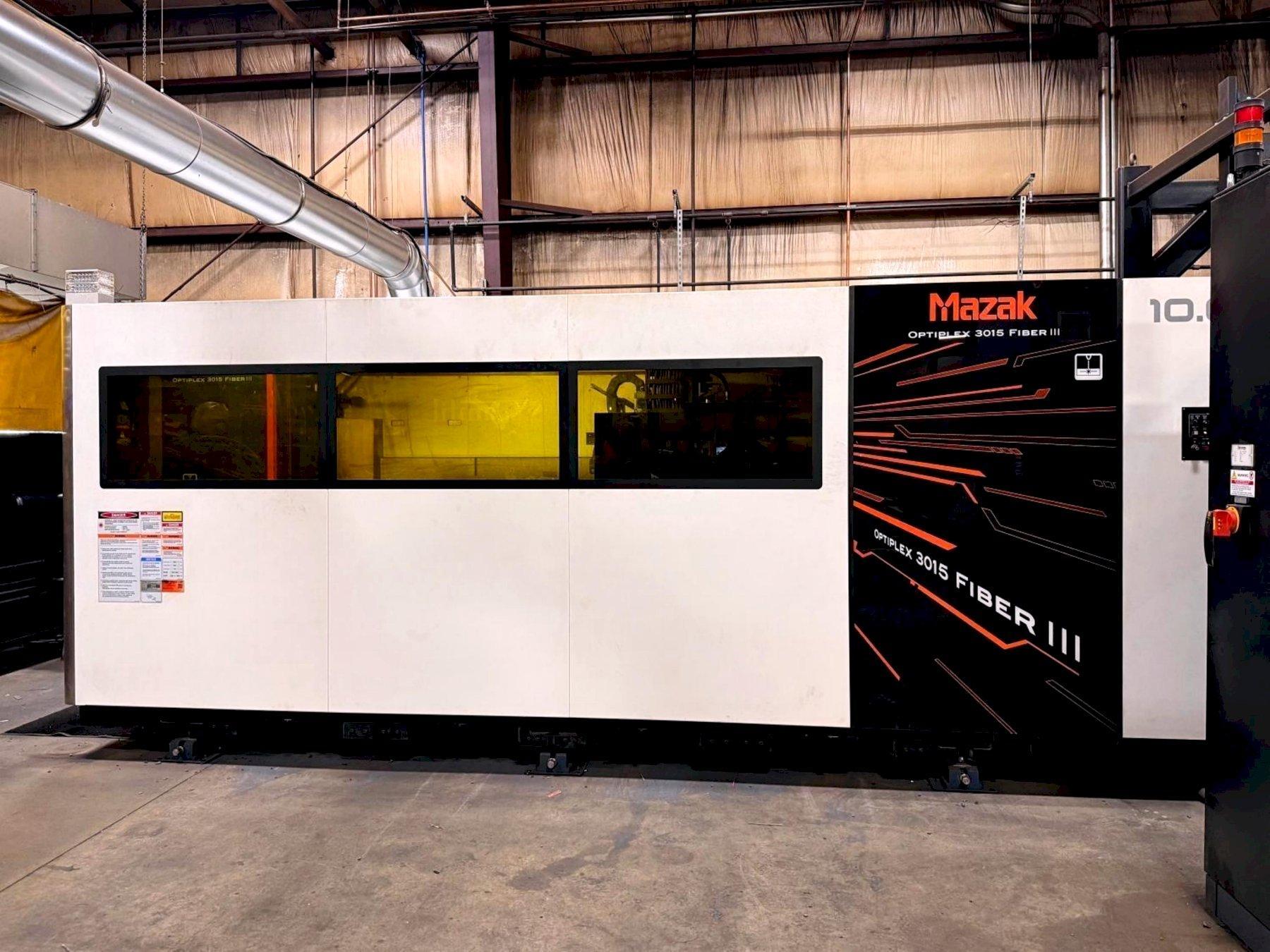

Mazak Optiplex 3015 10kW Fiber III
Brand
Category
Type
Model
Optiplex 3015 Fiber III
Stock #
100480
Year
2022
Condition
Excellent
Location
Not specified
| Control | MAZATROL PreviewG |
| Laser Type | Fiber |

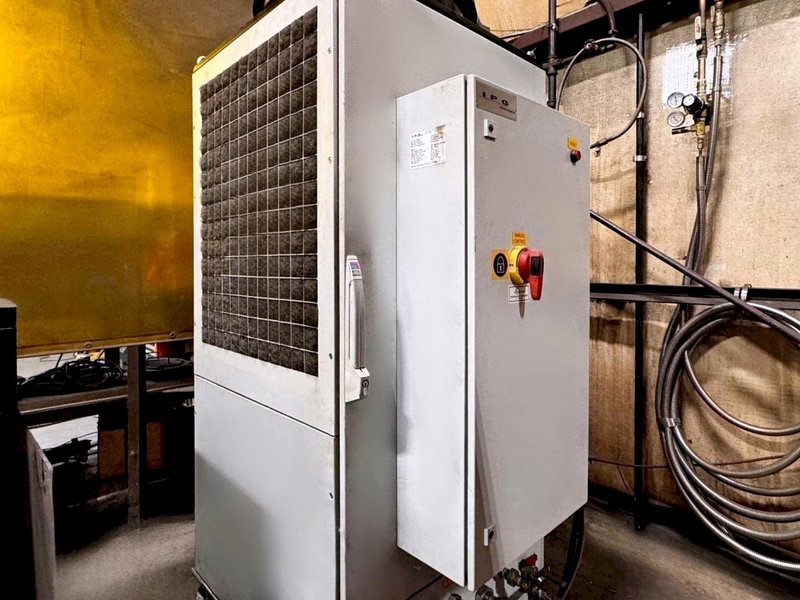

| Power Source | IPG YDS 10,000 Generator |
| Max Power Output | 10,000 Watts |
| Machine Structure | Flying Optics |
| Max Workpiece Dimensions | 60" x 120" |
| Max Workpiece Weight | 2,050 Lbs |
| Travels X Axis | 122.05" |
| Travels Y Axis | 62.80" |
| Travels Z Axis | 4.33" |
| Motion Drive System X, Y | Rack & Pinion Drive |
| Motion Drive System Z | Ball Screw Drive |
| Number Of Control Axes | 3 |
| Rapid Travel Speed X, Y Axis | 4,724 IPM |
| Pos. Accuracy X, Y Axis | 0.002"/19.68" |
| Pos. Accuracy Z Axis | 0.0004"/3.94" |
| Repeatable Accuracy X, Y Axis | 0.0012" |
| Max Material Thickness Mild Steel | 1.00” |
| Max Material Thickness Stainless Steel | 1.25” |
| Max Material Thickness Aluminum | 1.25” |
| Total Electrical Requirement | 104 kVA |
| Machine Unit Weight | 34,436 Lbs. |
| Installation Dimensions | 394" x 240" |
|

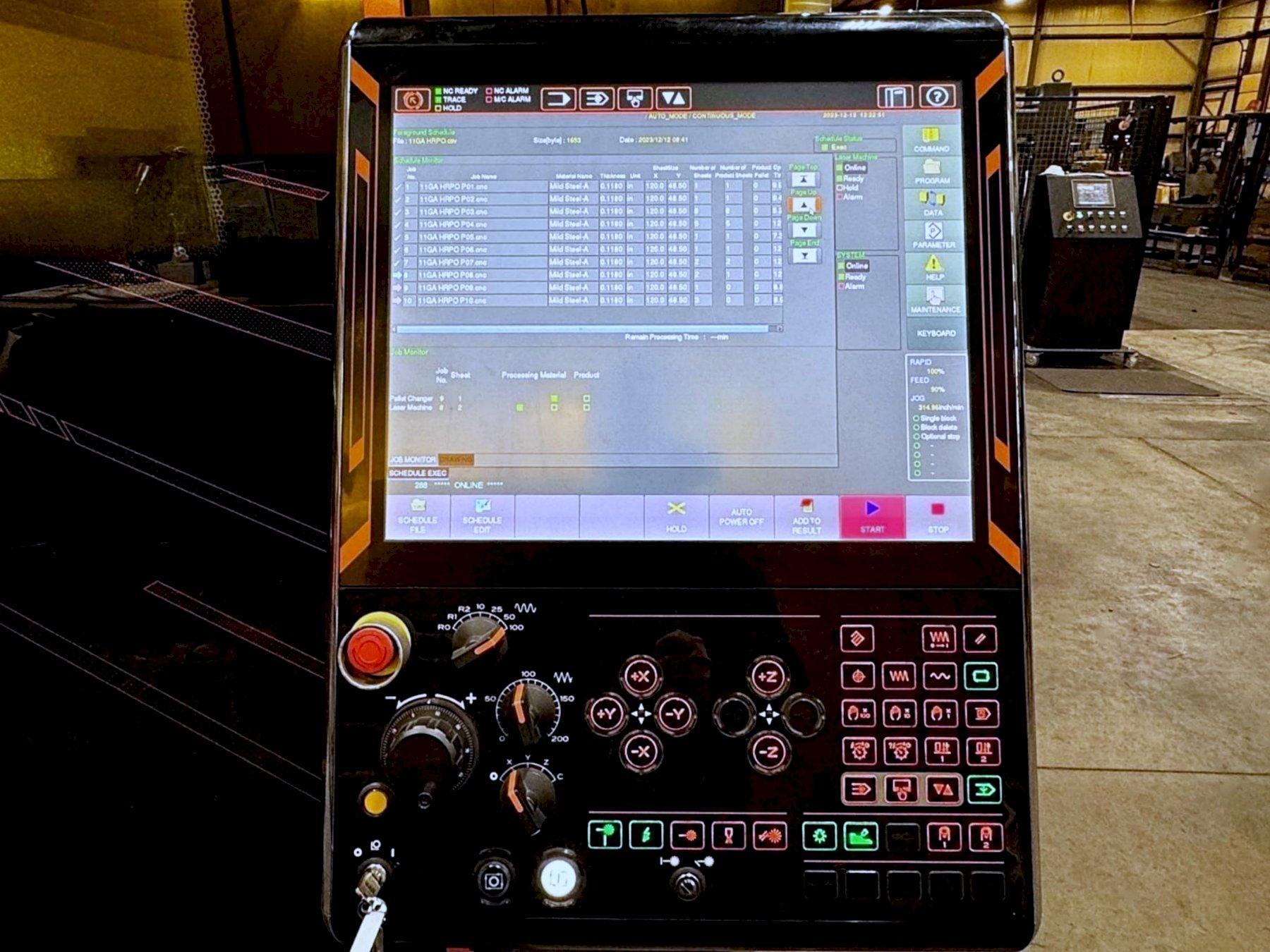

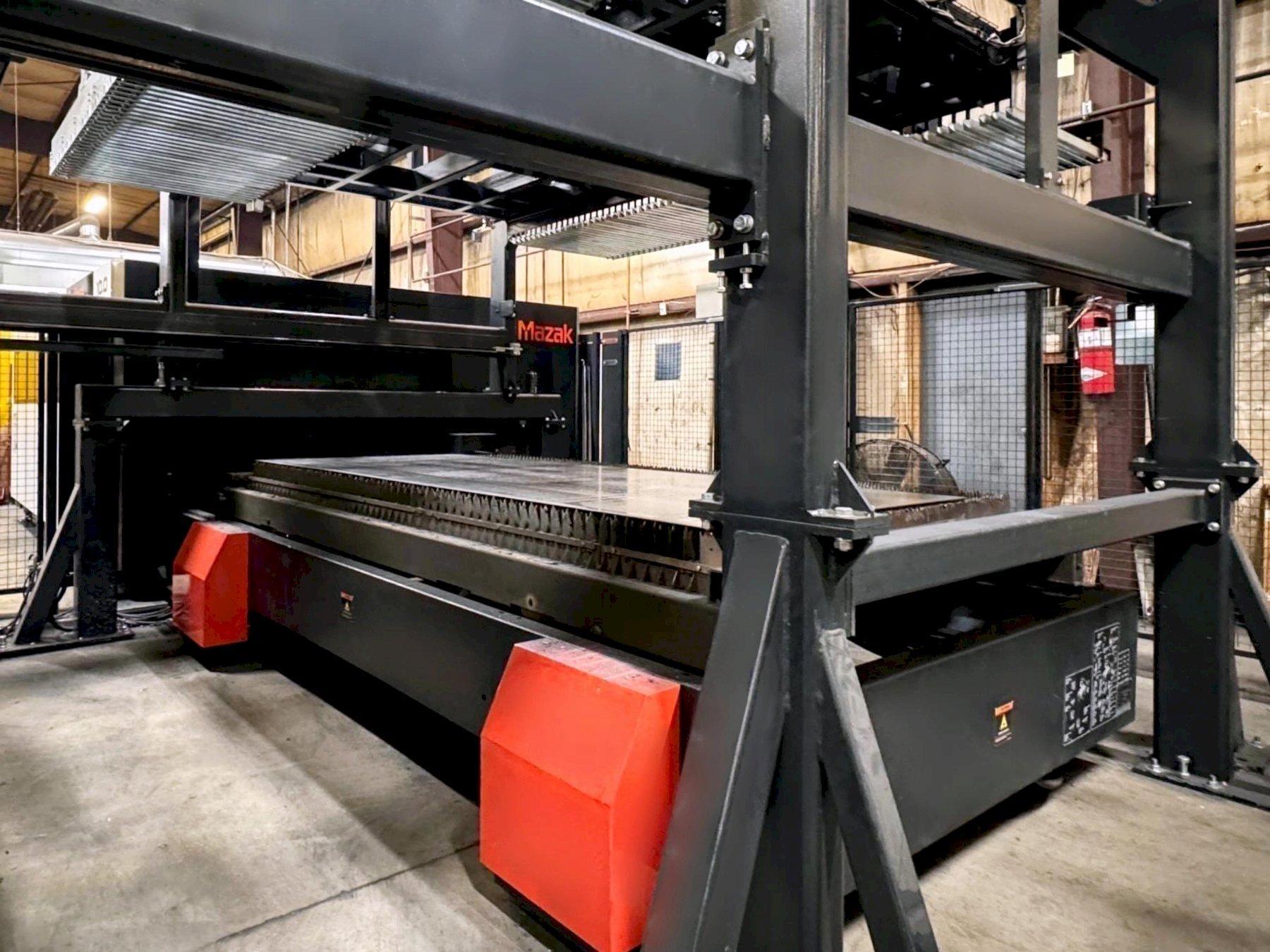

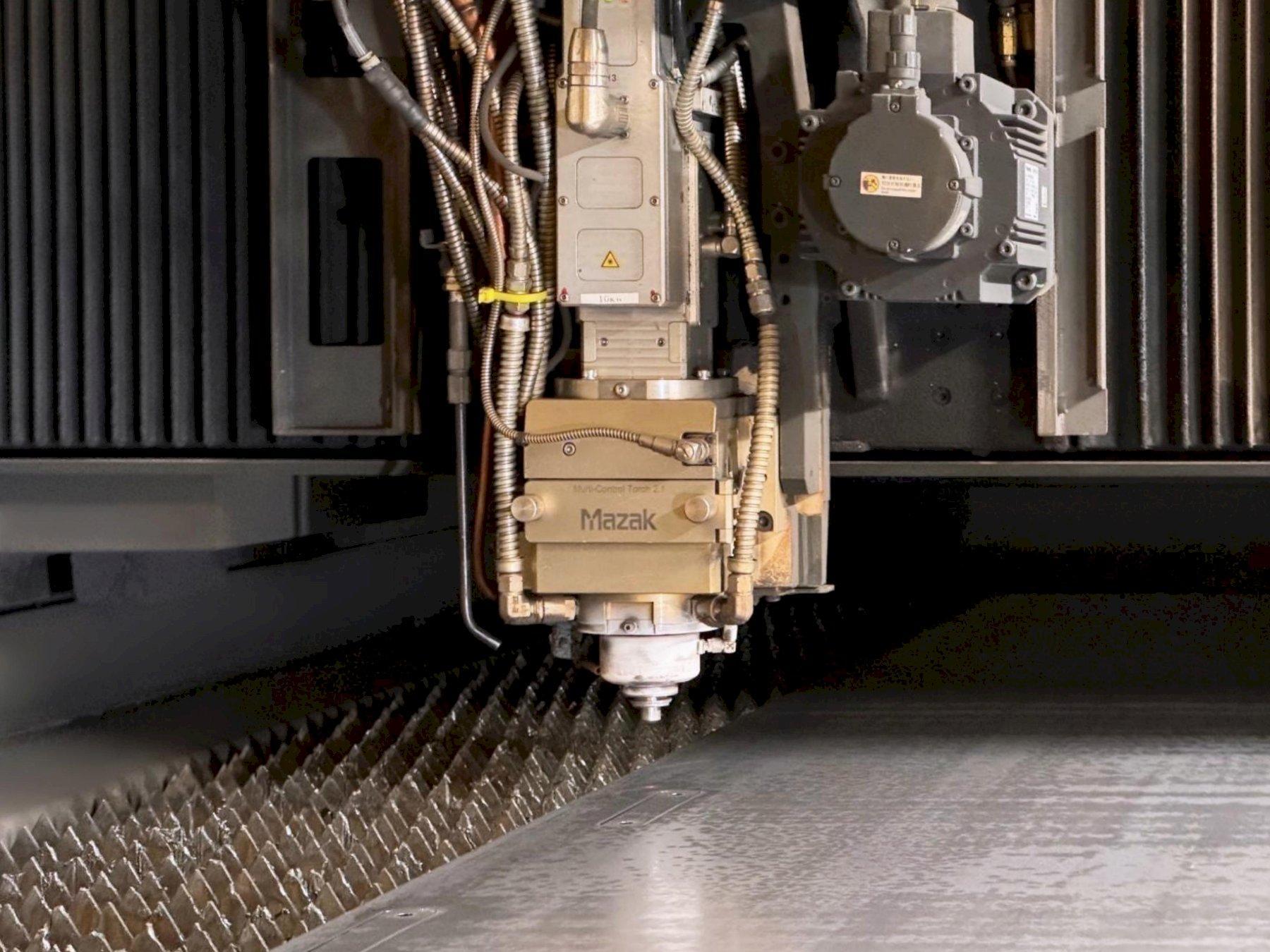

Equipped With: 19” SXGA Color TFT Touch Screen IPG YDS 10,000 Generator & Fiber Optic Delivery System Auto Nozzle Changer Auto Nozzle Cleaning Auto Focus Positioning Beam Diameter Control Auto Profiler Calibration Lens Monitoring High Speed Automatic 2 Pallet Changer |
|
