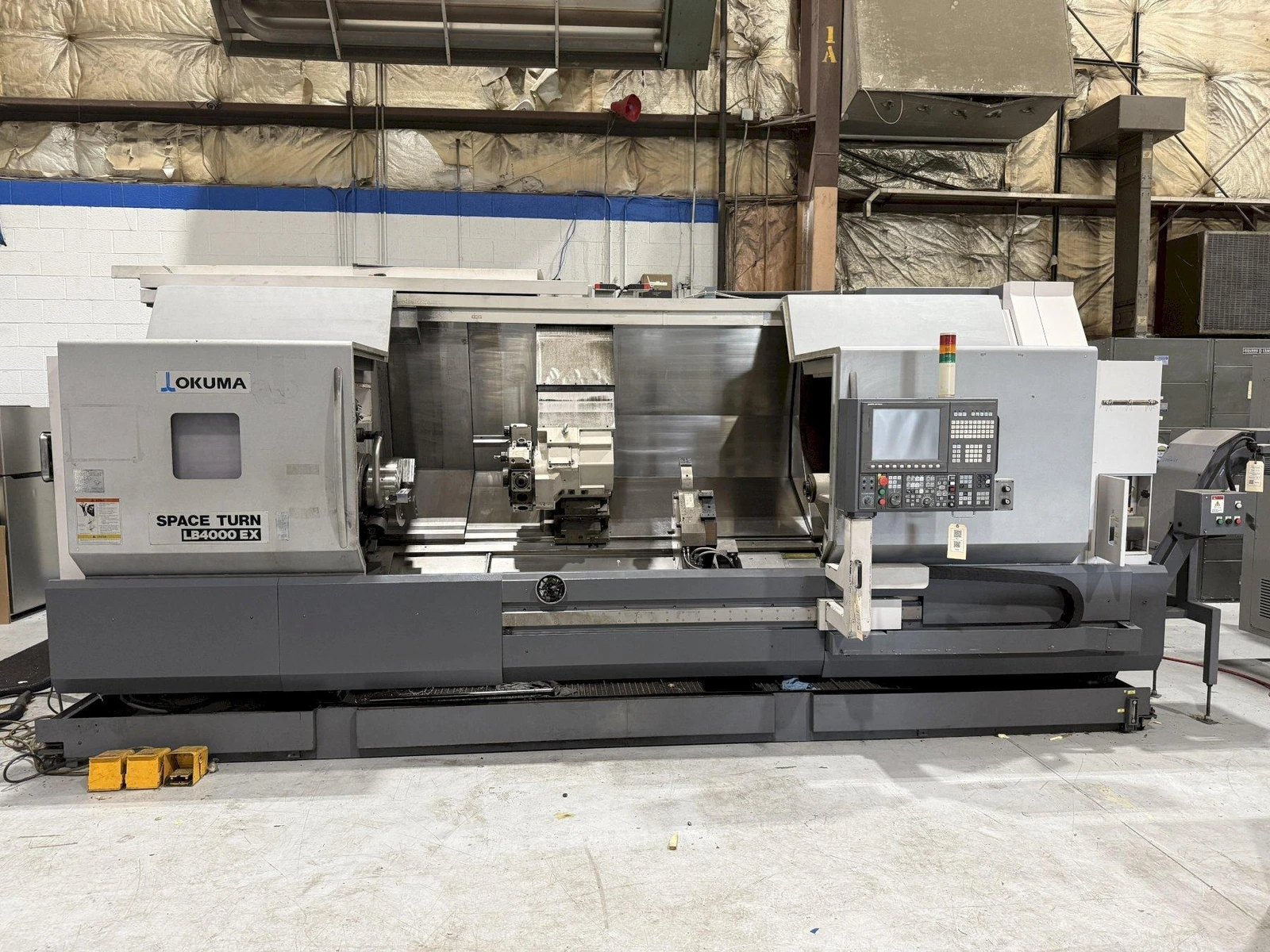

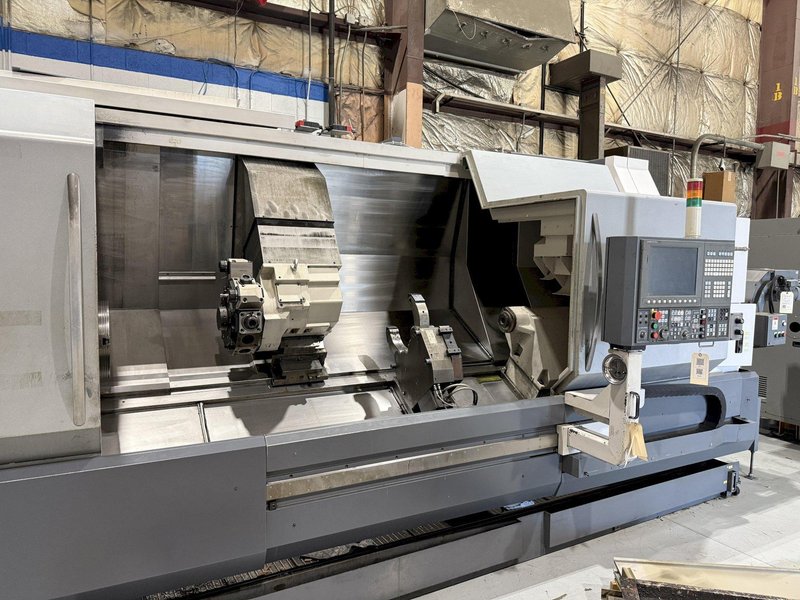

Okuma Spaceturn LB4000EX-MY CNC Lathe For Sale - 2012
Brand
Category
Model
LB4000EX-MY
Stock #
14417
Year
2012
Condition
Used
Location
Michigan
| CNC Control | yes |
| Type of CNC Control | OSP-P200LA |
| # Axis | 4 |
| Swing | 26.38 |
| Turning Diameter | 18.9 |
| Center Distance | 85.43 |

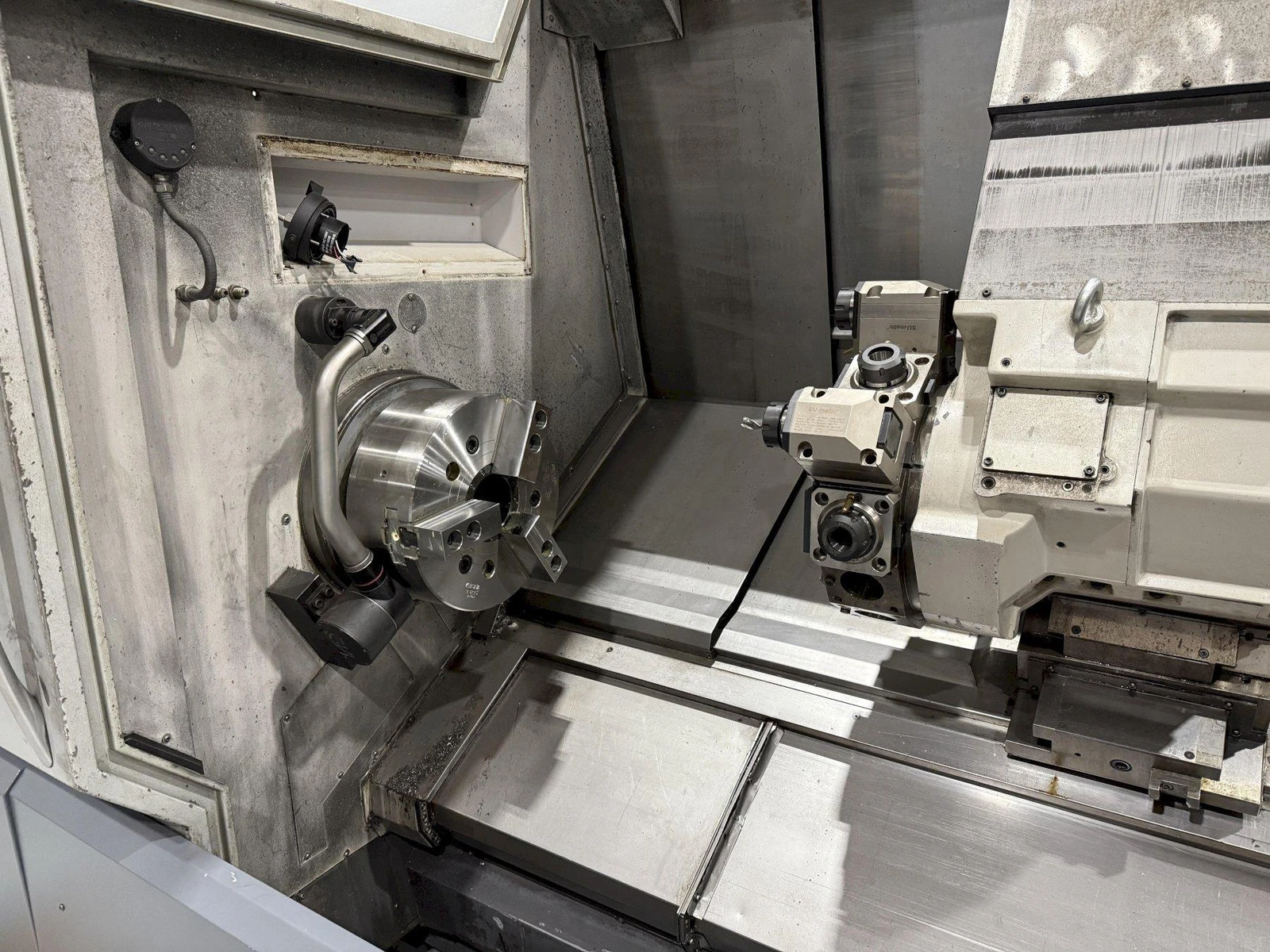

| Chuck Size | 14" - Air Chuck |
| Bar Capacity | 4.5" |
| X-Axis Travel | 11.81" |
| Z-Axis Travel | 88.19" |
| Y Axis Travel | +/- 2.76" (5.51" Total) |
| C Axis Index | 0.001° |
| Rapid Traverse (X/Z) | 984/1181 ipm |
| Spindle Nose | A2-11 |
| Spindle Speed | 3,000 rpm |
| Main Motor | 50/40 hp |

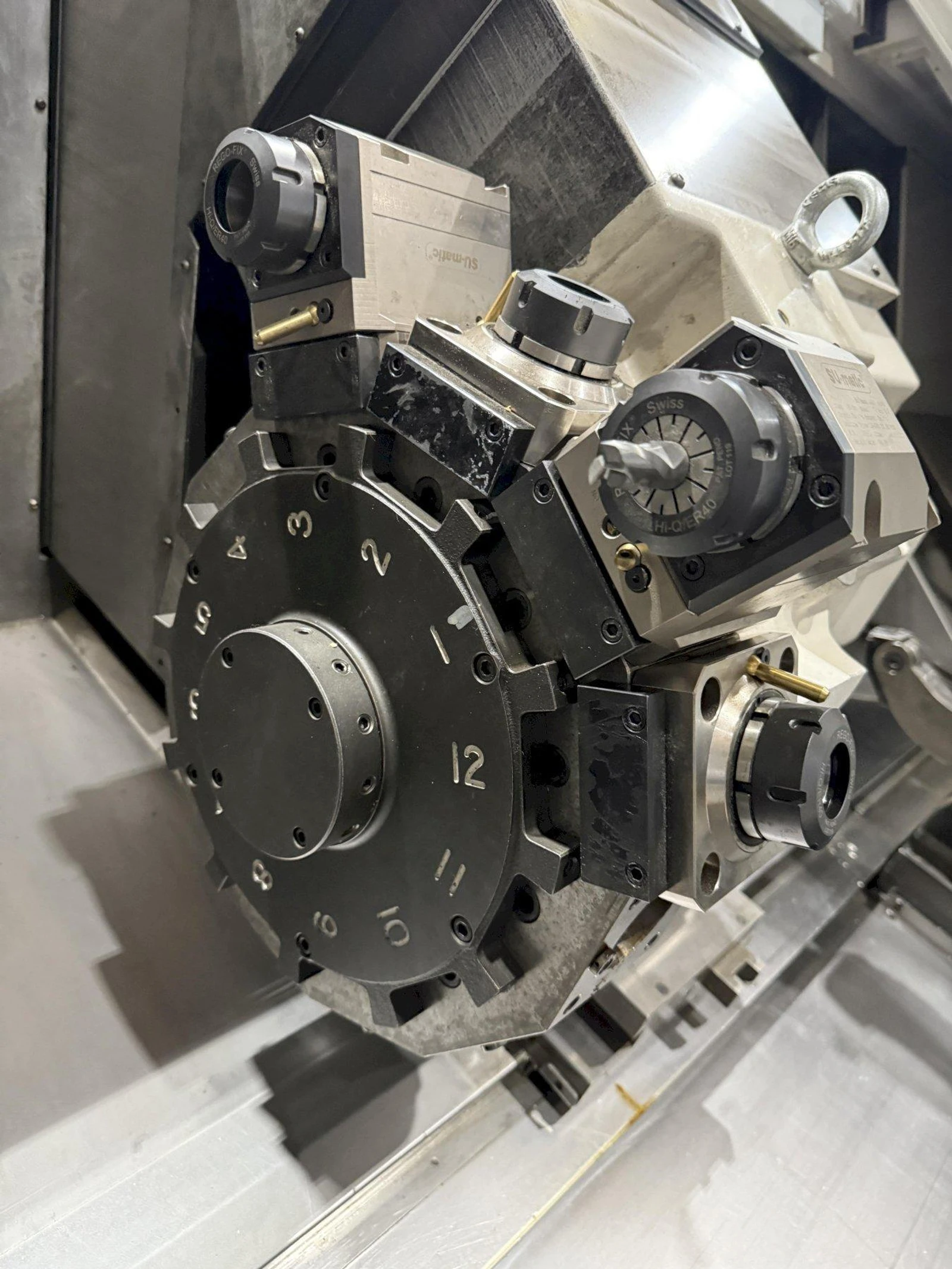

| Turret Capacity | 12 |
| Tailstock (Yes/No) | yes |

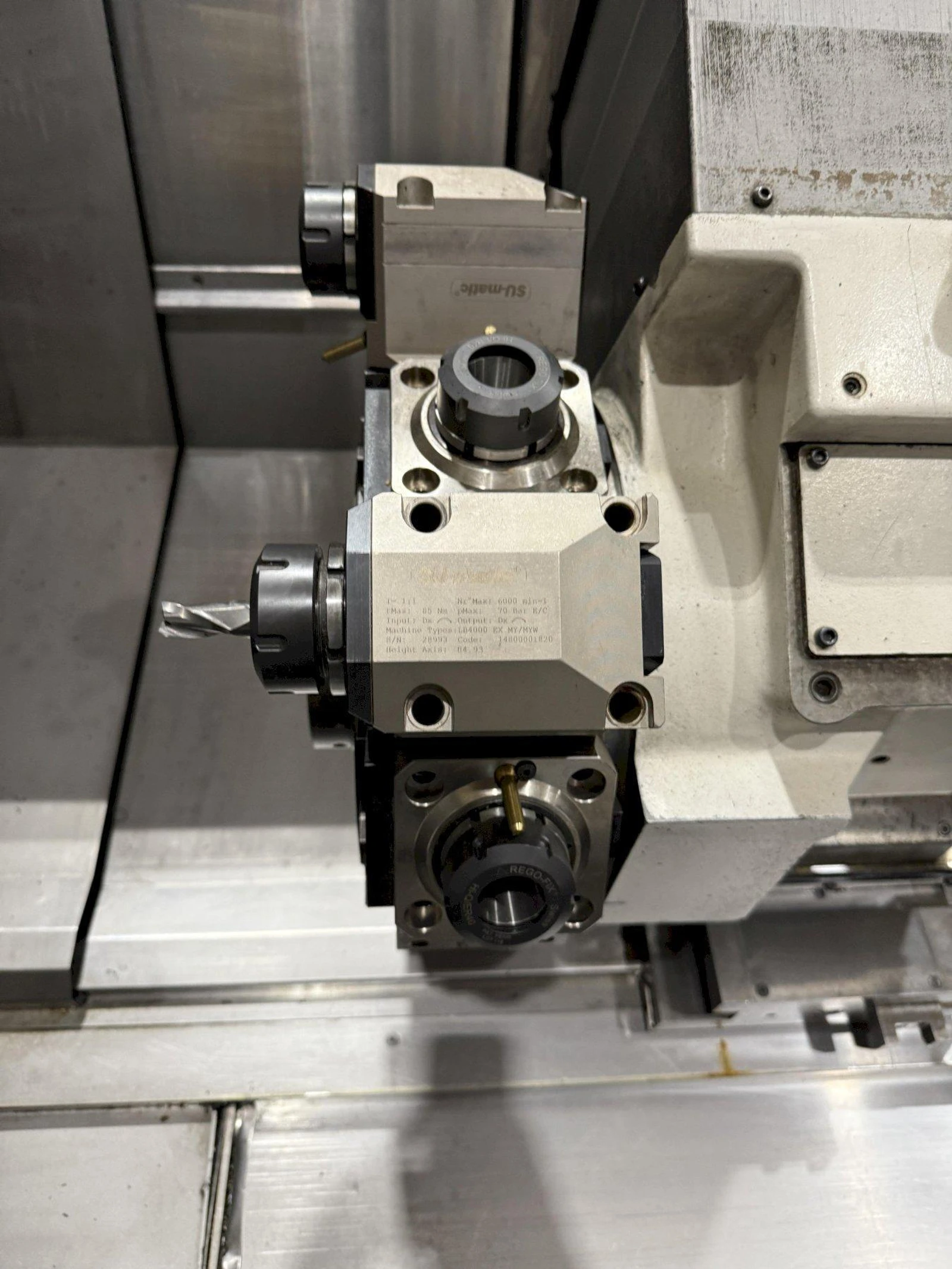

| Live Tooling | yes |
| Live Tooling Speed | 6,000 rpm |
| Live Tooling Motor | 7.5 hp |
| Y Axis (Yes / No) | yes |
| Sub Spindle | no |
| Machine Dimensions | 217" x 99" x 94" |
| Machine Weight | 26500 pounds |
|

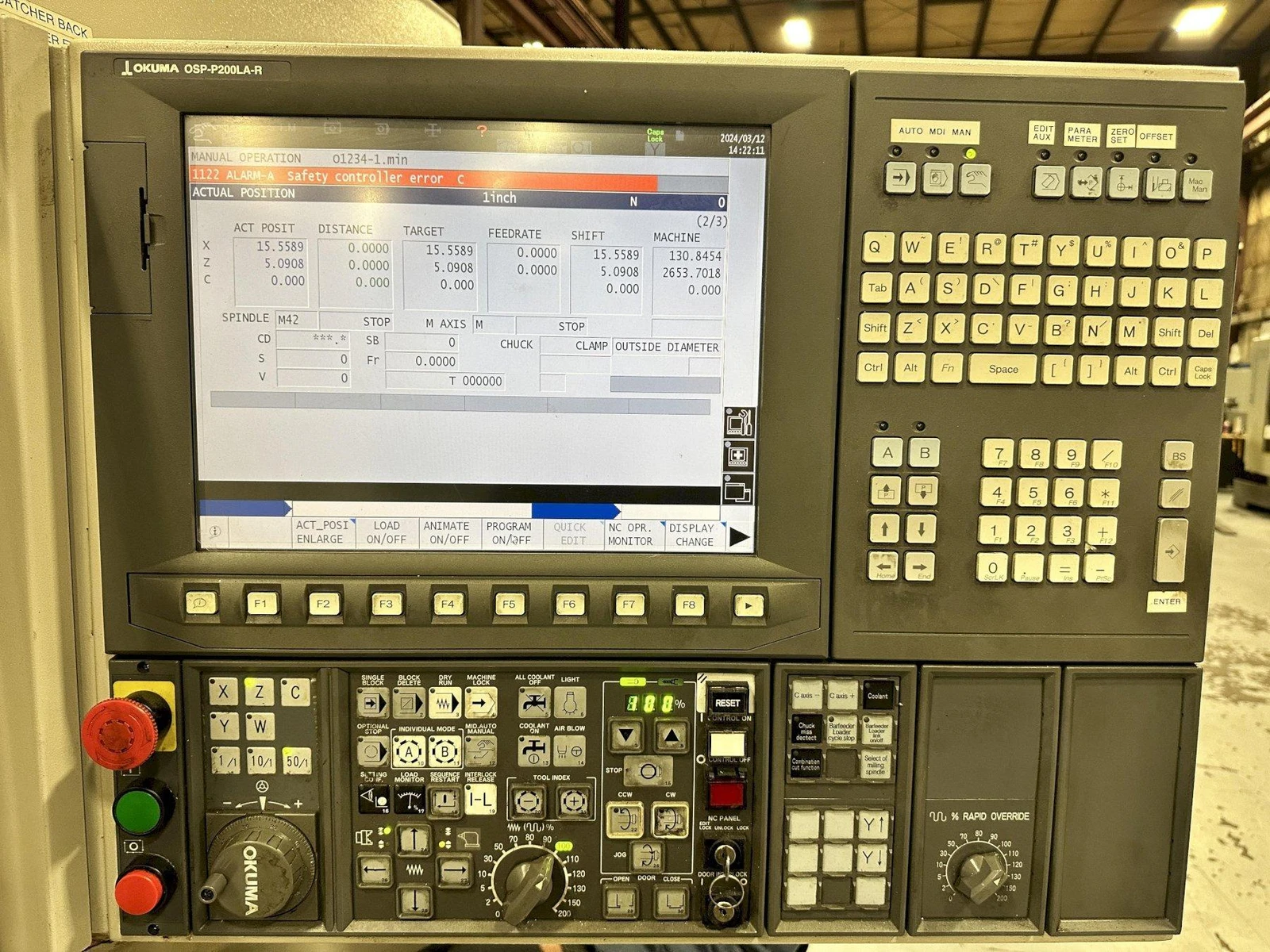

- OSP-P200LA CNC Control

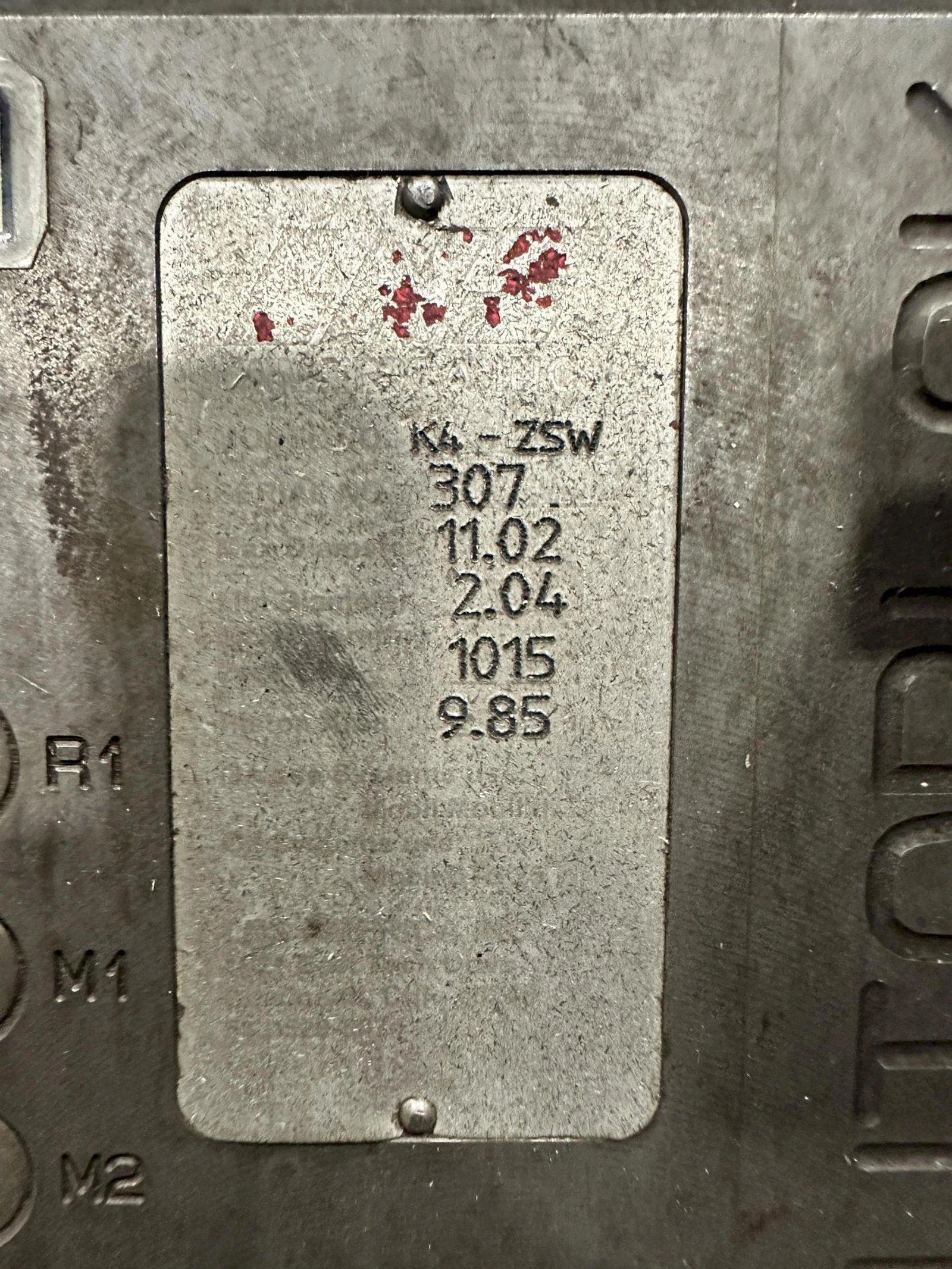

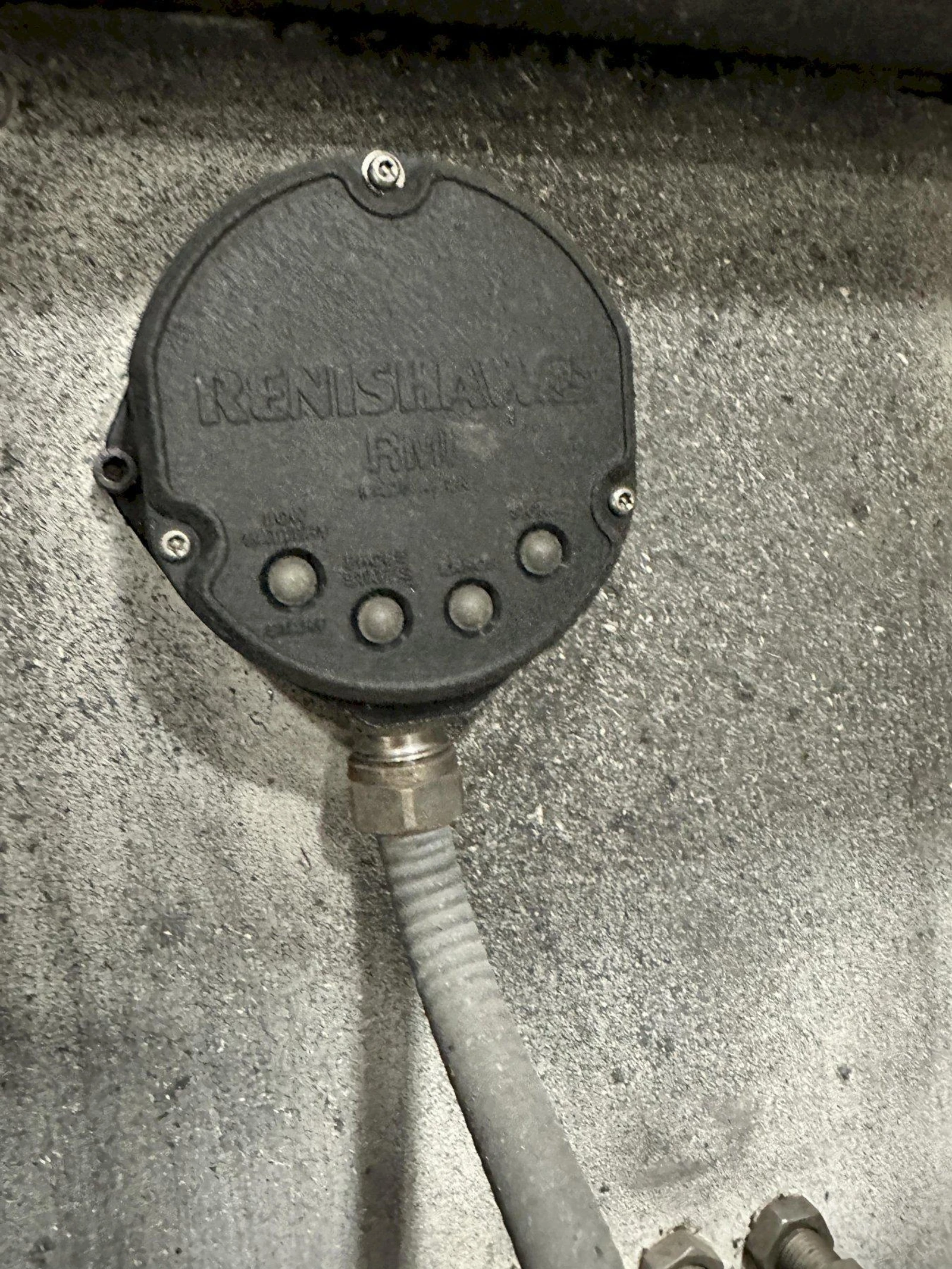

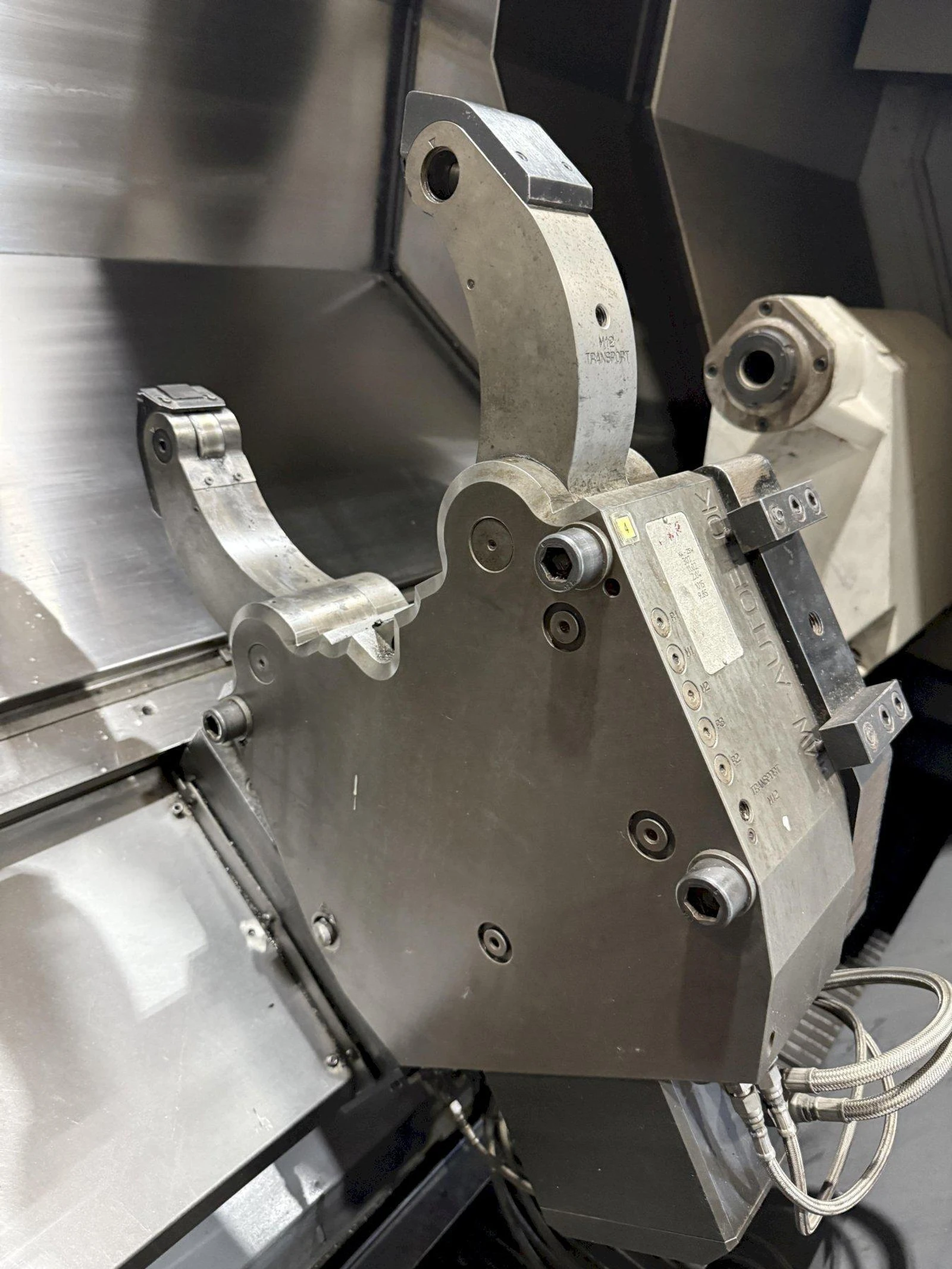

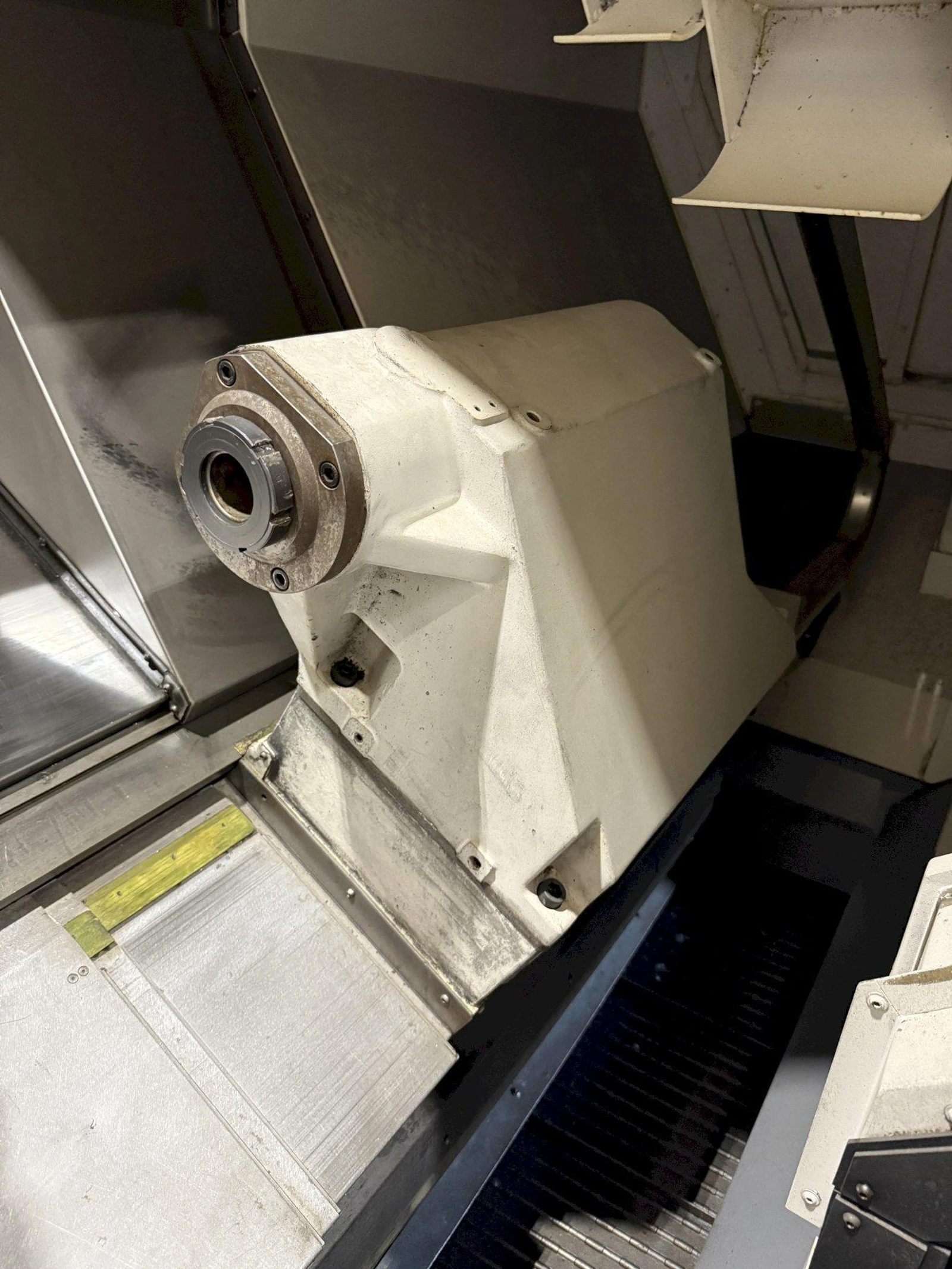

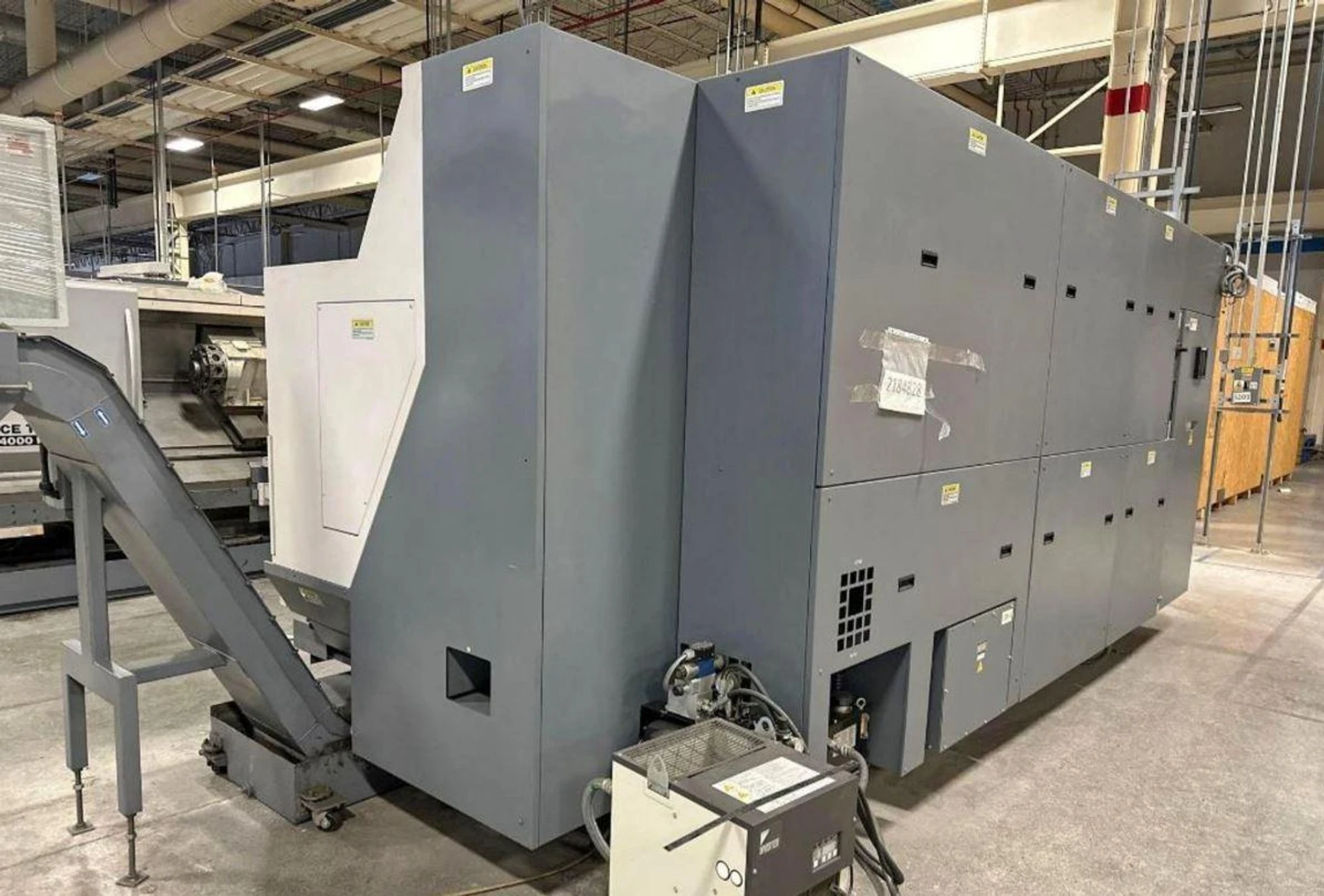

- Schunk Rota TP350-115 Air Chuck - Tool Presetter - Renishaw Probing (Receiver) - NC Tailstock - Chip Conveyor - Coolant Tank & Pump - Live Tooling - Y Axis - SMW Autoblock Hydraulic Steady Rest K4-ZSW - High-G Control - Tool Wear Compensation |
|
