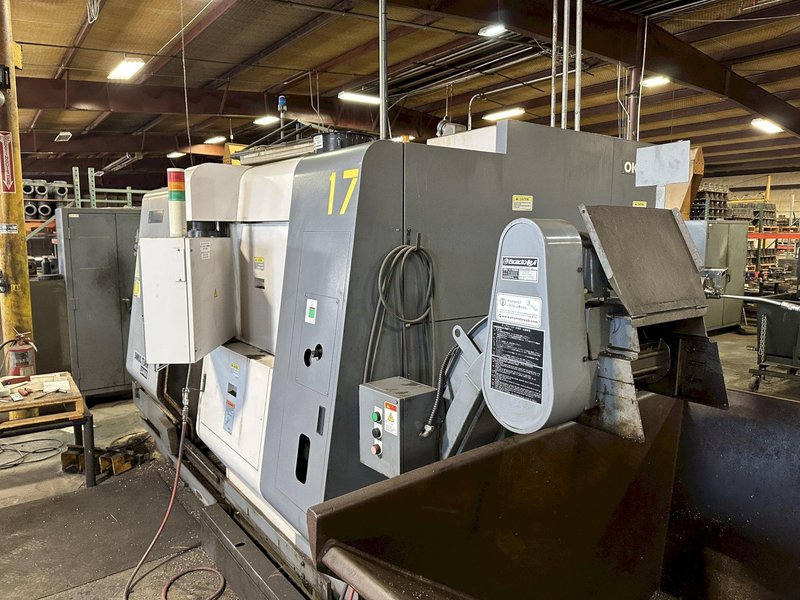

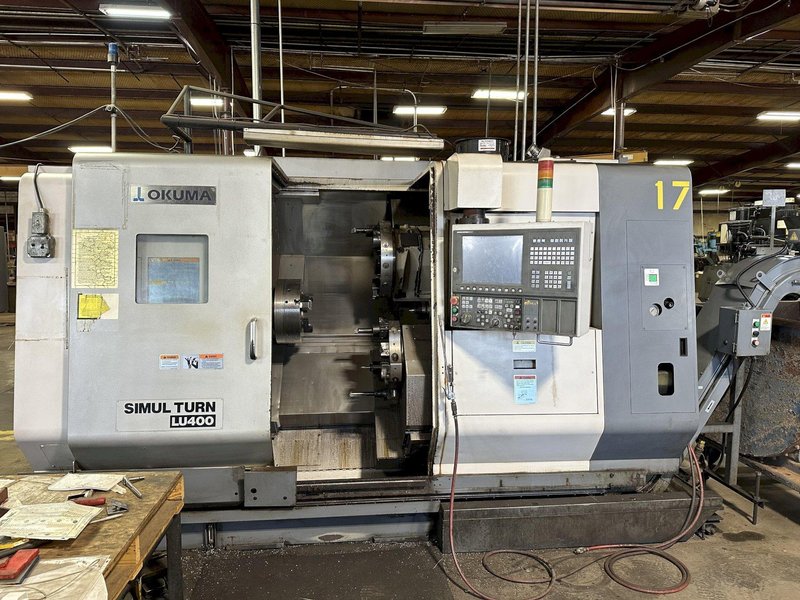

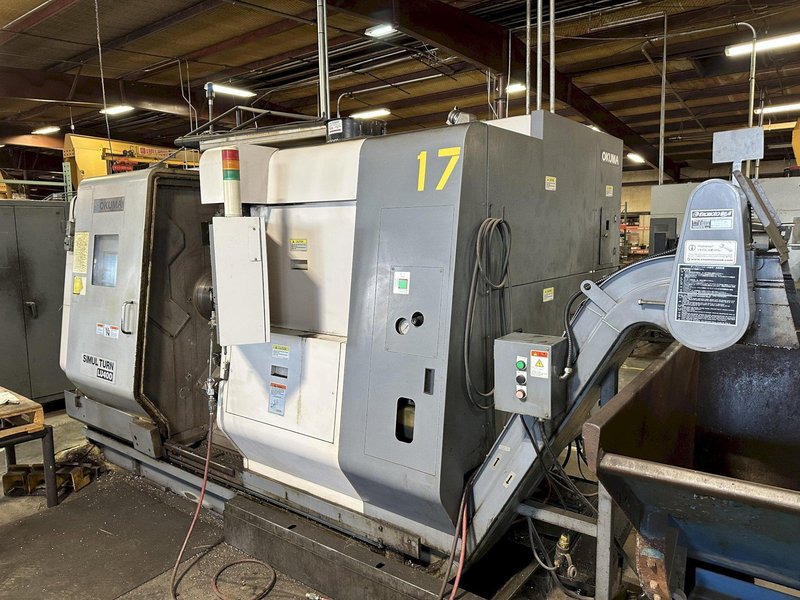

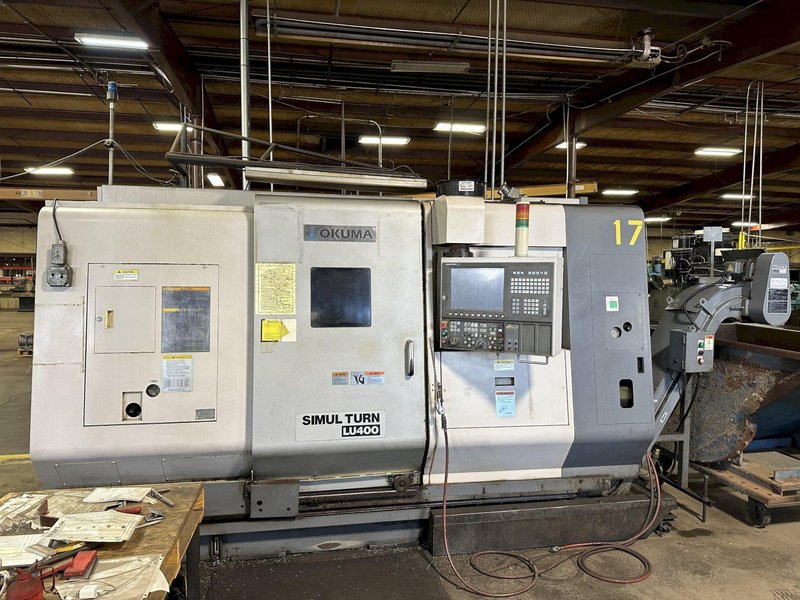

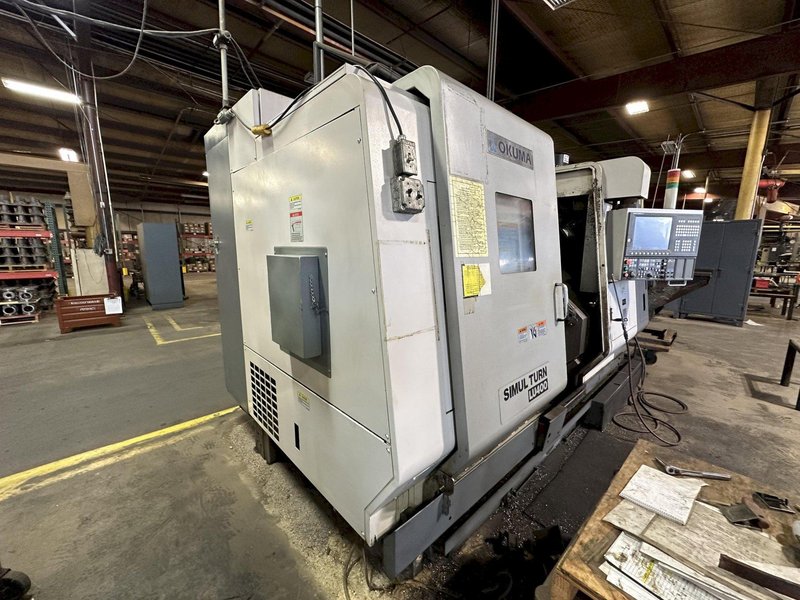

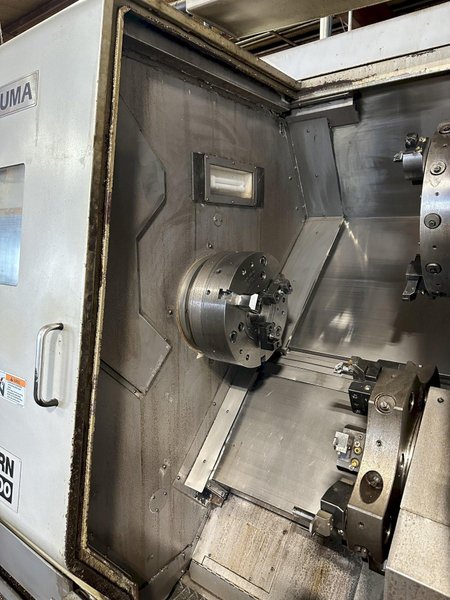

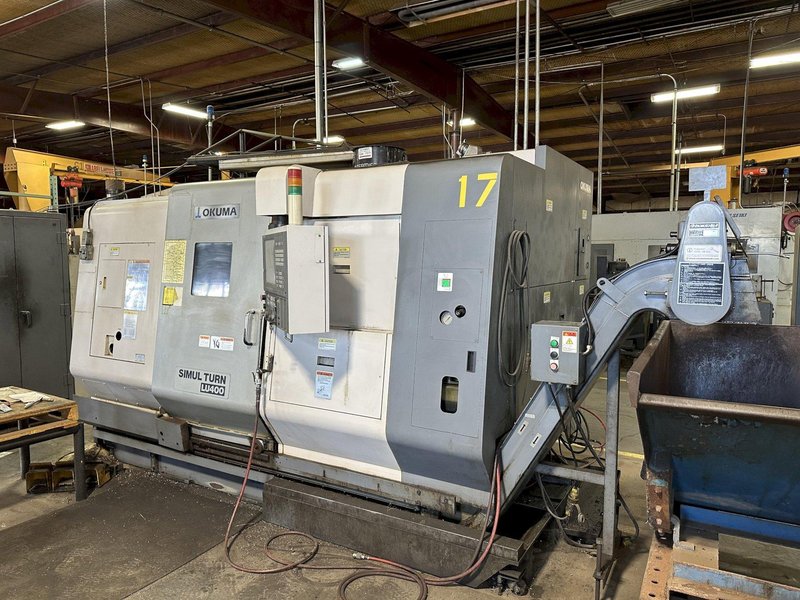

2006 OKUMA LU400 2SC650 4 Axis CNC Lathe

Name: 2006 OKUMA LU400 2SC650 4 Axis CNC Lathe
Brand: OKUMA
SKU: 20736
Availability: PreOrder

Brand

OKUMA

Not specified

Type Of CNC Control	OSP 200L
# Axis	4

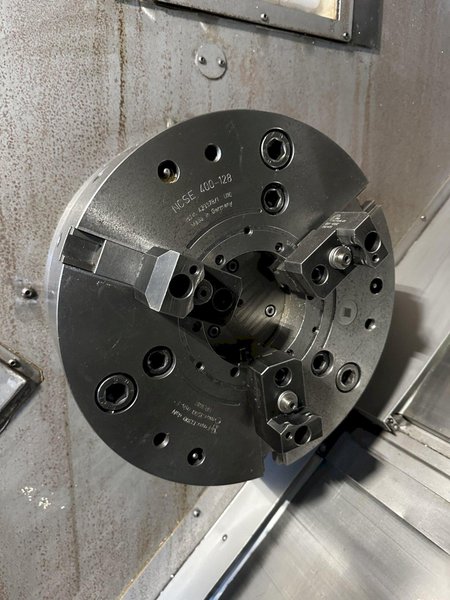

Chuck Size	16 inches
Swing	25 inches
Turning Diameter	18 inches
Center Distance	25 inches
Bar Capacity	4.3 inches
Spindle Bore	5.0 inches
Spindle Speed (RPM)	3800
Main Motor	35 HP

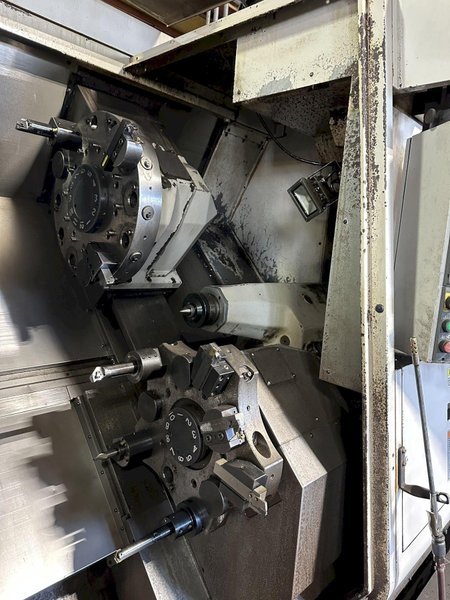

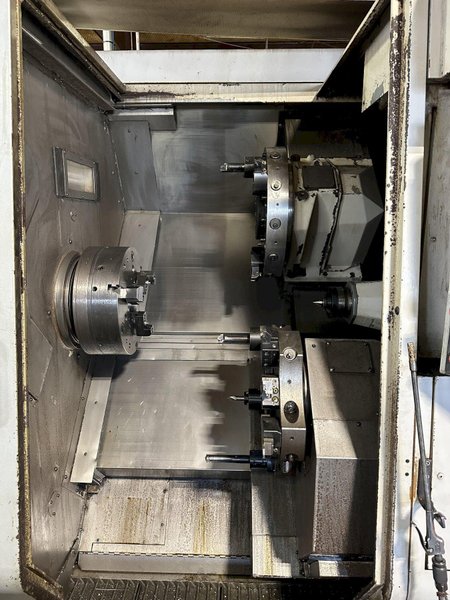

Capacity: Max Turning Diameter: 16.54″ Max Turning Length: 25.59″ Max Bar Capacity: 3.15/4.33″? Max Swing over bed: 25.59″ Max Swing over carriage: 16.54″ Distance between Centers:26.59″ Max Weight between Centers: 1320 lbs Travels: X Axis Travel Upper: 11.73″ X Axis Travel Lower: 7.67″ Z Axis Travel Upper: 26.57″ Z Axis Travel Lower: 26.38″ Rapid Traverse X Axis: 984 IPM Rapid Traverse Z Axis: 984 IPM Spindle: Spindle Bore: 3.5″ Spindle Nose: A2-8 Spindle Speed: 45-3800 RPM Main Spindle Power: 35 HP Turret: Upper Turret Capacity: 12 Stations Lower Turret Capacity: 10 Stations Turret Index Time: 0.2 Second Tailstock: Taper: MT 5 Tailstock Quill Dia: 3.94 Tailstock Quill Travel: 5.91 General: Power: 40 kva, 220/480v 3-Phase Overall Dimensions: 137 X 85 X 86″ High Overall Dimensions: 169 X 85 X 86″ with Chip Conveyor Weight: 19,800 lbs
