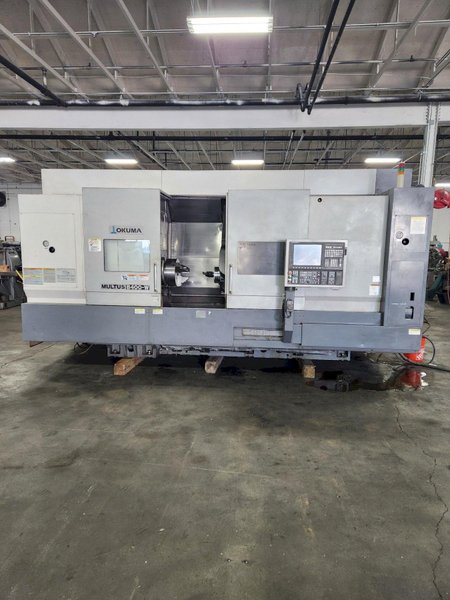

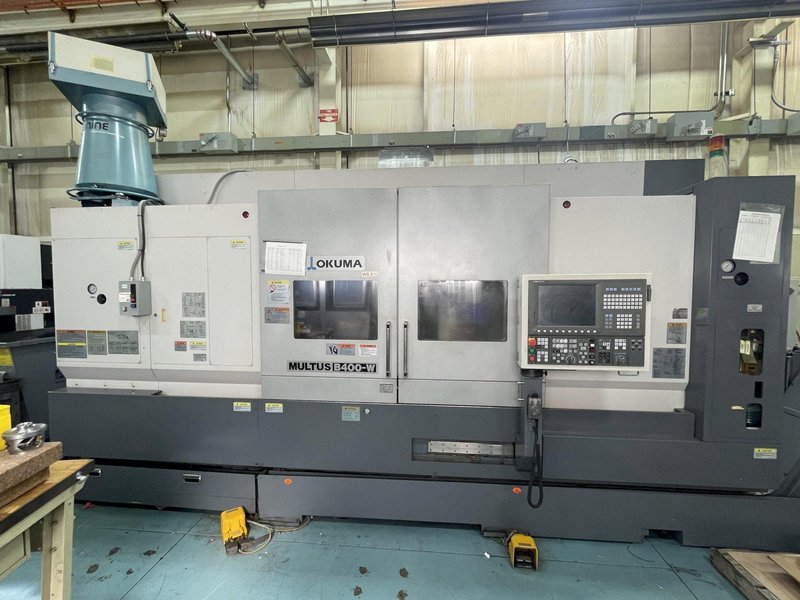

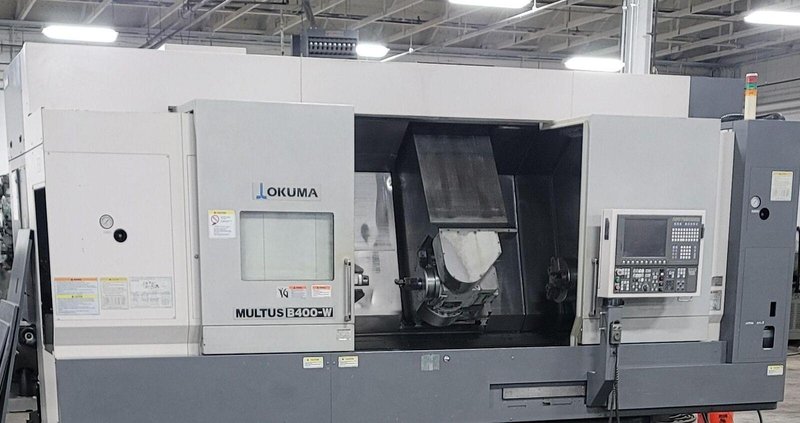

2008 OKUMA Multus B400W CNC Turning Center - 40 ATC, 2800 RPM, 60" Centers

Name: 2008 OKUMA Multus B400W CNC Turning Center - 40 ATC, 2800 RPM, 60" Centers
Brand: OKUMA
SKU: 56228
Availability: InStock

Brand

OKUMA

Minnesota

CNC Control	yes
Type Of CNC Control	Okuma OSP P200L CNC Control
Max Machining Diameter	27.9"
Max Working Distance Between Spindles	60.00"

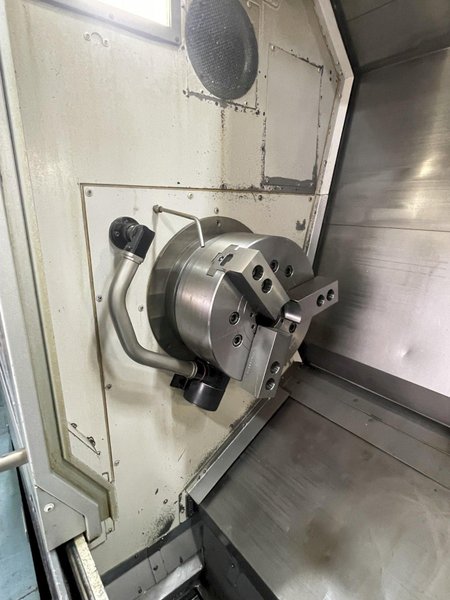

Main Spindle Chuck Size	15"

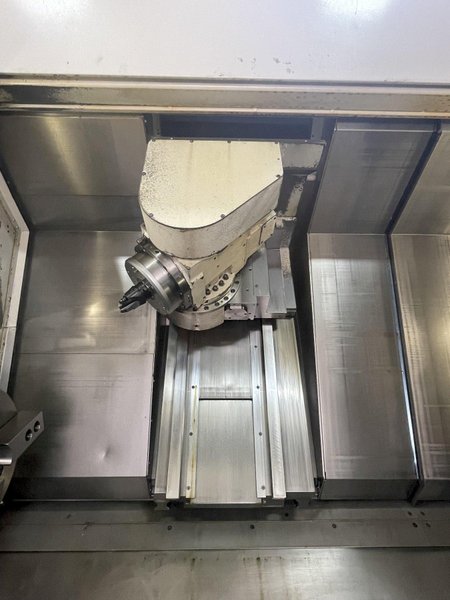

X-Axis (Cross Travel Of Universal Head)	27.95"
Z-Axis (Longitudinal Travel Of Universal Head)	60.00"
Y-Axis (Travel Of Universal Head)	4.33"
Y Axis (Yes / No)	yes
W-Axis (Sub-Spindle Slide)	61.02"
C-Axis (Indexing Positions Of Main Spindle)	.001°
C2-Axis (Indexing Positions Of Sub-Spindle)	.001°
Main Spindle Bore	5.91"
Main Spindle Speed Range	38 - 2,800 RPM
Main Spindle Nose	A2-11
Main Spindle Horsepower	40/30 HP
Automatic Tool Changer Capacity (ATC)	40 Total
Live Tooling Speed Range	50 - 10000 RPM
Tool Taper In The M-Spindle	Capto (C6)
B Axis Indexing Angle 225 Degree At	0.001″
Live Tooling Horsepower	10/13 HP

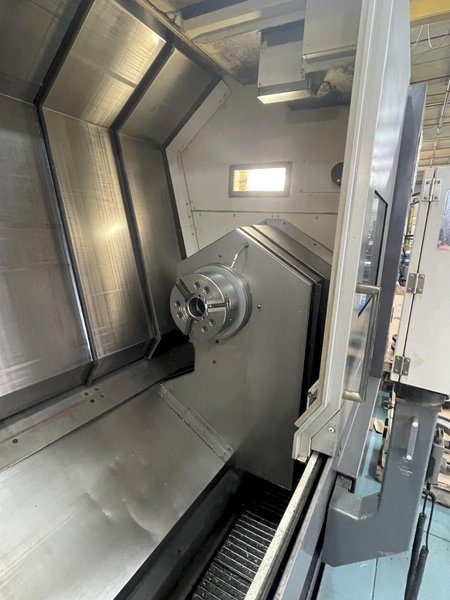

Sub Spindle Chuck Size	12″ Chuck
Sub-Spindle Speed Range	50 - 3,800 RPM
Opposing Spindle Speed Range Auto	2 – Speed
Sub Spindle Bore Dia	4.72"
Sub-Spindle Horsepower	30/20 HP

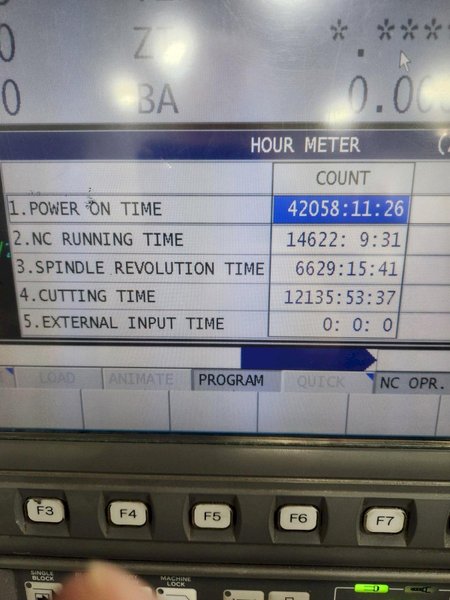

Machine Cutting Hours	12135 Hours
Dimensions	L226.38" x W104.73" x H118"
Machine Weight	34000 Lbs.

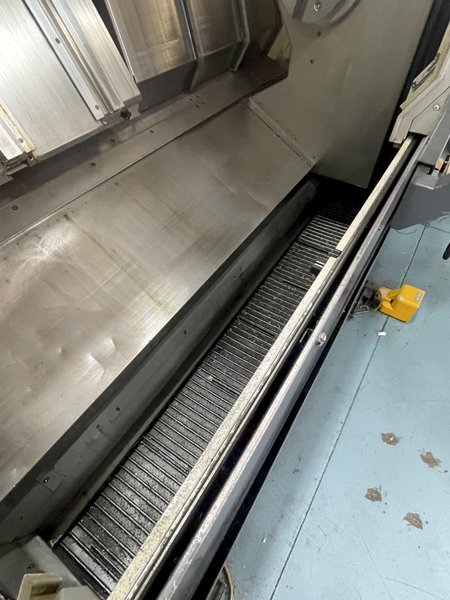

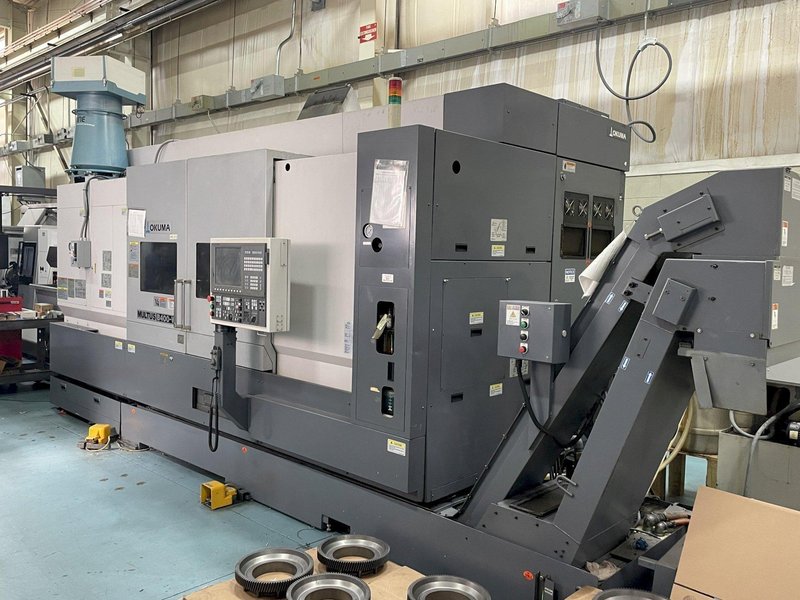

EQUIPPED WITH: Okuma OSP P200L CNC Control, 15" 3-Jaw Chuck on Main 12" Chuck on Sub Spindle 40 Station Automatic Tool Changer, CAPTO C6 Spindle Taper Lots of Tooling - All Pocket have toolholders Touch Setter M Coolant System Chip Conveyor Foot Switches
