Bradbury Rafted Tube Mill

Maximum Round:                 5.00" Dia.

Maximum Square:                5" x 5"

Maximum Wall Thickness:        0.250"

Maximum Coil Weight:           20,000 lbs.

Line Speed:                    30 to 150 FPM

Line Direction:                Right to Left

Consisting of the following:

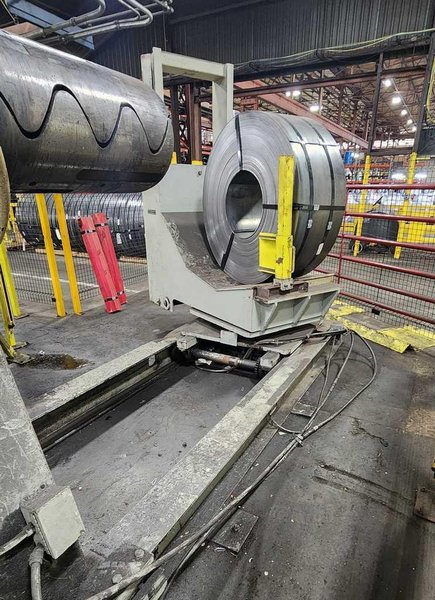

-Bradbury Coil Car:

  20,000 lb. Capacity

  Side Mast Type

  0 - 28" Vertical Coil Lift

  Vertical Lift thru Hydraulic Cylinder

  Rotating Base

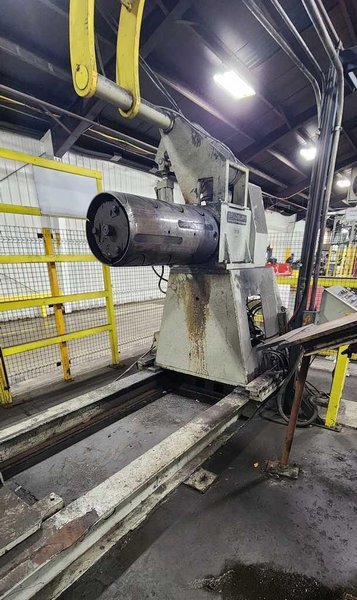

-Bradbury Uncoiler:

  Model:  SR-20

  20,000 lb. Capacity

  36" Maximum Coil Width

  3 Segment Pumpkin Tooth Mandrel

  72" Maximum Coil O.D.

  18.50" - 24.50" Expansion Range

  Hydraulic Wedge Type Expansion

  Air Cooled Drag Brake (Single Caliper)

  Hydraulic Feedup Drive

  Sliding Base

  Overarm Holddown Roll

-Bradbury Peeler/Feed Table:

  Hydraulic Powered Table Lift & Extension

  Pivot Mount Design

-Bradbury 7 Roll Roller Straightener:

  Model:  RS-46

  (7) - 4" Diameter Work Rolls

  24" Max. Material Width

  0.164" Max. Material Thickness (Up to 70,000 KSI Steel)

  6" Diameter Air Loaded Pinch Rolls

-Bradbury Barrier Feed Table:

  Roll in Type

  24" Maximum Material Width

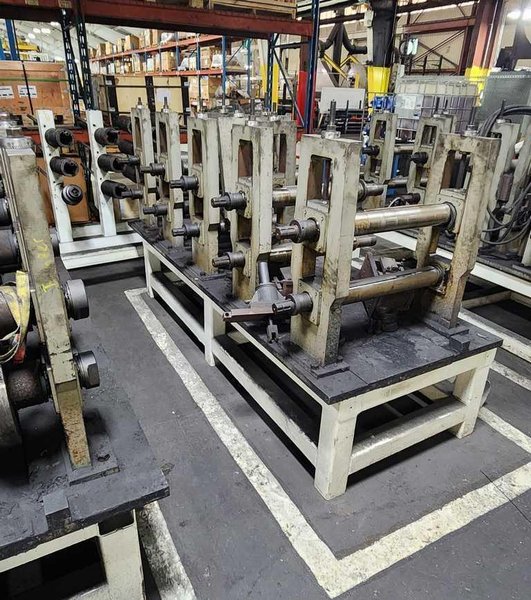

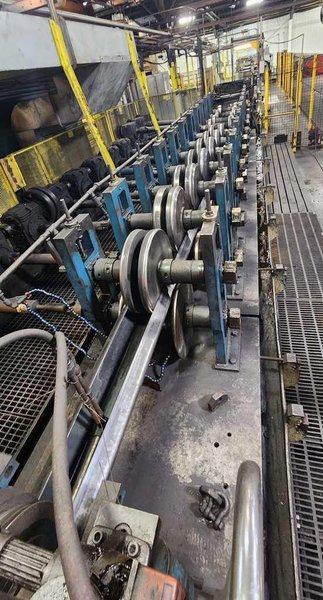

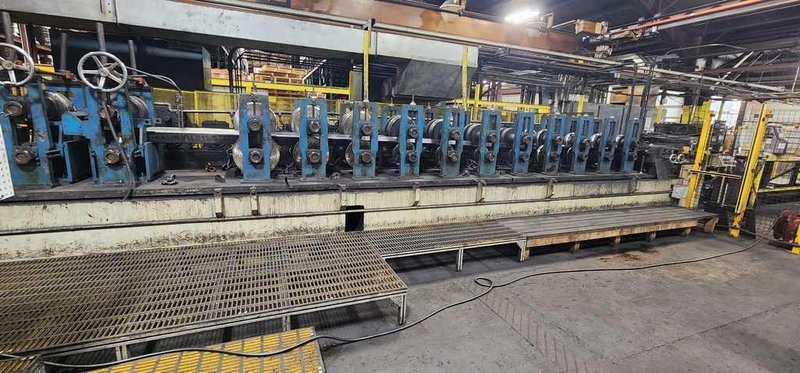

-Bradbury Rafted Rollformer:

  Series:  400

  Model:  425-22-16, Geared Head

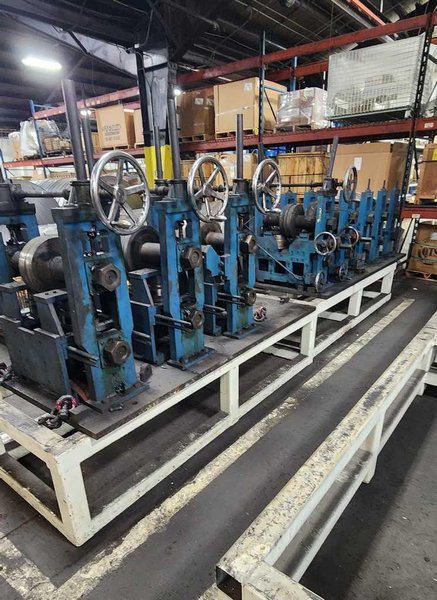

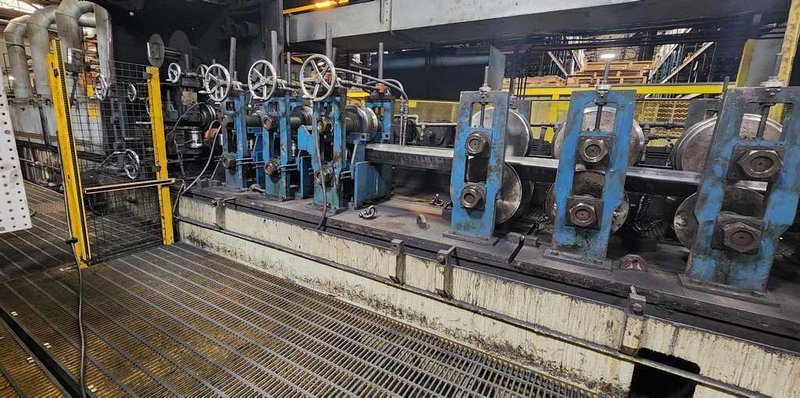

  16 Forming Stations on an extended Base

  4 Roll Mill Tech Weld Box

  3.50" Diameter Spindles

  6" to 14" Vertical Spindle Adjustment Range

  21.50" Horizontal Center Distance

  22" Roll Space

  Speed:  30 - 150 FPM

  150 HP DC Drive

  Equipped with Reverse, Jog and Dynamic Braking

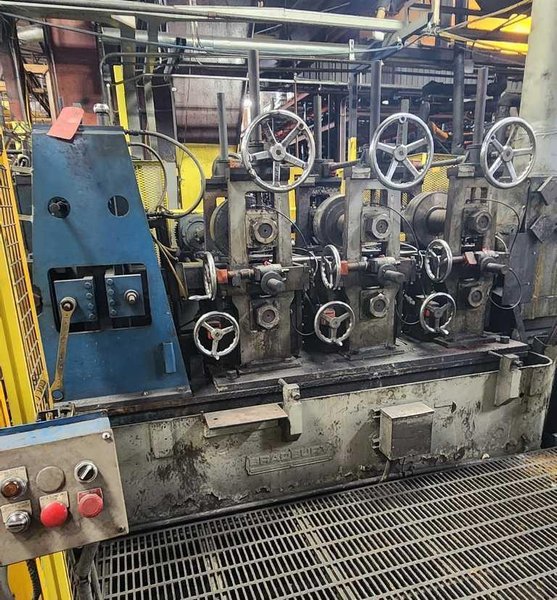

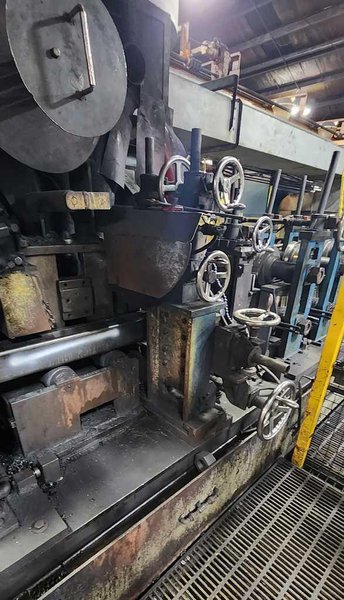

-Bradbury Rafted Sizing Unit Stand:

  (3) Forming Stands mounted on an independent Common Base

  (3) Fin Pass Stands

  Rafted Turkshead

  Driven by 30 HP DC Motor

Includes:

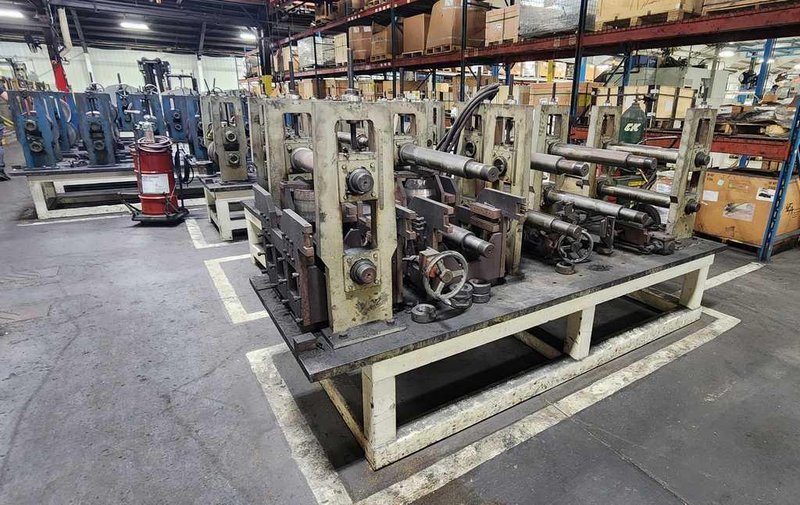

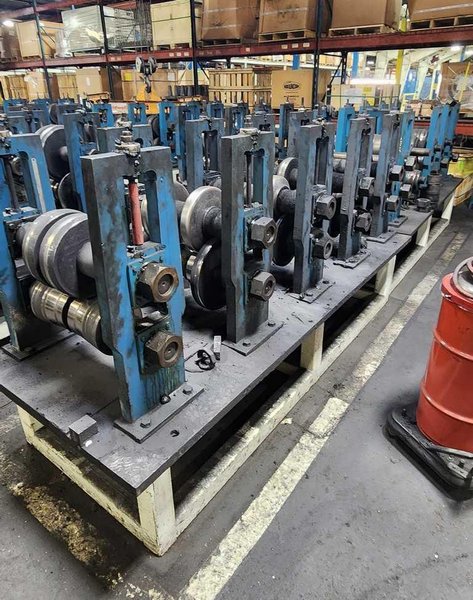

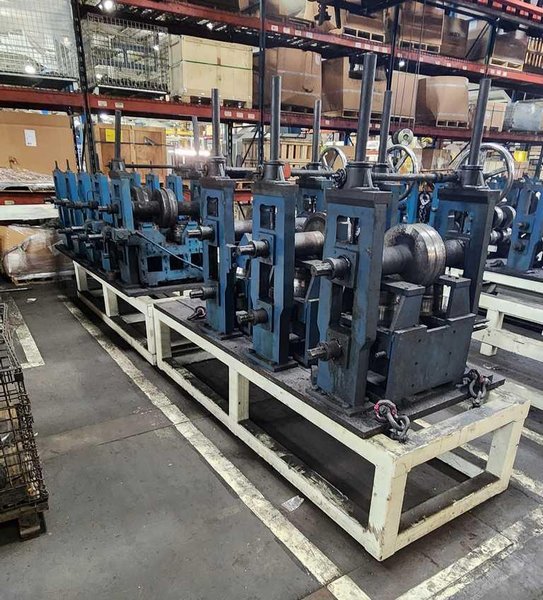

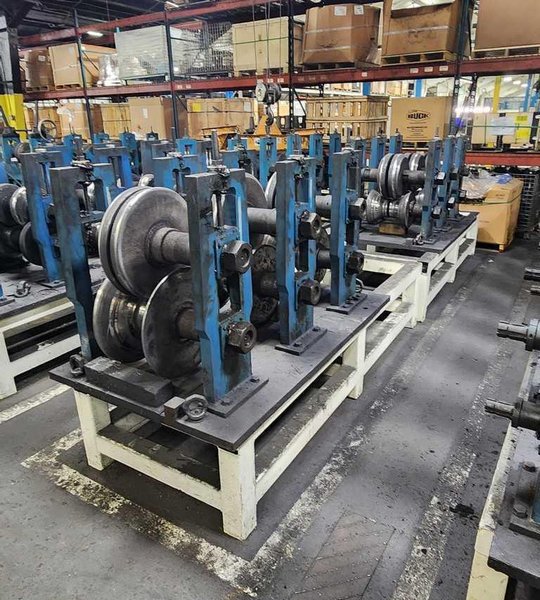

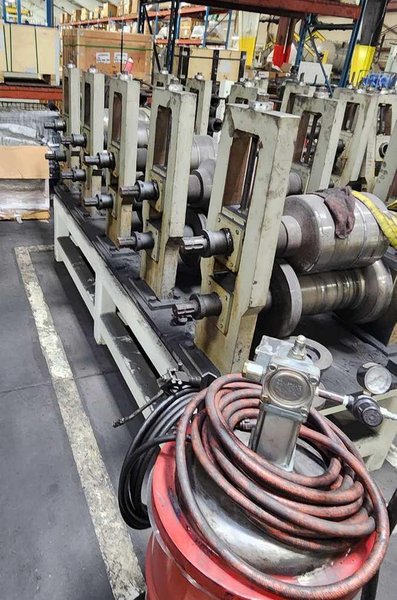

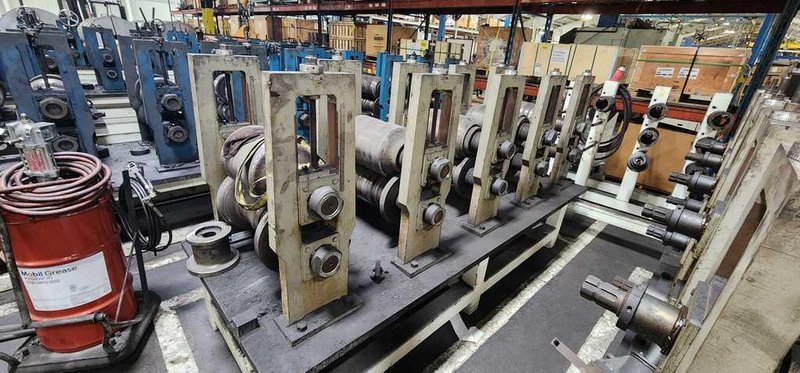

-Complete "Extra Set" of Rafted Stands (Mill and Sizing Unit)

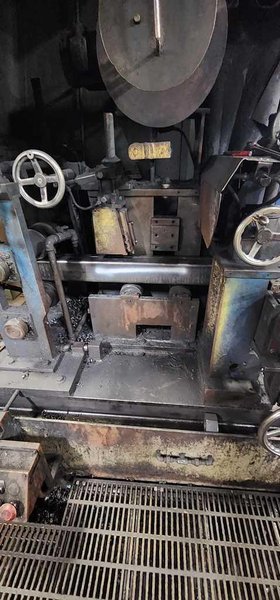

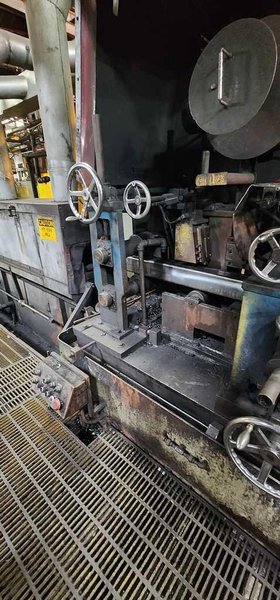

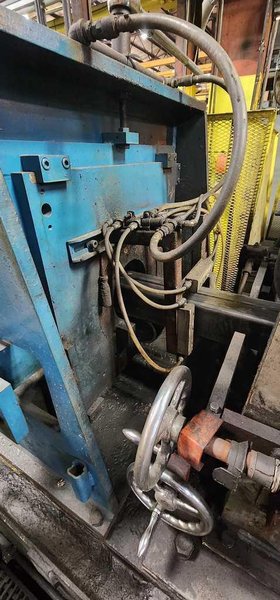

-Hydraulic Scarfing System (Outside Only)

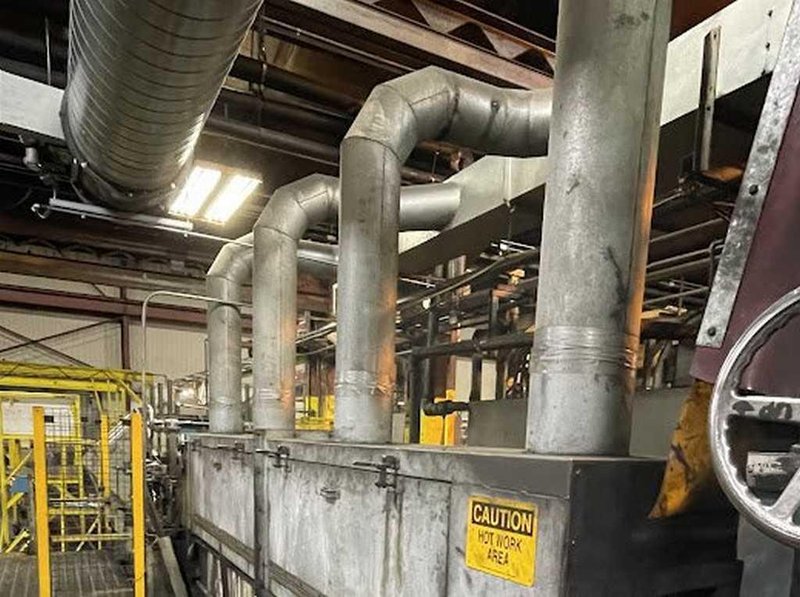

-15' Long Cooling Trough with Spray Nozzles

-Turkshead Straightener

-Less Tooling, Welder and Cut-Off.
