New ECCO Model 3RSP 120/5 Plate Bending Roll. Single Initial-Pinch Type. Capacity - mild steel - 5' x 10 Ga.
Brand
Category
Model
3RSP 120/5
Stock #
4723
Year
Not specified
Condition
New
Location
New York
|

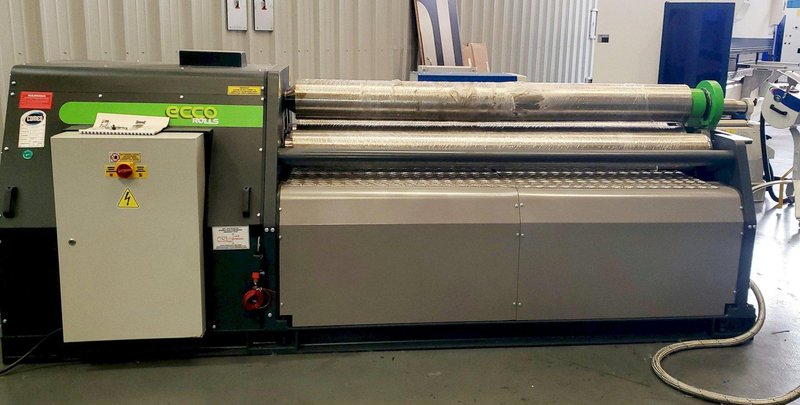

New ECCO Model 3RSP 120/5 Plate Bending Roll. Single Initial-Pinch Type.
Capacity - mild steel - 5' x 10 Ga.
Specifications:

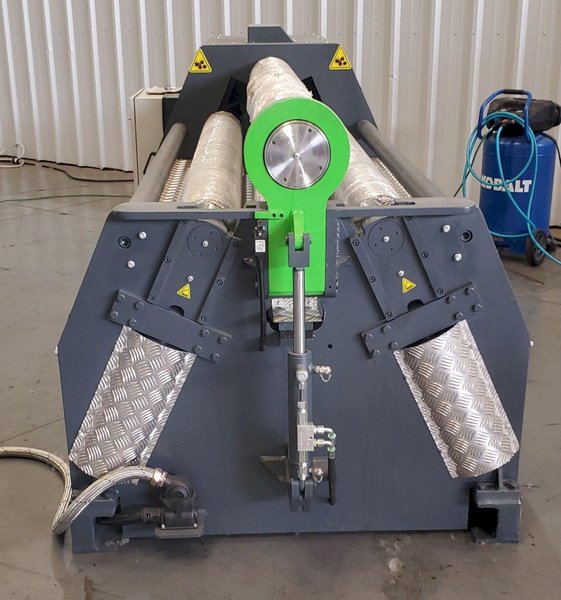

Overall length of rolls - 61" Diameter of all rolls – 4.72" Motors - 2 HP drive motor; 1 HP hydraulic system motor Approximate rolling speed - 21.00' per minute Net weight - approximately 4070# Features: All steel frame Most rigid frame, drop end and clamping roll parallelism unit Machine frame stress relieved Upper and lower pinch rolls driven All rolls mounted in ball or roller bearings Powered hydraulic adjustment of the lower pinching roll Powered hydraulic adjustment of the rear bending roll, with push button control and electronic digital readout for roll position Design for lineal guided rear roll to minimize flat ends Hydraulic drop end Top roll permanently balanced when the drop end is opened Standard Equipment: Main drive motor with magnetic brake

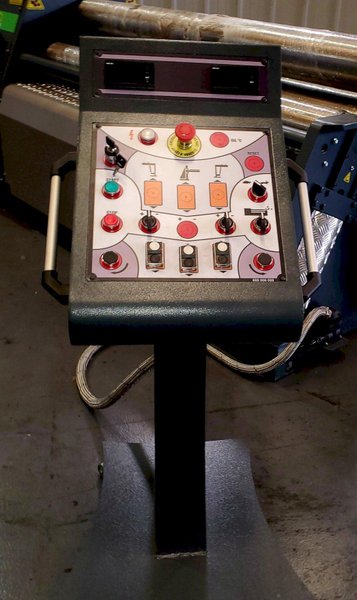

Hydraulic unit with motor and controls for lower roll and rear bending roll adjustment and for the hydraulic drop end SAE 1050 high strength steel rolls heat treated (hardened) to 55 - 60 Rc Portable control console mounted on wheels for operator convenience (allows operator to position for his/her convenience) Components from American and European sources Electrics for 3/60/220 or 440, with overload and under voltage protection. Low voltage at the controls. Safety cable at front and rear of machine Cone bending attachment Powered tilting of rear bending roll for cone rolling Electronic digital readout to indicate position of the rear bending roll Grooves in lower rolls for 1/4", 3/8", 1/2" round bar (must be ordered from the factory to be included at no charge) Metal enclosures European made Instruction manual
FOB: Maryland |
