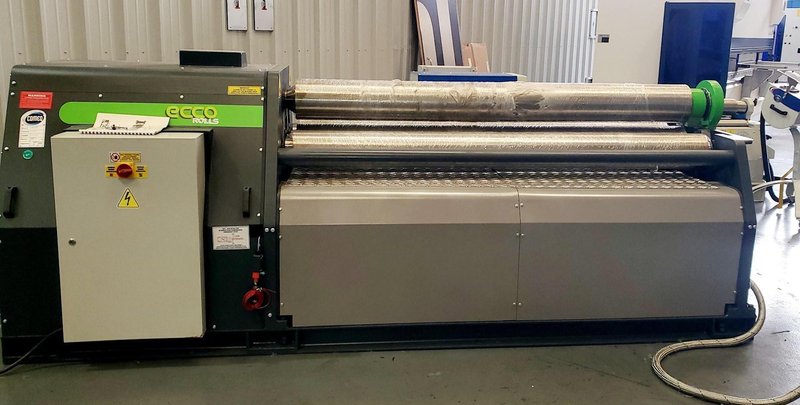

New ECCO Model 4RDP 160/5 Plate Bending Roll. 4 Roll Double Pinch Type. Capacity - Mild Steel - 5' x 1/4"
Brand
Category
Model
4RDP 160/5
Stock #
5040
Year
Not specified
Condition
New
Location
Maryland
|
New ECCO Model 4RDP 160/5 Plate Bending Roll.
Four Roll Double Pinch Type. Capacity - Mild Steel - 5' x 1/4"
Specifications:
Capacity - mild steel.........5' x 1/4"
Overall length of rolls........61" Diameter of all rolls.......5.90" (Diameter if 160mm chosen is 6.30")
Motors.......3 HP drive motor; 1.5 HP hydraulic system motor Approx. rolling speed......20.00' per minute Approx. Weight......5,214 Lbs.
Equipped with: All steel frame
Most rigid frame, drop end and clamping roll parallelism unit
Machine frame stress relieved Upper and lower pinch rolls driven
All rolls mounted in ball or roller bearings
Powered hydraulic adjustment of the lower pinching roll, with
independent pinching pressure adjustment
Powered hydraulic adjustment of the two side bending rolls, with push
button control and electronic digital readouts for roll position

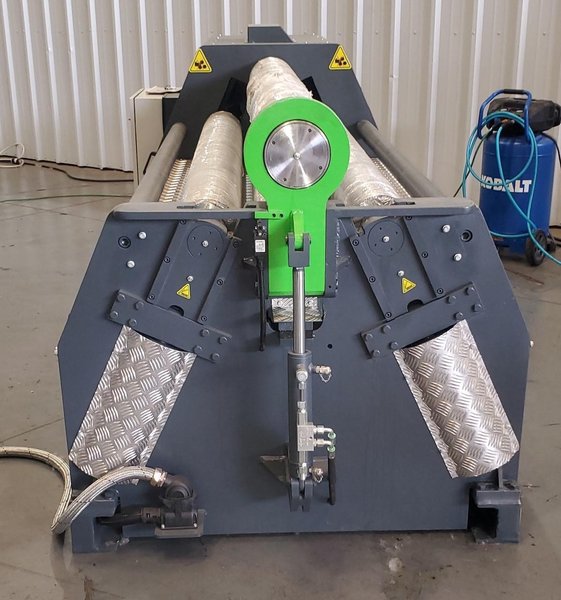

Design of lineal guided lower rolls to minimize flat ends Hydraulic drop end
Top roll permanently balanced when the drop end is opened
Standard Features: Main drive motor with magnetic brake
Hydraulic unit with motor and controls for lower roll and side bending roll adjustment and for the hydraulic drop end
SAE 1050 high strength steel rolls heat treated (hardened) to 55 - 60 Rc

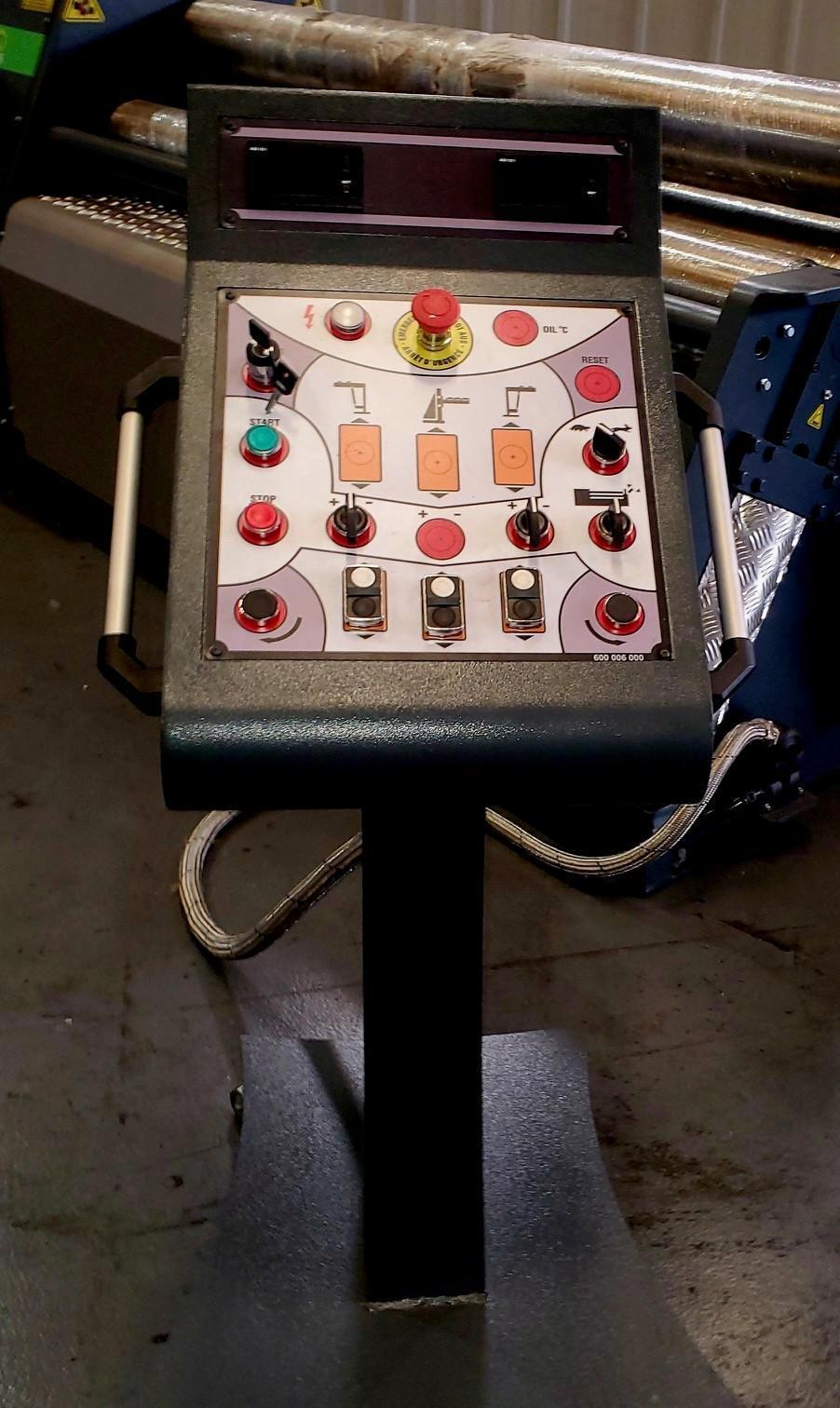

Portable control console mounted on wheels for operator convenience (allows operator to position for his/her convenience)
Components from American and European sources
Electrics for 3/60/220 or 440, with overload and undervoltage protection.
Low voltage at the controls. Safety cable at front and rear of machine
Cone bending attachment
Variable pinch roll pressure
Powered tilting of side bending rolls for cone rolling
Electronic digital readouts to indicate position of both side bending rolls
Metal enclosures European made
**Attached pictures are sample photos of machine. FOB: White Marsh, MD |
