New ECCO Model 4RDP 180 / 6 Plate Bending Roll. Four Roll Double Pinch Type - Includes: 2 Speed Hydraulic Drive Capacity - mild steel - 6' x 1/4"
Brand
Category
Model
4RDP 180/6
Stock #
4748
Year
Not specified
Condition
New
Location
Maryland
|

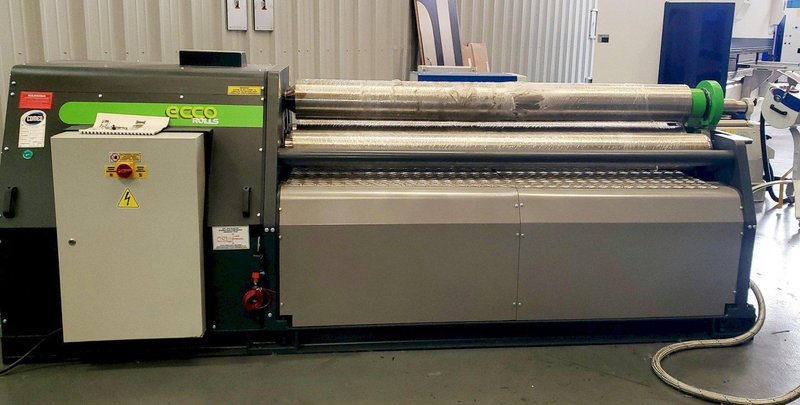

New ECCO Model 4RDP 180/6 Plate Bending Roll. Four Roll Double Pinch Type - Includes: 2 Speed Hydraulic Drive
Capacity - mild steel - 6' x 1/4"
Specifications:

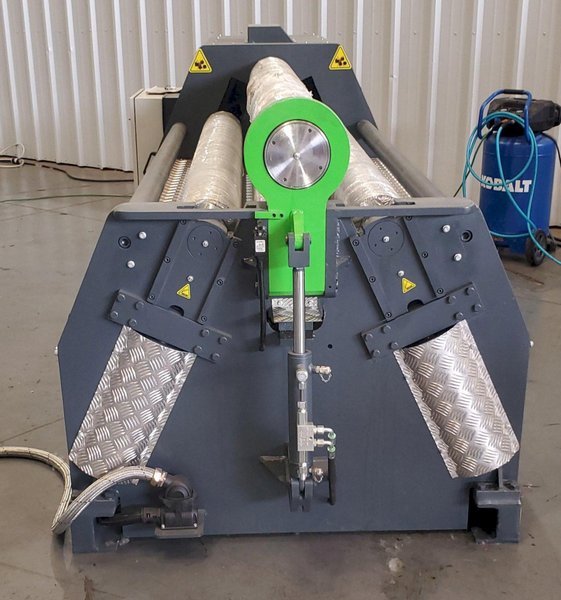

Overall length of rolls - 80" Diameter of all rolls – 7.08" Motors - 4 HP drive motor; 1.5 HP hydraulic system motor Net weight - approximately 7,360 Lbs Dims - 152 x 54 x 51" Features: All steel frame Most rigid frame, drop end and clamping roll parallelism unit Machine frame stress relieved Upper and lower pinch rolls driven All rolls mounted in ball or roller bearings Powered hydraulic adjustment of the lower pinching roll with independent pinching pressure adjustment Powered hydraulic adjustment of the two side bending rolls, with push button control and electronic digital readout for roll position Design for lineal guided rear roll to minimize flat ends Hydraulic drop end Top roll permanently balanced when the drop end is opened Standard Equipment: Main drive motor with magnetic brake

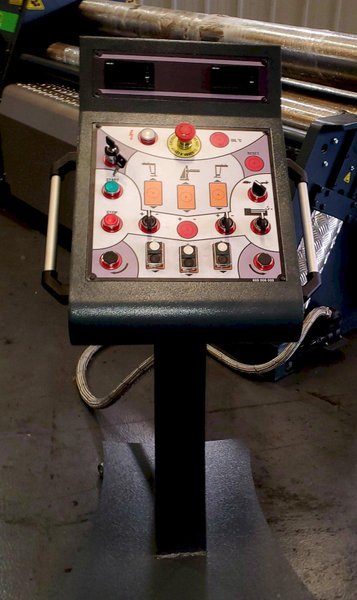

Hydraulic unit with motor and controls for lower roll and rear bending roll adjustment and for the hydraulic drop end SAE 1050 high strength steel rolls heat treated (hardened) to 55 - 60 Rc Portable control console mounted on wheels for operator convenience (allows operator to position for his/her convenience) Components from American and European sources Electrics for 3/60/220 or 440, with overload and under voltage protection. Low voltage at the controls. Safety cable at front and rear of machine Cone bending attachment Powered tilting of side bending roll for cone rolling Variable Pinch Roll Pressure Electronic digital readout to indicate position of the rear bending roll Grooves in lower rolls for 1/4", 3/8", 1/2" round bar (must be ordered from the factory to be included at no charge) Metal enclosures European made Instruction manual
FOB: Maryland |
