NEW 6' X 10 GAUGE GMC MODEL HS-0610MD HYDRAULIC SHEAR

Brand
GMC
Category
Shearing Equipment
Type
Shears, Power Squaring (Ga)
Model
HS-0610MD
Stock #
19124
Year
Not specified
Condition
New
Location
Not specified

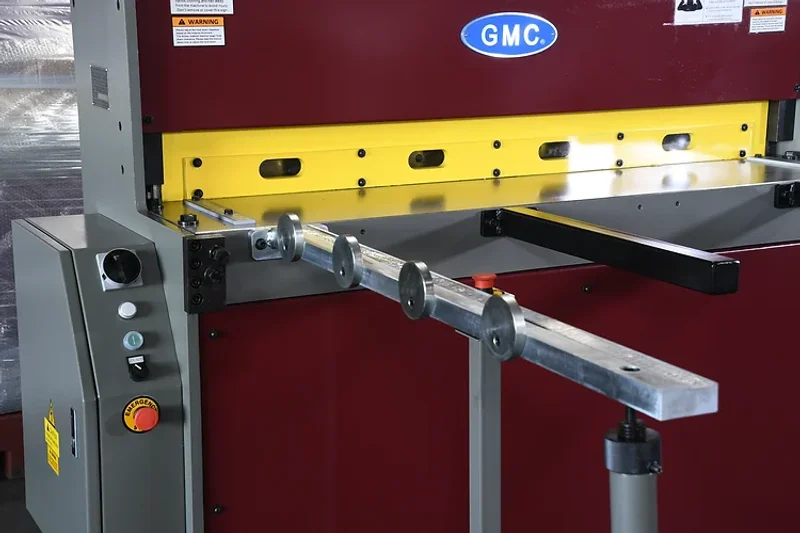

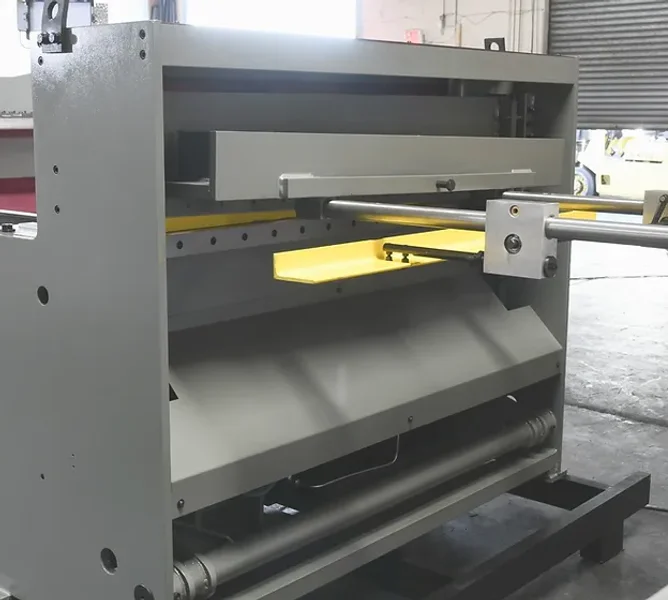

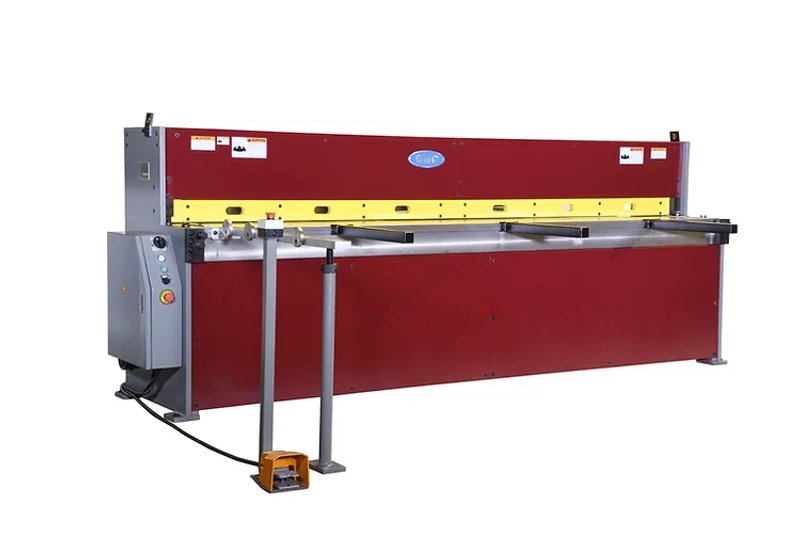

NEW 6' X 10 GAUGE GMC MODEL HS-0610MD HYDRAULIC SHEAR
  • Taiwan machines
  • ISO 9001 certified
  • HD all steel construction for maximum rigidity
  • German logic quiet Rexroth hydraulic system
  • Adjustable stroke from 16-20 strokes per minute
  • 60” long squaring arm with inch / mm scale
  • Spring hold-downs
  • High grade carbon/chrome alloy steel blades and hardened to 62 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
  • Full length with full view finger guard
  • Front supports and (2) side gauges
  • Safety type foot pedal control
  • Jog, single continuous auto operation modes
  • One year warranty for parts


STANDARD EQUIPMENT
  • 26”  manual back gauge with inch/metric dual scale & one side operated hand wheel
  • 60” long squaring arm with inch / mm scale
  • 2 each 24” front support arms
  • 2 each 14” Side gauges with inlaid inch/metric dual scale
  • Spring independent hold-downs
  • Full length finger guard
  • Removable safety foot pedal control
  • One set of blades

OPTIONAL EQUIPMENT
  • Safety fence for enclosure of the back side of the machine…………… $1,150.00
  • Special blade set for stainless steel …………………………………… $1,150.00
  • Rotary phase converter # PL-20, 20HP ……………………….. $3,150.00
  • Special blade set for stainless steel for HS-0810MD/1010MD…... $1,750.00

Cutting Capacity:

Mild Steel

Stainless Steel

Minimum Capacity



6' x 10Ga.

6' x 14Ga.

24 Ga.
Blade Length 78"
Strokes per minute adjustable 16-20
Throat depth 16"
Worktable height 30 1/2"
Front support arm 24"
Back gauge 26"
Blade Rake Angle 1.5 Degree
Oil Tank Capacity 21 Gal
Main Motor

5 1/2 HP

Prewired: 220/3-Phase

Optional: 440V 3-Phase
Machine Weight 4,150 lbs.
Machine Dimensions 98" x 35" x 52"
