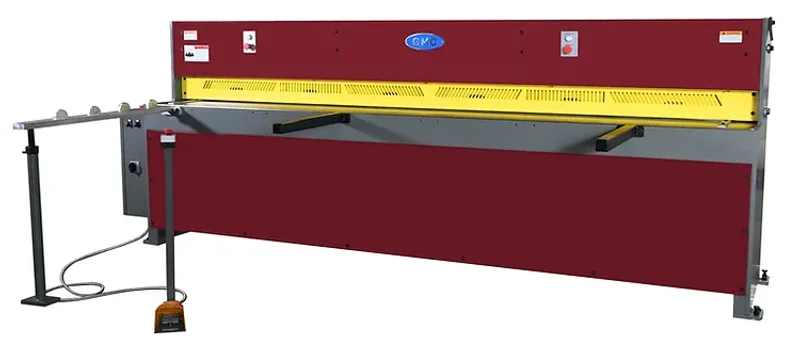

NEW 10' X 14 GAUGE GMC MODEL EPS-1014M HYDRAULIC SHEAR

Brand
GMC
Category
Shearing Equipment
Type
Shears, Power Squaring (Ga)
Model
EPS-0412M
Stock #
19138
Year
Not specified
Condition
New
Location
Not specified
NEW 10' X 14 GAUGE  GMC MODEL EPS-1014M HYDRAULIC SHEAR
  • ISO 9001 certified
  • American design and Taiwan quality machine
  • HD all steel construction for maximum rigidity
  • Precision driven gearbox
  • Full length 26 strokes per minute
  • 60” long squaring arm with inch / mm scale
  • Spring hold-downs
  • High grade carbon/chrome alloy steel blades and hardened to 62 hrc,
  • 2-edge indexable upper blade and 4-edge indexable bottom blade
  • Full length with full view finger guard
  • Front supports and (2) side gauges
  • Safety type foot pedal control
  • Jog, single continuous auto operation modes
  • One year warranty for parts


STANDARD EQUIPMENT

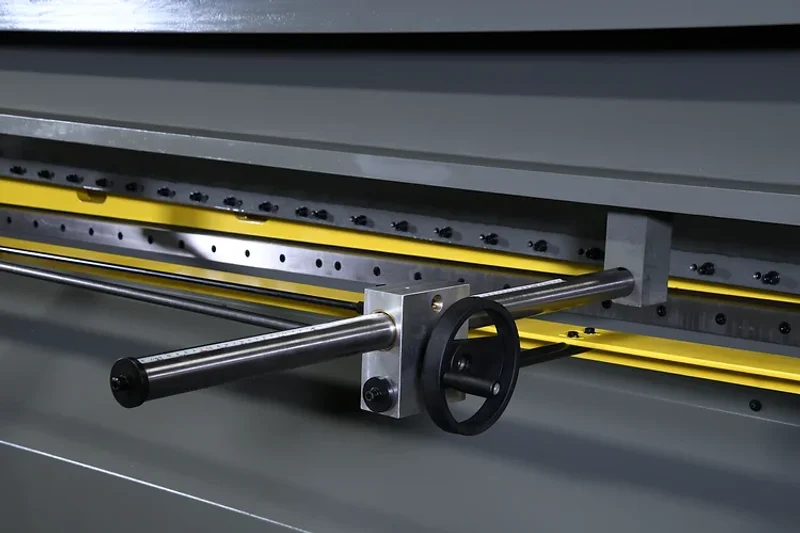

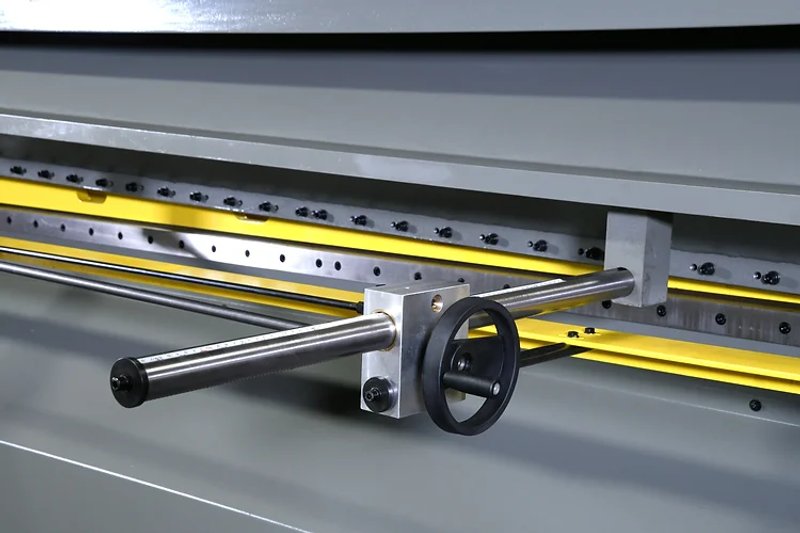

  • 26” manual back gauge with one side operated handwheel.

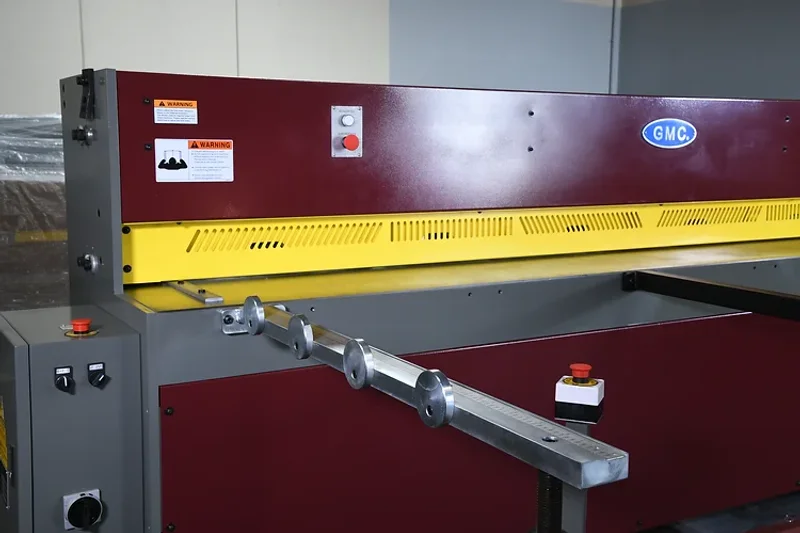

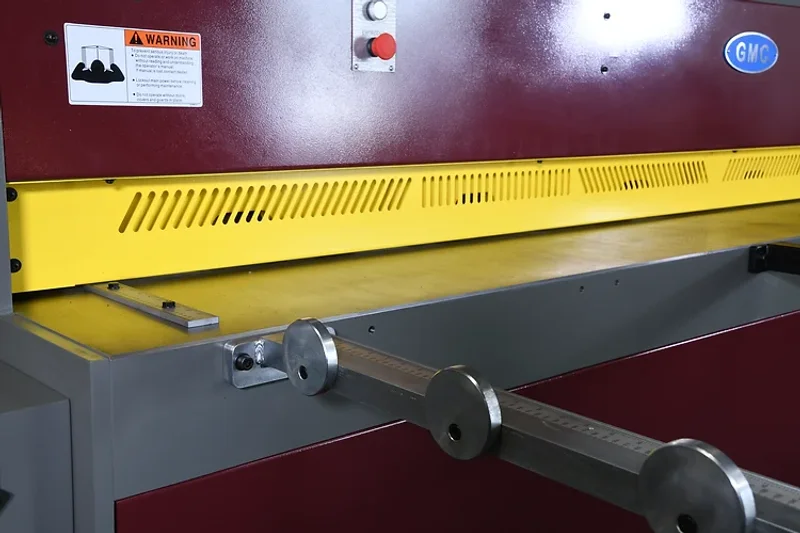

  • 60” long squaring arm with inch / mm scale, mounted on right side of the table
  • 2 each 24” front support arms
  • full length finger guard
  • Removable safety foot pedal control
  • One set of upper & lower blades


OPTIONAL EQUIPMENT
  • Safety fence for enclosure of the back side of the machine - $1,150

Cutting Capacity

Mild Steel

Stainless Steel

10' x 14Ga.

10' x 18Ga.
Blade Lenght 10'1"
Strokes per minute 26
Worktable height 30-1/2"
Front support arm 24"

Back gauge

26" Manual Back gauge
Blade Rake Angle 2.0 Degree

Main Motor

7 1/2 HP, 220V/25A - 440V/15A, 3 Phase
Machine weight 7,280 LBS
Machine dimensions 147" x 57" x 53"
