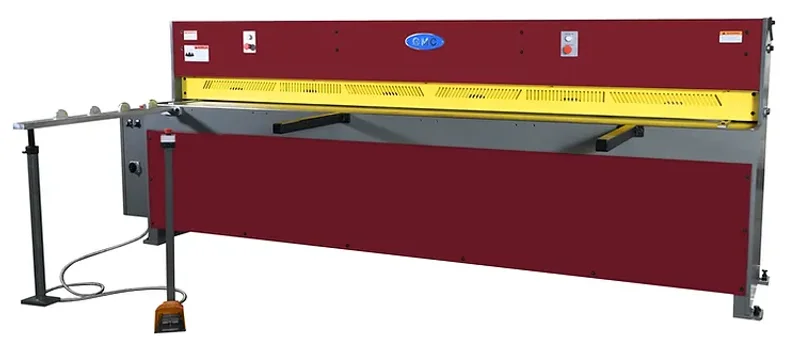

NEW 6' X 14 GAUGE GMC MODEL EPS-0610E HYDRAULIC SHEAR

Brand
GMC
Category
Shearing Equipment
Type
Shears, Power Squaring (Ga)
Model
EPS-0610M
Stock #
19135
Year
Not specified
Condition
New
Location
Not specified
NEW 6' X 14 GAUGE GMC MODEL EPS-0610E HYDRAULIC SHEAR
  • ISO 9001 certified
  • American design and Taiwan quality machine
  • With material front out tray
  • HD all steel construction for maximum rigidity
  • Precision driven gearbox
  • Full length 30 strokes per minute
  • 60” long squaring arm with inch / mm scale
  • Spring hold-downs
  • High grade carbon/chrome alloy steel blades and hardened to 62 hrc,
  • 2-edge indexable upper blade and 4-edge indexable bottom blade
  • Full length with full view finger guard
  • Front supports and (2) side gauges
  • Safety type foot pedal control
  • Jog, single continuous auto operation modes
  • One year warranty for parts


STANDARD EQUIPMENT

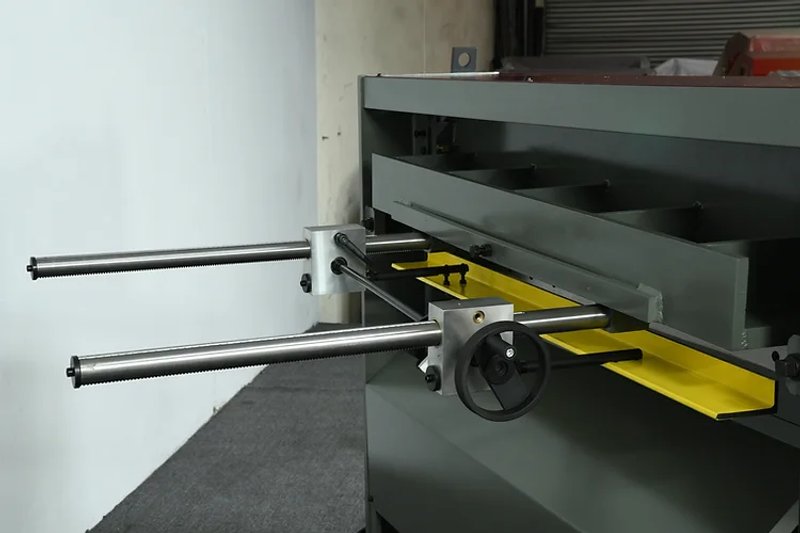

  • 26” manual back gauge with one side operated handwheel

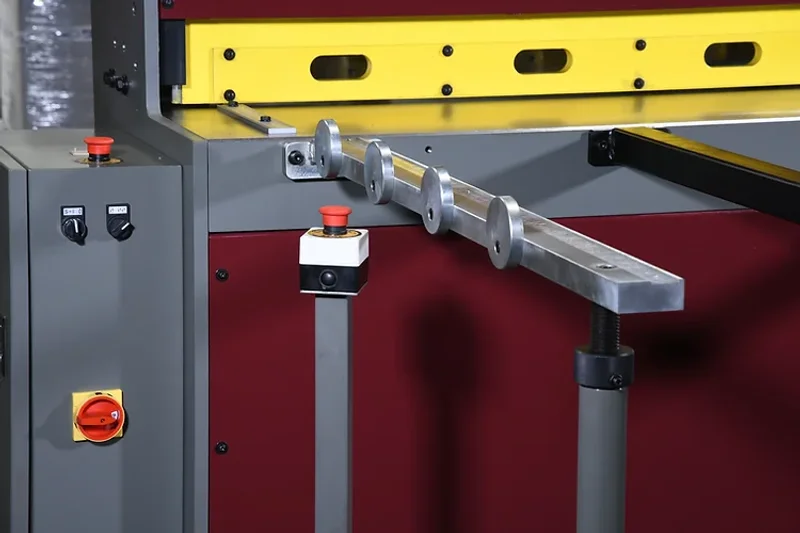

  • 60” long squaring arm with inch / mm scale, mounted on right side of the table
  • 2 each 24” front support arms
  • Full length finger guard
  • Removable safety foot pedal control
  • One set of upper & lower blades


OPTIONAL EQUIPMENT

Safety fence for enclosure of the back side of the machine - $1,150

Cutting Capacity

Mild Steel - HRS (tensile 60,000 PSI)

Stainless Steel (tensile 85,000 PSI)

Soft Aluminum (tensile 28,000 PSI)

6' x 10Ga.

6' x 14Ga.

6' x 1/4"
Blade Lenght 80"
Strokes per minute 28
Worktable height 32"
Front support arm 36"

Back gauge

26" Manual Back gauge

Blade Rake Angle

2.5 Degree

Main Motor

7-1/2HP, 3 Phase 25A

Prewired: 220VAC

(15A/440VAC optional)

Machine weight

Shipping weight

5,550 lbs.

5,650 lbs.

Machine dimensions

Shipping dimensions

100" x 43" x 68"

100" x 43" x 68"
