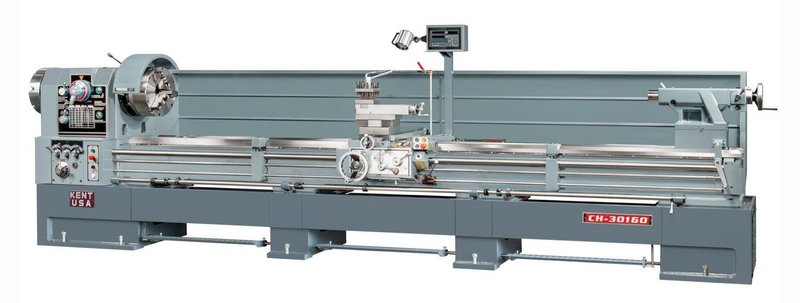

Capacity

Swing over bed ways

30” (760mm)

Swing over cross slide

21.4” (445mm)

Swing over gap

39” (892mm)

Gap length (w/ face plate)

10.63” (270mm)

Bed width

15.75” (400mm)

Distance between centers

90”/120”/160”

(2300/3000/4000mm)

Headstock

Spindle hole

4.1” (104mm)

Spindle nose camlock

D1-11

Spindle to sleeve taper

MT#7

Spindle bore

4.1”(104mm)

Spindle speed

12 Steps,
13–1200 RPM(bore 104mm)

Carriage

Cross slide travel

15.75” (400mm)

Top slide (compound) travel

8.98” (228mm)

Feed Box

Thread capacity (inches)

44, 2 - 72 TPI

Thread capacity (metric)

39, 0.2 - 14 MM

Leadscrew Diameter

1.77”(45mm)

leadscrew pitch

4 TPI

Longitudinal feeds

0.0012 – 0.039 IPR

Cross feeds

0.0004 – 0.0117 IPR

Tailstock

Quill diameter with tang

3.15” (80mm)

Quill travel

10” (250mm)

Quill taper

MT#5

Power

Main motor

15 HP (Opt.:20HP)

Coolant pump motor

1/8 HP

Control circuit voltage

115 V

Dimension

Shipping dimension (LxWxH)

160”/187”/227”x45”x76”

(4055/4755/5755x1150x1950mm)

Weight

Net weight (approx)

7,678/8195/9526 lbs

(3490/3725/4330 Kgs)

Gross weight (approx)

1,178/8795/10,228 lbs
