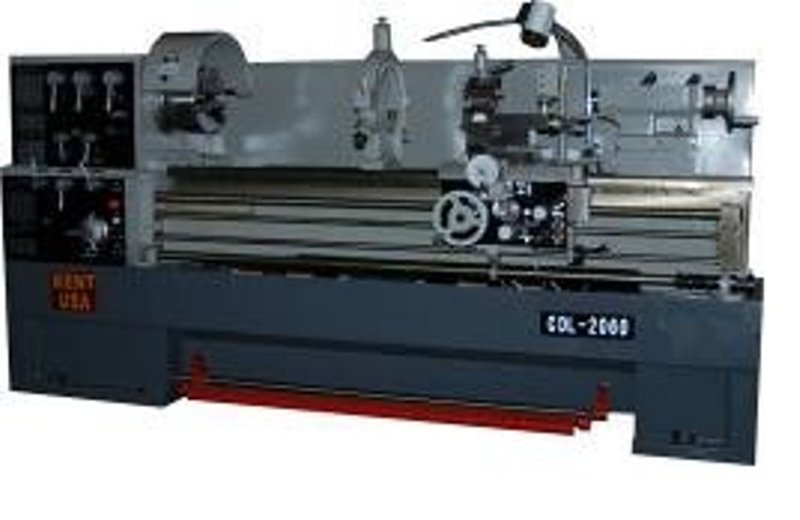

20" x 40" / 60" KENT USA CDL-2040 / 2060 ENGINE LATHE - NEW

Brand
KENT
Category
Lathes & Turning Machines
Type
Lathes, Engine
Model
CDL-2040/2060
Stock #
12880
Year
Not specified
Condition
New
Location
Not specified
20" x 40"/60" KENT USA CDL 2040 / 2060 ENGINE LATHE - NEW

PRODUCT HIGHLIGHTS
  • 7.3 HP main spindle motor, 12 speeds
  • D1-8 camlock, 3.2” spindle bore
  • Hardened and ground gears and bedways
  • Jog button
  • Multi-Position Feed Stops
  • Inch dials and leadscrews
  • Centralized lube system in headstock
  • Safety Foot brake


STANDARD ACCESSORIES
  • 3-jaw chuck
  • 4-jaw chuck
  • Face plate
  • Steady rest
  • Follow rest
  • Thread chasing dial toolbox with standard tools

OPTIONAL ACCESSORIES

  • Digital readout system
  • 5C lever style collet closer
  • Alotis CA #4 Set (Tool Post Plus 6 Bars)
  • 5C Lever Collet Closer
  • Royal spindle type live center
  • Live center set with interchangeable tips
  • BTC 3-jaw chuck with back plate
  • Taper Attachment
  • Rustlick lubricant




  • Swing Over Bed
  • Swing Over Cross Slide
  • Swing Over Gap
  • Width of Bed
  • Distance Between Centers
  • Cross Slide Travel
  • Top Slide Travel
  • Spindle Speeds
  • Spindle Speed Range
  • Through Hole Diameter
  • Spindle Nose
  • Spindle Bore Taper
  • Standard (Whit-Worth)
  • Metric Pitch
  • Longitudinal Feeds
  • Cross Feeds
  • Leadscrew Diameter
  • Thread Pitch
  • Quill Travel
  • Quill Diameter
  • Quill Bore Taper
  • Main Motor
  • Coolant Pump Motor
  • Overall Dimension
  • Packing Dimension
  • Net Weight
  • Gross Weight

  • CDL-2040 / 2060

  • 20"
  • 12.5"
  • 28.9"
  • 7.9"
  • 40" / 60"
  • 12"
  • 4.7"
  • 12
  • 16-1600 RPM
  • 3.2"
  • D1-8 Camlock
  • MT#5
  • 32 (2-56) TPI
  • 20 (0.5–14) mm
  • 0.002”-0.032 in/rev
  • 0.0007”-0.0095” in/rev
  • 1.4"
  • 4 TPI
  • 5.9"
  • 2.36"
  • MT#4
  • 7.3 HP
  • 1/8 HP
  • 85" / 106" x 40" x 51"
  • 91" / 112" x 45" x 72"
  • 4488 LBS / 4950 LBS
  • 5687 LBS / 6050 LBS
