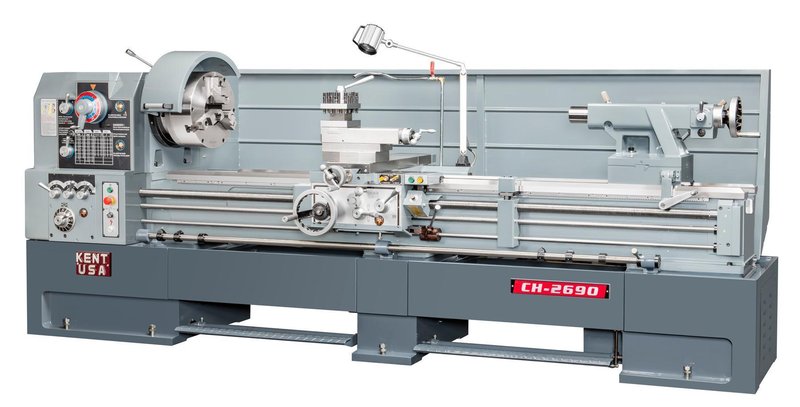

NEW - 26" x 90"/120"/160" KENT USA MODEL CH-26 PRECISION ENGINE LATHE

Brand

KENT

Category

Lathes & Turning Machines

Type

Lathes, Engine

Model

CH-26

Stock #

19011

Year

Not specified

Condition

New

Location

California

Specifications
Files & Videos

NEW - 26" x 90"/120"/160" KENT USA MODEL CH-26 PRECISION ENGINE LATHE

Outstanding Features:

· 15 HP Spindle Motor, 12-Speeds

·
4.1” (104mm)Spindle Through Hole

· Solid One Piece Full Length Casting Base and Bedways for Maximum Rigidity

· Spindle Jog Button Control

· One-shot Lubrication for Apron, Multi-position Adjustable Feed Position Stops

· Dual Inch/Metric Calibrated Tailstock

· Dual Inch/Metric Dials

PRICE INCLUDES:

3-jaw chuck (16”, made in Taiwan), Steady rest(10”, roller), follow rest(40-184mm), Thread chasing dial, 4 position tool post, Coolant system with full-length splash guard, 4 position carriage stop, 2 speed tailstock, Z-axis Rapid travel, Dead center x 2 pcs, LED worklight

Capacity	Swing over bed ways	26” (660mm)
	Swing over cross slide	17.5” (445mm)
	Swing over gap	35.1” (892mm)
	Gap length (w/ face plate)	10.63” (270mm)
	Bed width	15.75” (400mm)
	Distance between centers	90”/120”/160” (2300/3000/4000mm)
Headstock	Spindle hole	4.1” (104mm)
	Spindle nose camlock	D1-11
	Spindle to sleeve taper	MT#7
	Spindle bore	4.1”(104mm)
	Spindle speed	12 Steps, 13–1200 RPM(bore 104mm)
Carriage	Cross slide travel	15.75” (400mm)
Carriage	Top slide (compound) travel	8.98” (228mm)
Feed Box	Thread capacity (inches)	44, 2 - 72 TPI
	Thread capacity (metric)	39, 0.2 - 14 MM
	Leadscrew Diameter	1.77”(45mm)
	leadscrew pitch	4 TPI
	Longitudinal feeds	0.0012 – 0.039 IPR
	Cross feeds	0.0004 – 0.0117 IPR
Tailstock	Quill diameter with tang	3.15” (80mm)
	Quill travel	10” (250mm)
	Quill taper	MT#5
Power	Main motor	15 HP (Opt.:20HP)
	Coolant pump motor	1/8 HP
	Control circuit voltage	115 V
Dimension	Shipping dimension (LxWxH)	160”/187”/227”x45”x76” (4055/4755/5755x1150x1950mm)
Weight	Net weight (approx)	7,480/7997/9328 lbs (3400/3635/4240 Kgs)
Weight	Gross weight (approx)	7,980/8597/10,028 lbs

* Please note: All pricing, features, and specifications are subject to change without prior notice. Pricing based FOB Tustin, California.

Power Requirement: 230 volts, 3-phase, 60 Hz, 50 Amp or

460 volts, 3-phase, 60 Hz, 25 Amp

No files or videos to display
