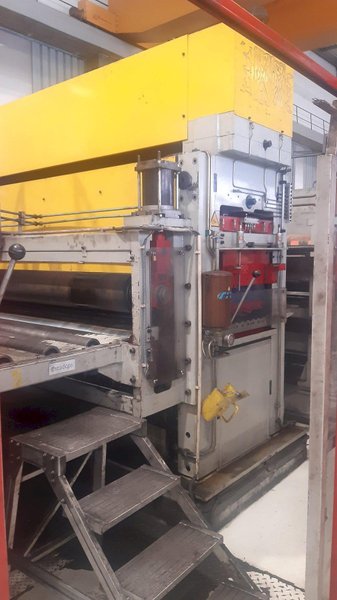

2050mm x 8mm x 35 Ton VAI Cut to Length Line with Rotary Shear (2003)
Brand
Category
Type
Model
Not specified
Stock #
116028
Year
2003
Condition
Used
Location
Not specified
|
Coil Weight 70000 pounds
Width 80 inches
Thickness .315 inches
ID 29.5 inches
Max OD 78 inches
Year: 2003
Thickness Range: 1mm to 8mm
Width Range: 140mm to 2050mm
Coil OD: 2000mm
Coil ID Range: 508/610/750mm
Max. Format Length: 14 Meter
Min. Format Length: 200mm
Max. Stack Weight: 15 Ton
Line Speed: 75 mpm
Line Direction: Left to Right
Complete Line with:
3 Coil Storage Ramp
Pit Type Coil Car
Double Expandable Mandrel Uncoiler
Hydraulic Expansion
Expansion Range: 508/610/750mm
Coil OD: 2000mm
Free Standing Hold Down Roll /Peeler Table
Entry Pinch Roll
5 Roll Flatener
2 over 3 Design Configuration
Cross Over Table

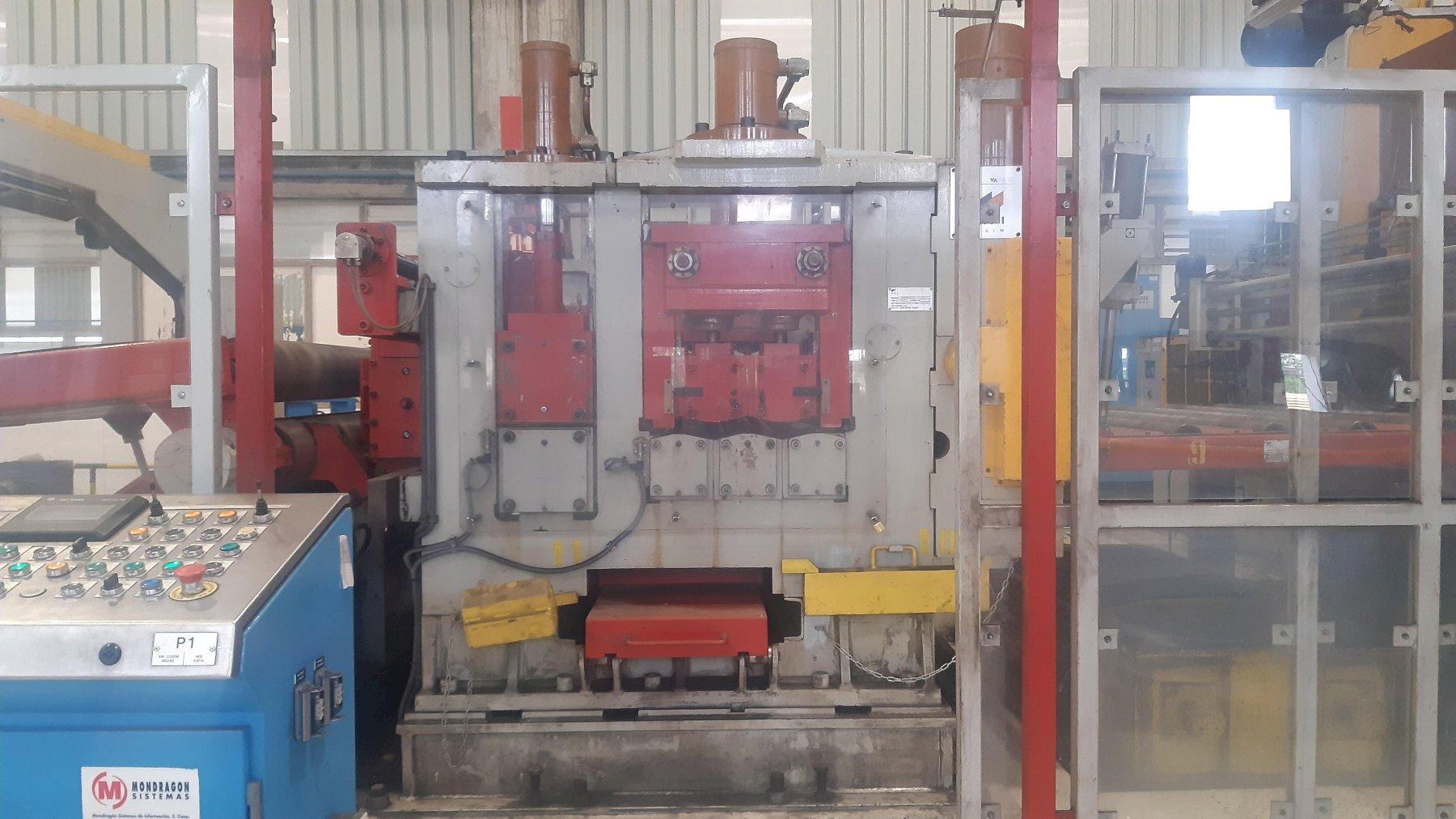

4-HI Heavy Gauge Leveler
15 Work Roll Design
100mm Work Roll Diameter
Thickness Range: 2.5 to 8mm
4-HI Light Gauge Precision Leveler
17 Work Roll Design
63mm Work Roll Diameter
Thickness Range: 1 to 3.5mm

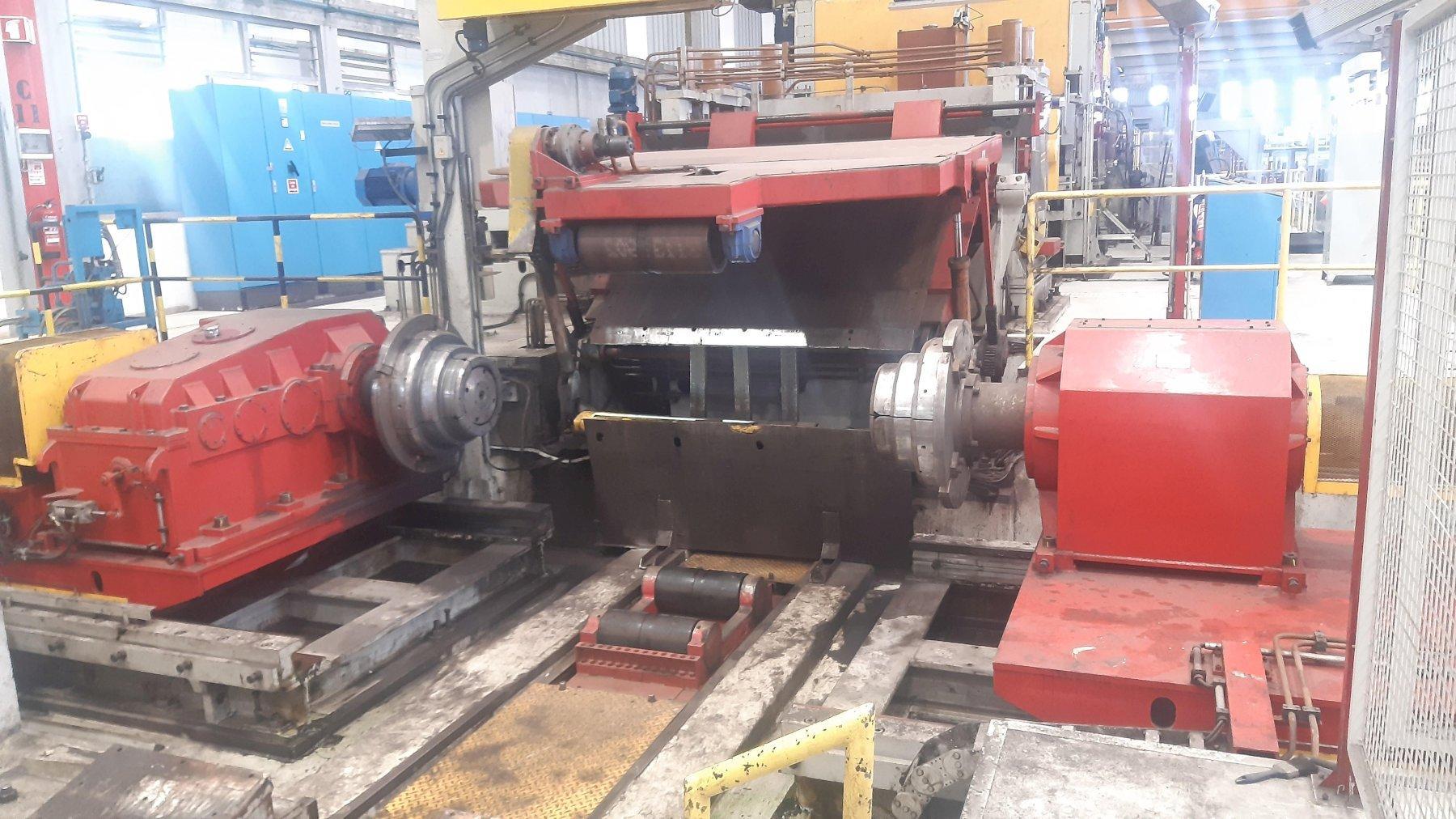

Rotary Shear
Servo Feed Roll
Run Out Table

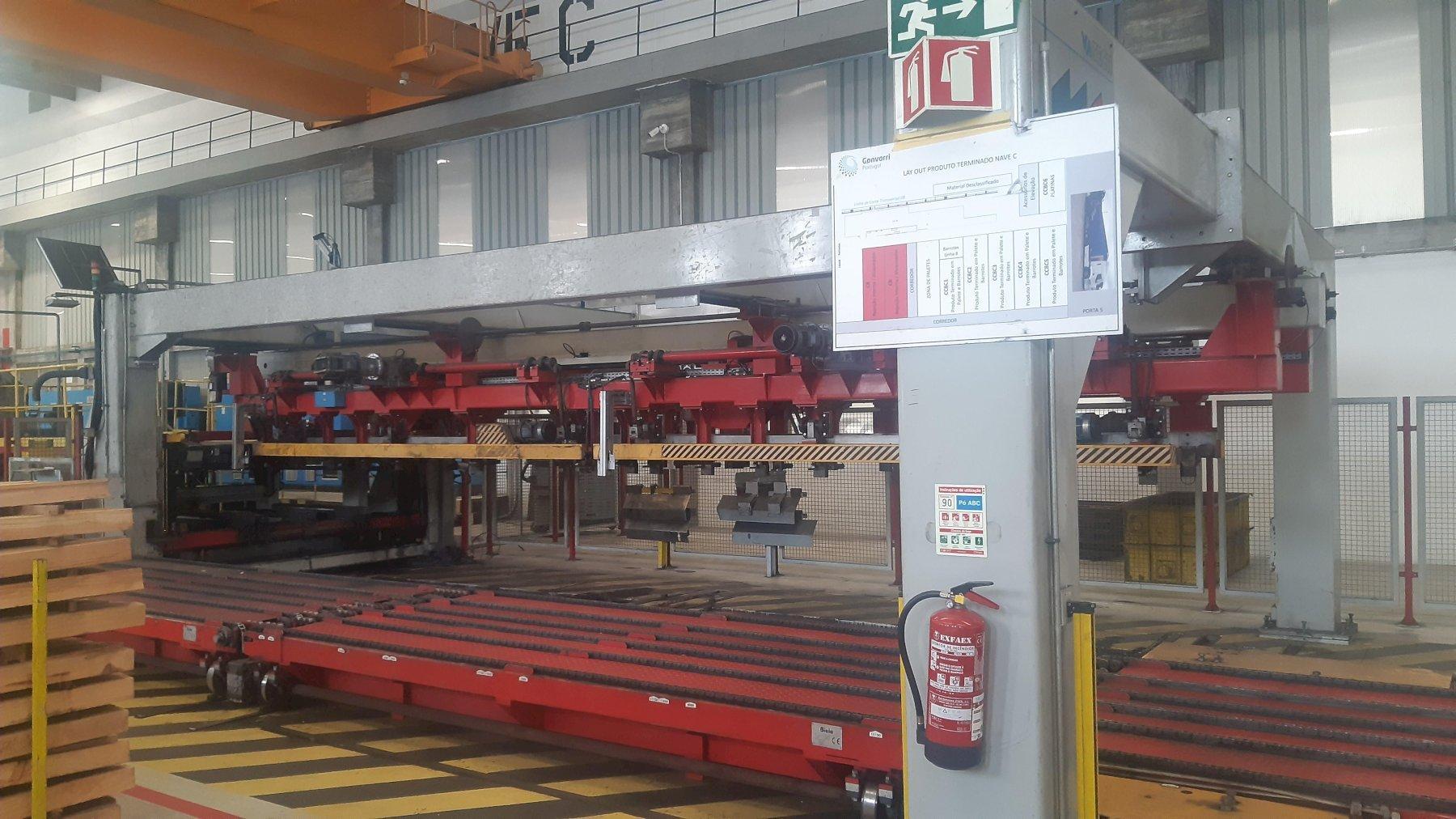

Double Drop Type Stacker
Rejection Stacker
Drives by Rockwell (PLC - Logix5000)
Installed with Hydraulics, Electrics, Controls
|
