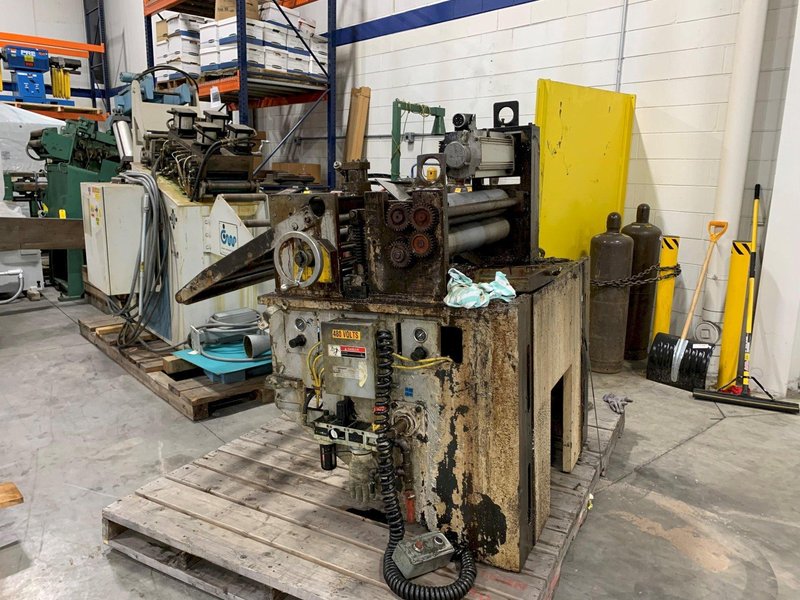

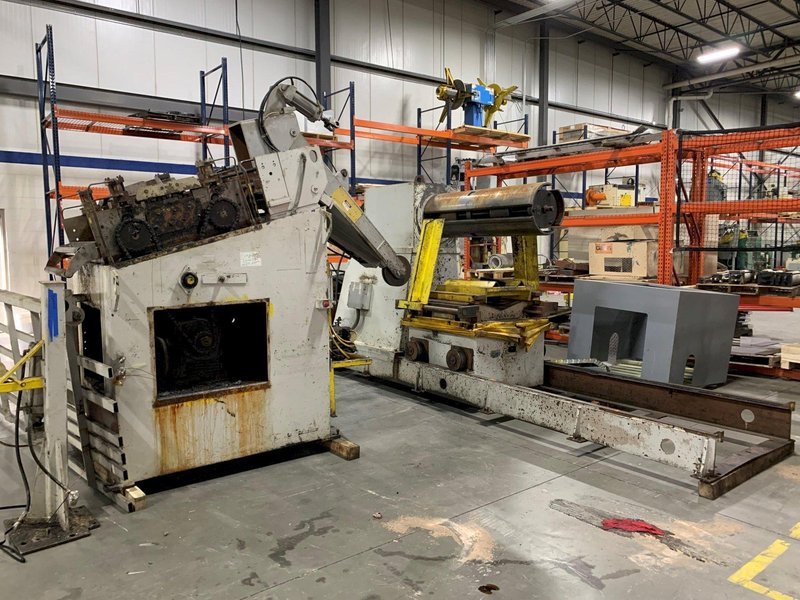

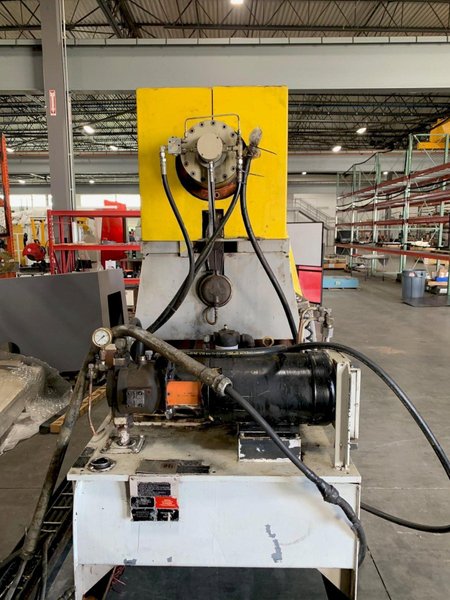

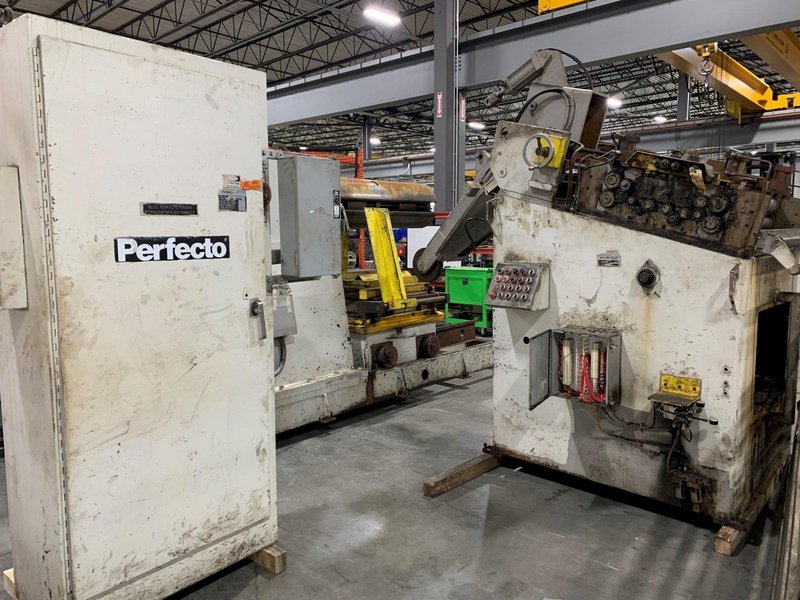

Perfecto Coil Feed Line 30,000 Lbs. x 36" Wide
Brand
Category
Type
Model
RS30-36B . 28-36-7
Stock #
5457
Year
Not specified
Condition
Used
Location
Michigan
| Coil Weight Capacity: | 30000 pounds |
| Stock Width Capacity | 36 inches |
| Max Stock Thickness Capacity At Full Width | .104 inches |
| Minimum Expansion Range: | 20 inches |
| Maximum Expansion Range: | 24 inches |
| Coil O.D. Capacity: | 72 inches |
|
Stock thickness capacities:

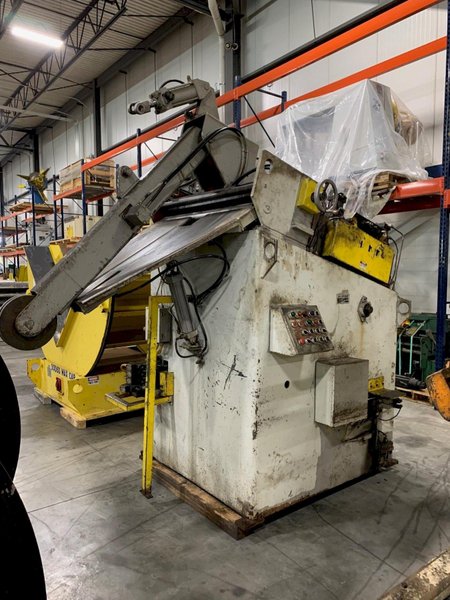

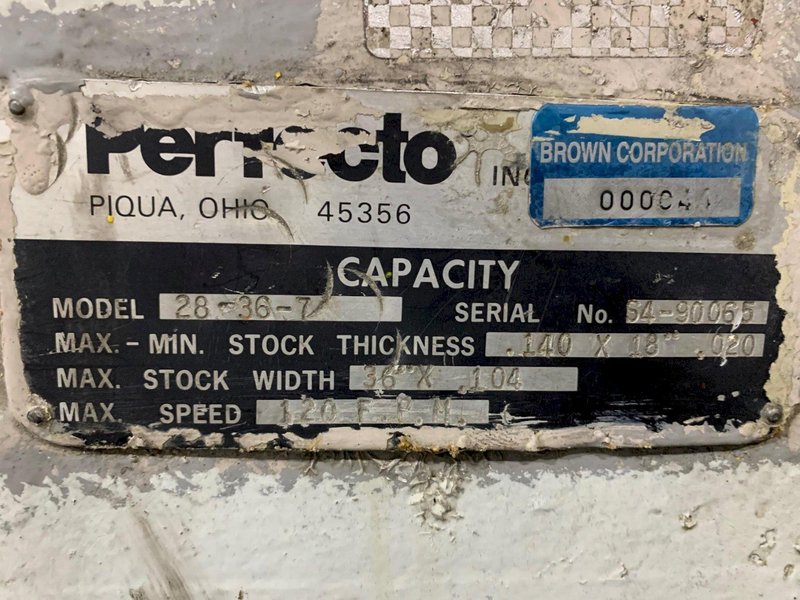

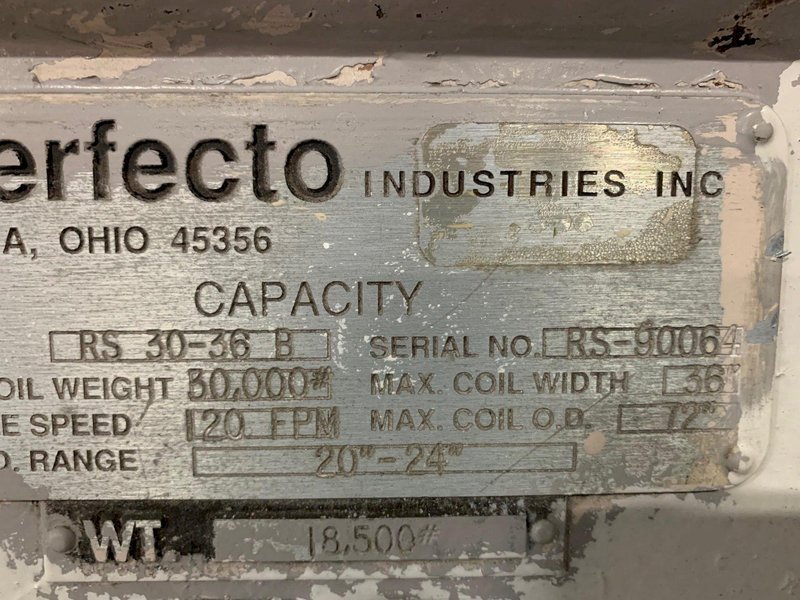

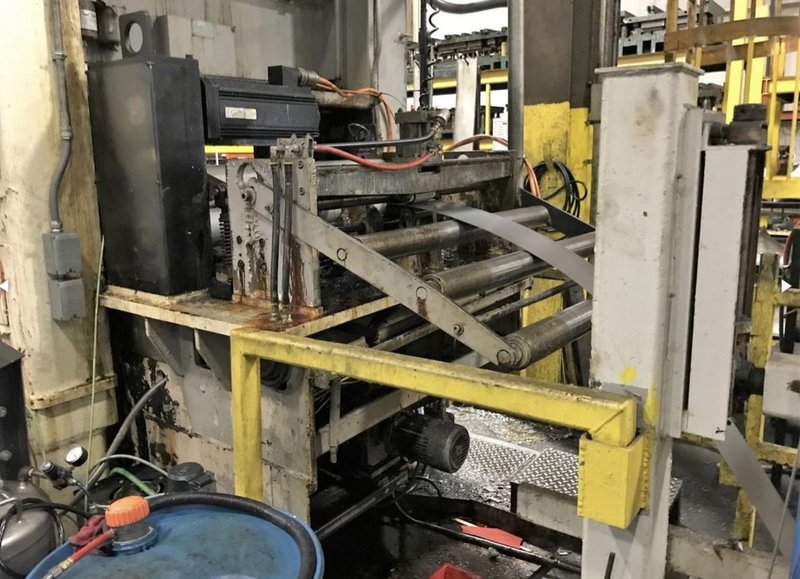

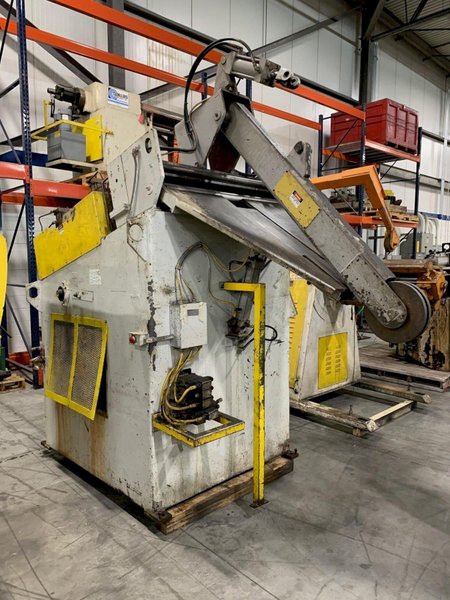

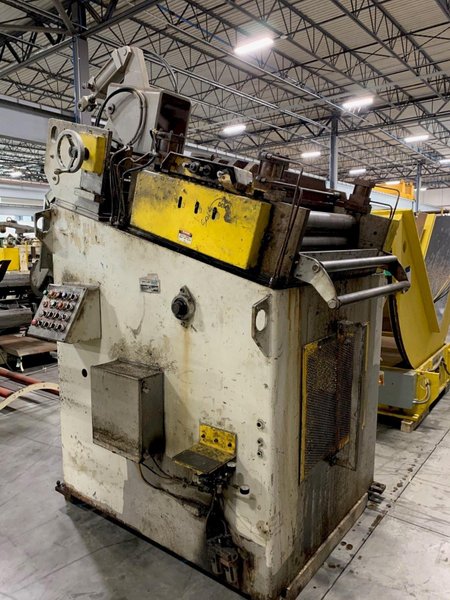

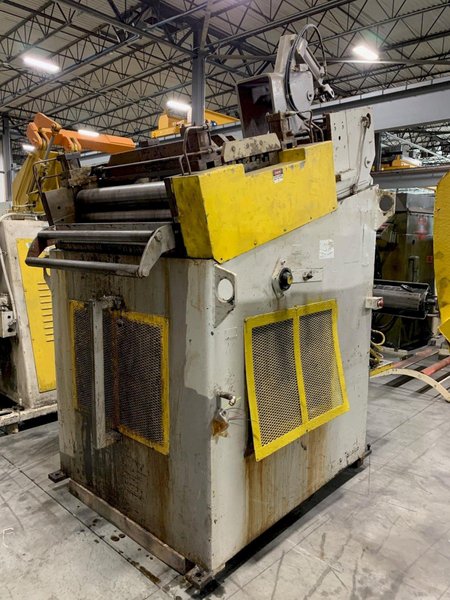

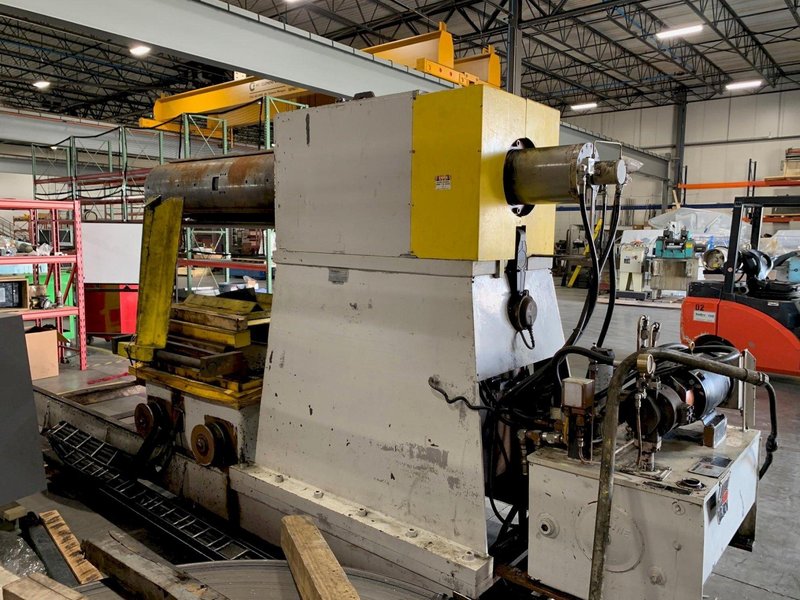

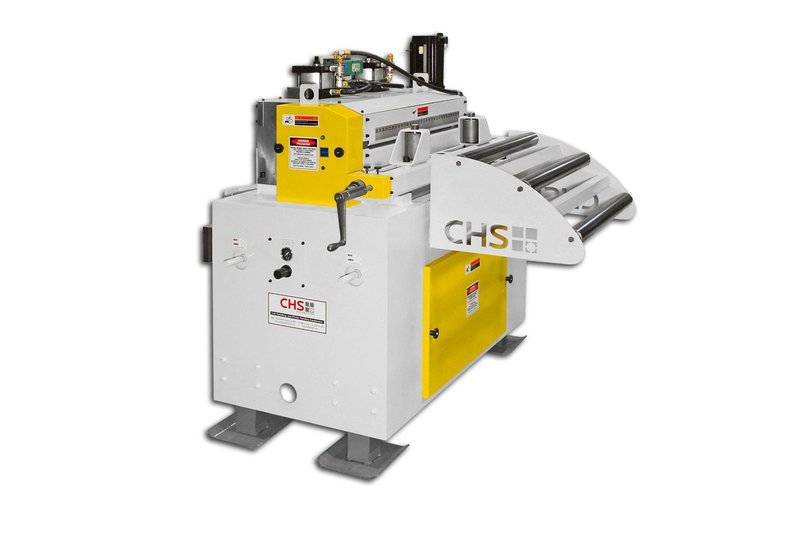

Max stock thickness at 36" wide: .104" Max stock thickness at 18" wide: .140" Perfecto Coil Reel Model No. RS30-36B Three leaf mandrel Hydraulic mandrel expansion Threading drive for jog forward and reverse Air brake (adjustable tensioning) Traveling coil load car Powered lift and travel Perfecto Powered Coil Straightener Model No. 28-36-7 Entry and exit pinch rolls with air operated adjustment Seven straightening rolls x 2.8" diameter Back up support rollers on upper and lower straightening rolls Individual upper roll adjustments Coil hold down arm with motorized end wheel Stock peeler table Adjustable stock width edge guides AC VFD drive and control system Operator's control station Jog forward and reverse Auto / Run cycle - loop control Perfecto Exit Threading Table Perfecto Servo Roll Feed - Specs to be confirmed Optional: NEW NIDEC-CHS Servo Roll Feed (Stock machine) Model MX-4536 4.5" Diameter feed rolls Matte chrome finish Pilot release upper feed roll Adjustable stock width edge guides Cabinet base mounted Adjustable pass line Right to left feed direction SIEMENS AC Servo drive and control package (NIDEC-CHS Standard) |
|
