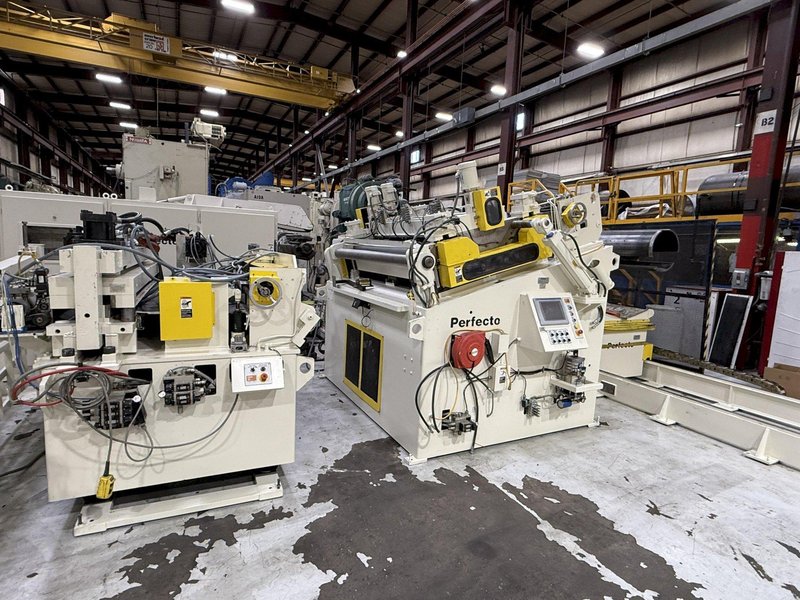

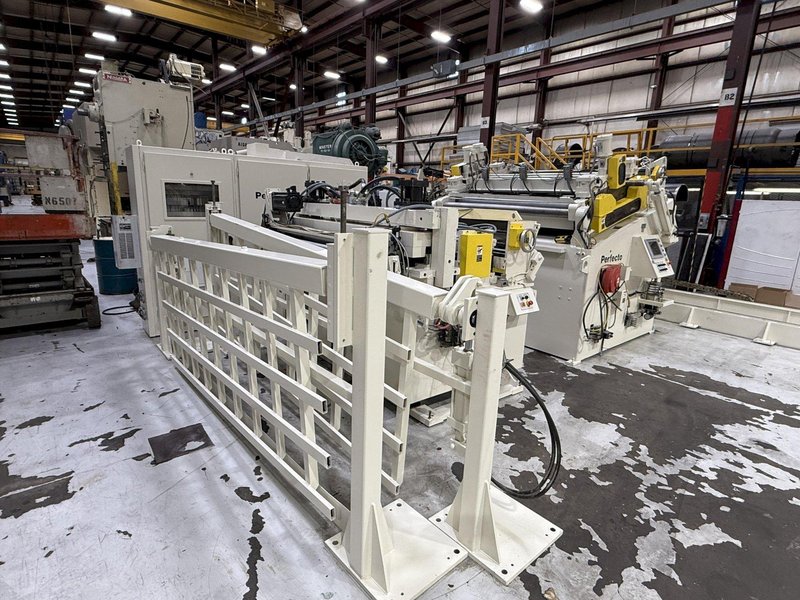

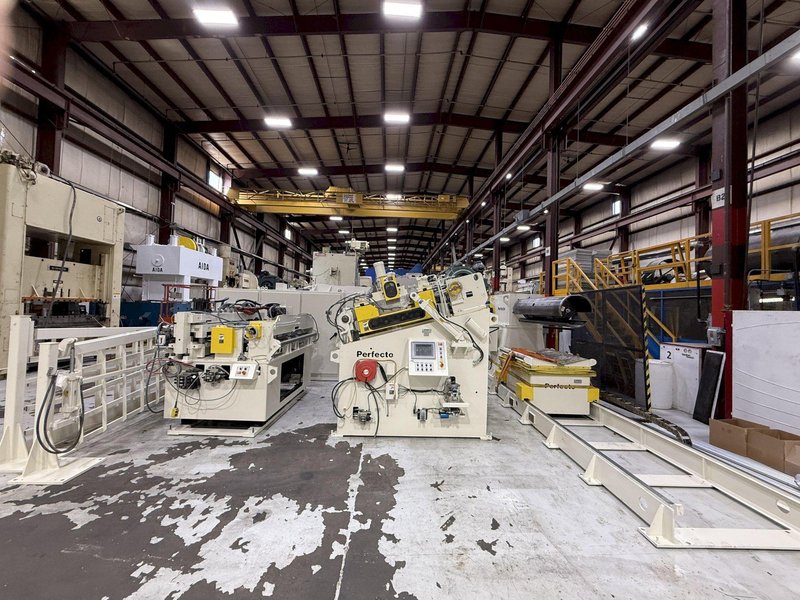

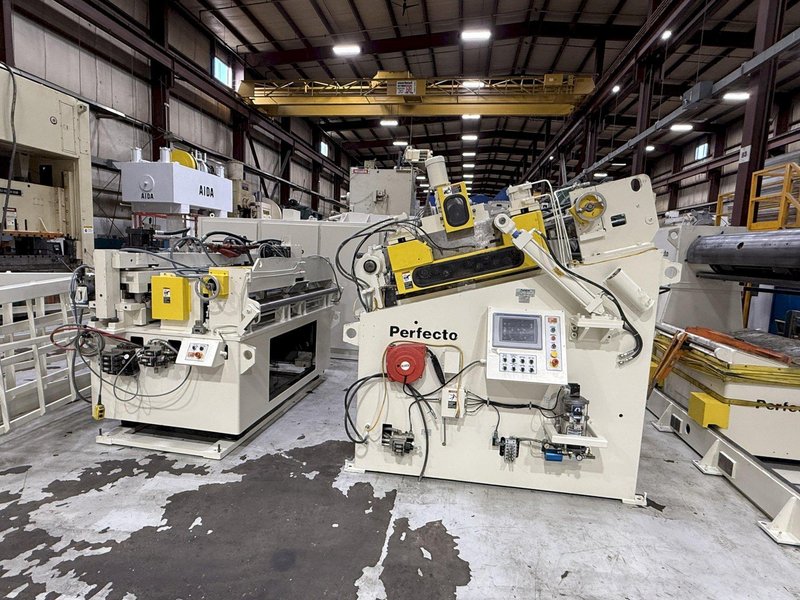

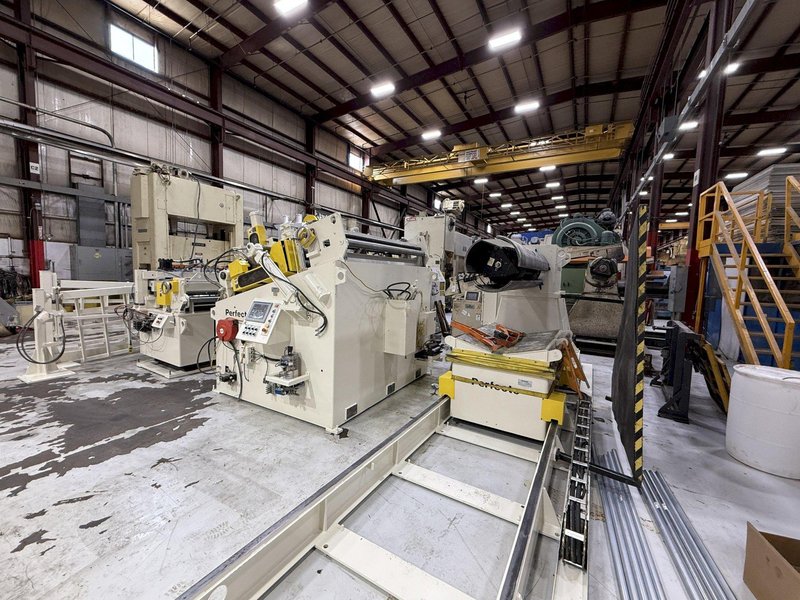

60,000 lbs. x 72" wide Perfecto Complete Coil Feed Line For Sale
Brand
Category
Type
Model
Not specified
Stock #
2912
Year
Not specified
Condition
Not specified
Location
Michigan
| Coil Weight | 60000 pounds |
| Coil Width | 72 inches |
| Coil Thickness | .125 inches |
|
Preliminary Specifications 60,000 lbs. Maximum Coil Capacity
72" Maximum Stock Width Capacity
.125" Maximum Stock Thickness At Full Width:
20"-24" ID Range
72" Maximum Coil O.D. capacity
1080 IPM Coil Line Speed Right to Left Feed Direction Stock thickness capacity: .125" x 72" Wide
Stock thickness capacity: .375" x 9" Wide

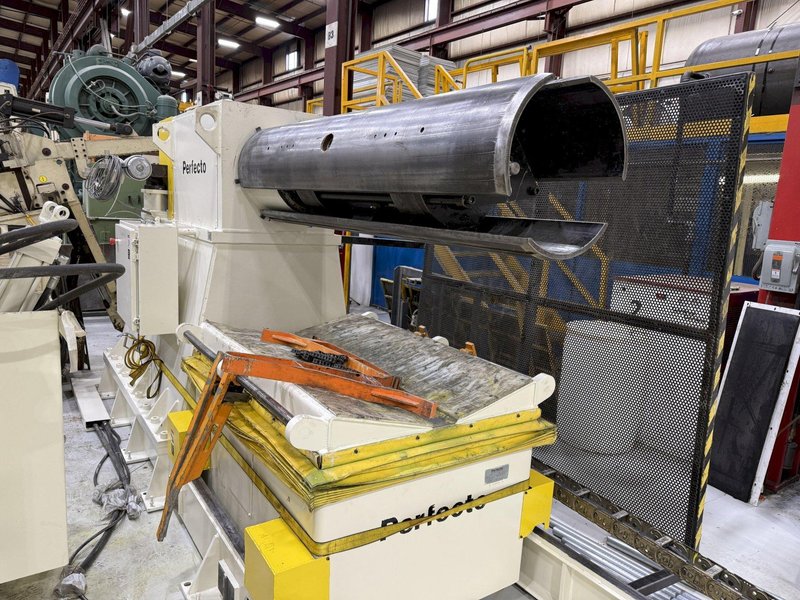

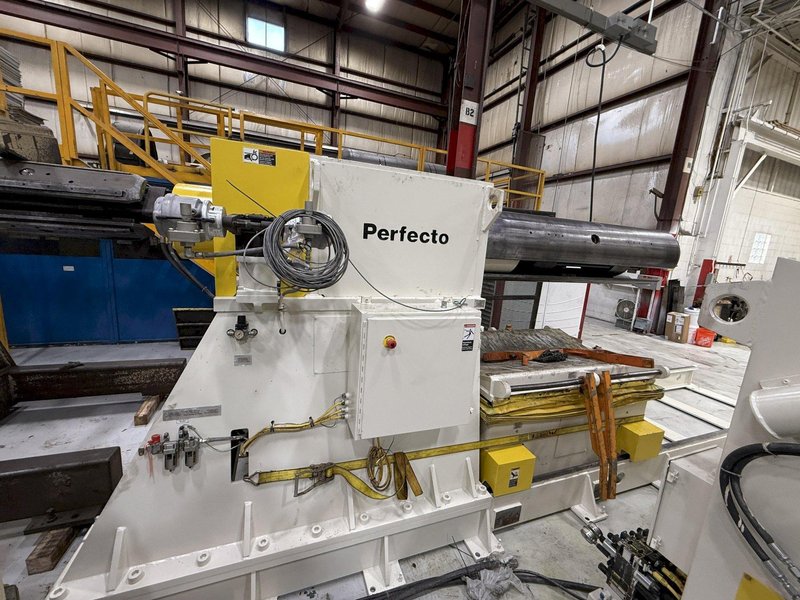

Perfecto Coil Reel Model No. RS607272B
Serial Number - 210079 Three leaf mandrel
Hydraulic mandrel expansion
Air brake (adjustable tensioning)
Jog drive for threading
Travelling Coil Load Car
Hydraulic Lift for Coils
Spindle Jog Forward/Reverse

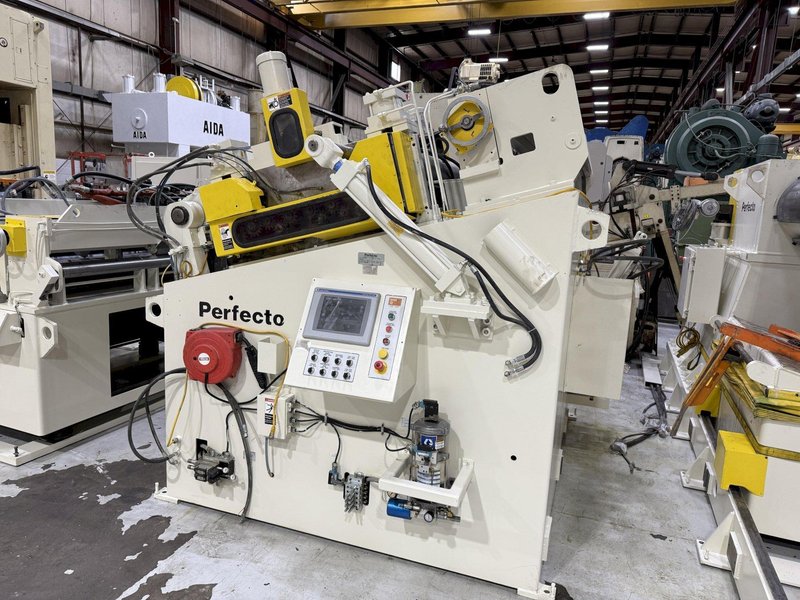

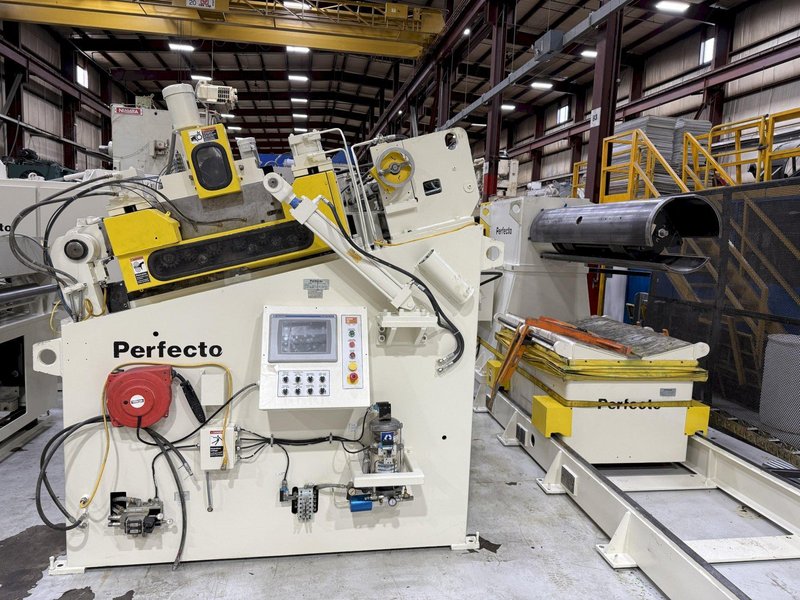

Perfecto Powered Coil Straightener Model No. S387207
Serial Number - 210080 Seven straightening rolls x 3.8" diameter
Individual Upper roll adjustment
Full Back Up Roll Support Pinch rolls with air operated adjustments
Hold Down Arm (Hydraulically Actuated)
Motorized End Wheel
Exit and Entry Pinch Rolls
Exit cascade rollers
Adjustable stock width edge guides
Exit cascade loop support rollers
Variable speed drive
Auto / run loop control
Stock peeler table -
Hand crank adjustable stock width edge guides
Automatic lubrication system
Operator's control station
Perfecto Dual Sided Thread Table Bomb Bay Style Hydraulic Actuated Perfecto Servo Roll Feed
Serial Number - To be confirmed Upper and lower feed rolls
Piloting upper feed roll
Press mounted
Stock width edge guides
AC Servo controls
72" Perfecto Chop Shear 60,000 lbs. x 72" Perfecto Conventional Coil Feed Lines are robust and reliable systems designed to efficiently feed metal coils into stamping presses. They are built to handle heavy-duty applications and are often customized to meet specific production requirements. Perfecto's commitment to quality and innovation ensures optimal performance and productivity for various metalworking operations. Can be seen under power in the S&G Press Warehouse. More Coil Feed Line Options For Sale. 72" Conventional Coil Feed Line For Sale, Perfecto Feed Equipment, All Coil Feed Equipment |
|
