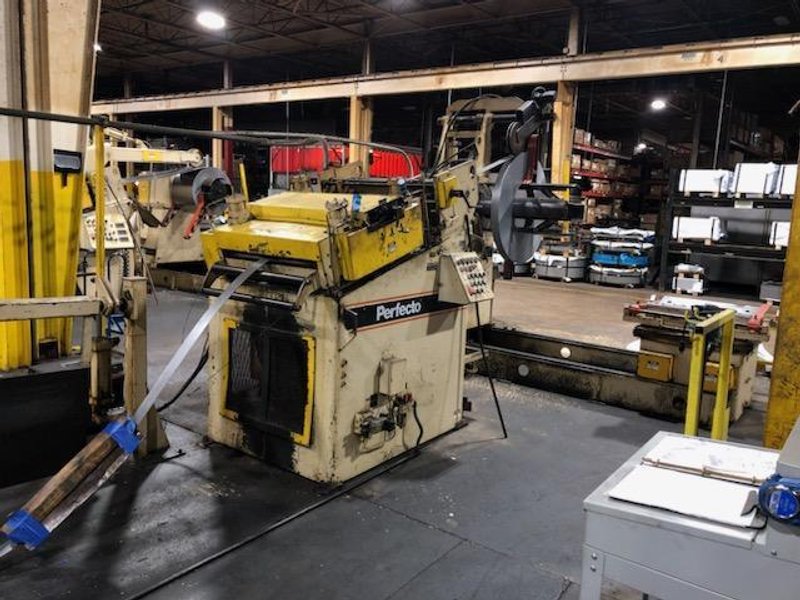

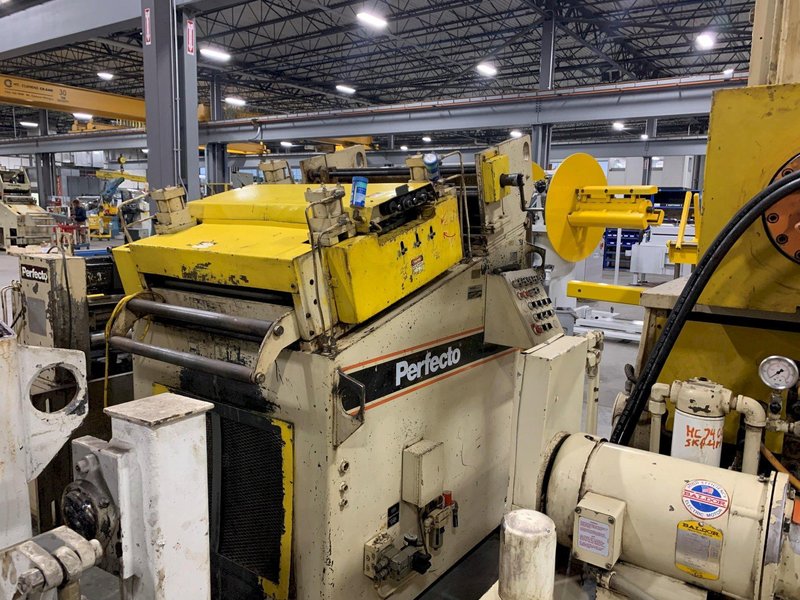

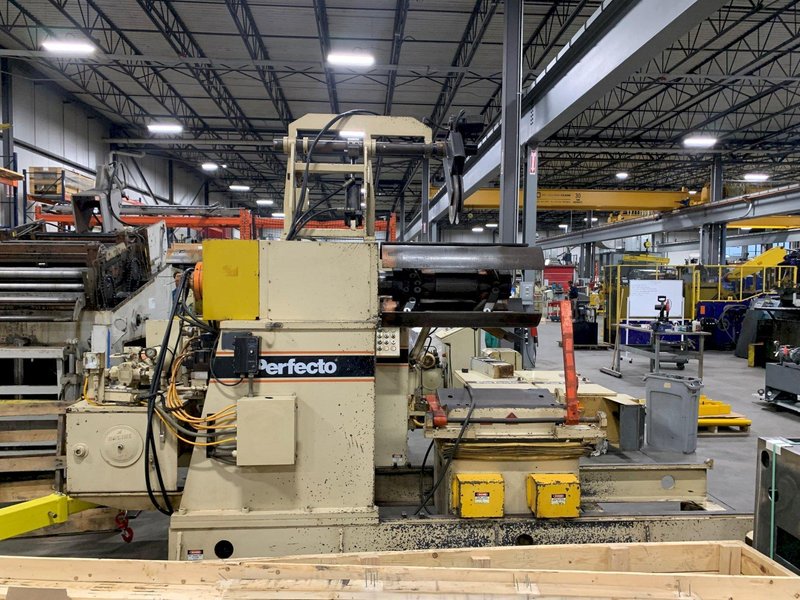

Perfecto Complete Coil Feed Line 15,000 Lb x 30" Wide
Brand
Category
Type
Model

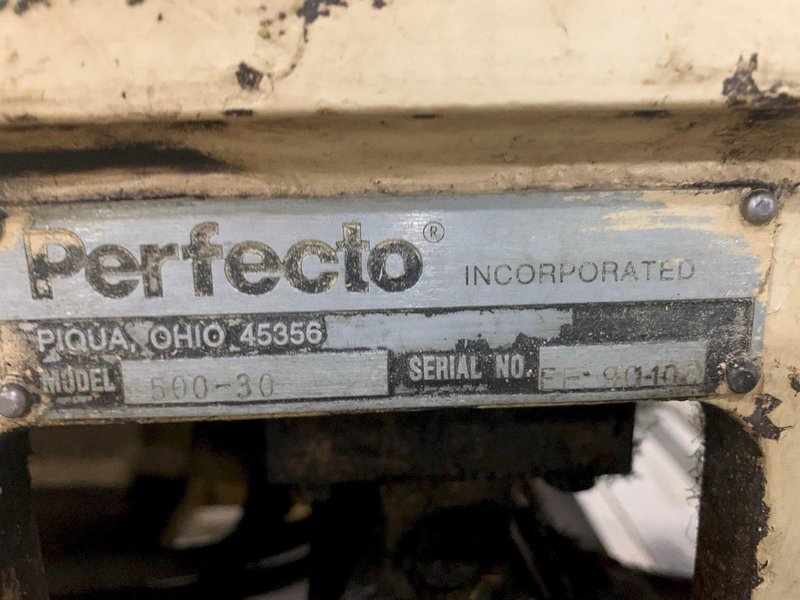

RS15-30 / 28-30-7 / 500-30
Stock #
5489
Year
Not specified
Condition
Used
Location
Michigan
| Coil weight capacity: | 15000 pounds |
| Stock Width Capacity | 30 inches |
| Max Stock Thickness Capacity At Full Width | .090 inches |
| Minimum expansion range: | 19.5 inches |
| Maximum expansion range: | 24.5 inches |
| Coil O.D. capacity: | 60 inches |
|
Perfecto Complete Coil Feed Line Specifications:

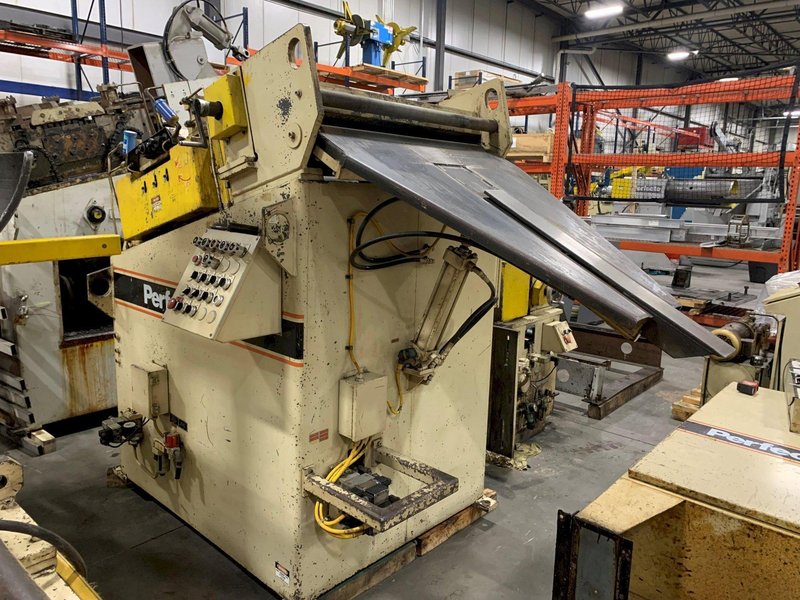

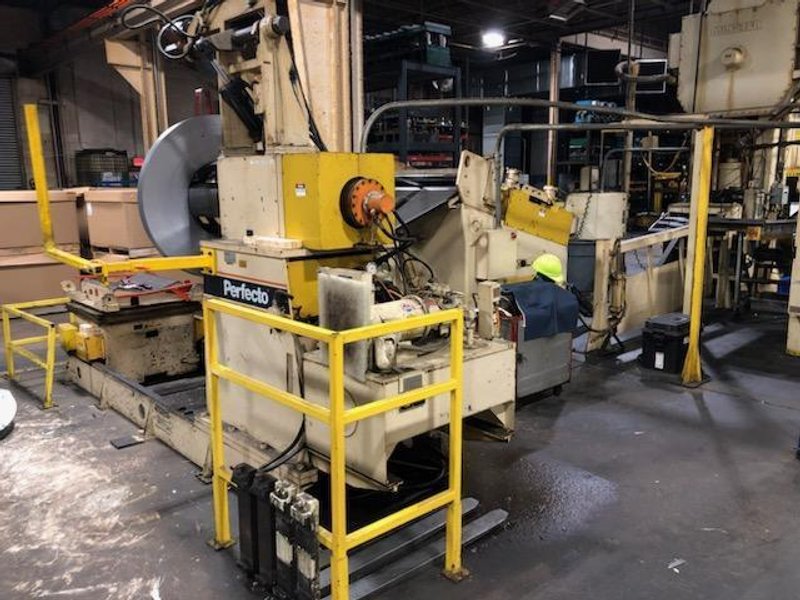

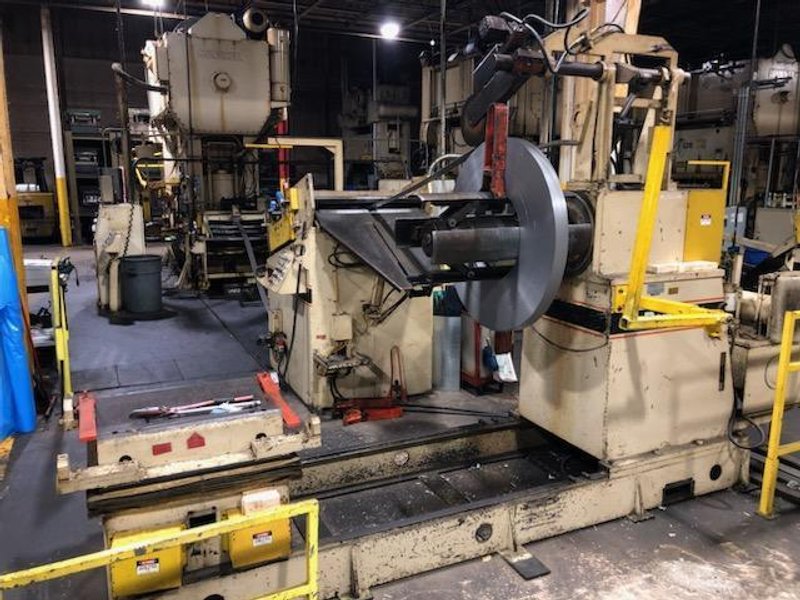

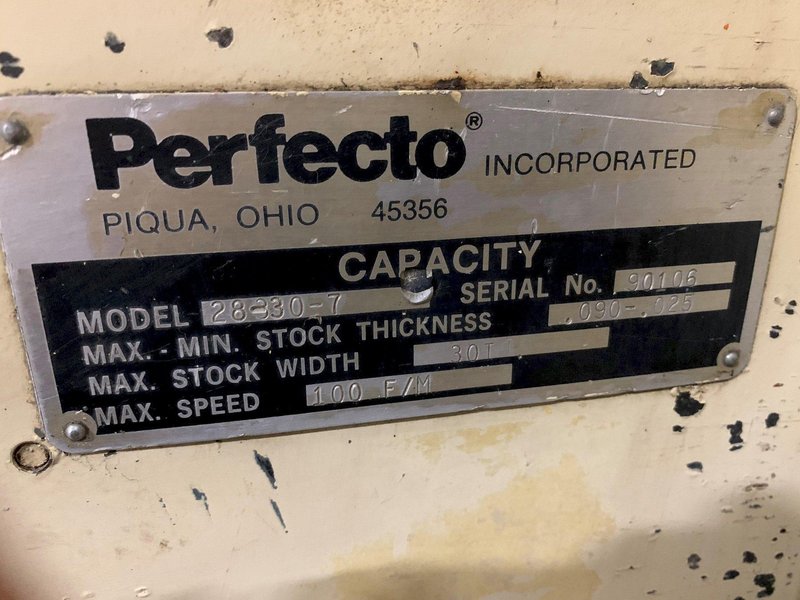

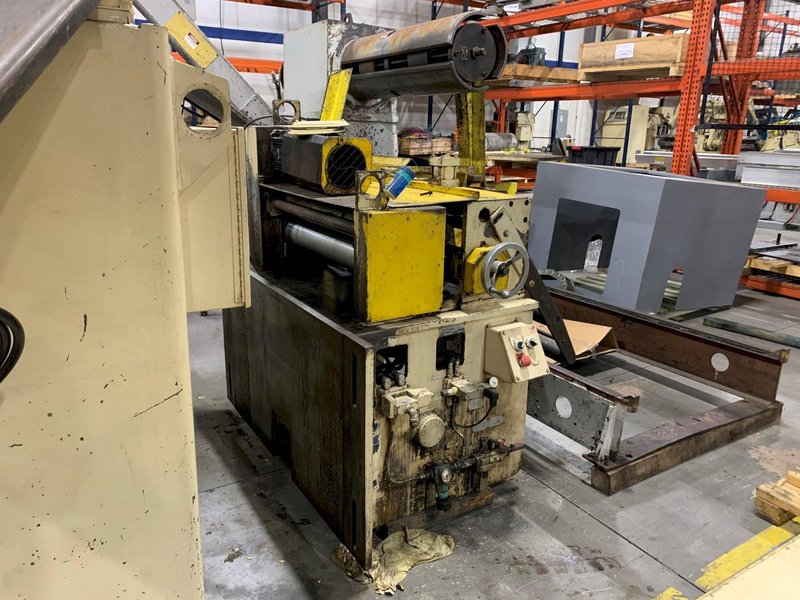

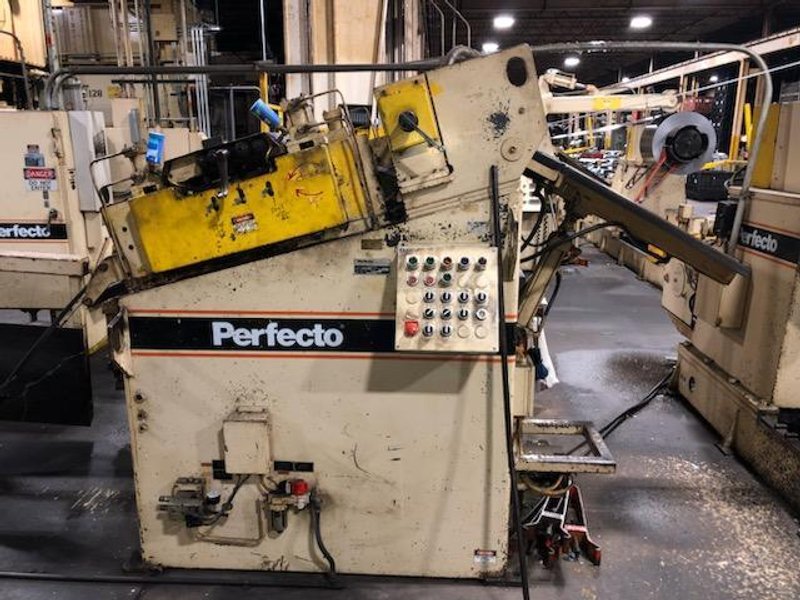

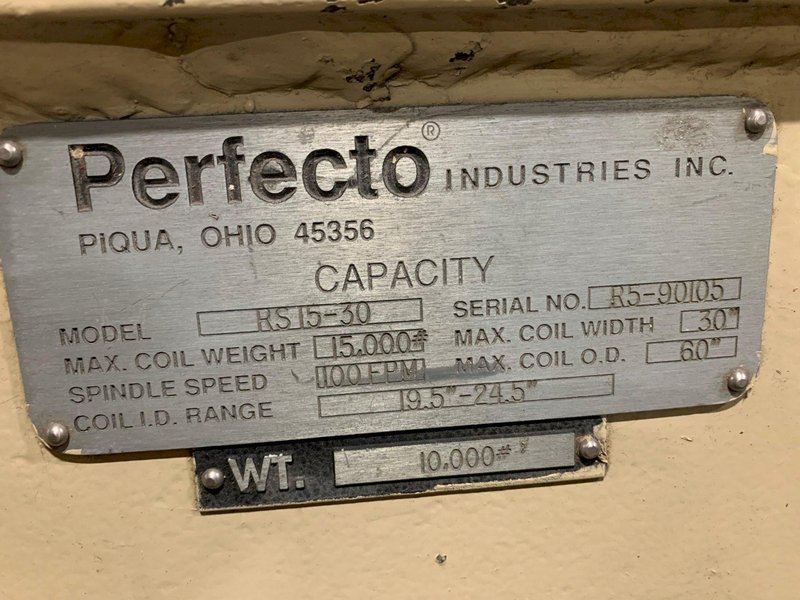

Coil weight capacity: 15,000 Lbs. Coil width capacity: 30" Stock thickness capacity: .090" x 30" Wide Expansion range: 19.5" - 24.5" Coil OD capacity: 60" Perfecto Complete Coil Feed Line Equipment and Features: Perfecto Coil Reel Uncoiler Model No.: RS150-30, Serial No.: RS-90105 Four leaf mandrel coil reel Hydraulic coil reel mandrel expansion Adjustable coil reel keeper arms Air brake mounted on main coil reel spindle Adjustable brake - pull off tension Coil hold down arm with motorized end wheel Threading drive Traveling coil load car Powered elevation and travel Self contained hydraulic pump unit Jog forward and reverse Perfecto Powered Coil Straightener Model No.: 28-30-7, Serial No.: 90106 Entry and exit powered coil straightener pinch rolls with air operated adjustments Seven coil straightening rolls x 2.8" diameter Manual individual or unison upper coil straightening roll adjustments Stock peeler table with extension Heavy duty hand crank edge guides Exit cascade loop support rollers Manual lubrication system Variable speed powered coil straightener drive system Operator's control console Jog forward and reverse Auto / run cycle Loop control Perfecto Exit Thread Table Model No. ETT-30 Perfecto Servo Roll Feed Press Feed Model No.: 500-30, Serial No.: EF90100 5" diameter upper and lower servo feed rolls Air operated upper servo feed roll lift/pilot Adjustable stock width edge guides (Hand Crank) Entry cascade loop support rollers Free standing base with adjustable pass line height Press mounted with adjustable pass line height AC servo roll feed drive and controls Job memory micro adjust batch count etc Pilot pin mode Free standing sloped front servo roll feed control console Remote pendant control for jog forward and reverse Fused disconnect |
|
