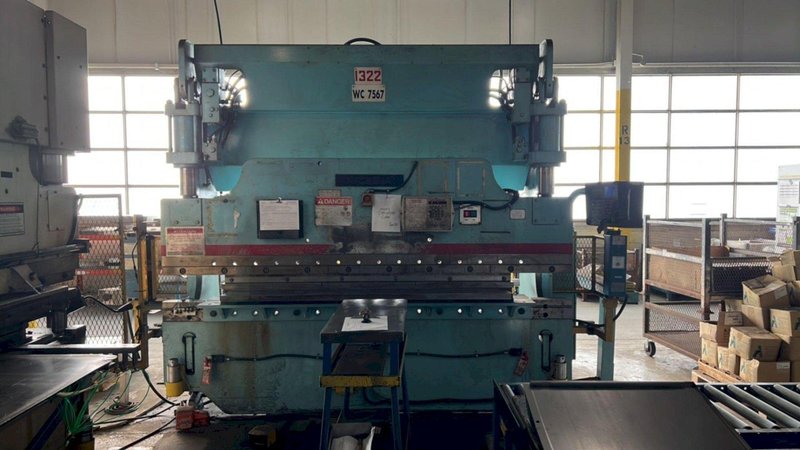

90 TON X 8' CINCINNATI CBII HYDRAULIC BRAKE: STOCK #76647
Brand
Category
Type
Model
null
Stock #
76647
Year
Not specified
Condition
Not specified
Location
Not specified
|

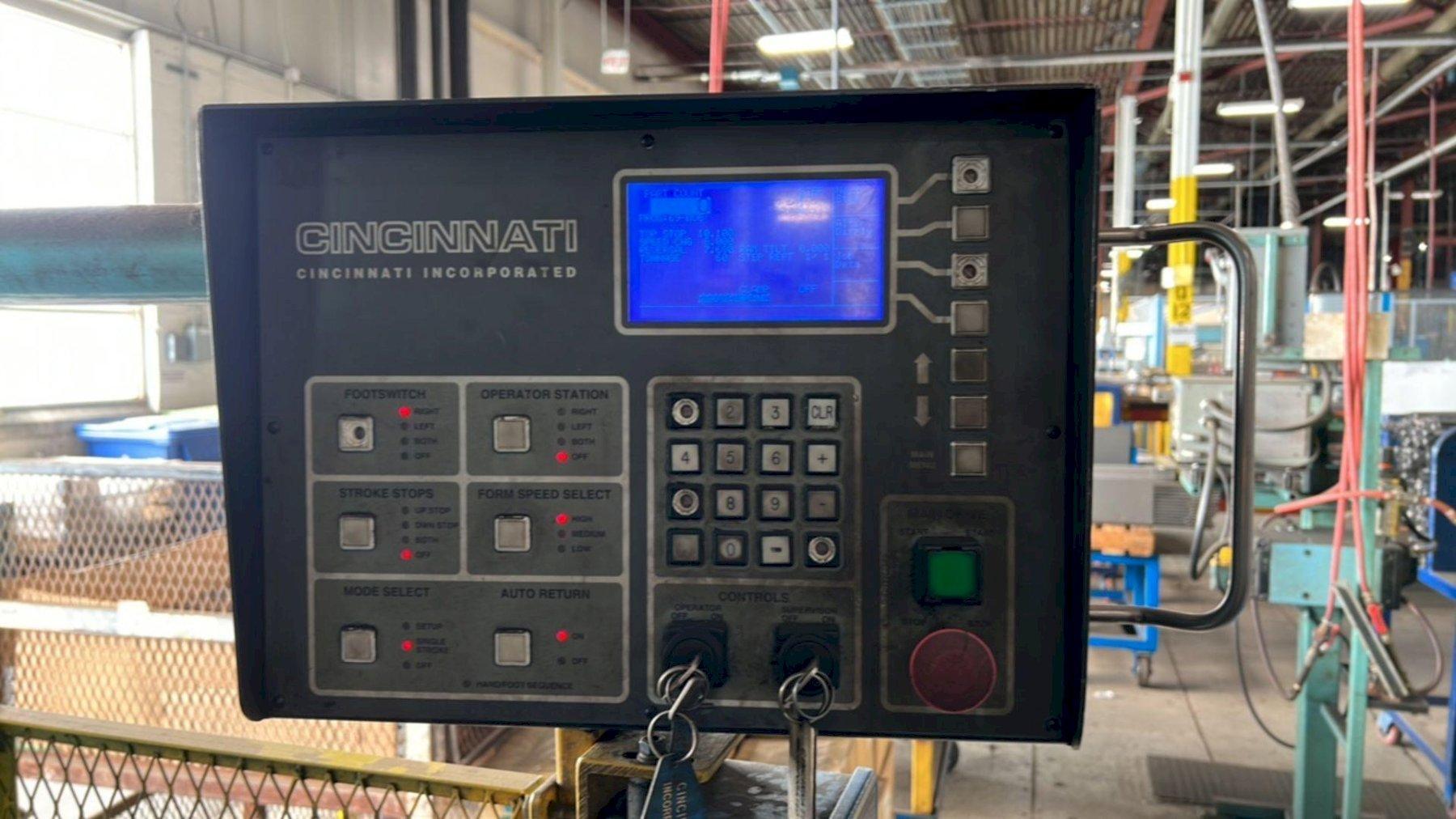

SERIAL .......................... 49623 MODEL ........................... 90 CBII X 8FT YEAR NEW ........................ 1996 CAPACITY ........................ 90 TON OVERALL LENGTH OF BED & RAM ..... 8' DISTANCE BETWEEN HOUSINGS ....... 6'6" STROKE OF RAM ................... 8" OPEN HEIGHT ..................... 15" CLOSED HEIGHT ................... 7" DEPTH OF THROAT ................. 7" RAM SPEED RAPID APPROACH ........ 260 IPM RAN SPEED FAST PRESS ............ 80 IPM RAM SPEED PRESSING .............. 10/20 IPM RAM SPEED NORMAL RETURN ......... 280 IPM DUAL PALM BUTTONS & FOOR PEDAL .. YES MILLED & DRILLED FOR ANGLE ...... YES CNC BACK GAUGE .................. AUTOMEC 99 CONTROL ......................... CINCINNATI LD LIGHT CURTAINS .................. TRIAD MOTOR HORSEPOWER ................ 15 |
