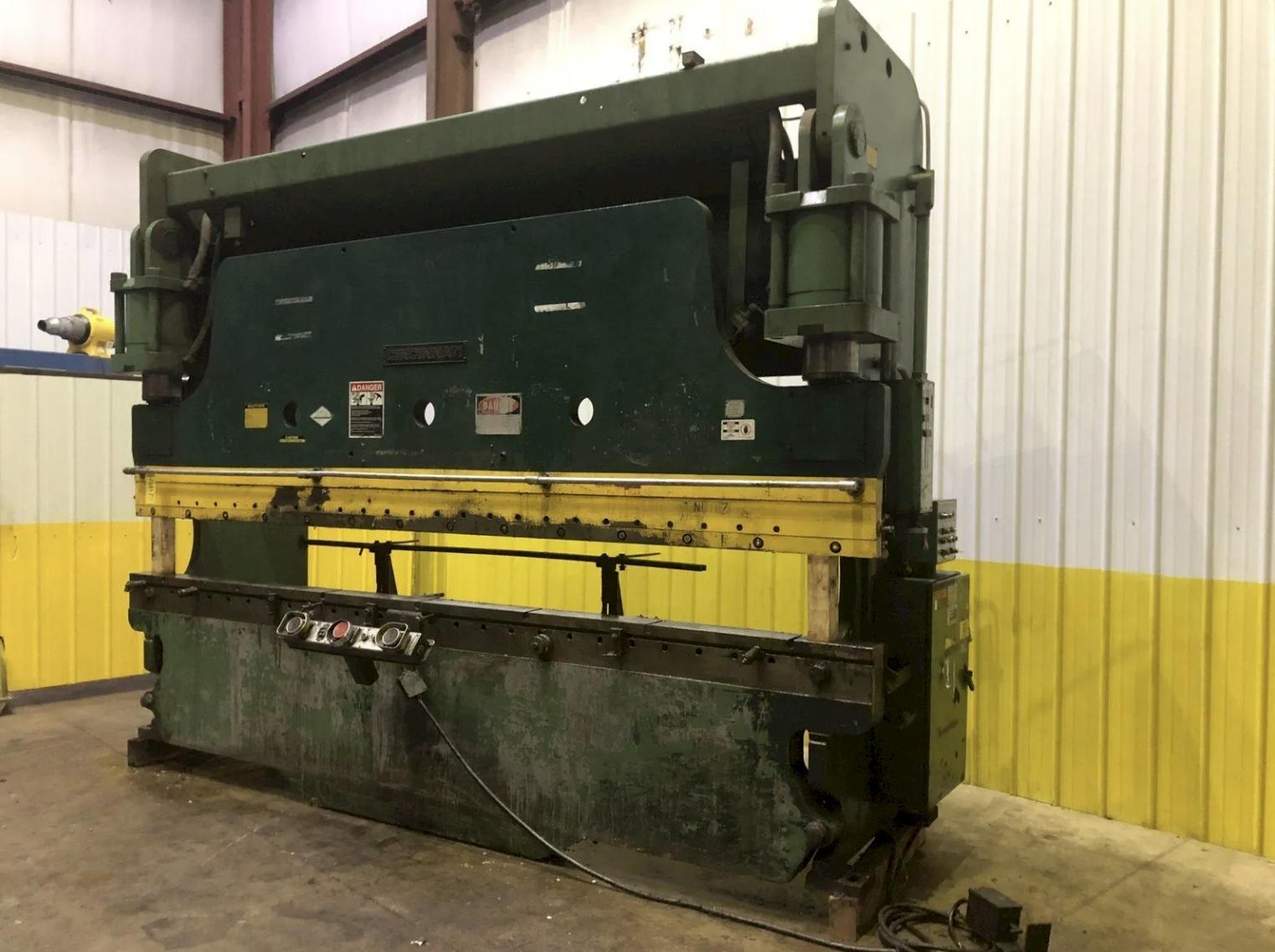

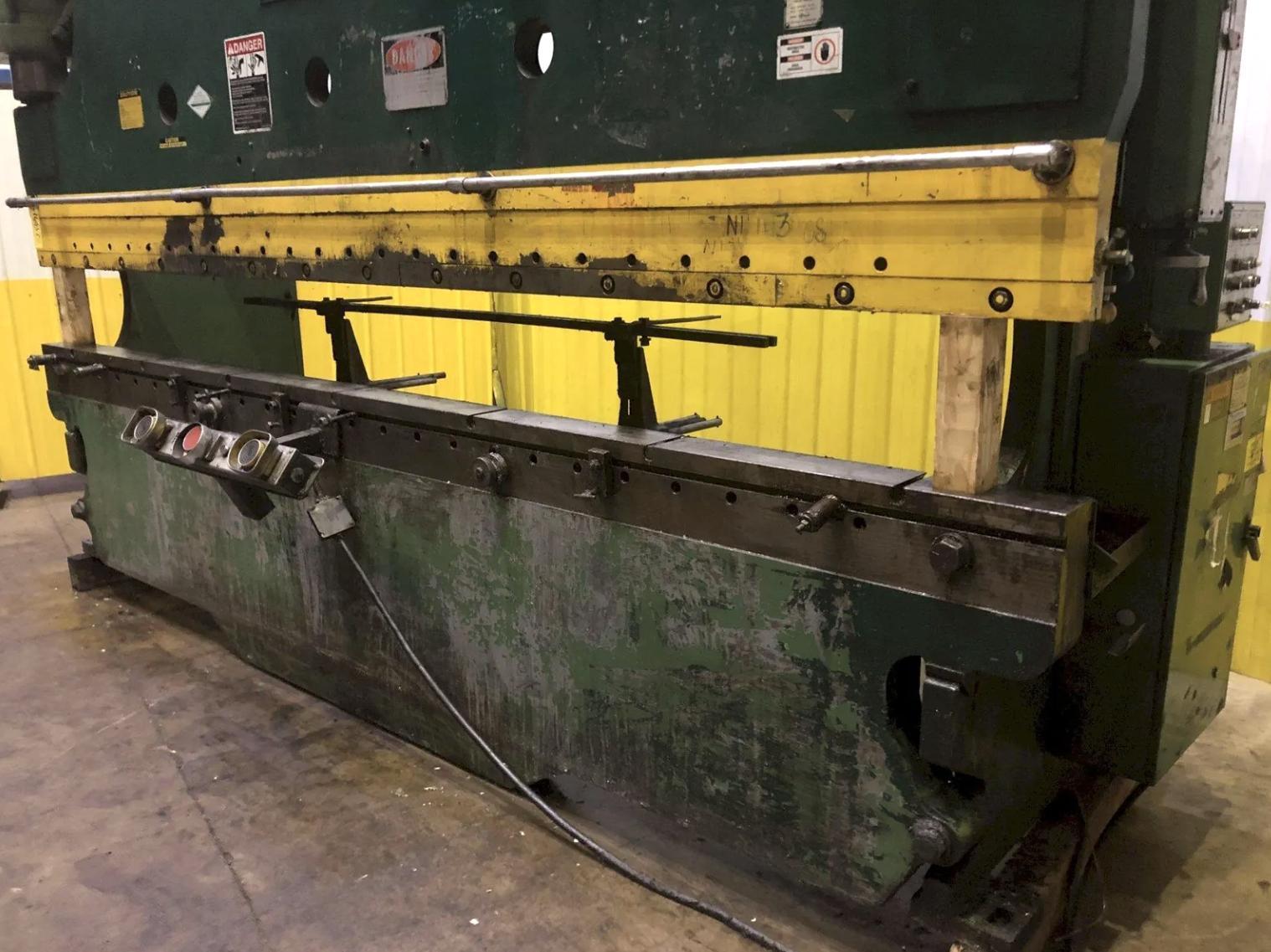

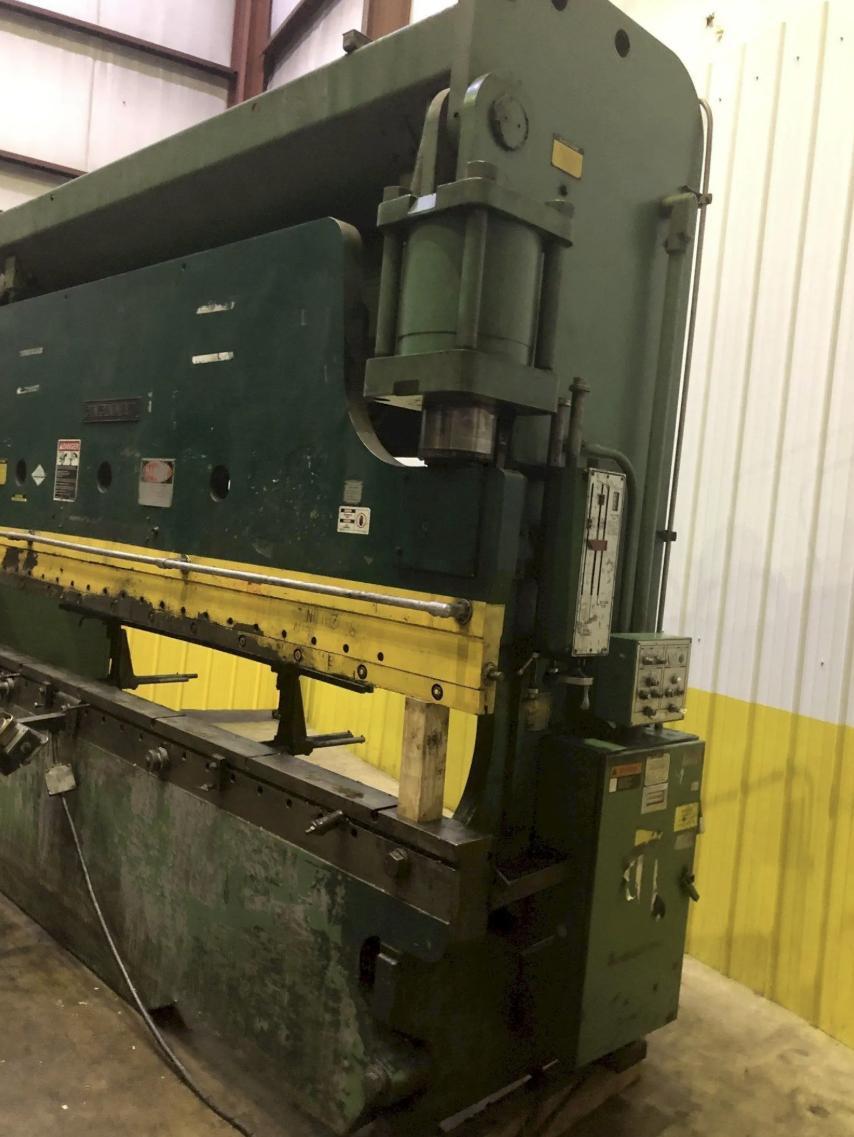

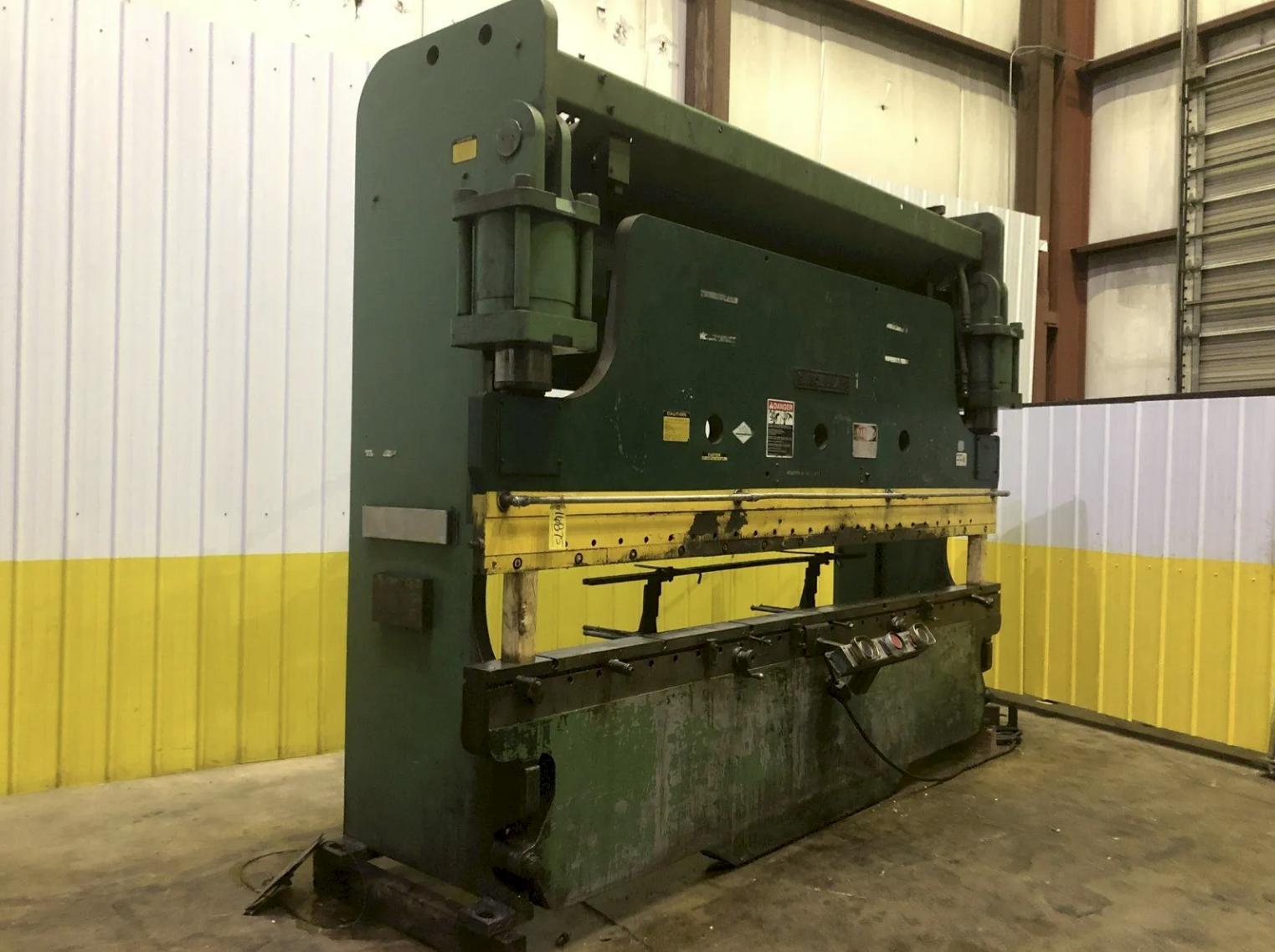

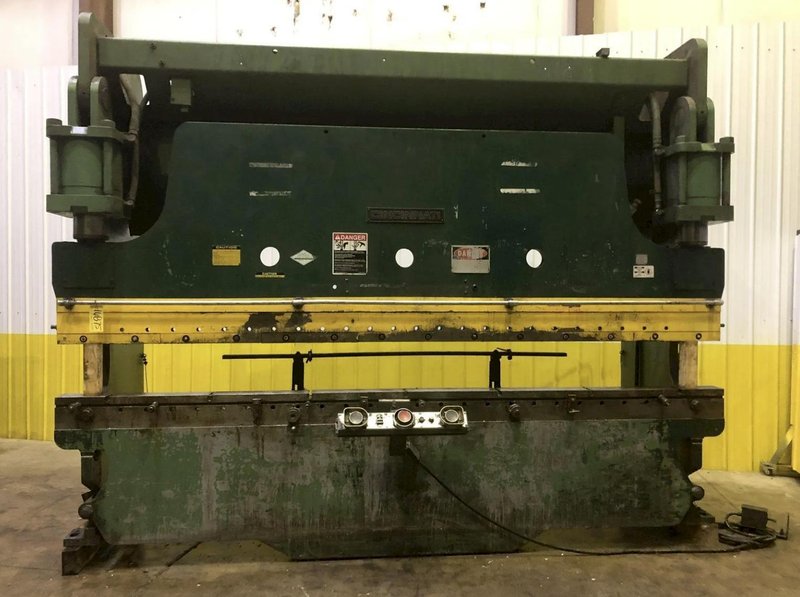

230 TON X 14' CINCINNATI 230CBX12 HYDRAULIC PRESS BRAKE. STOCK # 0985426
Brand
Category
Model
230CBX12
Stock #
0985426
Year
Not specified
Condition
Used
Location
Ohio
| Capacity | 230 tons |
| Dimensions | 14 |
| Distance Between Housing | 12.5 feet |
| Stroke Of Ram | 10 inches |
| Open Height | 17 inches |
| Closed Height | 7 inches |
| Depth Of Throat | 8 inches |
| Ram Speed High | 101 |
| Ram Speed Medium | 49 |
| Ram Speeds Low | 14 |
| Ram Speeds Return | 95 |
| Milled & Drill For Angles | Yes |
| Palm Buttons Controls | Yes |
| Motor | 35 horsepower |
|
SERIAL ........................... 41910
MODEL ............................ 230CB12
CAPACITY ......................... 230 TON
OVERALL LENGTH OF BED AND RAM .... 14'
DISTANCE BETWEEN HOUSING ......... 12'6"
STROKE OF RAM .................... 10"
OPEN HEIGHT ...................... 17"
CLOSED HEIGHT .................... 7"
DEPTH OF THROAT .................. 8"
RAM SPEED HIGH ................... 101 IPM
RAM SPEED MEDIUM ................. 49 IPM
RAM SPEEDS LOW ................... 14 IPM
RAM SPEEDS RETURN ................ 95 IPM
MILLED & DRILL FOR ANGLES......... YES
PALM BUTTTONS CONTROLS ........... YES
MOTOR ............................ 35 HP |
|
