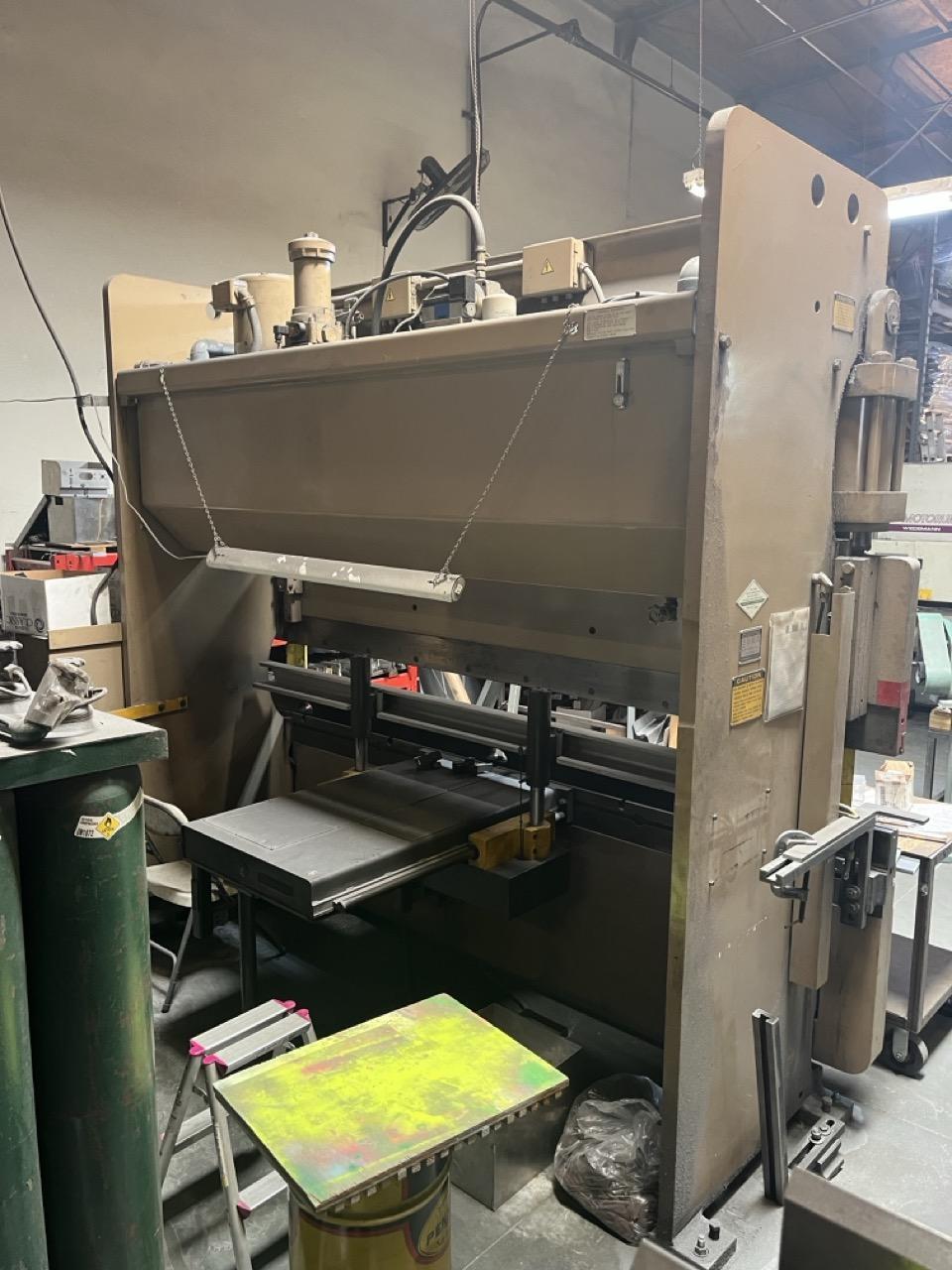

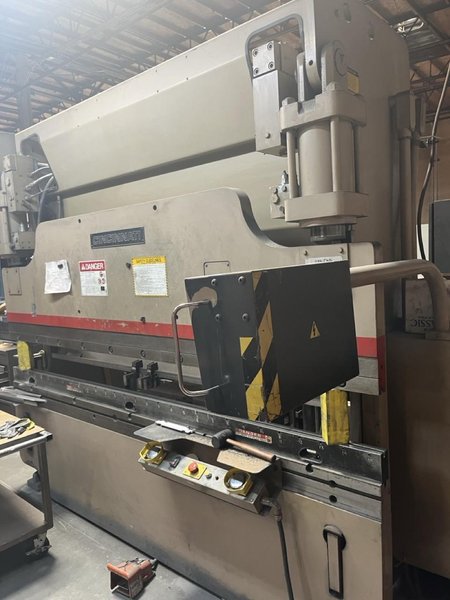

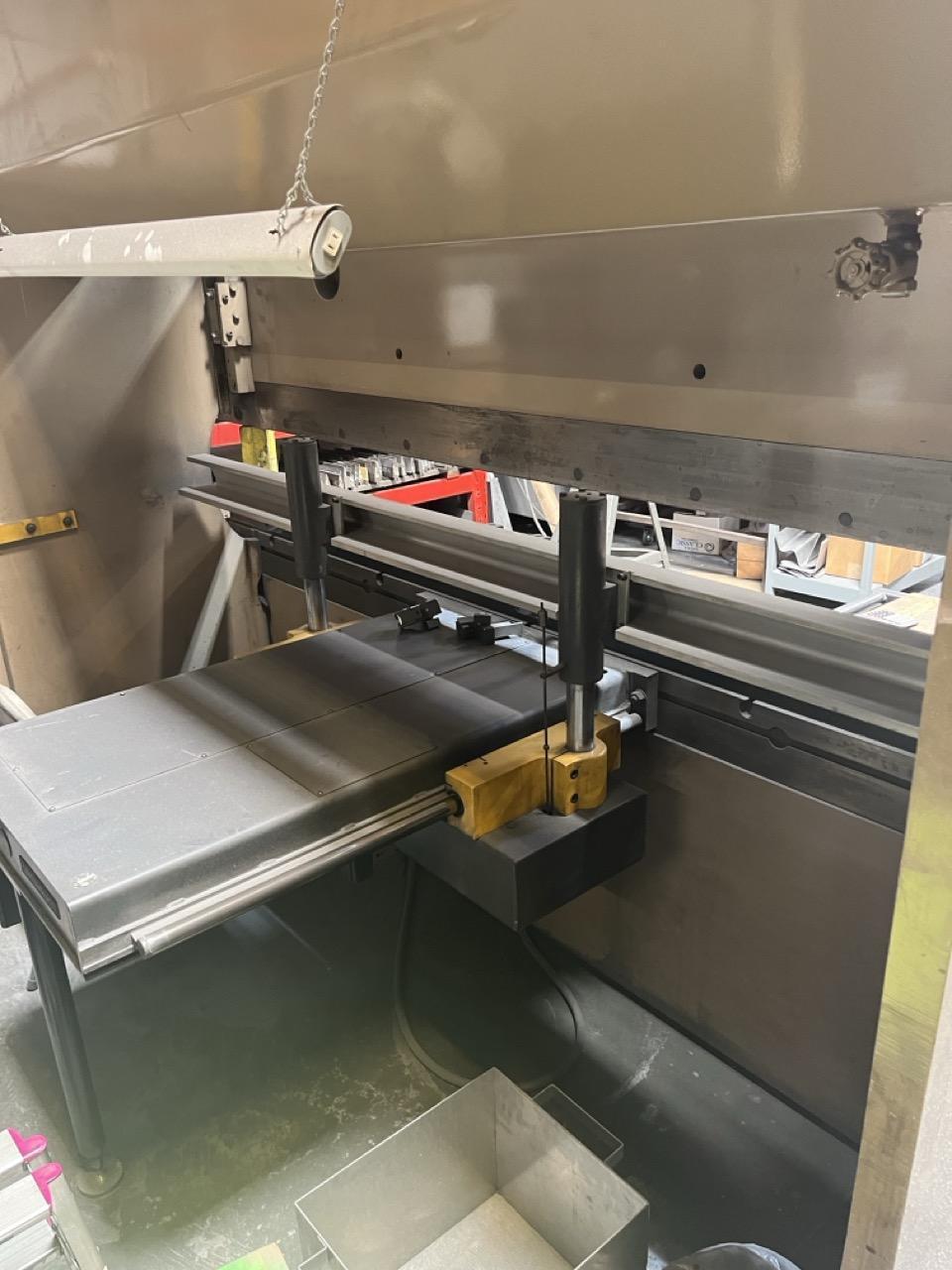

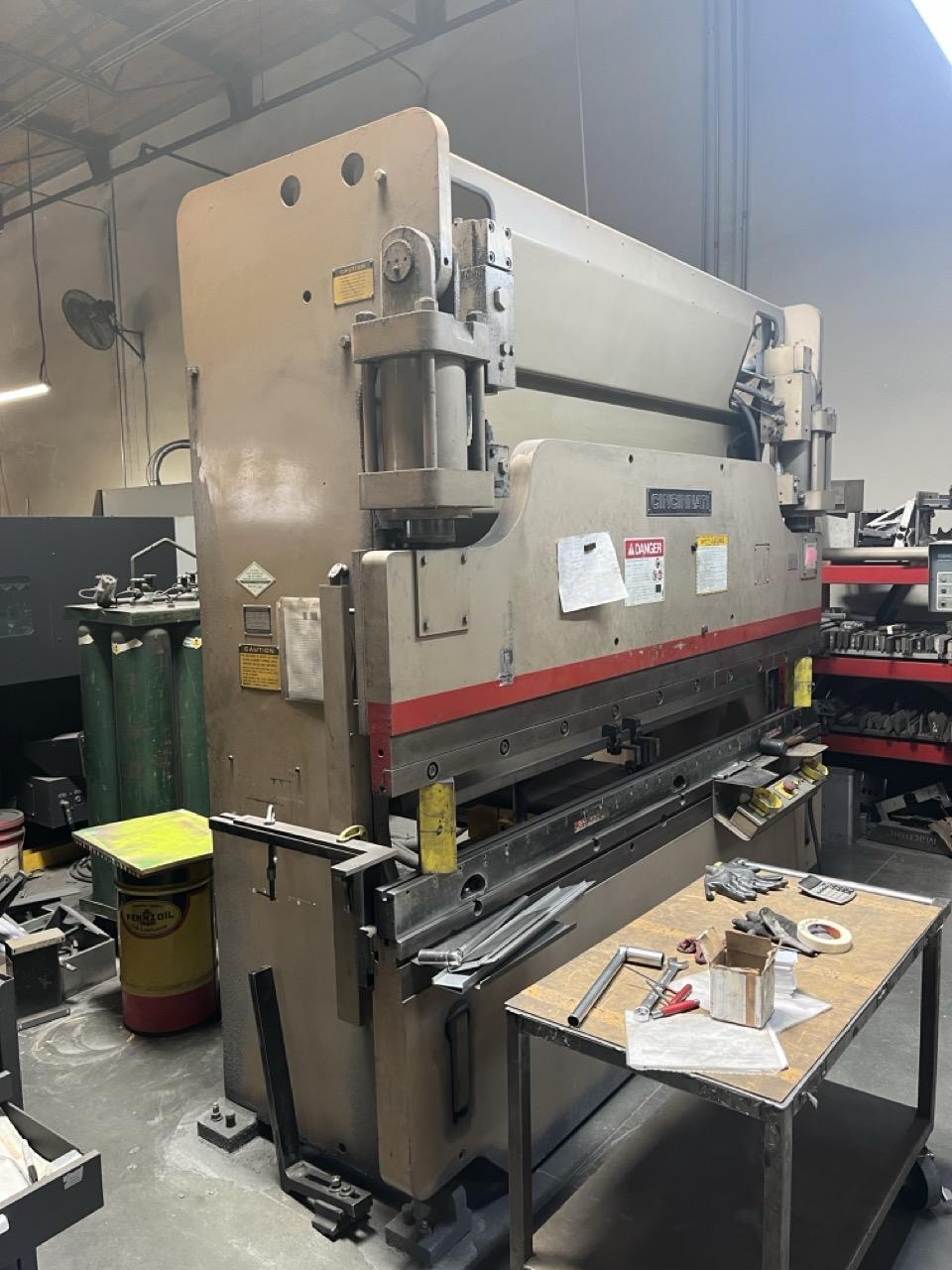

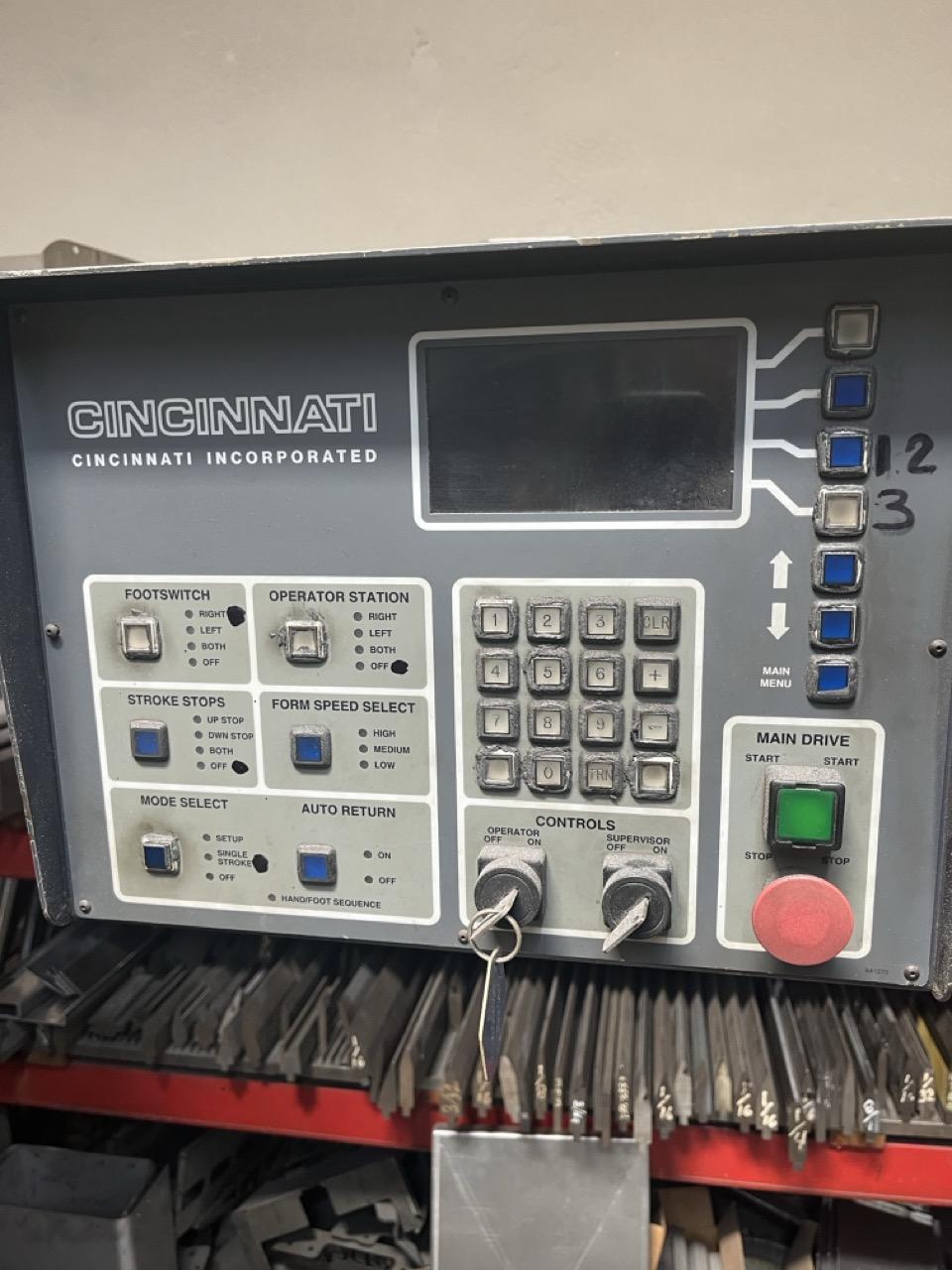

90 ton x 10′ Cincinnati 90CBII8 CNC Press Brake, 1998 – Very Clean
Brand
Category
Model
90CBII8
Stock #
2126
Year
1998
Condition
Not specified
Location
Not specified
|
Capacity: 90 tons
Overall Bed & Ram Length: 10 feet (with 8-foot distance between housings)
Stroke Length: 8 inches (adjustable)
Open Height (Die Space): 15 inches
Closed Height: 7 inches
Throat Clearance: 7 inches
High Approach Speed: 260 inches per minute (IPM)
Forming Speed: 10 to 80 IPM
Return Speed: 280 IPM
Main Motor: 15 horsepower (HP)
Weight: 16,000 LBS
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
