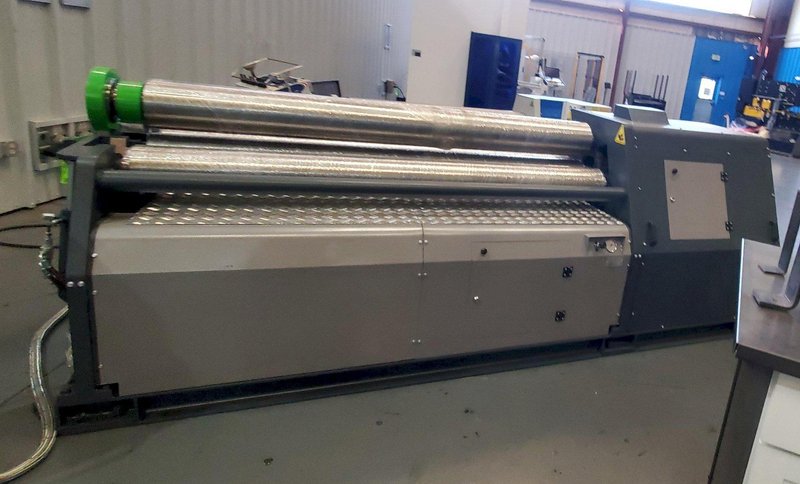

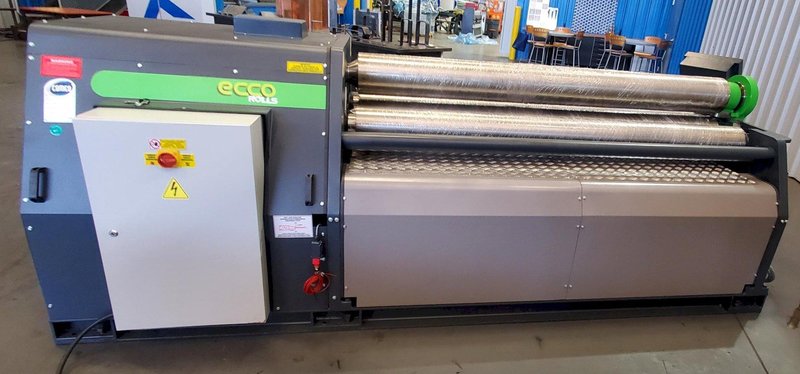

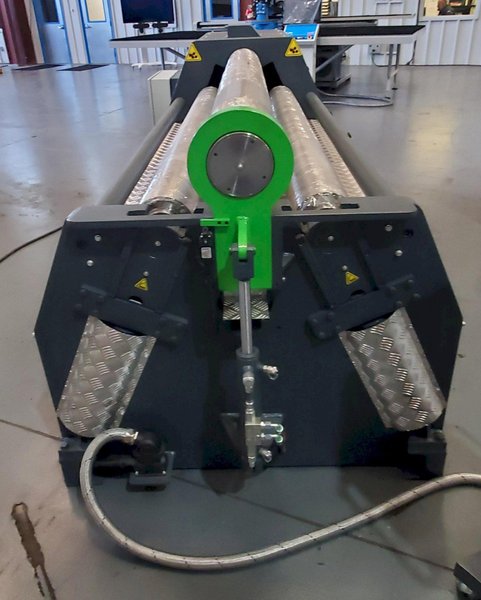

1/4" x 6 Ft. New ECCO 4 Roll Double Pinch Plate Bending Roll, Model 4RDP 185/6
Brand
Category
Model
4RDP 185/6
Stock #
4595
Year
Not specified
Condition
New
Location
Maryland
|
New ECCO Hydraulic 4 Roll Double Pinch Plate Roll
Model 4RDP 185/6
Specifications:
Capacity............................................. 6 ft. x 1/4" Mild Steel Overall Length of Rolls ............... 80 in. Roll Diameter................................... 7.28 in.
Motors - 4 HP drive motor; 1.5 HP hydraulic system motor
Weight............................. 7,360 lbs. Features: All steel frame Most rigid frame drop end and clamping roll parallelism unit Machine frame stress relieved Upper and lower pinch rolls driven All rolls mounted in ball or roller bearings Powered hydraulic adjustment of the lower pinching roll, with independent pinching pressure adjustment Powered hydraulic adjustment of the two side bending rolls, with push button control and electronic digital readouts for roll position Design of lineal guided lower rolls to minimize flat ends Hydraulic drop end Top roll permanently balanced when the drop end is opened Standard Equipment:
Main drive motor with magnetic brake

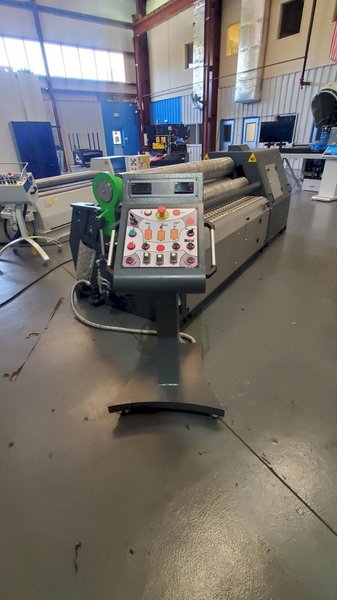

Hydraulic unit with motor and controls for lower roll and side bending roll adjustment and for the hydraulic drop end SAE 1050 high strength steel rolls heat treated (hardened) to 55 - 60 Rc Portable control console mounted on wheels for operator convenience (allows operator to position for his/her convenience) Components from American and European sources Electrics for 3/60/220 or 440, with overload and undervoltage protection. Low voltage at the controls. Safety cable at front and rear of machine
Cone bending attachment
Variable pinch roll pressure
Powered tilting of side bending rolls for cone rolling Electronic digital readouts to indicate position of both side bending rolls Metal enclosures Machine Manual
FOB: Maryland |
