Preliminary Specifications

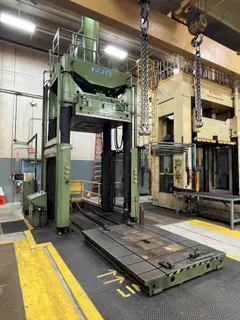

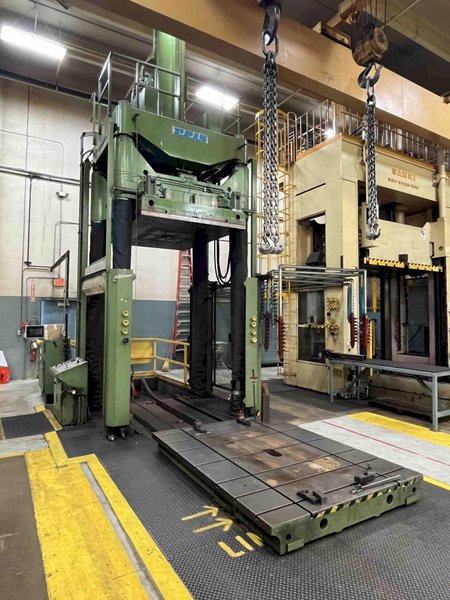

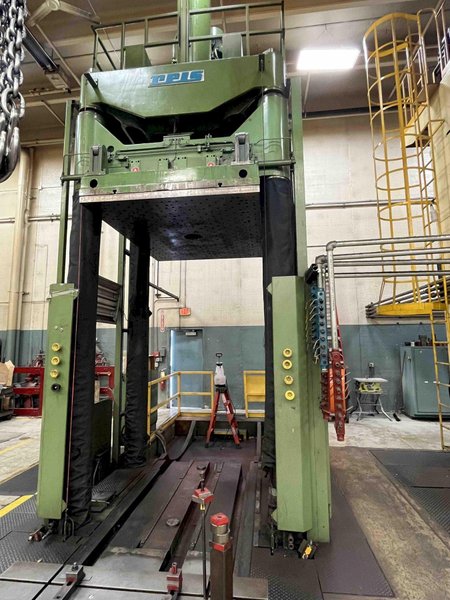

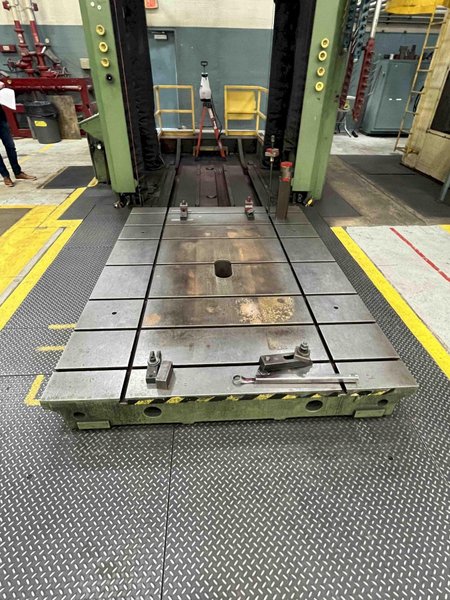

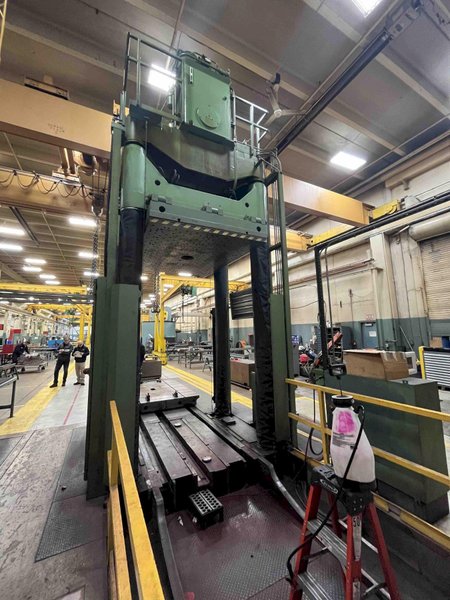

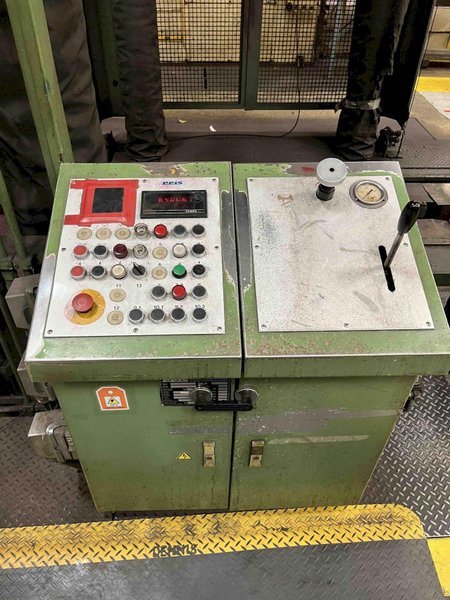

Reis 4 Post Hydraulic Spotting Press with Roll Out Table & Tilt Down Ram Model: TUS 180 OK-200 Year: 1994 224 Ton Capacity 106" Stroke 118" Daylight 71" LR x 98" FB Table 71" LR x 98" FB Ram Platen (Tilt Down) 74" LR Opening Between Columns 67,442 lbs Table Capacity 26,977 lbs Slide Platen Capacity Equipped With Press Controls Console Top Mounted Hydraulics Roll Out Bolster (Table) Swivel Down Ram Platen (180°) Power 480V / 3 PH / 60 Hz Motor 25.3 Kw (approx. 33 HP) 41 Amps / 1755 RPM Oil Reservoir Capacity 153 Gallons **Press can be installed in Pit or as Floor Standing Press** Pictured in Plant with Pit Pit at 27.5" Depth Above Floor 233.8" H Floor Standing - Above Floor 261.5" Approx. Floor Space 323" LR x 134" FB Estimated Weight 103,617 lbs Available Immediately, Available for Inspection Click on Video Links Below & General Assembly Drawing Specifications Subject to Verification; Subject To Prior Sale & Price Change |
