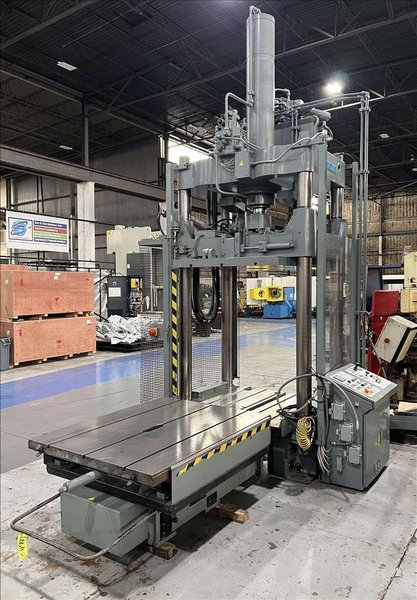

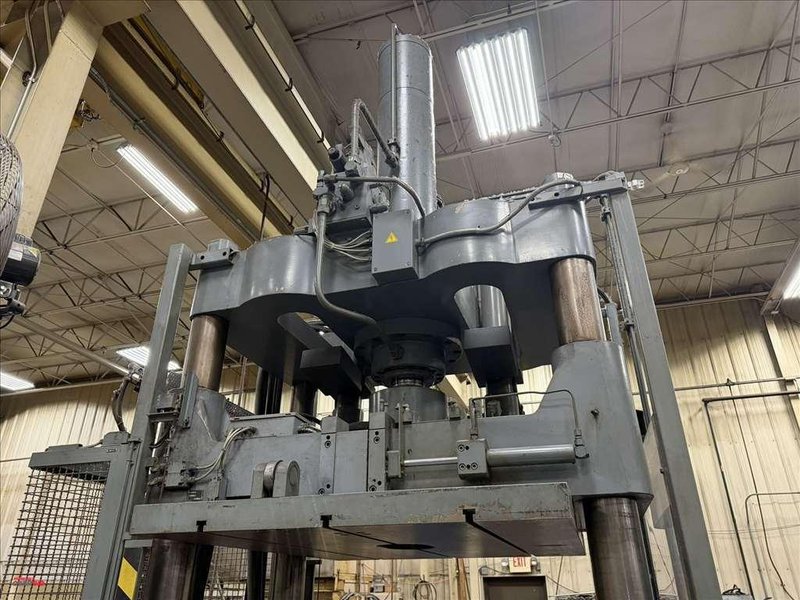

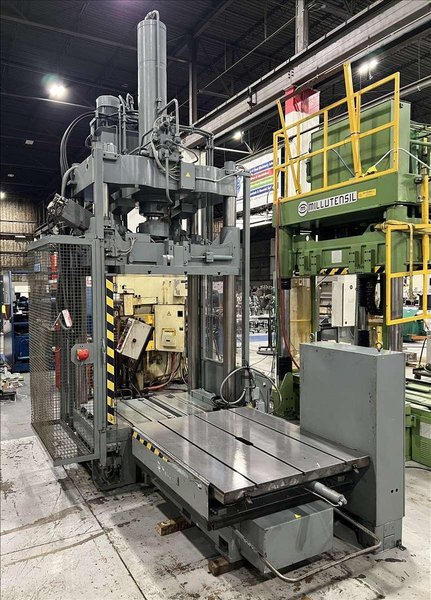

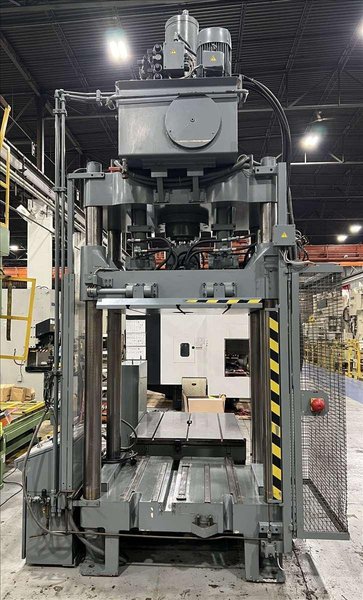

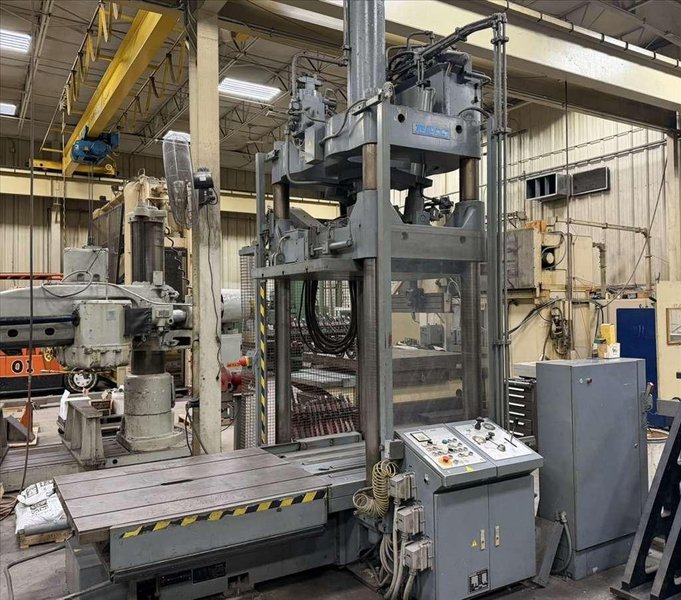

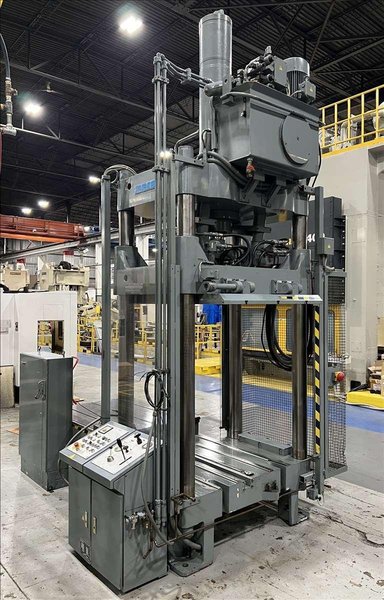

56 TON REIS MODEL TUS125-OK-50 HYDRAULIC SPOTTING AND TRYOUT PRESS
Brand
Category
Model
TUS125-OK-50
Stock #
TM702
Year
1991
Condition
Used
Location
Not specified
|

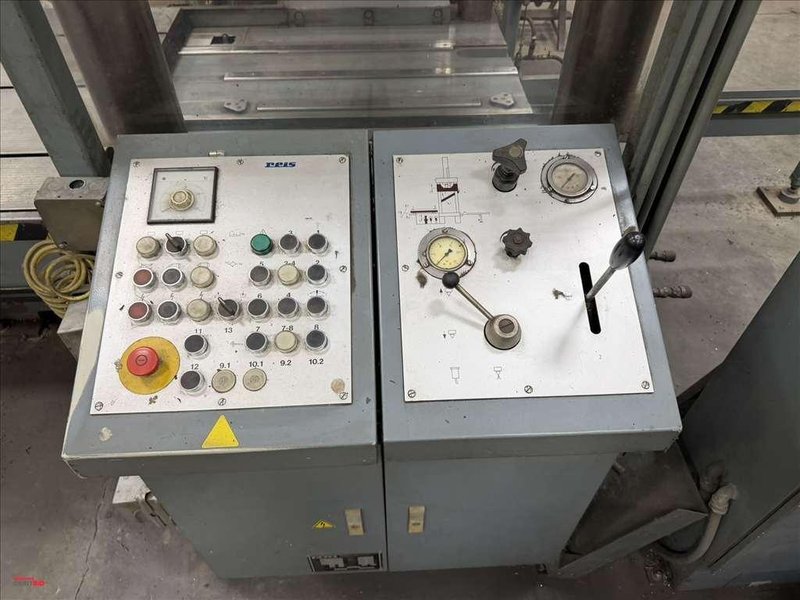

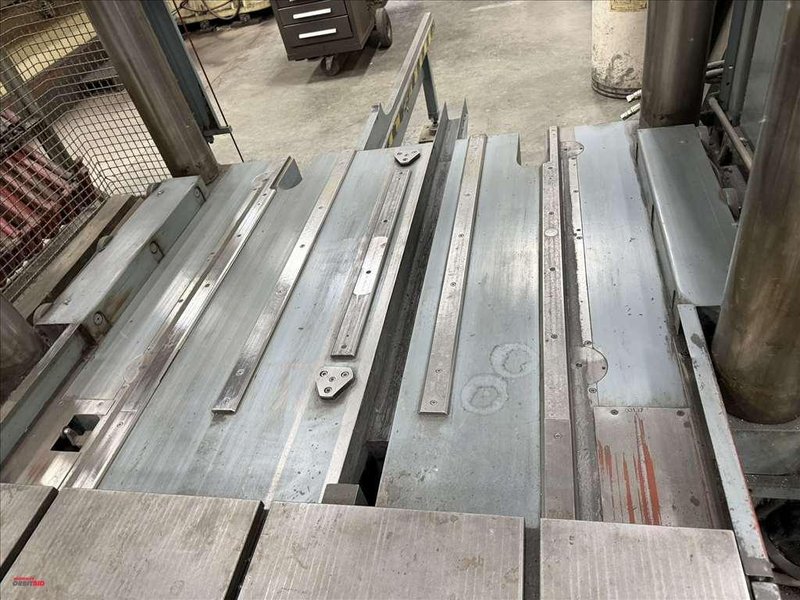

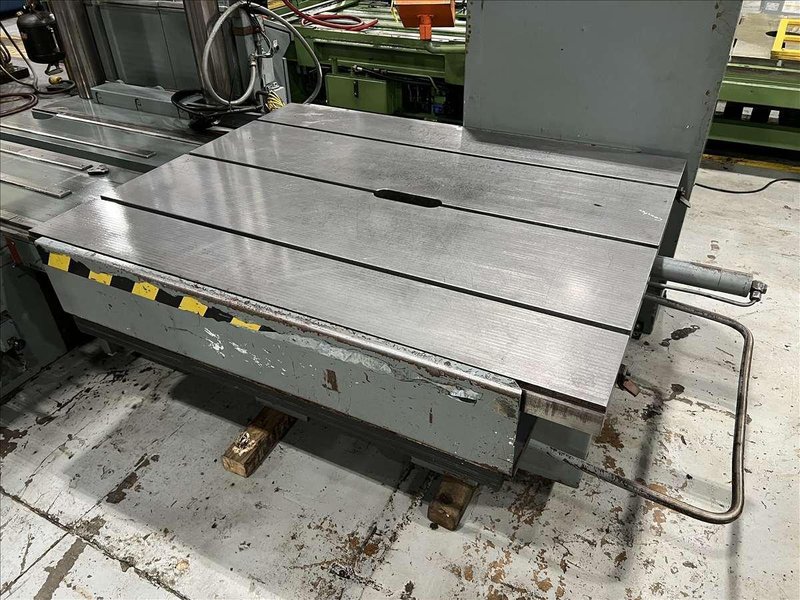

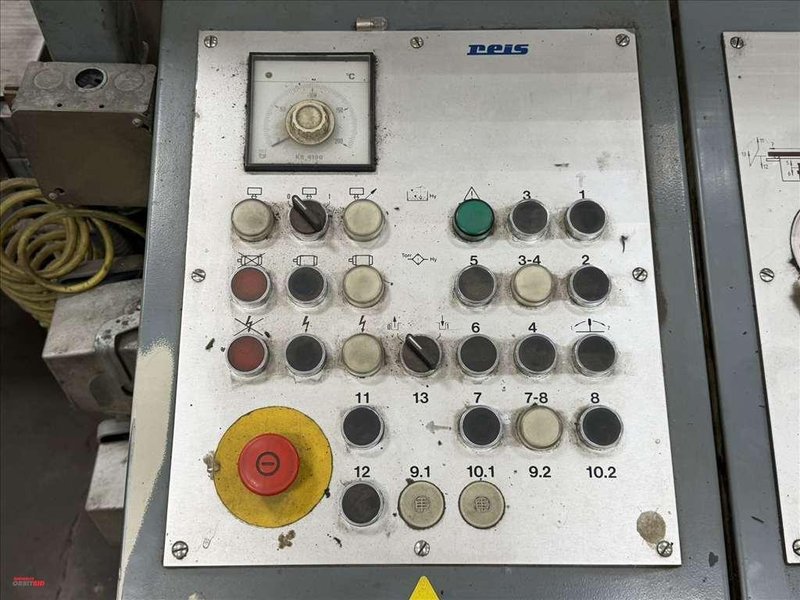

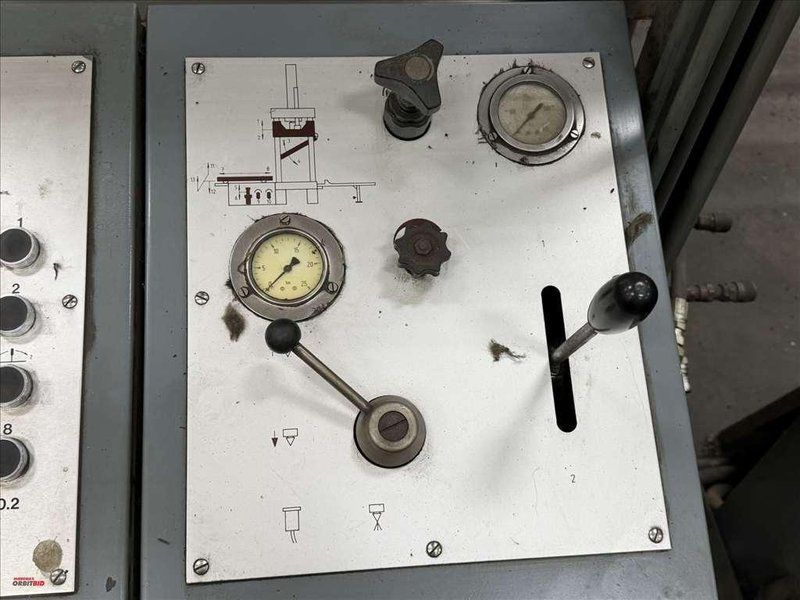

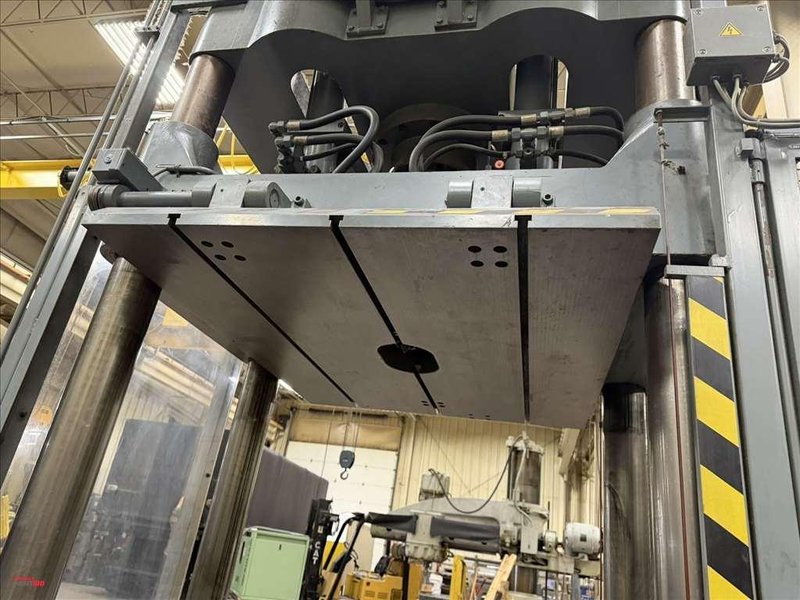

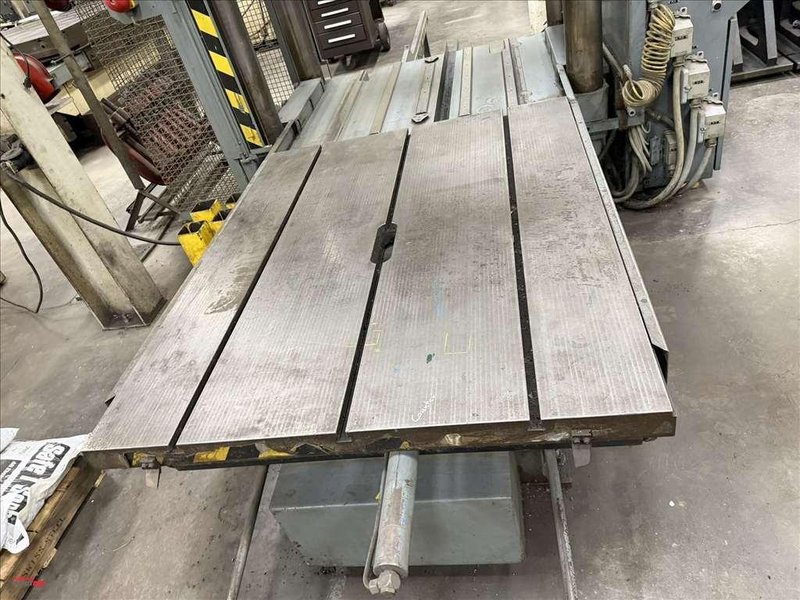

Ram Pressing, Maximum 0 - 56 Ton Ram Pulling, Maximum 0 - 28 Ton Size of Upper Platen 48" x 60" Size of Lower Platen 48" x 60" Mold Weight, Maximum 22,000 lbs Upper Mold Weight, Maximum 8820 lbs Daylight, Maximum 53" Stroke 53" Ram Speed Rapid Traverse Approach 118 IPM Ram Speed Pressing 19 IPM Ram Speed Return 113 IPM Main Motor 10 HP Approx Weight 22000 lbs. Equipped With: Side Mounted Control Center for Adjusting Speeds, Pressing Forces, Platen and Ram Positioning. Allen Bradley SLC5/04 PLC Controls. Slide Out Lower Bolster. 180 degress Swing Out Upper Platen with lock. Injection Unit for Part Sampling. Ejector to Test Ejector System. |
