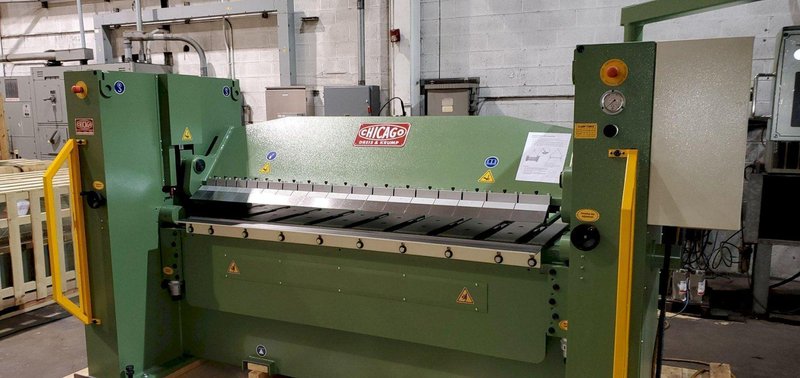

SPECIFICATIONS:

Bending length. . . . . . . . . . . . .80”
Capacity (mild steel). . . . . . . . . 3/16” **
Capacity (stainless steel). . . . . .  11 Ga.**
Minimum reverse bend . . . . . . . 1-3/16”

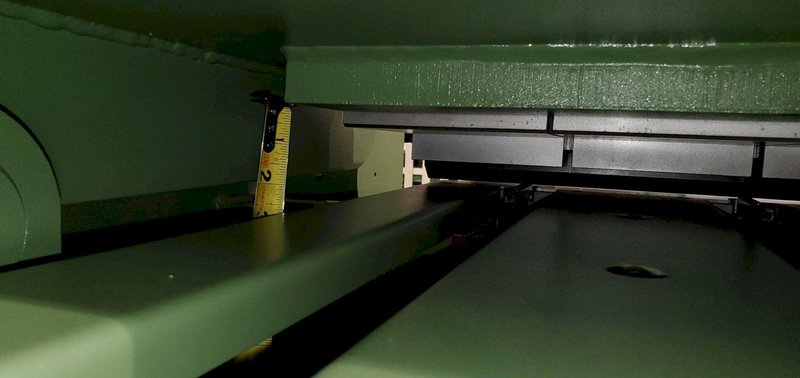

Finger extension depth . . . . . . . 6”

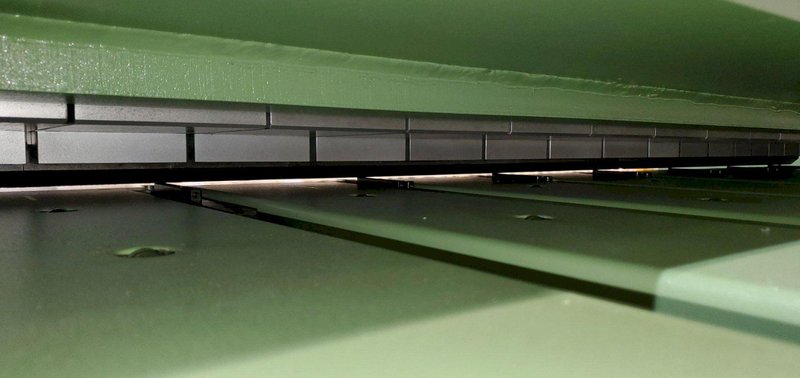

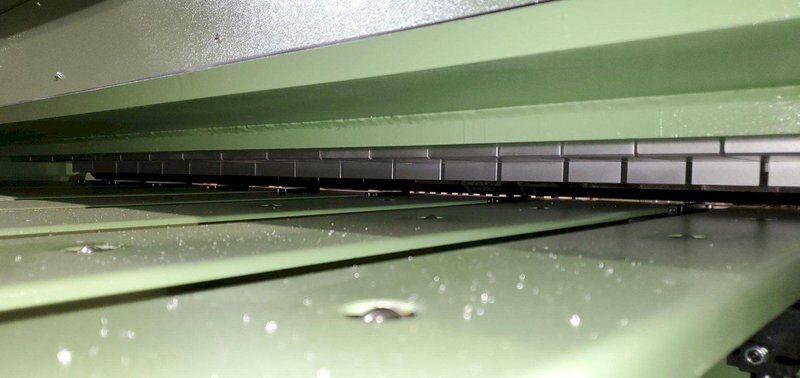

Number and width of fingers
With nose bar. . . . . . . . . . . . . .7 – 3”
3 – 4”
7 – 5”
2 – 6”
Shipping weight. . . . . . . . . . . .7,000 lbs.

** The bending capacity of the brake is achieved when using the angle bar and forming a 2” minimum flange on capacity material.

STANDARD EQUIPMENT

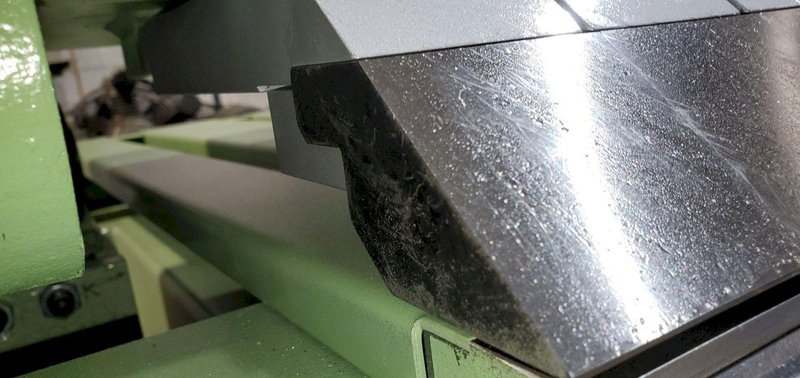

Removable Nose Bars Angle Bar

Bolted Bottom Bar 1-3/16” Insert Bar

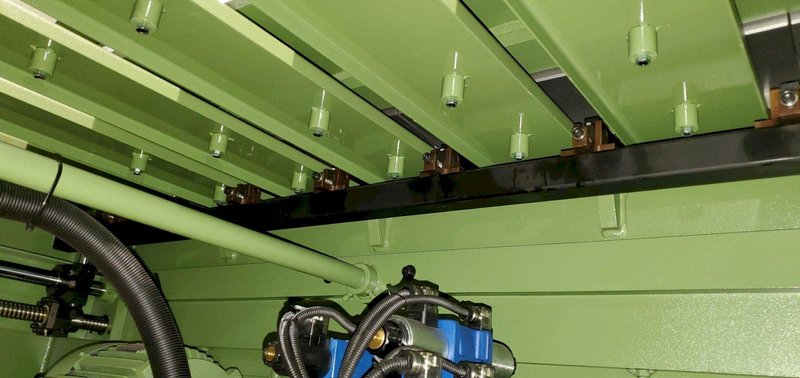

Compact Hydraulic Power Unit Oil Level Sight Gauge

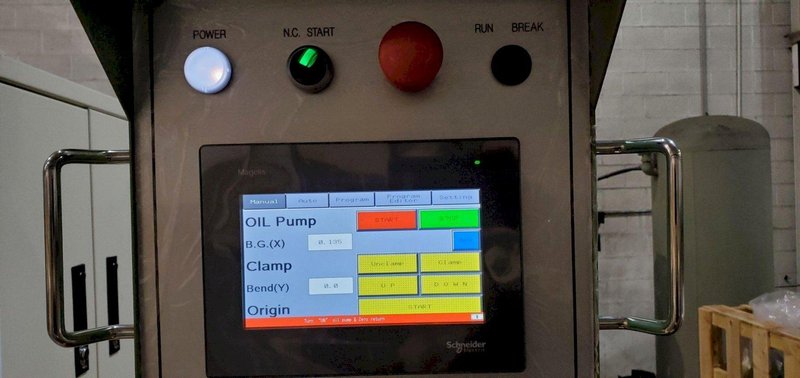

Schneider Control Panel Features:

On/Off Selector Switch Motor Start Pushbutton

Bending Leaf Up/Down Pushbuttons         Emergency Stop P/B

Clamp/Unclamp Pushbuttons Automatic Cycle

ELECTRIC FOOT SWITCH – Clamps & Unclamps Top Leaf. Allows operator mobility when loading and unloading material.  Bend leaf UP switch.

BEND ANGLE NC ADJUSTMENT – Program bend angle or read bend angle when the bending leaf is in motion.

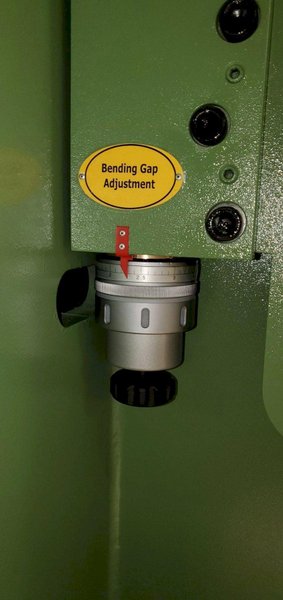

MATERIAL THICKNESS DIAL ADJUSTMENT – Reference scale for speedier setup when adjusting clamping pressure.

ADJUSTABLE CLAMP PRESSURE - Reduces marking on material.

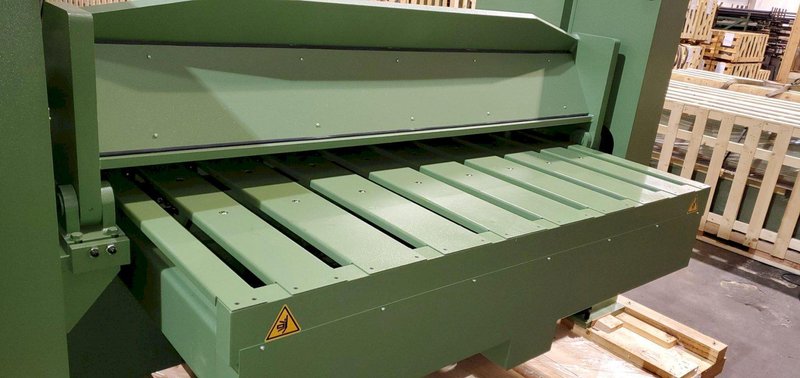

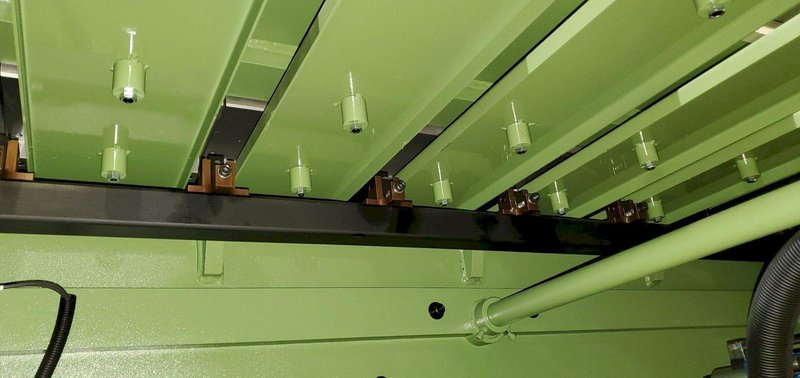

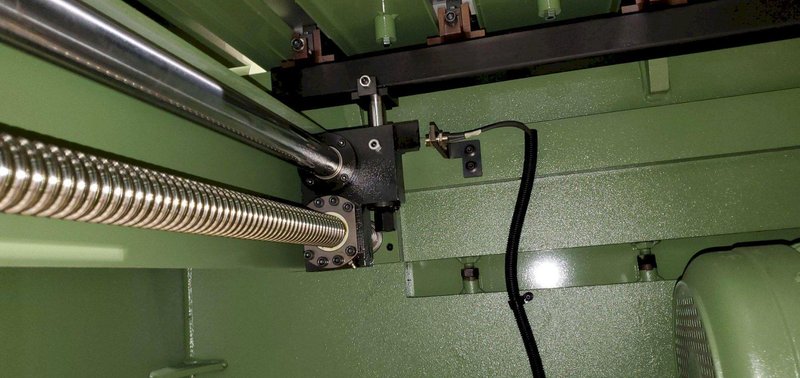

BACK GAUGE – 24”  travel, rack & pinion type gauge with hand wheel adjustment on right side of machine. Inch/Cm. Scale.

MANUAL CONTROL – Bending leaf up/down pushbuttons allow operator control of the bending leaf motion.

AUTO CYCLE – Actuate the “Auto Pushbutton”  clamp the top leaf, Angle Start raises the bending leaf to the preset bend angle setting, lowers the bending leaf, unclamp the top leaf.

ELECTRICAL EQUIPMENT - One 7.5 H.P. general purpose motor with direct mount hydraulic pump for operation on 220 volts, 3 PH, 60HZ with 110 volt control circuit.

FOB: Illinois
