SPECIFICATION
Bending length. . . . . . . . . . . . .    120”
Capacity (mild steel). . . . . . . . .    3/16” **
Capacity (stainless steel). . . . . .    11 Ga.**
Minimum reverse bend . . . . . . .    1-3/16”
Finger extension depth . . . . . . .    6”

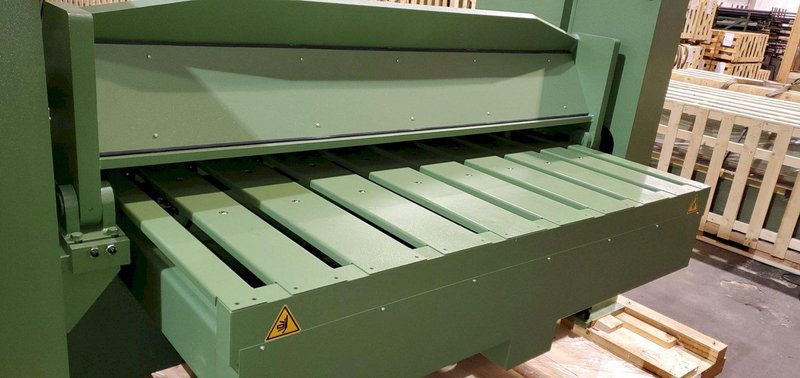

Number and width of fingers with nose bar:
Qty 6 - 3", Qty 3 - 4" , Qty 10 - 5", Qty 7 - 6"

Shipping Weight: 12,100 lbs.

 ** The bending capacity of the brake is achieved when using the angle bar and forming a 2” minimum flange on capacity material

STANDARD EQUIPMENT:

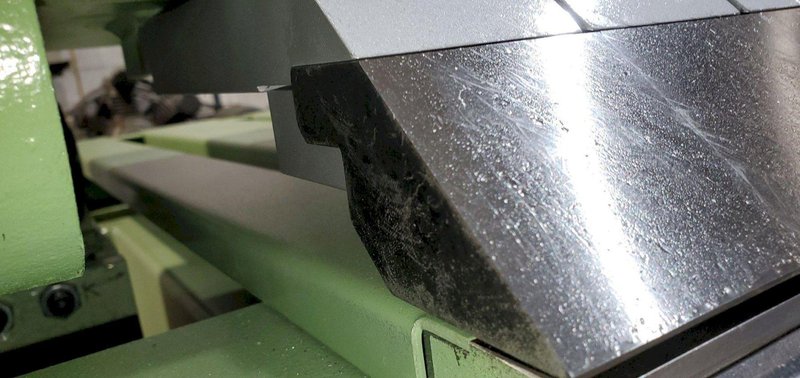

Removable Nose Bars
Bolted Bottom Bar
Angle Bar
1-3/16” Insert Bar
Compact Hydraulic Power Unit
Oil Level Sight Gauge

Schneider Control Panel Features:
        On/Off Selector Switch
        Motor Start Pushbutton
        Bending Leaf Up/Down Pushbuttons
        Emergency Stop P/B
        Clamp/Unclamp Pushbuttons
        Automatic Cycle

ELECTRIC FOOT SWITCH – Clamps & Unclamps Top Leaf. Allows operator mobility when loading and unloading material.
Bend leaf UP switch.

BEND ANGLE NC ADJUSTMENT – Program bend angle or read bend angle when bending leaf is in motion.

MATERIAL THICKNESS DIAL ADJUSTMENT – Reference scale for speedier set up when adjusting clamping pressure.

ADJUSTABLE CLAMP PRESSURE - Reduces marking on material.

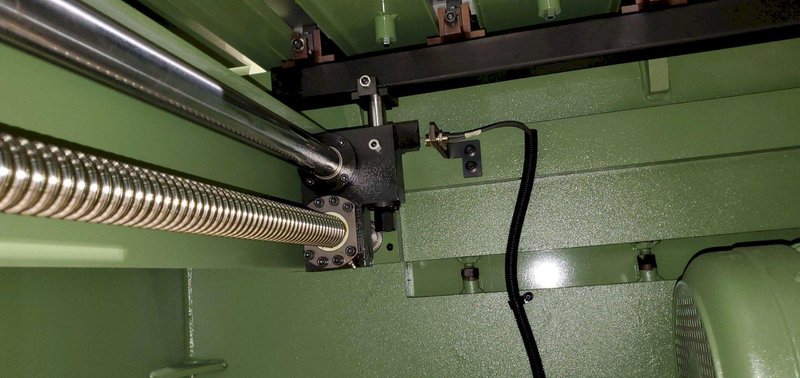

BACK GAUGE – 24”  travel, rack & pinion type gauge with hand wheel adjustment on right side of machine. Inch/Cm. Scale.

MANUAL CONTROL – Bending leaf up/down pushbuttons allow operator control of the bending leaf motion.

AUTO CYCLE – Actuate the “Auto Push Button”, clamp the top leaf, Angle Start raises the bending leaf to the preset bend angle setting, lowers the bending leaf, unclamp the top leaf.

Electrics:
7.5 H.P. general purpose motor with direct mount hydraulic pump for operation on 220 volts, 3 PH, 60HZ with 110 volt control circuit

FOB: Illinois
Delivery: Approx. 16-18 Weeks
