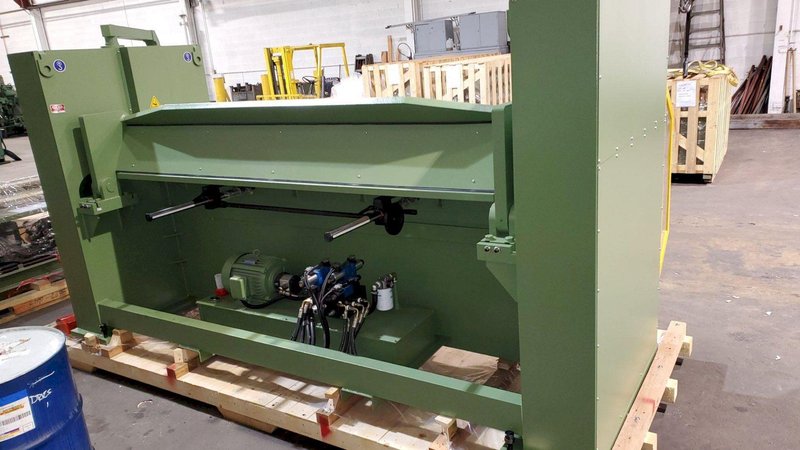

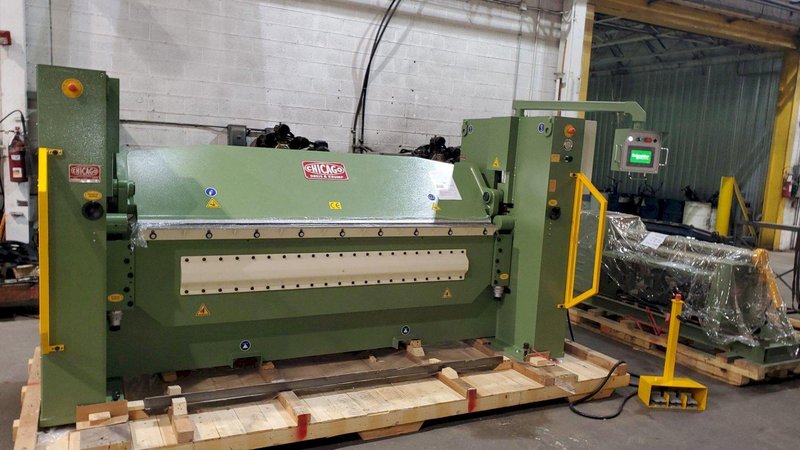

New Chicago D&K Hydraulic Powered Straight Bending Brake SPECIFICATIONS
Bending length. . . . . . . . . . . . . 100”
Capacity (mild steel). . . . . . . . . 1/4” **
Capacity (stainless steel). . . . . . 3/16” **
Minimum reverse bend . . . . . . .1-3/8”
Shipping weight. . . . . . . . . . . . 13200 lbs.
** The bending capacity of the brake is achieved when using the angle bar and forming a 2-1/2” minimum flange on capacity material.
STANDARD EQUIPMENT
Removable Nose Bar
Bolted Bottom Bar
Compact Hydraulic Power Unit

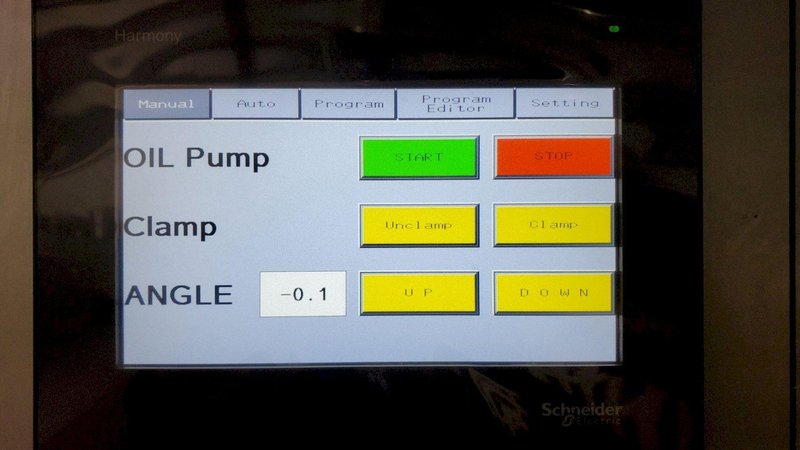

Angle Bar 1-3/8" Insert Bar Oil Level Sight Gauge Schneider Control Panel Features:
On/Off Selector SwitchMotor Start Pushbutton
Bending Leaf Up/Down PushbuttonsEmergency Stop P/B
Clamp/Unclamp PushbuttonsAutomatic Cycle
ELECTRIC FOOT SWITCH – Clamps & Unclamps Top Leaf. Allows operator mobility when loading and unloading material. Bend leaf UP switch.
BEND ANGLE NC ADJUSTMENT – Program bend angle or read bend angle when bending leaf is in motion.
MATERIAL THICKNESS DIAL ADJUSTMENT – Reference scale for speedier set up when adjusting clamping pressure.
ADJUSTABLE CLAMP PRESSURE - Reduces marking on material.
BACK GAUGE – 24” travel, rack & pinion type gauge with hand wheel adjustment on right side of machine. Inch/Cm. Scale.
MANUAL CONTROL – Bending leaf up/down pushbuttons allow operator control of the bending leaf motion.
AUTO CYCLE – Actuate the “Auto Pushbutton” clamp the top leaf, Angle Start raises the bending leaf to the preset bend angle setting, lowers the bending leaf, unclamp the top leaf.
ELECTRICAL EQUIPMENT
One 10 H.P. general purpose motor with direct mount hydraulic pump for operation on 220 volts, 3 PH, 60HZ with 110 volt control circuit.
NOTE: Hydraulic Oil is NOT Included FOB: Illinois Terms: Payment in Full Due with Order Delivery: Stock, Subject to prior sale |
