Max Width of Workpiece | 9 inches |
Max Thickness of Workpiece (in.) | 2.50 inches |

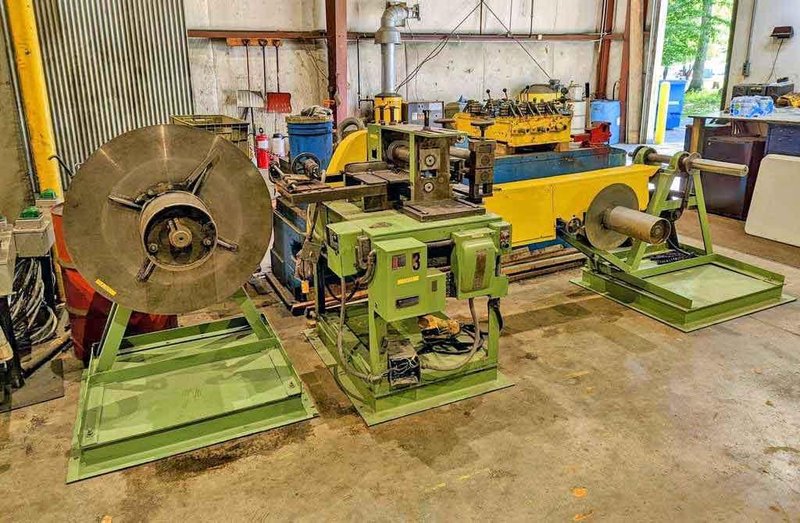

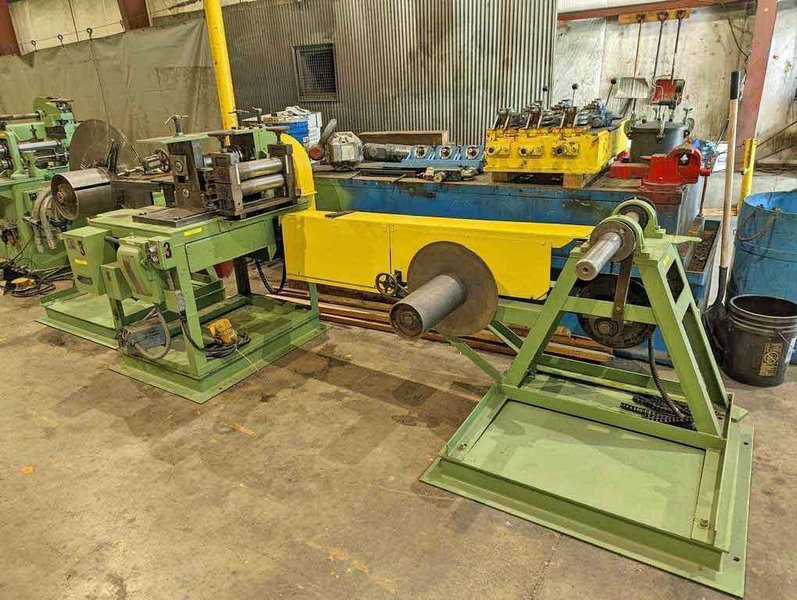

National Standard Slitting Line
Pull Thru Slitting Line with Dual Takeups
-Capacity:
Material Width: 9"
Thickness Range: 0.005" (0.127mm) - 0.062" (1.6mm)
Number of Cuts: 9 Cuts 0.005" (0.127mm)
6 Cuts 0.062" (1.6mm)
Line Direction: Left to Right
Consisting of:
-Uncoiler:
Type: Non-Driven Expanding Mandrel
Mandrel Face Width: 12" (305mm)
Expansion Range: 11.5" (292mm) - 12" (305mm) Dia.
Type Expansion: Manual
Passline Height: 31" (787.4mm)
Brake for Back Tension: Manual Band Brake
Maximum Coil O.D.: 36" (915mm)
Overall Size: 41" L x 39" W x 54" High

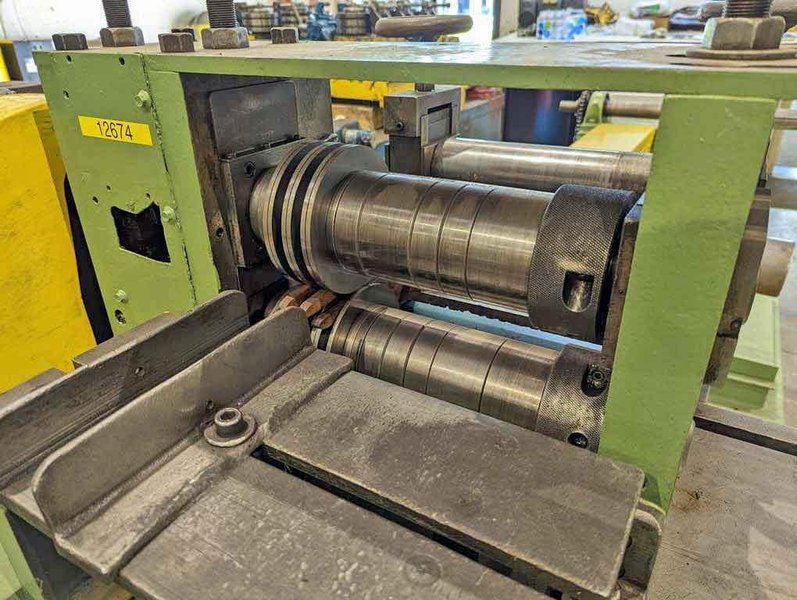

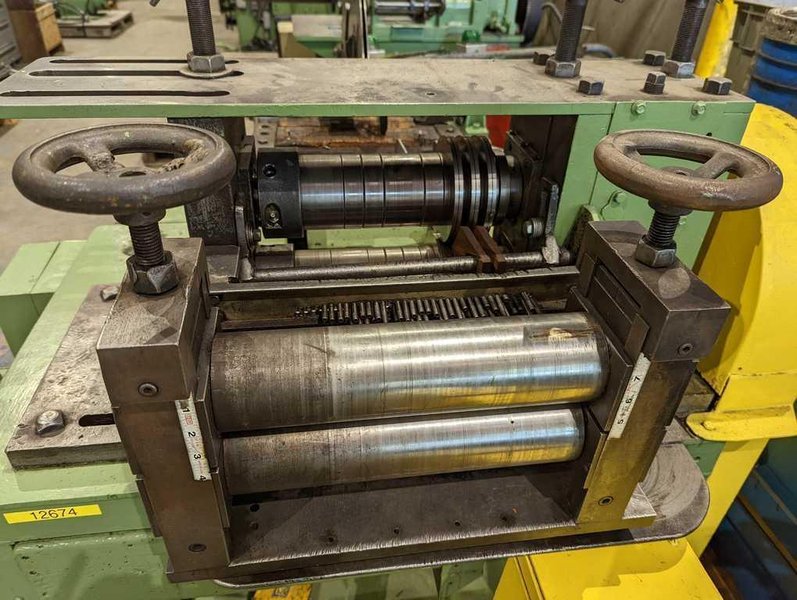

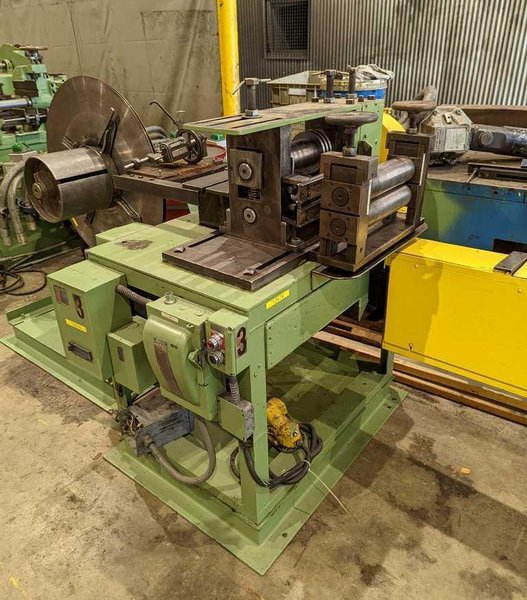

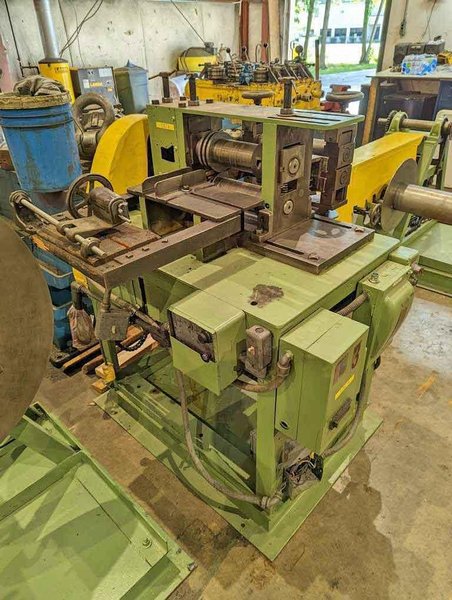

-Slitter Head:
Arbor Size: 2.50" (63.5mm) Dia. x 10" (254mm) Face
Entry Side Guides: Manual
Vertical Arbor Adjustment: Manual
Knife Separation: Wooden Fingers
Exit Pinch Rolls: 3.250" (95mm) Dia. x 13" (330mm) Face
Strip Counter: Durant Model 5-H-1-R-CL, S/N: 262
Knife O.D.: 5.50" (140mm)
Spacer O.D.: 3.750" (95mm)
Passline Height: 42.5" (1080mm)
Overall Size: 49" L x 43" W x 55" High

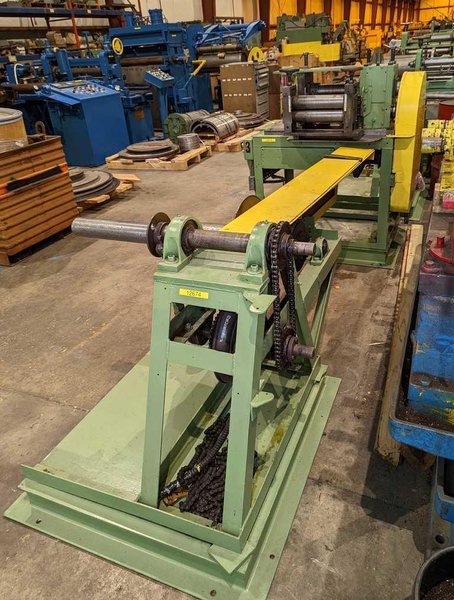

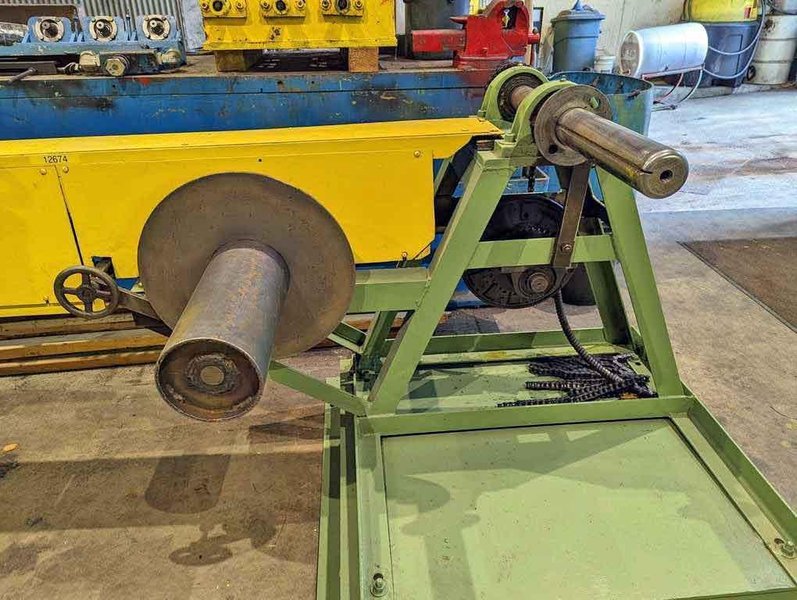

-Recoilers:
Winder No. 1:
6.50" (165mm) Drum Dia. x 14" (355mm) Face Width
16" (406mm) Max. O.D.
with Warner Electric Brake
Winder No. 2:
2.750" (70mm) Shaft Dia. x 14" (355mm) Face
with Warner Electric Brake

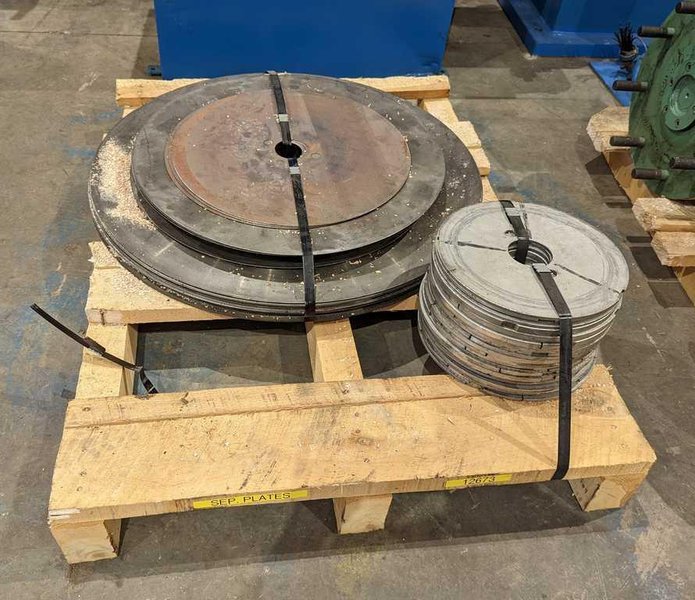

Winders Use Separator Discs
Overall Size: 94" L x 40" W x 41" High

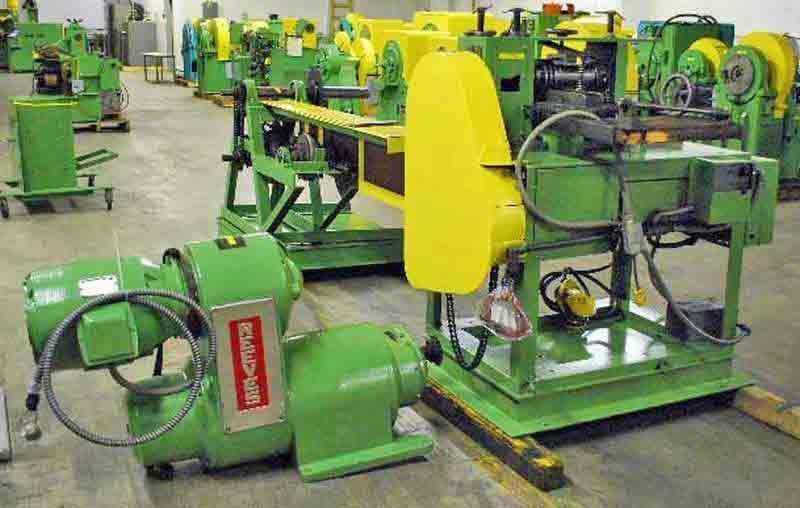

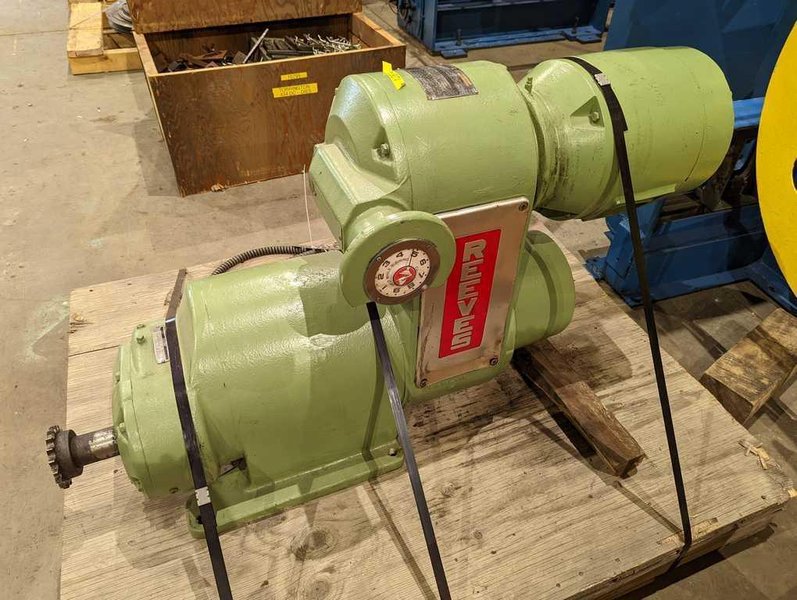

-Drive Motor:
Powers both Winders and the Slitter Head
15 HP AC, 1760 RPM, 230/460 Volts, 44/22 amps
Reeves Variable Speed Drive Model No.: Motodrum
Size: 8441, Ratio: 2.8 to 1
Output RPM: 182 - 1430 RPM
Overall Size: 53" L x 20" W x 31" High
-Overall Length of Slitting Line: 11.3 Ft. (3.44m) Plus Payoff

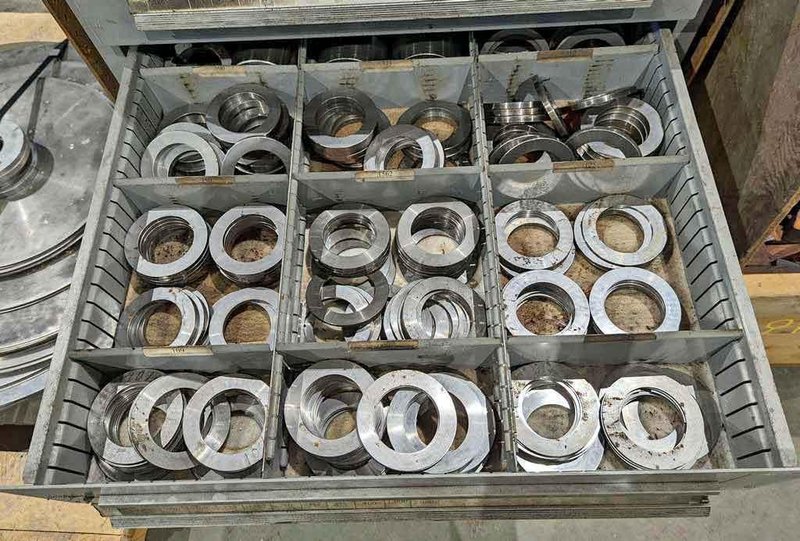

-Includes Large Quantity of Tooling
-In Storage:Toledo, OH |
