9" NATIONAL STANDARD SLITTING LINE (12674)

MACHINE# 12674

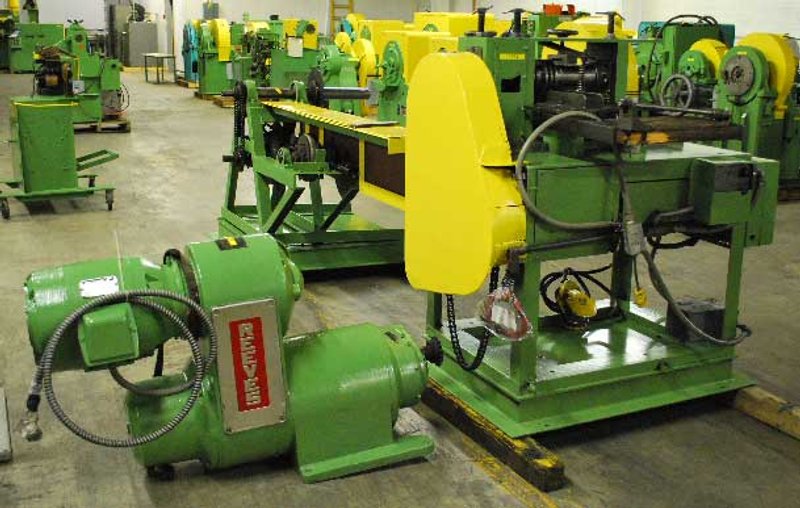

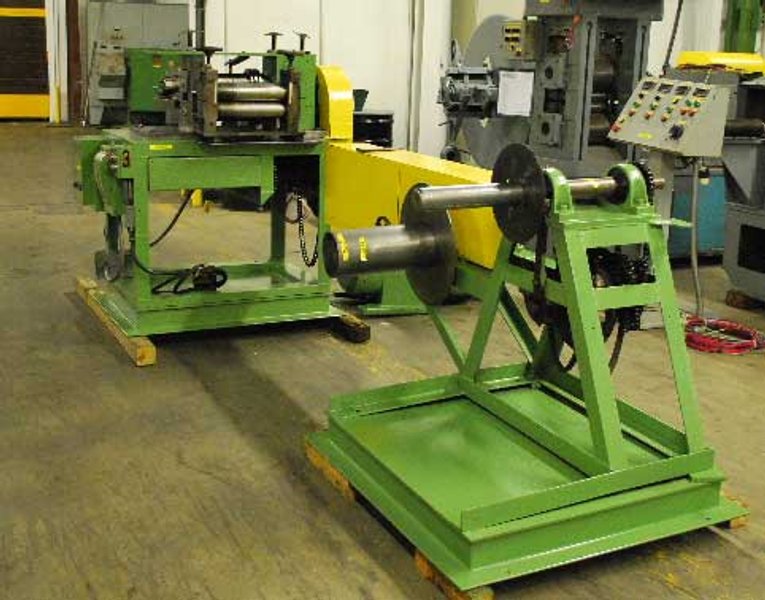

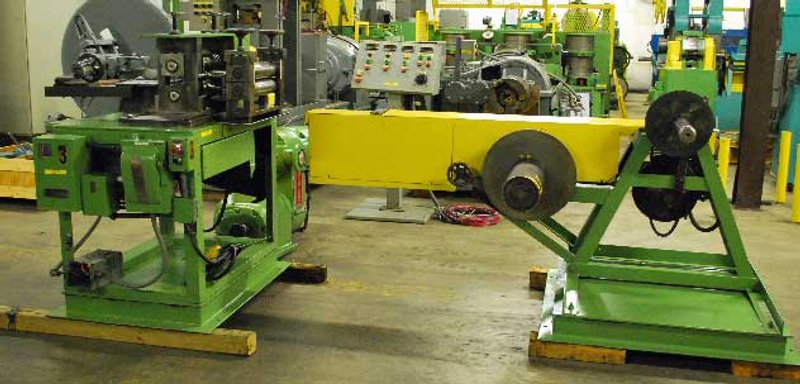

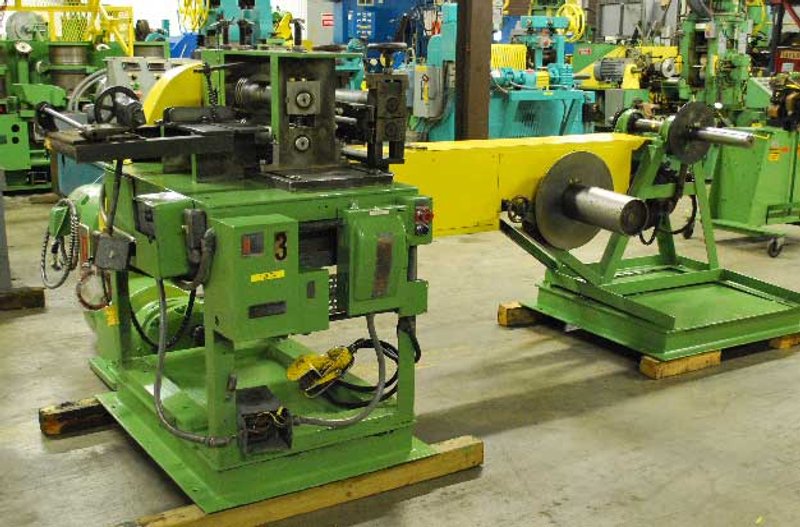

National Standard Slitting Line

Pull Thru Slitting Line with Dual Takeups

-Capacity:
  Material Width:   9"
  Thickness Range:  0.020" (0.508mm) - 0.062" (1.57mm)
  Number of Cuts:   9 Cuts 0.020" (0.508mm) approx.
                    6 Cuts 0.062" (1.57mm) approx.
  Line Direction:   Left to Right

Consisting of:

-Uncoiler:
  Type:  Non-Driven Expanding Mandrel
  Mandrel Face Width: 12" (305mm)
  Expansion Range:  11.5" (292mm) - 12" (305mm) Dia.
  Type Expansion:  Manual
  Passline Height:  31" (787.4mm)
  Brake for Back Tension:  Manual Band Brake
  Maximum Coil O.D.:  36" (915mm)
  Overall Size: 41" L x 39" W x 54" High

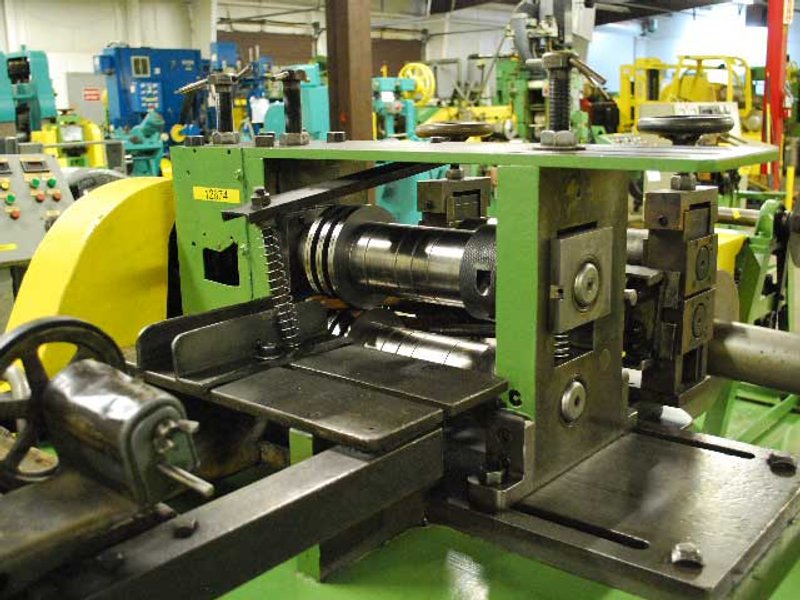

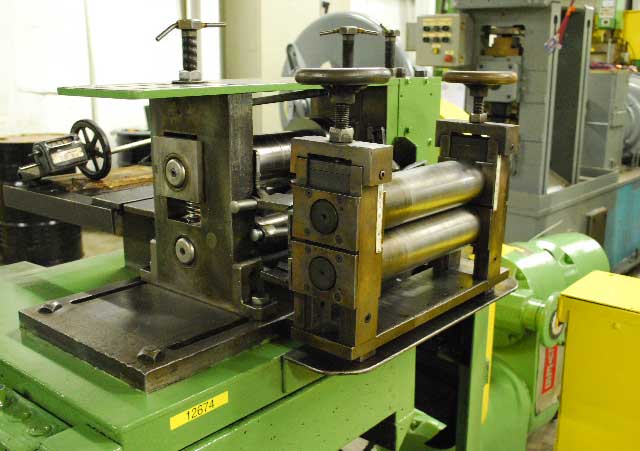

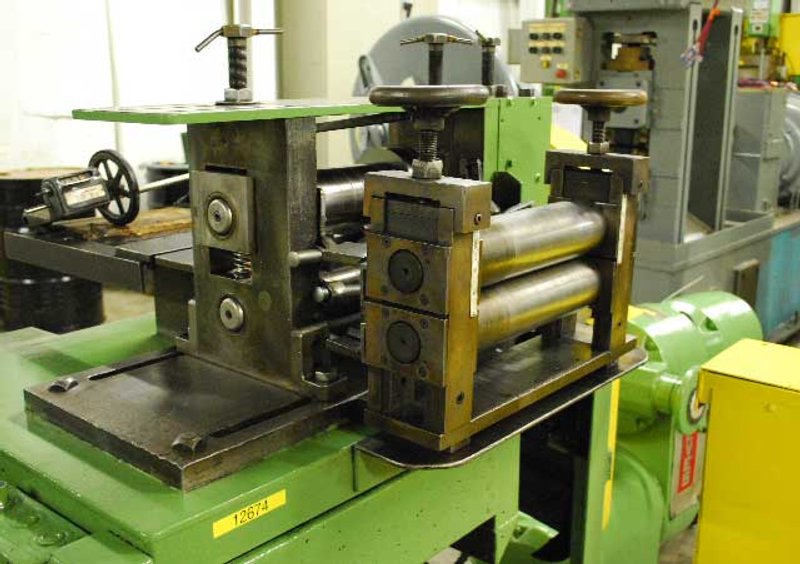

-Slitter Head:
  Arbor Size:  2.50" (63.5mm) Dia. x 10" (254mm) Face
  Entry Side Guides:  Manual
  Vertical Arbor Adjustment: Manual
  Knife Separation:  Wooden Fingers
  Exit Pinch Rolls:  3.250" (95mm) Dia. x 13" (330mm) Face
  Strip Counter:  Durant Model 5-H-1-R-CL, S/N:  262
  Knife O.D.:  5.50" (140mm)
  Spacer O.D.:  3.750" (95mm)
  Passline Height:  42.5" (1080mm)
  Overall Size: 49" L x 43" W x 55" High

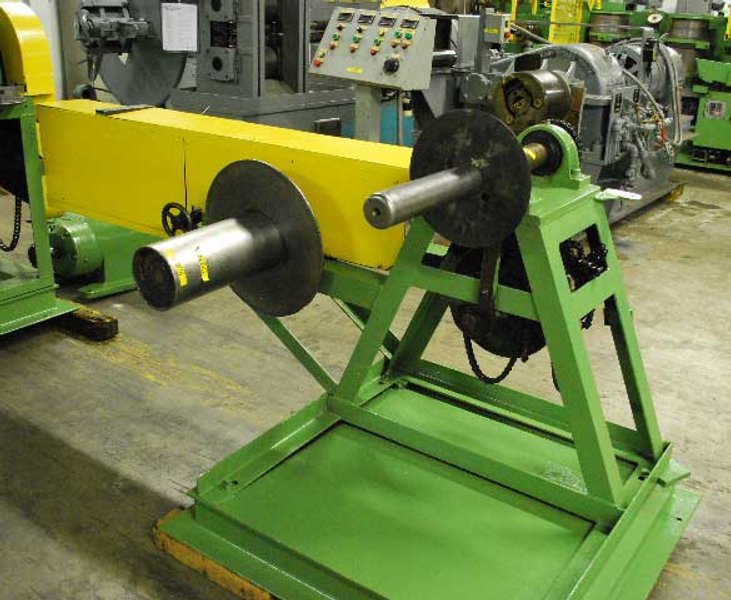

-Recoilers:

  Winder No. 1:
  6.50" (165mm) Drum Dia. x 14" (355mm) Face Width
  16" (406mm) Max. O.D.
  with Warner Electric Brake

  Winder No. 2:
  2.750" (70mm) Shaft Dia. x 14" (355mm) Face
  with Warner Electric Brake

  Winders Use Separator Discs
  Overall Size: 94" L x 40" W x 41" High

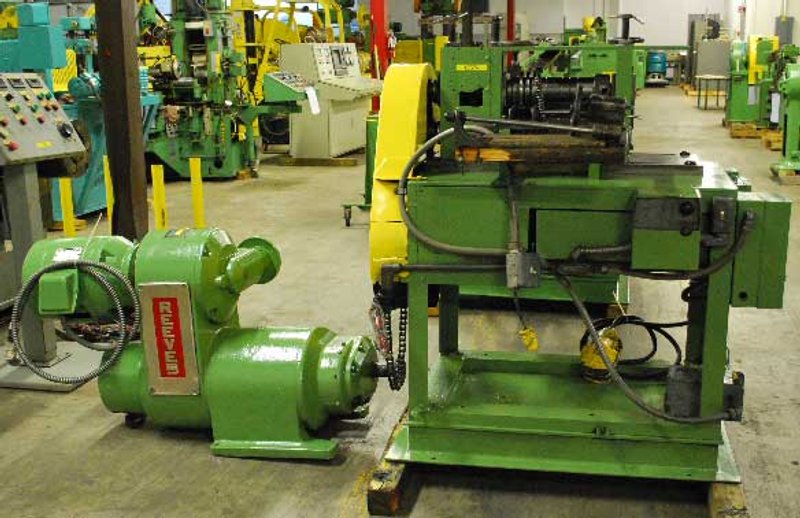

-Drive Motor:
  Powers both Winders and the Slitter Head
  15 HP AC, 1760 RPM, 230/460 Volts, 44/22 amps
  Reeves Variable Speed Drive Model No.:  Motodrum
  Size:  8441, Ratio:  2.8 to 1
  Output RPM: 182 - 1430 RPM
  Overall Size: 53" L x 20" W x 31" High

-Overall Length of Slitting Line:  11.3 Ft. (3.44M) Plus Payoff

-Includes Large Quantity of Tooling
