24" X 5" X 10,000# RUESCH SLITTING LINE STOCK# 3799
Brand
Category
Model
Not specified
Stock #
3799
Year
Not specified
Condition
Very Good
Location
Ohio
|
24" x 5.0" x 10,000# Ruesch Slitting Line

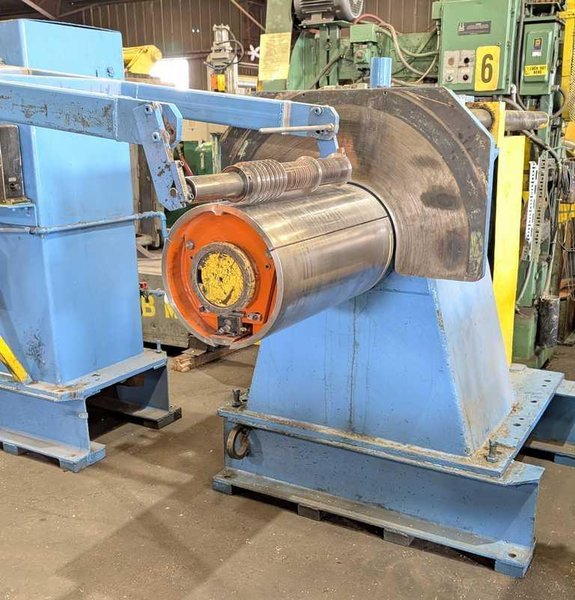

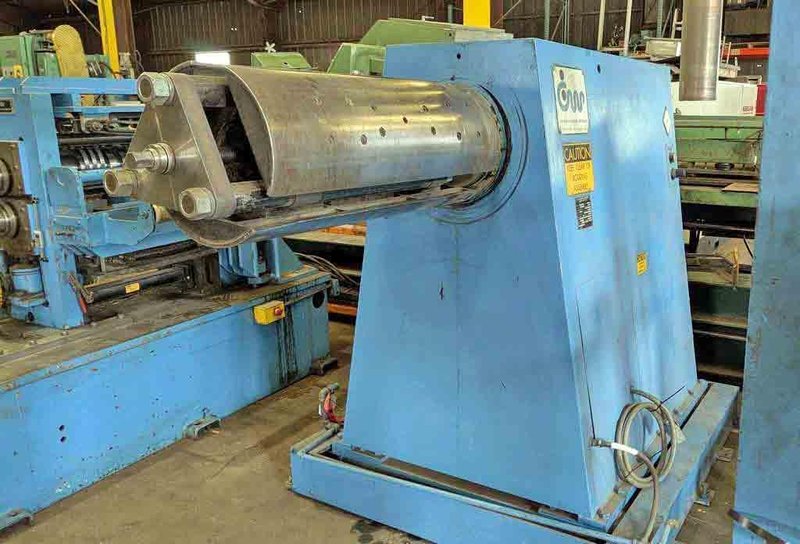

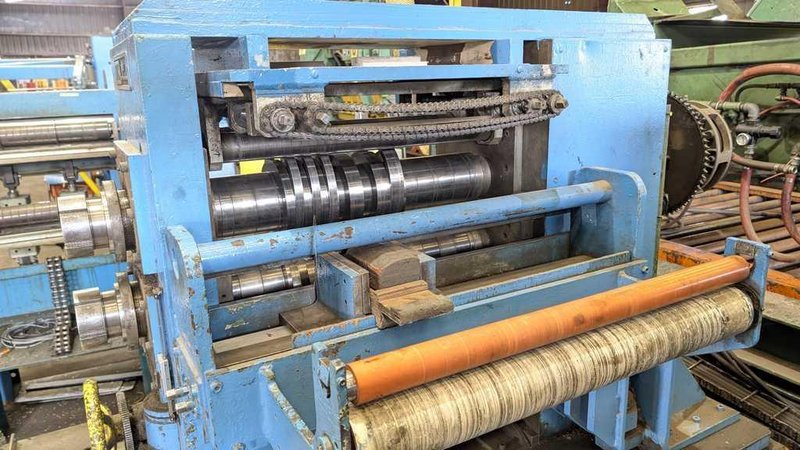

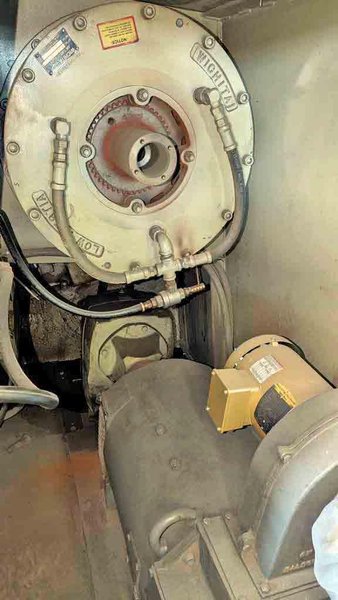

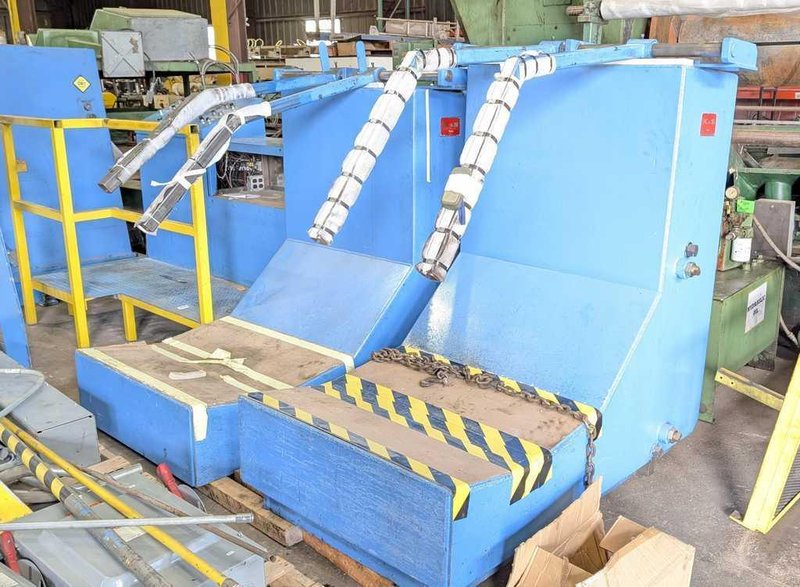

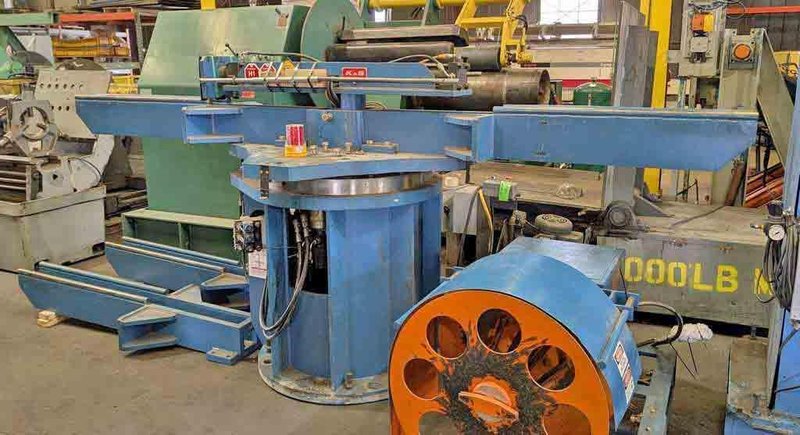

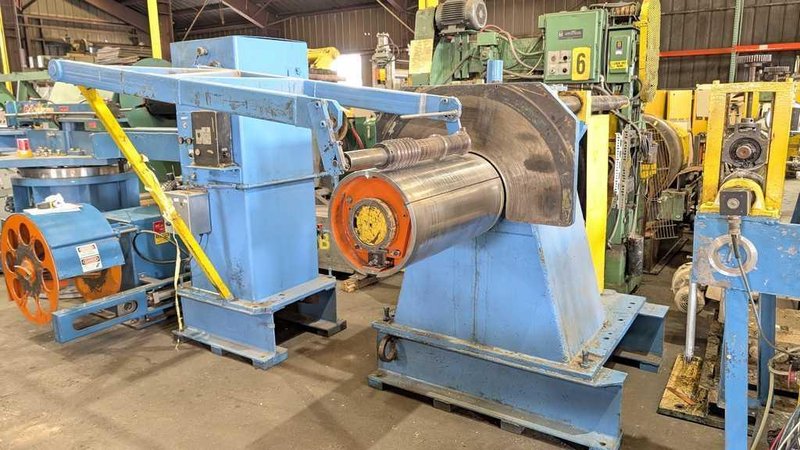

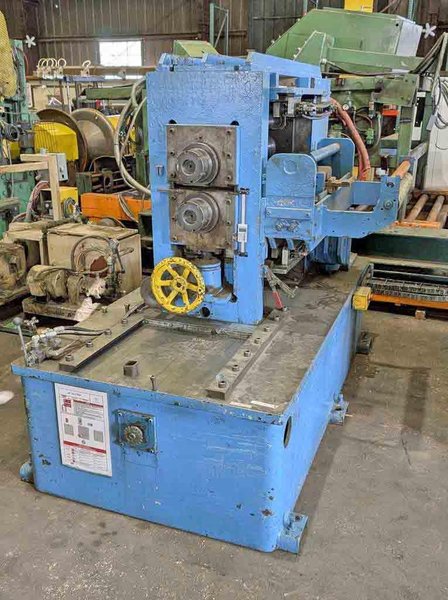

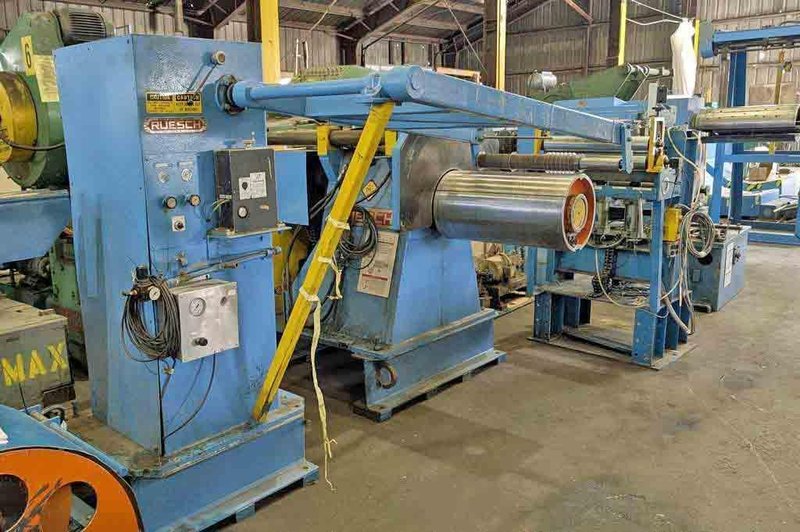

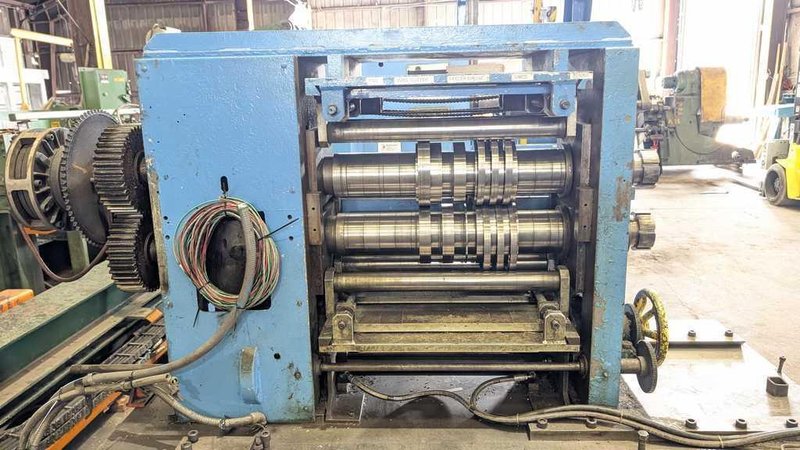

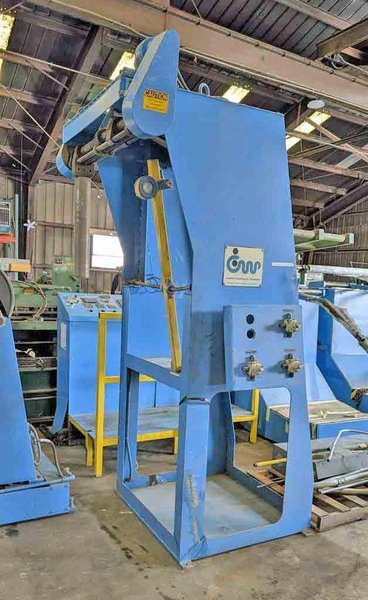

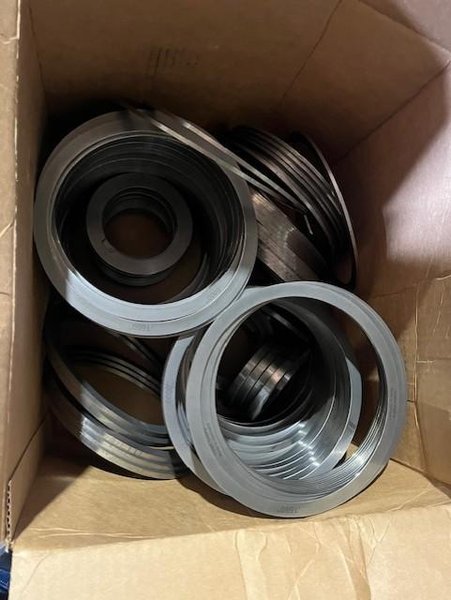

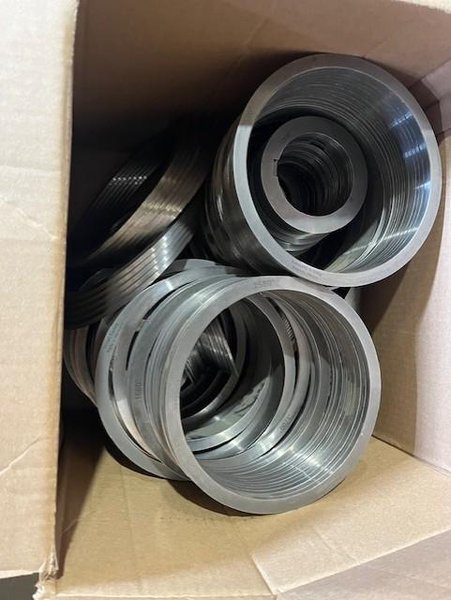

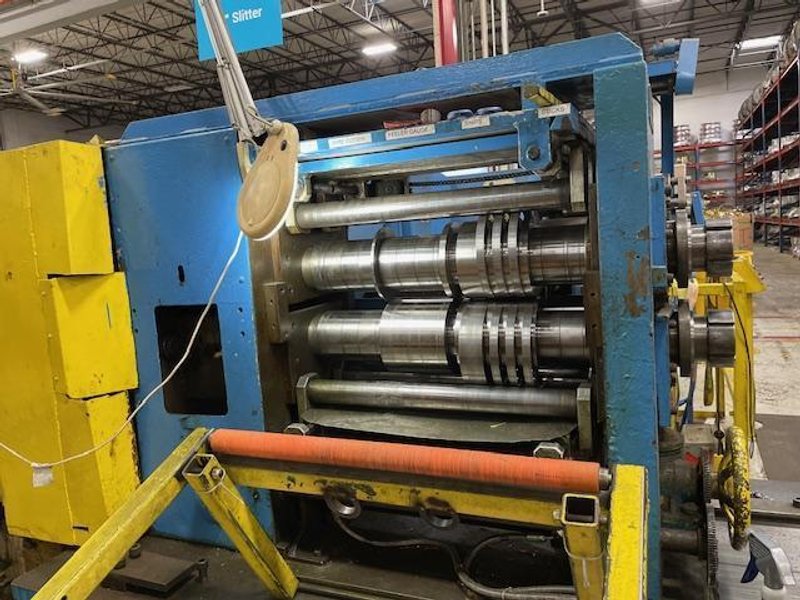

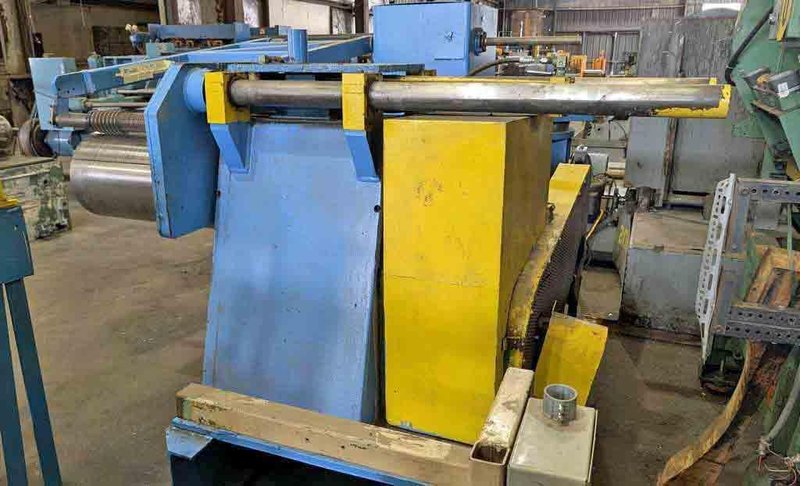

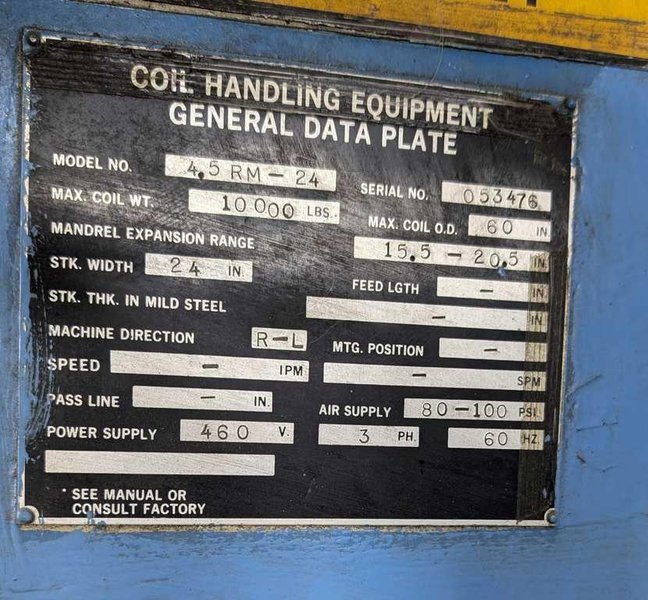

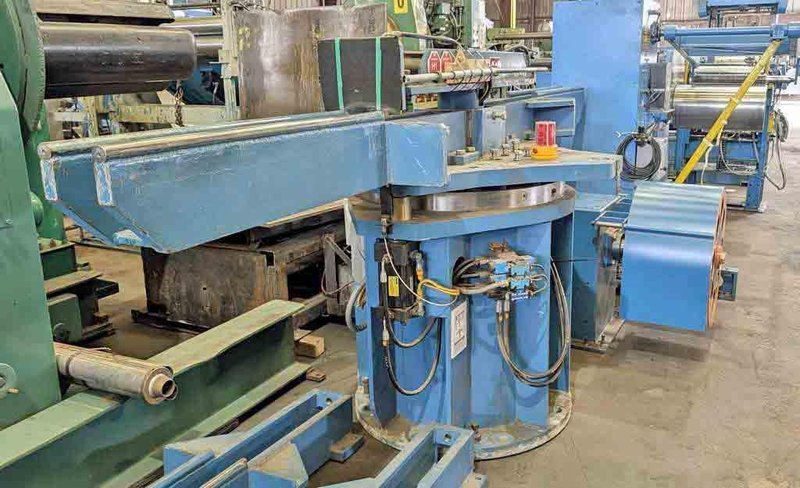

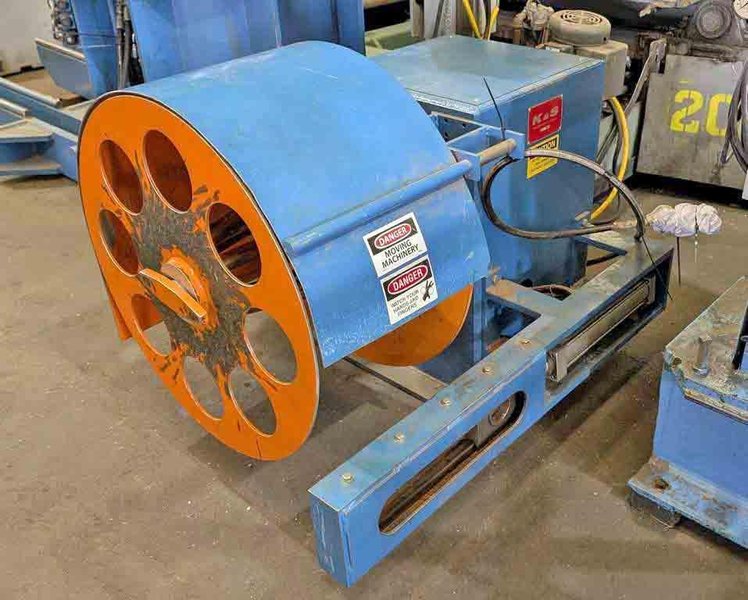

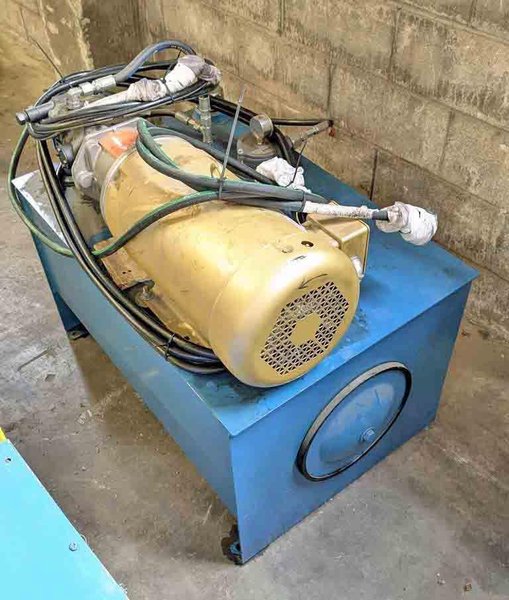

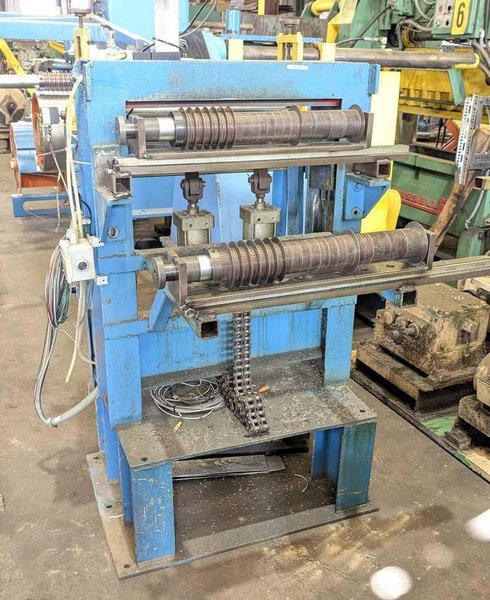

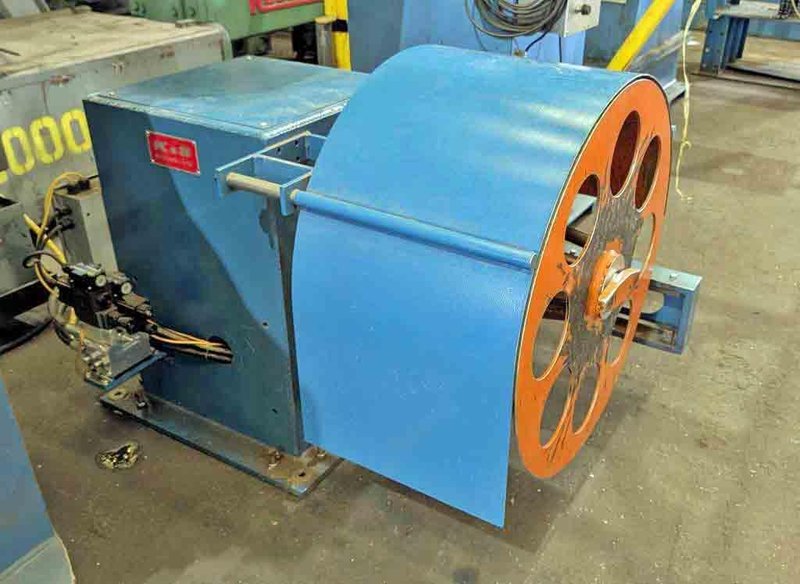

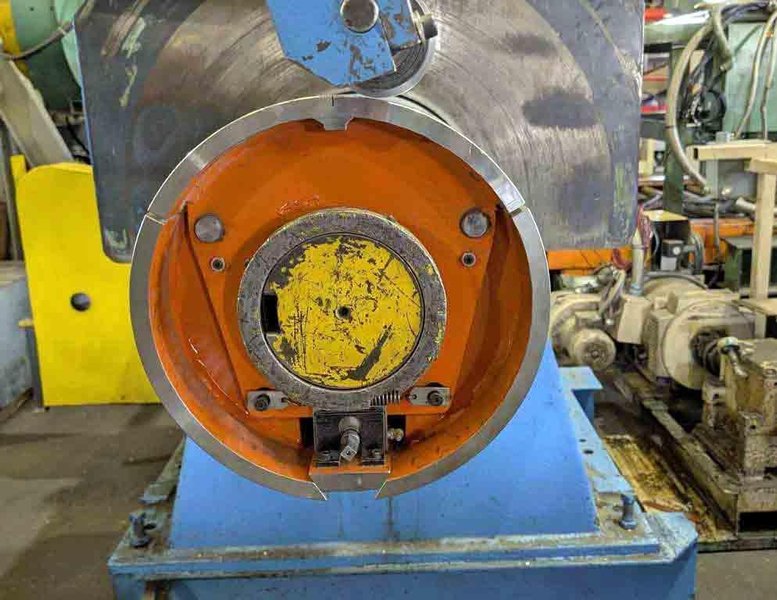

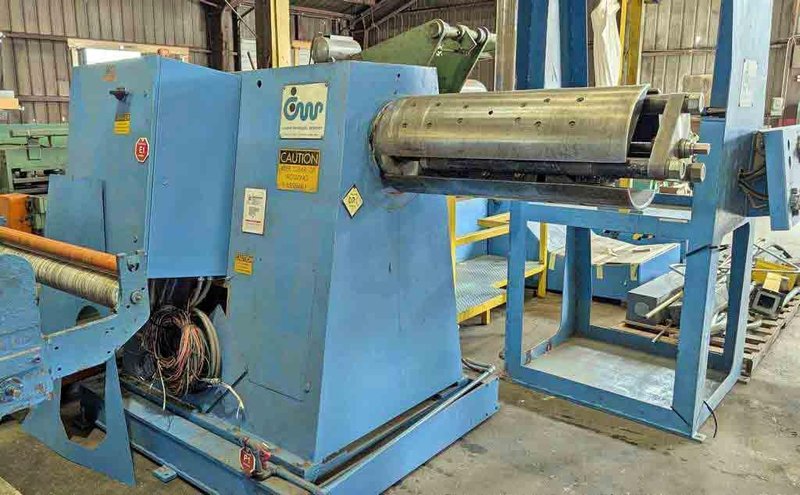

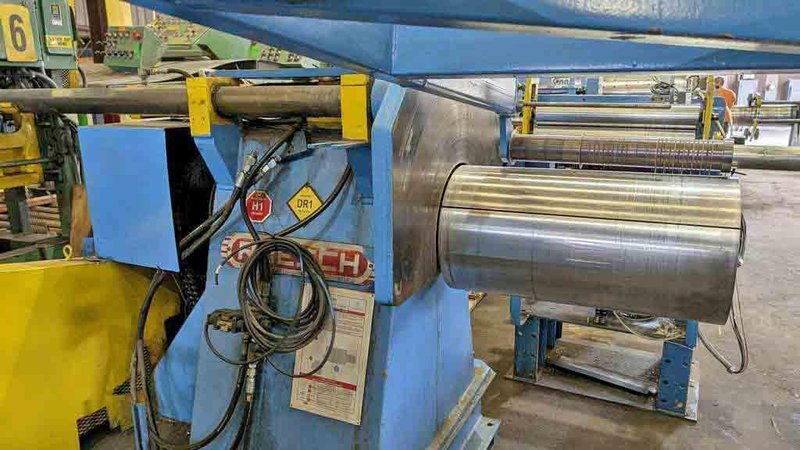

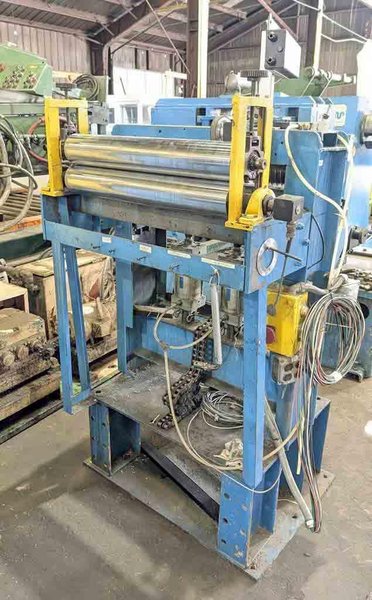

Consisting of: -Entry Coil Car: K&S 40" Wide Bed 60" O.D. Capacity Self-Contained Hydraulics Coil Retaining Arms Overall Size: 66" L x 55" W x 68" High -Uncoiler: Cooper Weymouth Model: 4.5 RM - 24 S/N: 053476 Hydraulic Expansion: 15.5" - 20.5" 38" Face Mandrel 60" O.D. Coil Capacity DC Motor Drive W/Blower Wichita Air Brake 60" from Floor to center of Mandrel Overall Size: 114" L x 68" W x 74" High -Edge Control Stand: Cooper Weymouth Adjustable Edge Control Arm Loop Control Arm -Slitter Head: Ruesch Model 300 5" Dia. Arbors Steel Stripper Ring Assembly Entry Passline Rolls Entry Side Guides, Manual Adjustment 40 HP DC Motor, 1750 RPM, 500 V 2 Speed Transmission Chain Drive to Slitter Head w/Air Clutch Passline: 48" Overall Size: Head - 102" L x 53" W x 68" High -Tension Stand: Entry Pit Separator Tooling Bar Entry Separator Tooling Bar Pad Tension Device 27" Long Pad (2) Hydraulic Cylinders for Tension Exit Pinch Rolls, Manual Screw Adjustment Overall Size: 45" L x 44" W x 74" High -Scrap Winder: K&S Hydraulic Motor Driven Oscillate Wind 16" W x 27" O.D. Scrap Ball Capacity Manual Ball Removal Overall Size: 55" L x 39" W x 37" High -Recoiler: Ruesch Model: N2381A S/N: 5715 16" Dia. x 30" Face Drum Manual Expansion Material Slot (No Gripper) Hydraulic Pushoff 46" from Floor to center of Drum 25 HP Reliance DC Motor, 500/1800 RPM, 230 V Chain Drive to Recoiler Overall Size: Recoiler - 101" Long x 83" W x 71" High DC Motor - -Freestanding Overarm Separator: Ruesch Model: N2381 S/N: 5715 Overall Size: 90" L x 82" W x 79" High -Exit Coil Car: K&S 40" Wide Bed 60" O.D. Capacity Self-Contained Hydraulics Coil Retaining Arms Overall Size: 66" L x 55" W x 68" High -Exit Turnstile: K&S S/N: 5258B 4 Arms C-Hook Type Arms w/4.5" W x 8.5" H Slot 42" Usable Arm Length 57" from Floor to Top of Arm Hydraulic Pushoff Powered Rotation Approx. 38" Dia. Base 2 Arms Unbolt for Shipping Overall Size: 150" L x 60" W x 66" High -Main Operators Control Panel: -(2) DC Drive Cabinets: #1 - Quantum III Drive #2 - Nidec Control Techniques Quantum MP Drive (New in 2020) -Hydraulic Power Unit: -Line Direction: Right to Left -In Storage: Toledo, OH. |
