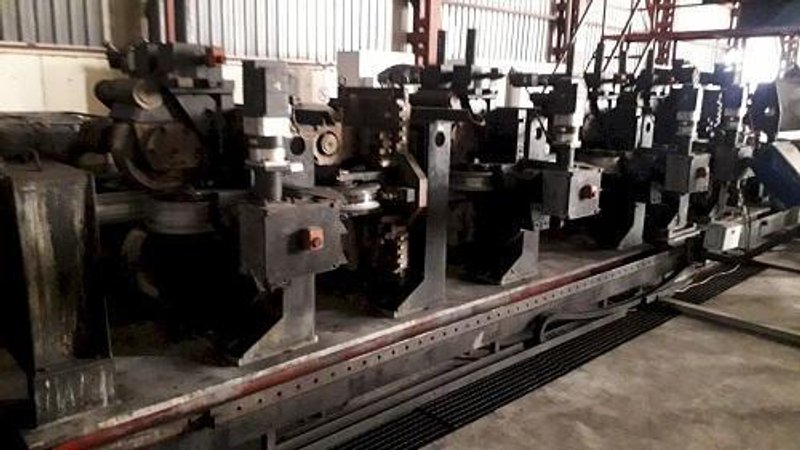

DIRECT FORMING TUBE WELDING LINE MODEL FCF 400 / 6.0 - 100 FCF
Brand
Not specified
Category
Type
Model
FCF 400
Stock #
115561
Year
2007
Condition
Used
Location
Michigan
|
Flexible Cold Forming Rafted Mill with Spare Set of Rafts
Year 2007
Auto Tooling Change
Mair Packaging Line
Thermatool Solid State Welder

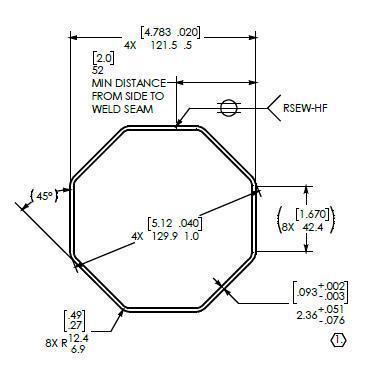

Featuring: Octagonal Shape Forming Tooling for the Solar Panel Industry
Strip Width: 150mm - 400mm
Strip Thickness: 1.5mm - 6.0mm
Tensile Strength: 500N/mm2
Line Speed: 100 Meters/Min
Max Square: 100mm x 100mm
Square Min: 40mm x 40mm
Rectangular Hollow Section: Min 60mm x 40mm / Max 120mm x 80mm Tube Lengths: 4
Meter / 8 Meter Auto
Tooling Change for Squares & Rectangles
Coil Weight Capacity: 20,000#
Coil ID: 508mm - 608mm
Coil OD: 1500mm - 1900mm
Mandrel Uncoiler
Hydraulic Expansion
Hold Down
Top & Bottom Ride Rolls
Coil Car
Peeler Hold Down Roll
Flattener
Roll Design
Entry Pinch Rolls
Ultrasonic Sensor
Shear & End Welder
Double Cut Shear
Strip Clamp
Welding Gap Adjustment
Horizontal Accumulator
Forming & Welding Squares and Rectangles

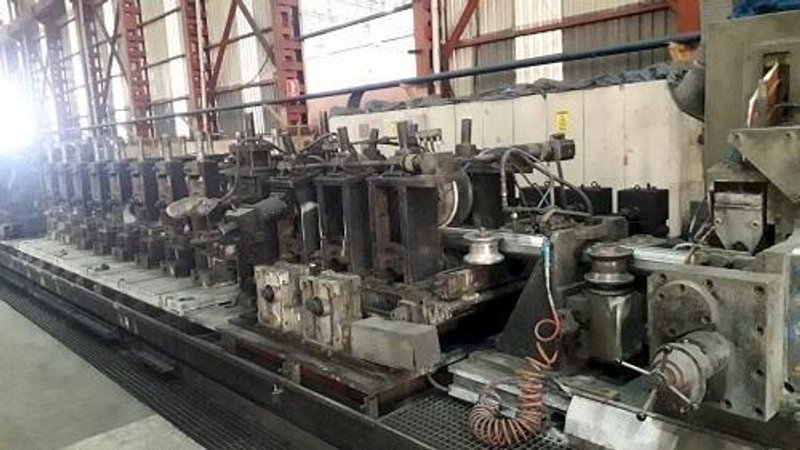

FCF Direct Forming Mill
Rafted Design with Spare Raft
Auto Tooling Adjustment
2 Entry Edge Guide Stands
FCF Block 1 with Auto Tooling Change
3 Roller Stands
U Profile Forming
Intermediate Stand / Pinch Roll Stand
FCF Block 2 with Auto Tooling Change
3 Roller Stands
C Profile Forming
FCF Block 3 with Auto Tooling Change
3 Roller Stands
Final Forming
3 Intermediate Stands
(3) 79.5 KW DC Drives
NEW in 2017
Rafted Base for Octagonal Forming. (Replaces FCF Stands 2 and 3)
8 Stand Octagonal Forming Mill on a Rafted Base.
8 Side Idler Rolls
Single Point Adjustment
Universal Drive Mill
350 kW Thermatool Solid State Welder
Pruftechnik Eddy Current Tester Model Eddycheck 5 with Digital Readout
Leibinger Jet 3 Printing
FCF Sizing Stands
4 Driven Stands
4 Roll Design
Motorized Roll Adjustments
151 KW DC Drtive
2 Turks Heads with with Motorized Adjustment

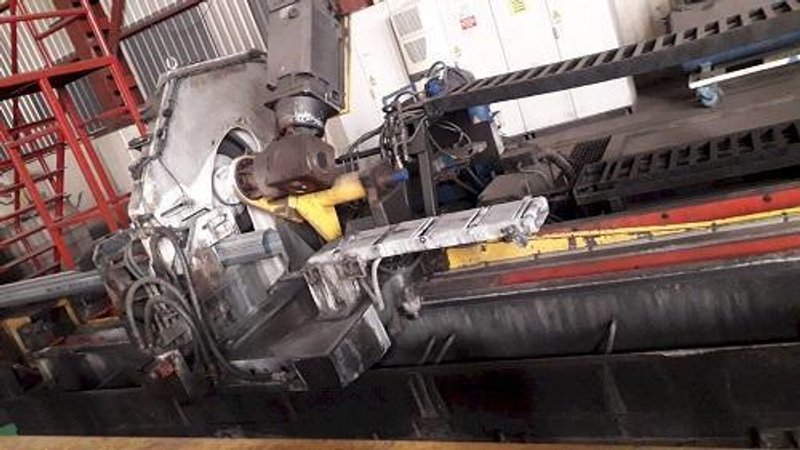

Flying Cold Saw Cut Off
151 KW DC Rack & Pinion Accelerator
18.5 KW AC Saw Motor
Variable Hydraulic Clamping Pressure
Mair Packaging Line
Driven Rollway Conveyor Model VIA200/120 with Reject Collection Packaging
Machine Model SQ90/D/4/SL
Tube Orientation Devive Packaging Arms for Stacking Rows of Tubes
Bundle Formation Table Bundle
Transfer Conveyor with Storage Chains
Drainage Station with Bundle Tilting
Weighing Station Model KG8/DY
Management Information System Model Datapack 6/T Siemens
Touch Screen Operator Control Station Siemens S7 PLC
|
