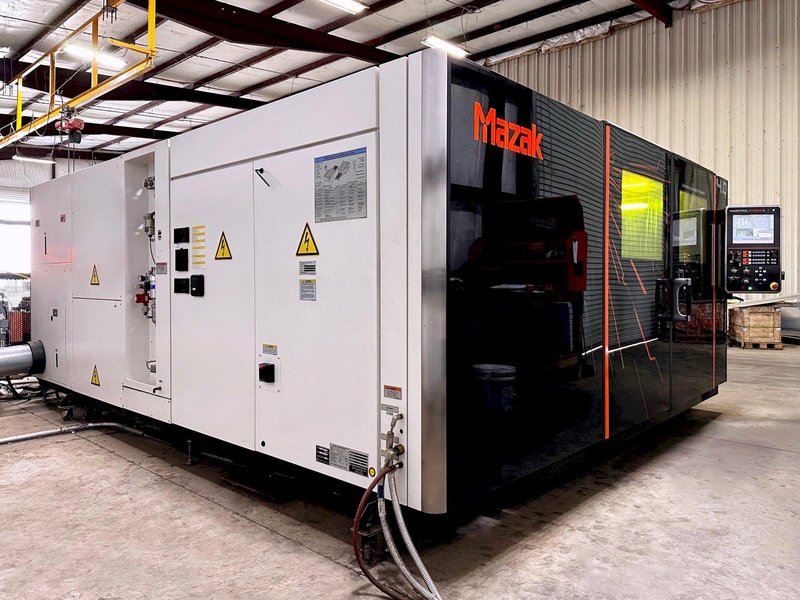

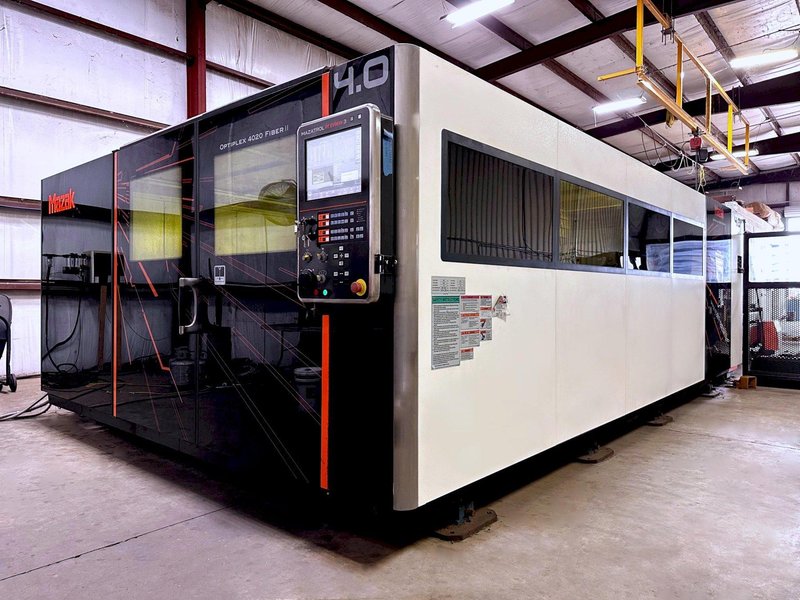

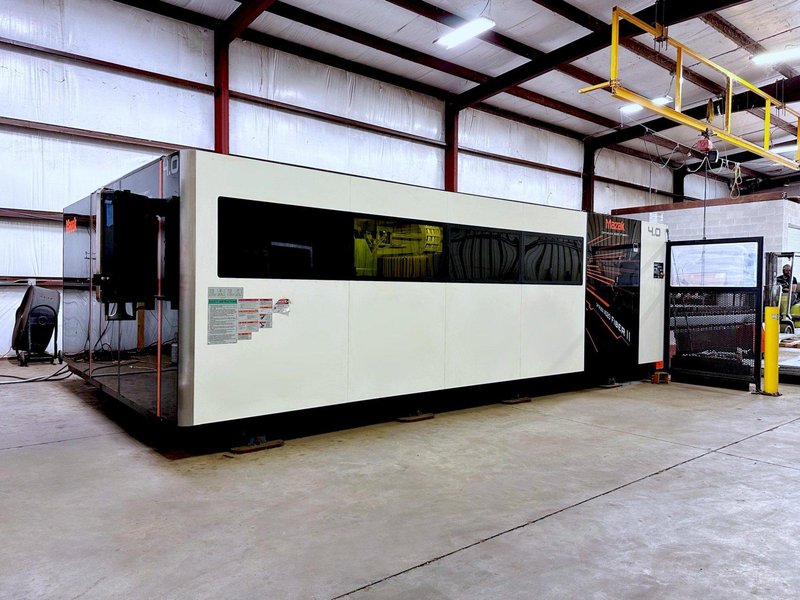

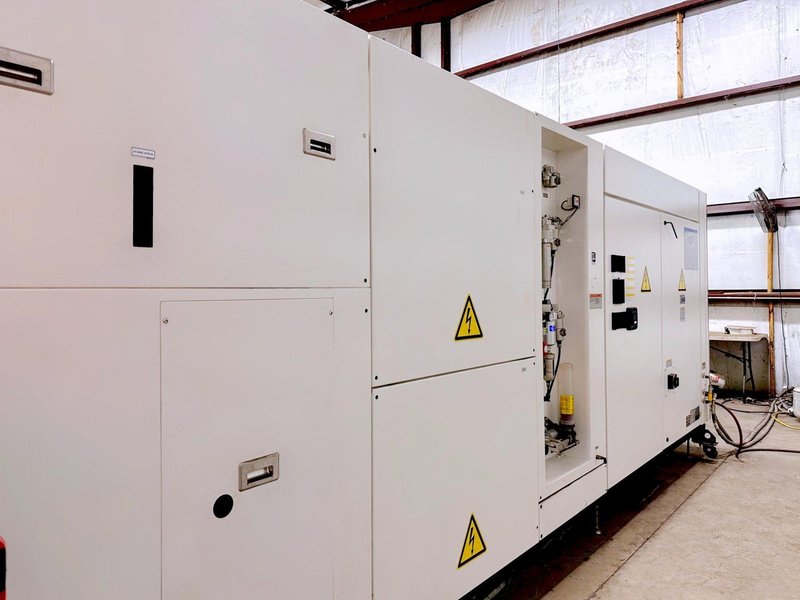

Mazak Optiplex 4020 Fiber II
Brand
Category
Type
Model
Optiplex 4020 Fiber II
Stock #
100383
Year
2016
Condition
Excellent
Location
Not specified

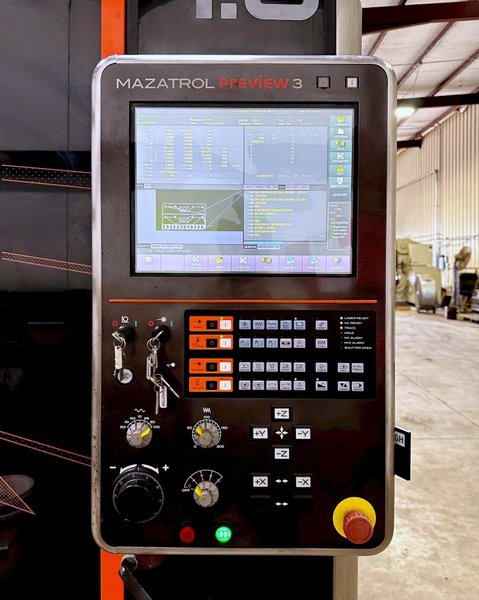

| Control | Preview III |
| Display Screen | 15” Color LCD |
| Position Detection System | Encoder |
| Program Input System | EIA/ISO |
| Machine Structure | Flying Optics |
| Laser Type | Fiber |

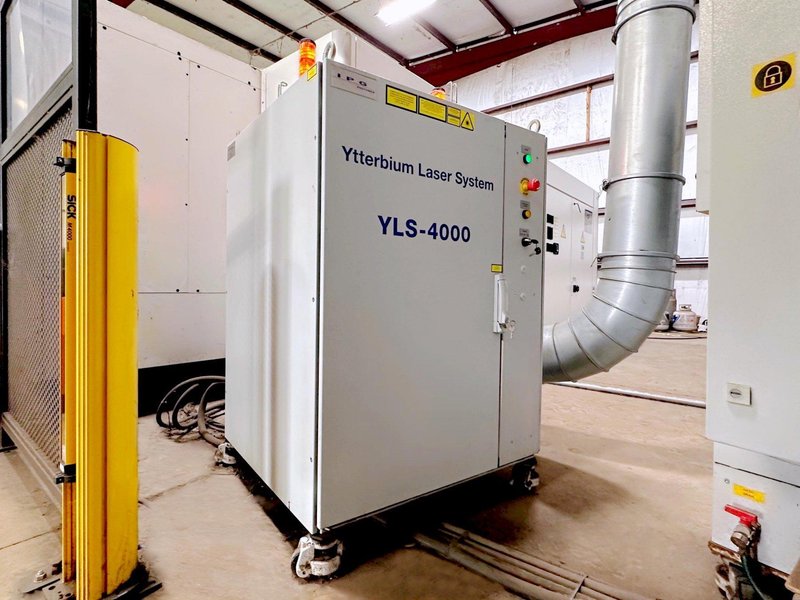

| Power Source | IPG YDS 4000 Generator |
| Max Power Output | 4,000 Watts |
| Min. Command Unit | 0.0001” |
| Max Workpiece Dimensions | 78.74" x 157.48" |
| Max Workpiece Weight | 3,527 Lbs |
| Travels X Axis | 160.43" |
| Travels Y Axis | 81.10" |
| Travels Z Axis | 4.33" |
| Motion Drive System X, Y | Rack & Pinion Drive |
| Motion Drive System Z | Ball Screw Drive |
| Number of Control Axes | 3 |
| Rapid Travel Speed X, Y Axis | 4,724 IPM |
| Pos. Accuracy X, Y Axis | 0.002"/19.68" |
| Pos. Accuracy Z Axis | 0.0004"/3.94" |
| Repeatable Accuracy X, Y Axis | 0.0012" |
| Max Material Thickness Mild Steel | 1.00” |
| Max Material Thickness Stainless Steel | 0.75” |
| Max Material Thickness Aluminum | 0,63” |
| Total Electrical Requirement | 105 kVA |
| Machine Unit Weight | 46,958 Lbs. |
|

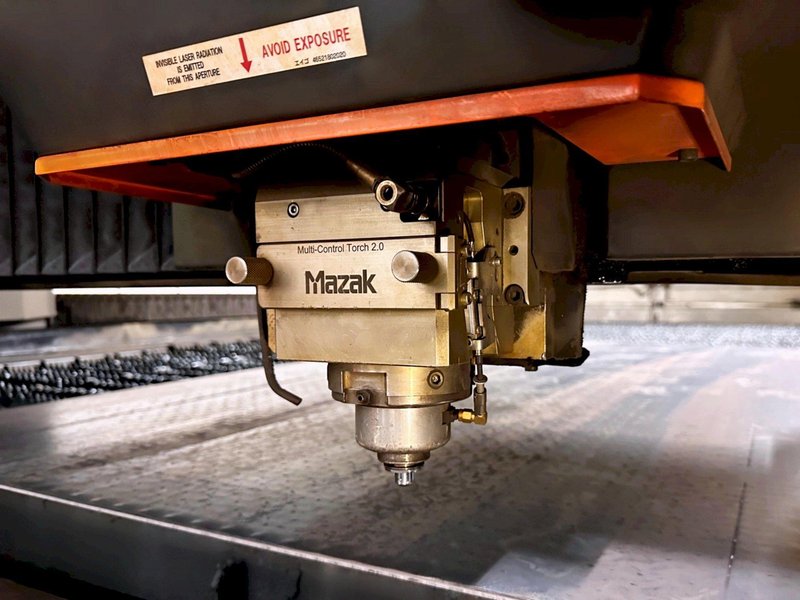

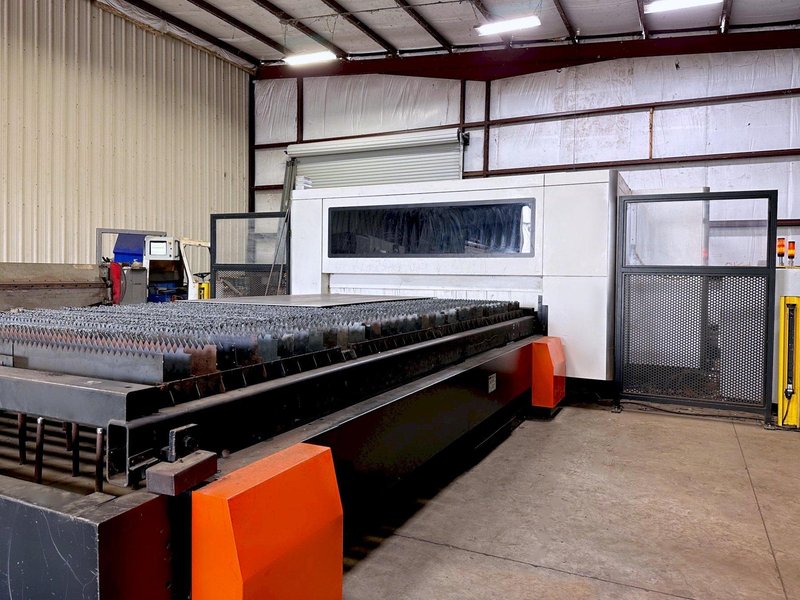

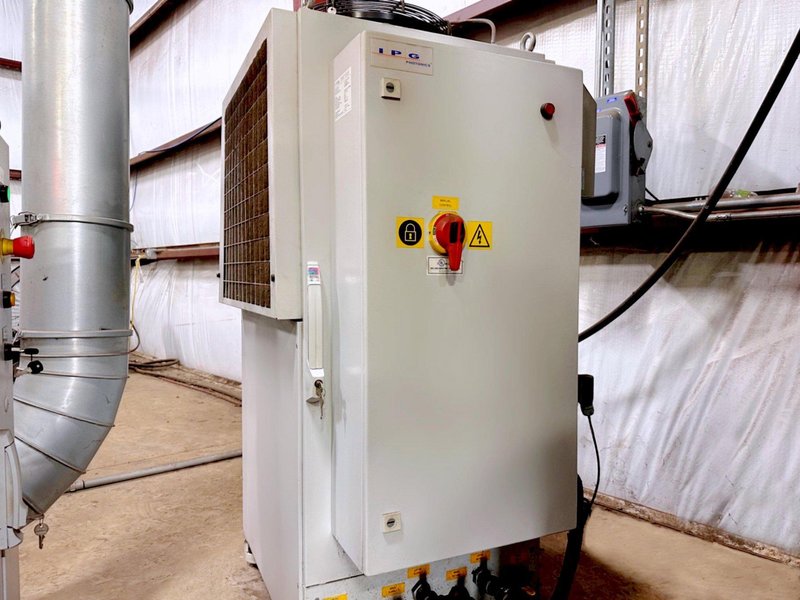

Equipped With: Mazatrol PREVIEW III CNC Control 15” LCD Color Touch Screen IPG YDS 4000 Generator & Fiber Optic Delivery System HIGHYAG Cutting Torch (Upgraded) Auto Nozzle Changer Auto Nozzle Cleaning Auto Focus Positioning Intelligent Monitoring Functions High Speed Automatic 2 Pallet Changer Work Piece Lifters 4020 (Ball transfers) IPG Chiller Unit Plaser 3 RoboVent Dust Collector |
|
