Max Width of Workpiece |
60 inches |
Max Thickness of Workpiece (in.) |
0.250 inches |
60" x .250" x 40,000# Paxson Slitting Line with Banding Line (14068) STOCK NUMBER 14068
Manufacturer: Paxson
General Specifications:
Material: HRS, CRS, HRPO, Galvanized / Maximum Strength: 50,000 PSI Shear, 40,000 PSI Yield Thickness: .015" - .250" Coil Weight Capacity: 40,000 lbs. Coil Width (Maximum): 60" Trimmed, 62" Untrimmed Coil I.D.: Entry: 20" - 24" / Exit 20" Coil O.D.: Entry: 42" - 72" / Exit: 42" - 72" Line Speed: Two-Speed, 130 and 390 FPM @ bare drum Line Direction: Right to Left Mode of Operation: Pull-Thru & Drive Assist
Complete with the Following Components:
Entry Coil Car:
• S/N 11700-1 • L-TypE • Self-Contained Hydraulic Power Unit • Hydraulic Lift & Travel

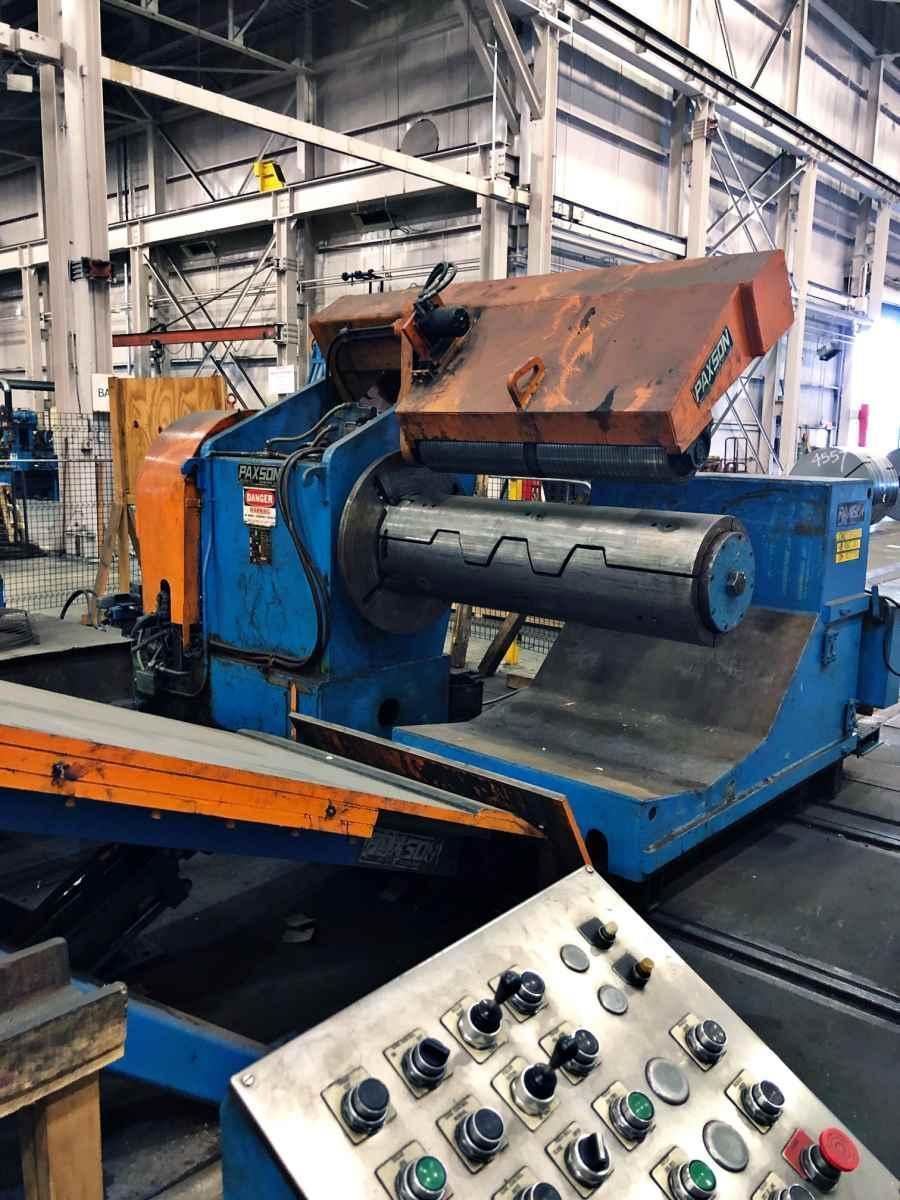

Uncoiler:
• S/N 11700-3-4-82 • Hydraulic Expansion: 20" - 24" • 4-Segment Pumpkin Tooth Mandrel • Powered Overarm Hold-Down • Slide Base • Hydraulic Motor Feed-up • Water Cooled Brake
Hydraulic Peeler Table • S/N 11700-2-3-82
Slitter Entry Unit:
• S/N 11700-4-3-82 • Driven Pinch Rolls • Independent Manual Adj. Roller Side Guides • Roller Crop Shear

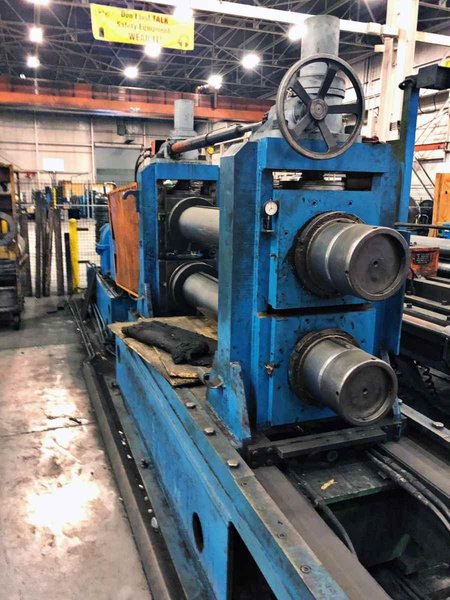

Slitter Head:
• Removable Type, (1) Head • Over Arbor Outboard - Can Travel up to 36" Wide • 150 HP DC Motor, 1750/2000 RPM, 500 V • Reducer w/60.7:1 ratio • Pinion Stand • Arbors: 10" Diameter Stand Slides in for Smaller Widths Hydraulic Lift Table for Threading
Recoiler: • S/N 11700-7 • Face Drum: 20" Dia. x 65" • Hydraulic Grip & Expand • Overarm Separator • 100 HP DC Motor 650/1950 RPM, 500 V • Integral Reducer w/24:1 ratio • 2 Speed Drive-All Transmission w/1:1 and 3:1 ratios
Exit Coil Car: • L-Type • Hold-down Arm • Keeper Arms • Strapping Slots in Base • Self-Contained Hydraulic Power Unit • Hydraulic Lift and Travel 2-Arm Turnstile: • S/N 11702-50 • Power Rotation
(2) Heavy Duty Scrap Winders: • S/N 11700-9-3-82 • Opposed Cones • Level Wind • Auto Dump • Hydraulic Motor Drive

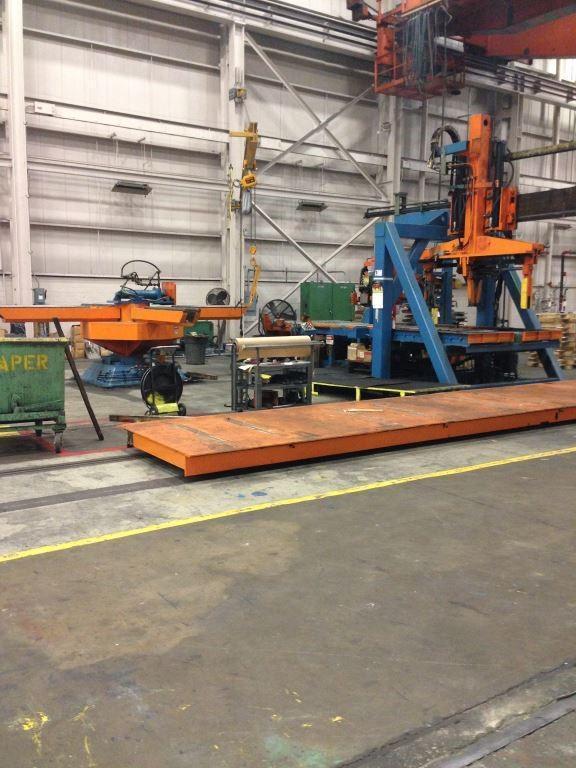

Full Auto Strapping Unit w/Automated Strapping Table: • 4-Arm Turnstile w/Hydraulic Push-Off - Arms 64" Long - S/N: 11700-50-4-82 • Single Coil Tilt Table (to lay coil down) - S/N: 11702-11-3-82 • Coil Rotating Table w/Auto SIGNODE Strapper - Straps Coil from I.D. to O.D. - S/N: 11702-17 • Single Coil Lifting Table (lifts coil and transfers it to storage table) - S/N: 11702-38-4-82 • Coil Storage Table - 35' Long x 6' Wide Slitter Tooling: • Large amount of Knives, Spacers and Rubbers Operators Panels Hydraulic Power Units
**TEMPORARY SPECIFICATIONS SUBJECT TO REVISIONS** **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE** **ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
|
