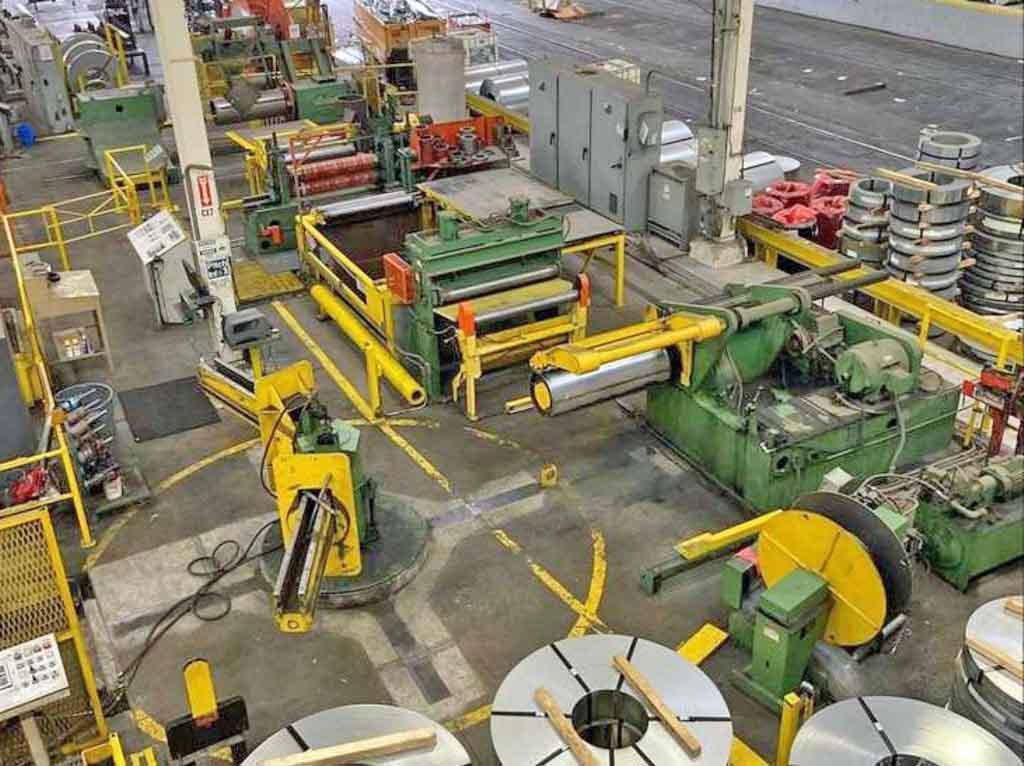

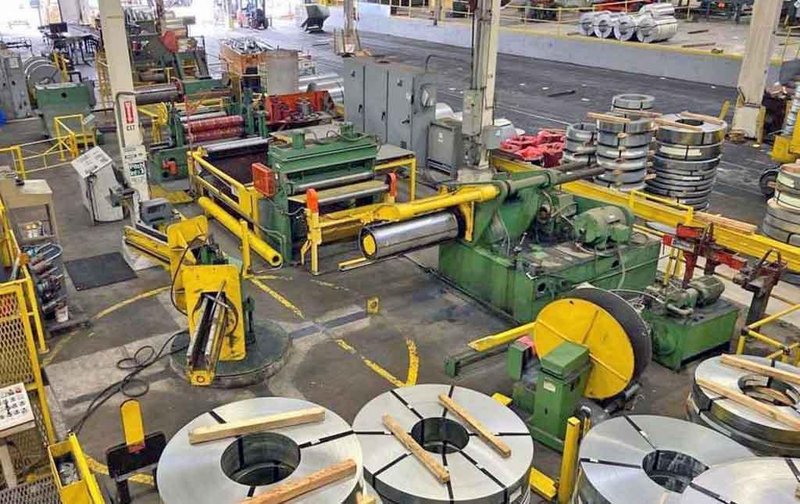

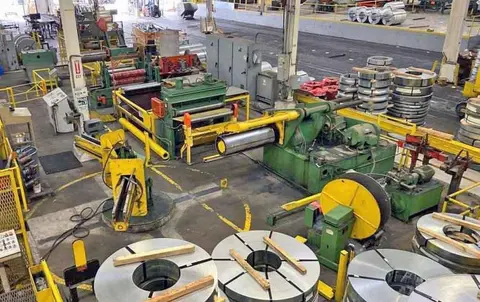

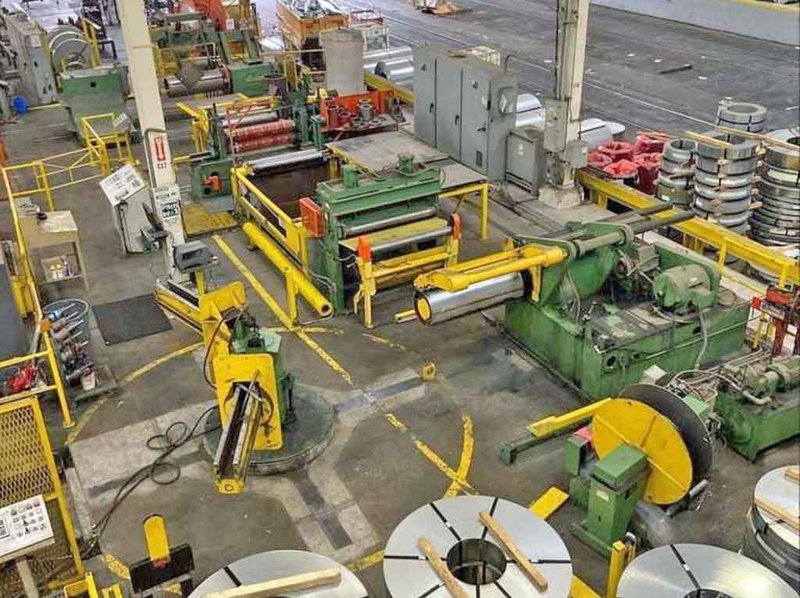

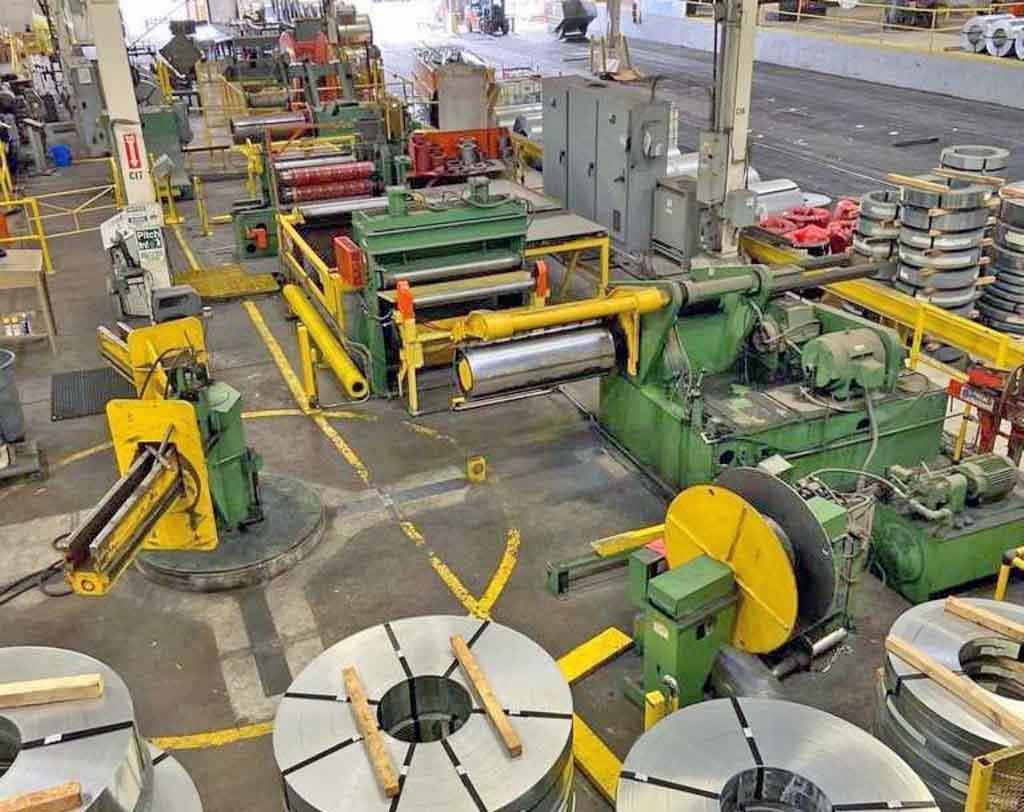

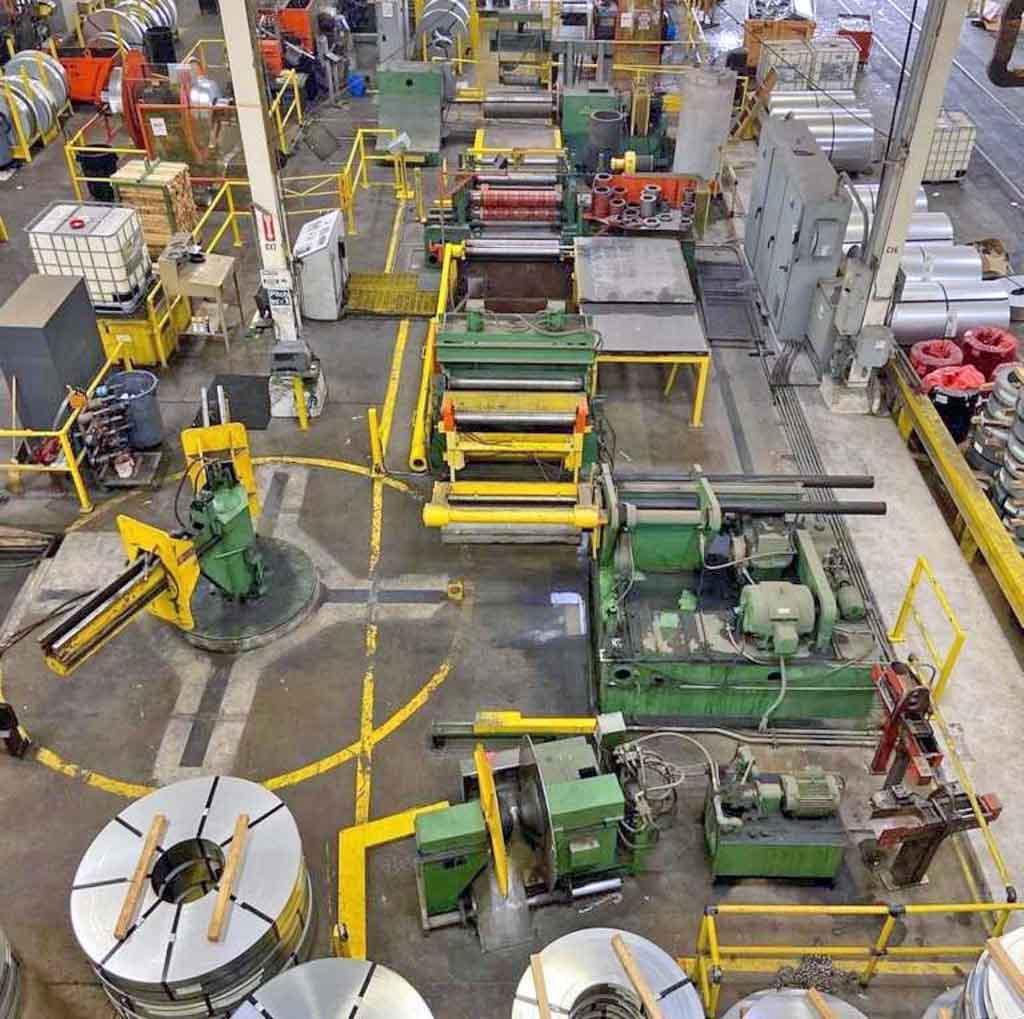

52" x 6.00" x 30,000# Paxson Slitting Line

-Capacity: 52" Wide x 30,000 lb. Coils
-Style: Loop Type, Driven Slitter
-Coil Size: 20" ID x 72" OD
-Direction: Left to Right
-Speed: 350 to 400 FPM
-Controls: Upgraded in 2009 with New PLC, Control Pulpit

Consisting of the following:

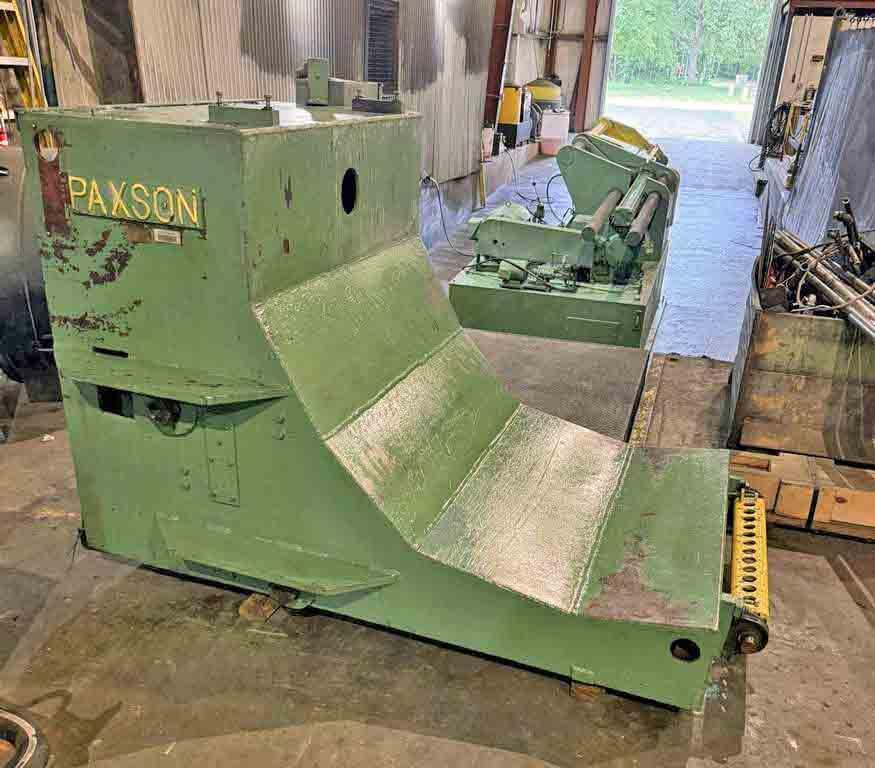

-Entry Coil Car:
Above Ground
"L" Type
Self-Contained Hydraulics
7.5 HP AC Motor, 1750 RPM, 230/460 V

-Uncoiler:
Expanding Mandrel Type
Hydraulic Expansion
Water Cooled Drag Brake
Sliding Base
Powered Holddown Arm

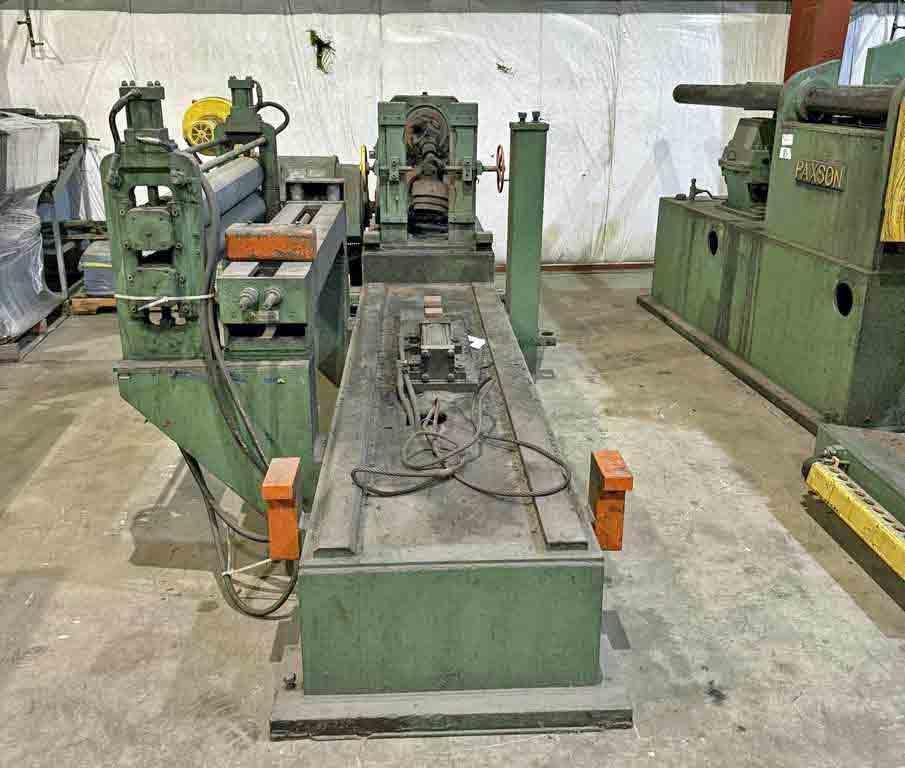

-Peeler:
Hydraulic Peeler Table with Pinch Rolls

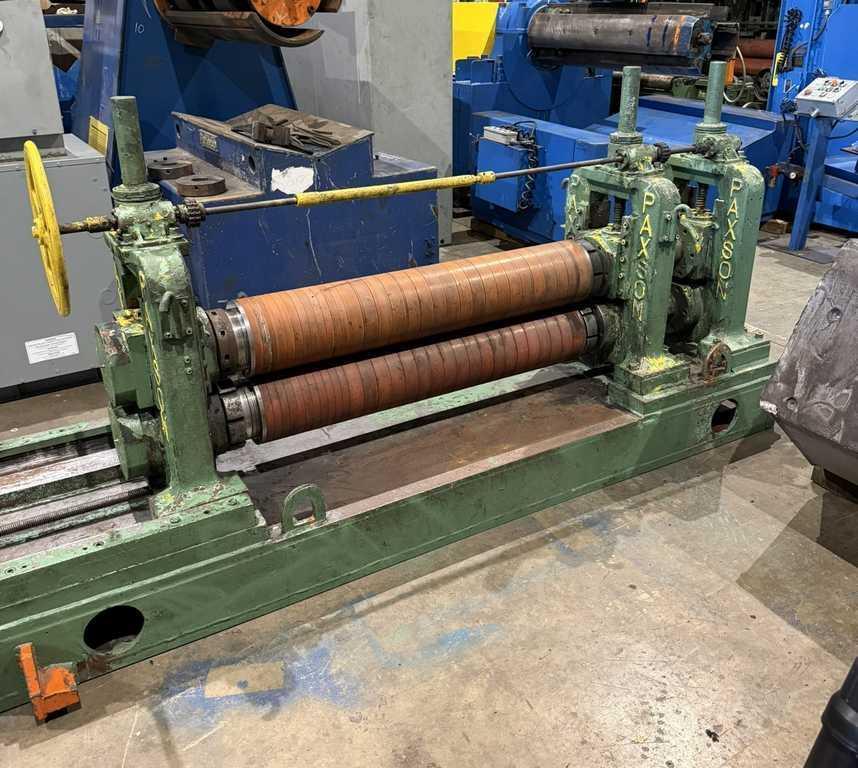

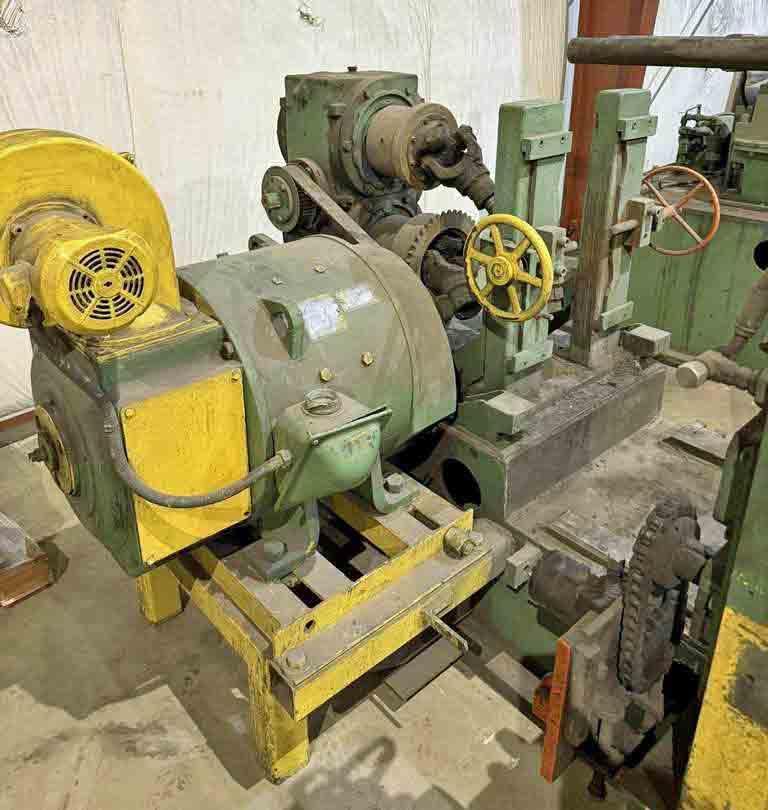

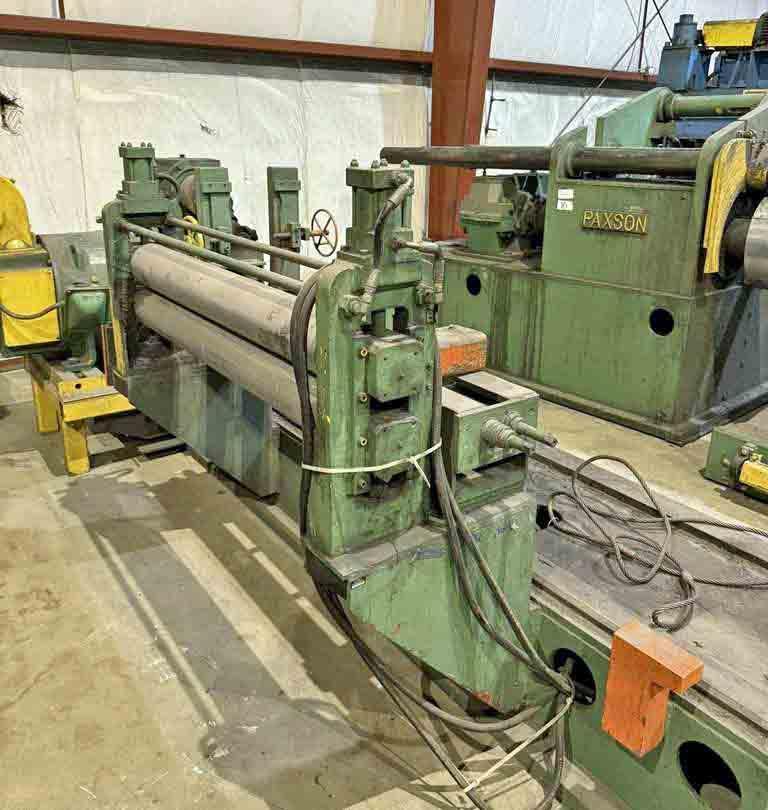

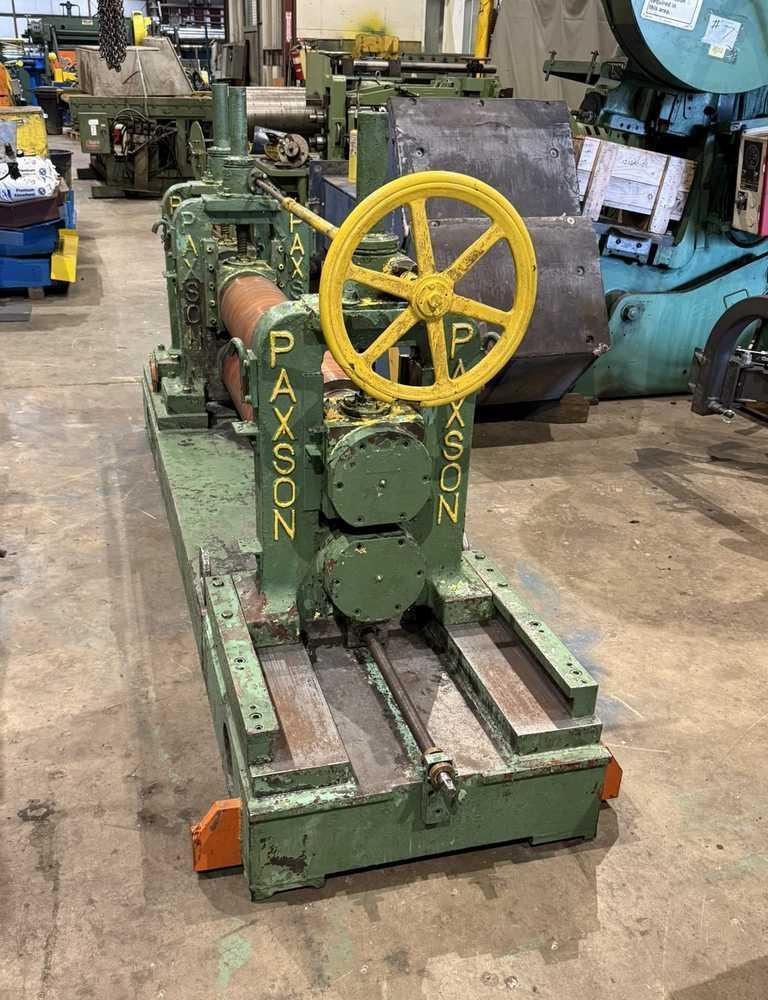

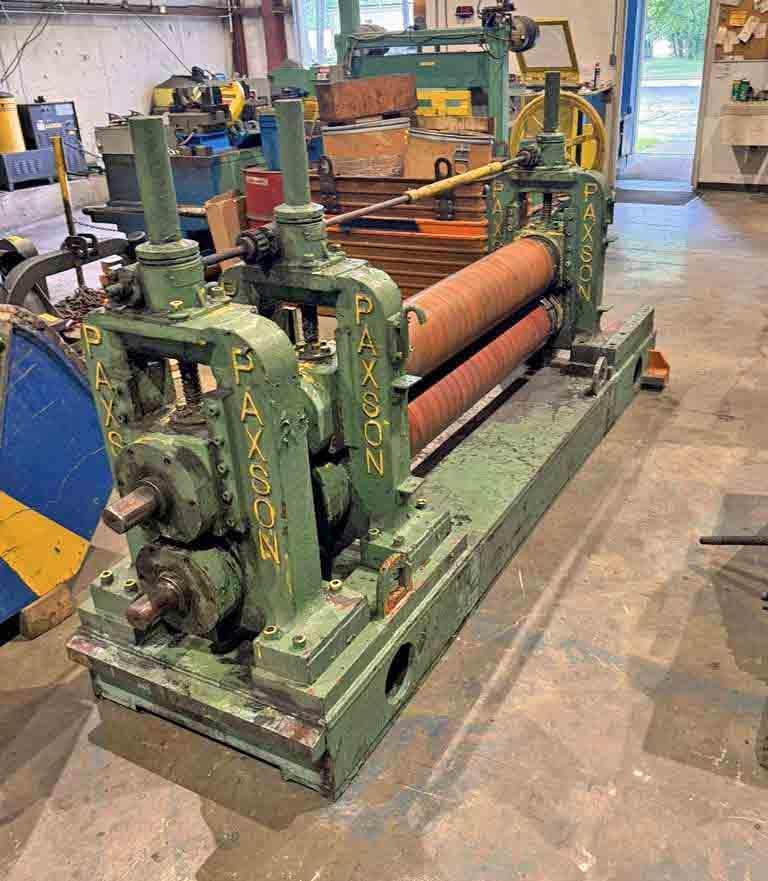

-Slitter Heads:
52" Arbor Face
(2) Drop in Heads
6" Diameter Arbors
Entry Side Guides
75 HP Reliance DC Drive Motor
1750 RPM, 500 V

-Looping Pit:

-Cross Over Table:

-(1) Scrap Winder:
One Self Dumping
Oscillating Scrap Guide
Hydraulic Motor Driven

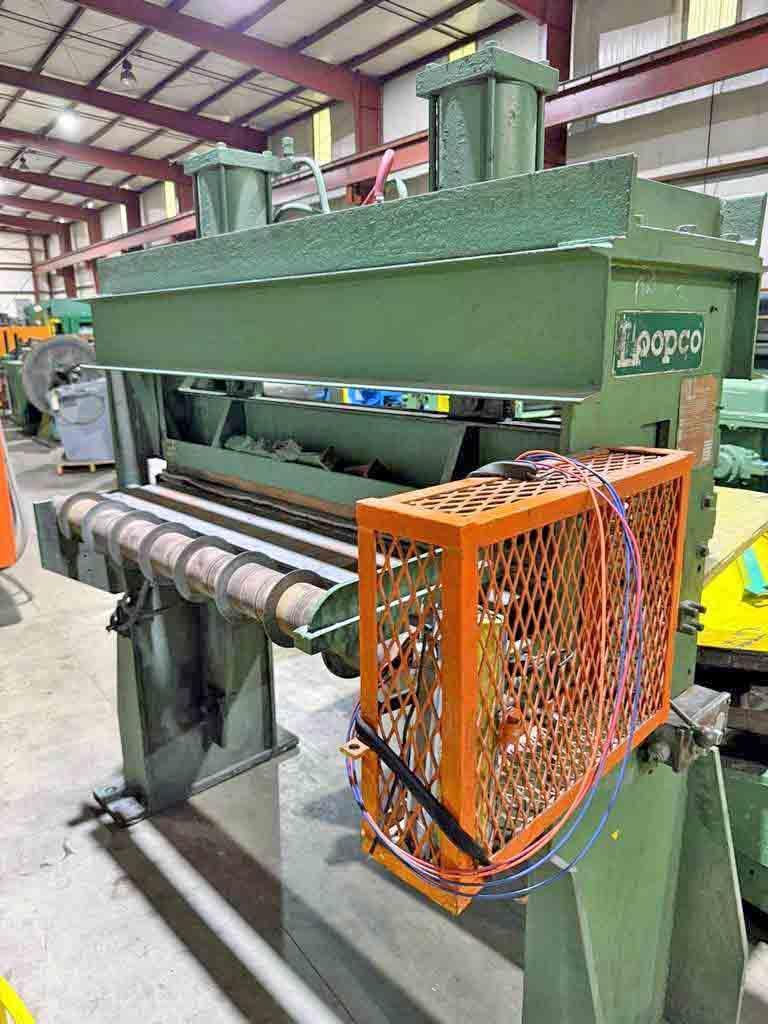

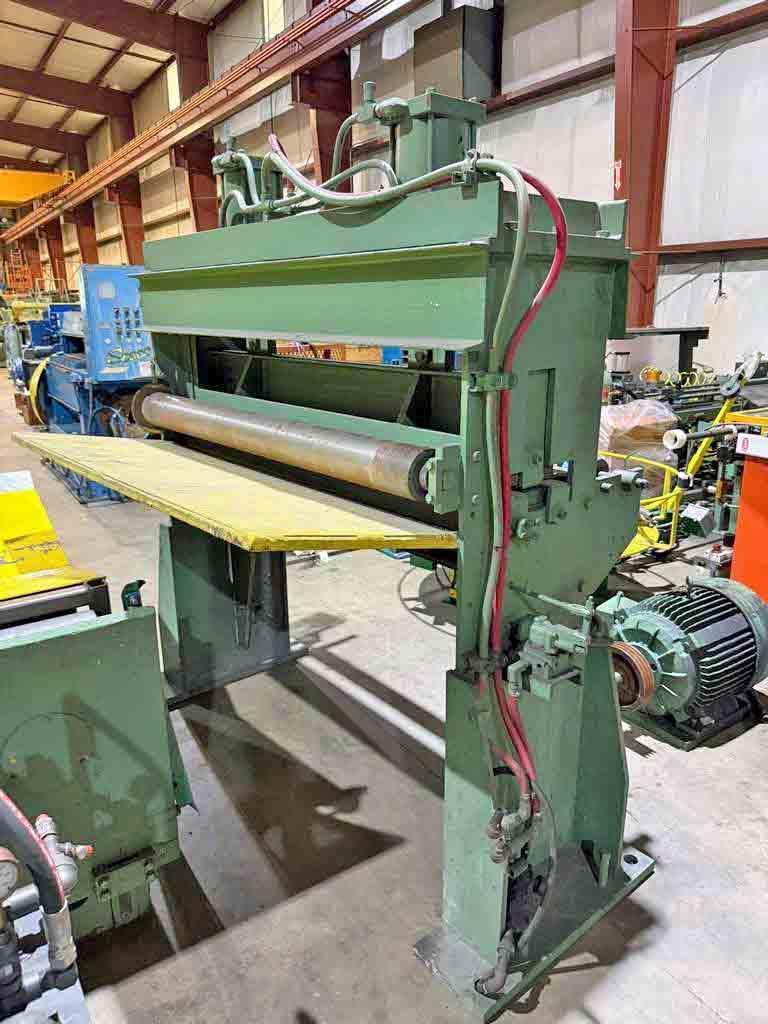

-Tension Stand: Loopco
Drag Board Type w/Air Cylinders for Pressure
Entry Separator Tooling Bar
Exit Passline Roll

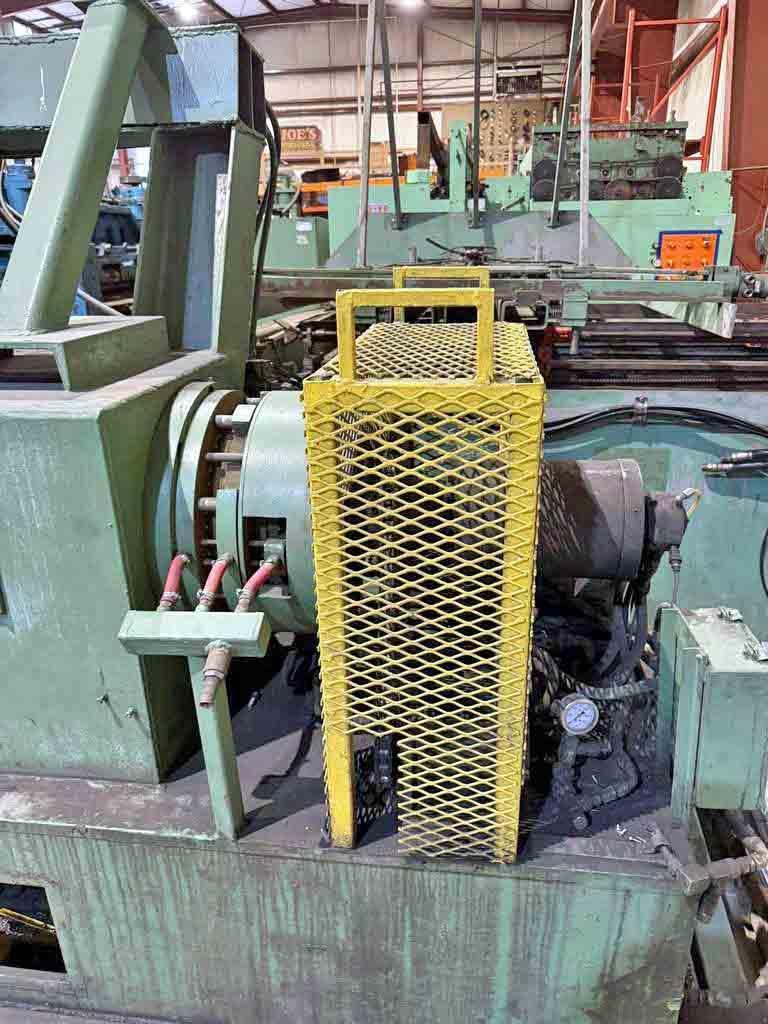

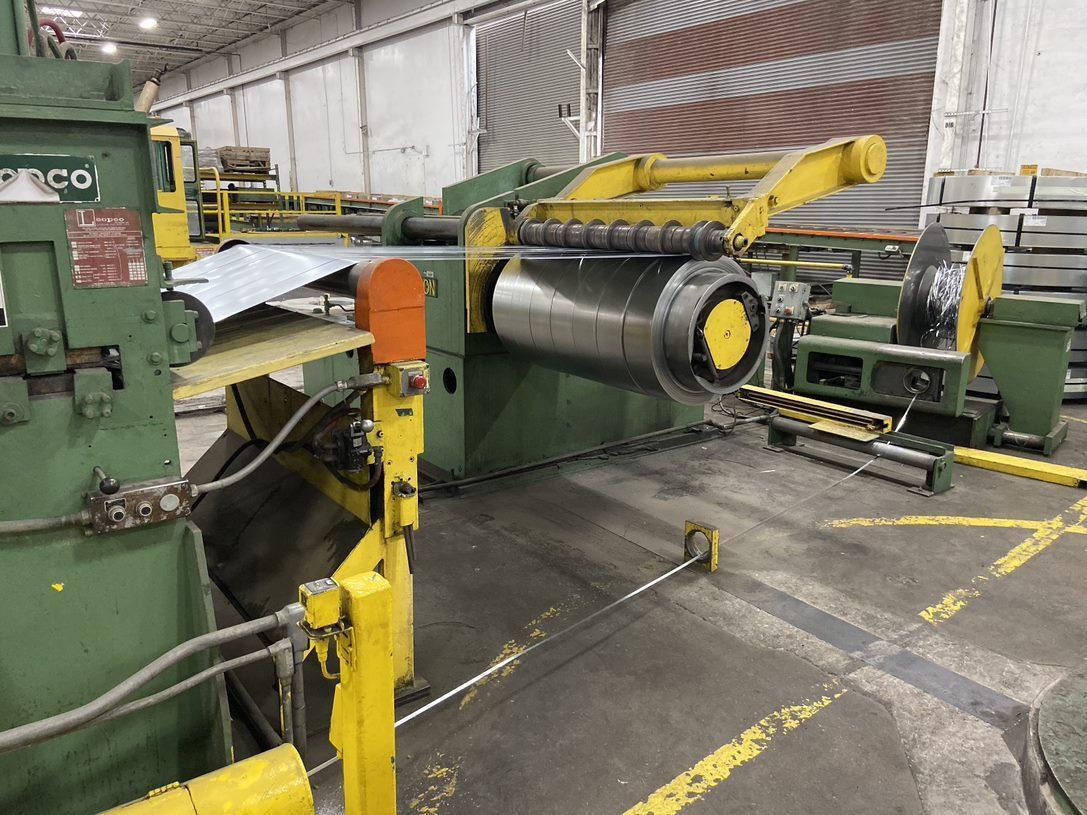

-Recoiler:
20" Dia. Drum
54" Drum Face
Manual Expand and Gripper
Hydraulic Pushoff
Overarm Separator
Foote-Jones Reducer w/16.692:1 Ratio
60 HP Reliance AC Motor w/Belt Drive to Reducer
1770 RPM, 230/460 V

-Exit Coil Car:
48" Wide Deck
Self Contained Hydraulics
Hand Pendant Control

-Exit Turnstile: Braner
Two Arms
Powered Rotation
Pushoffs

-Main Hydraulic Power Unit:

-In Storage: Toledo, OH.
