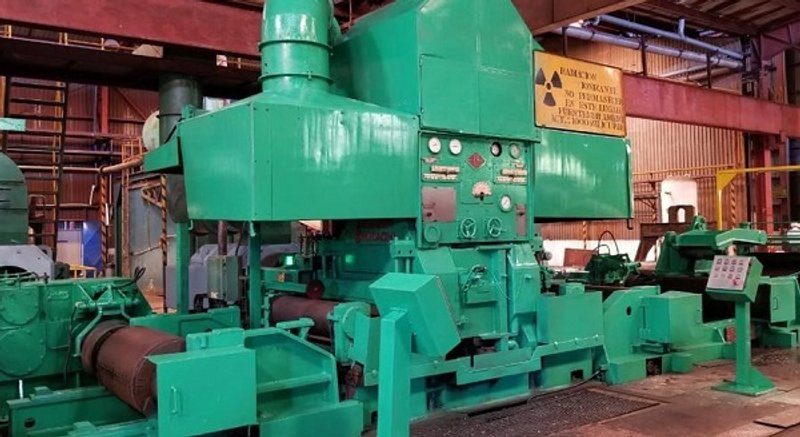

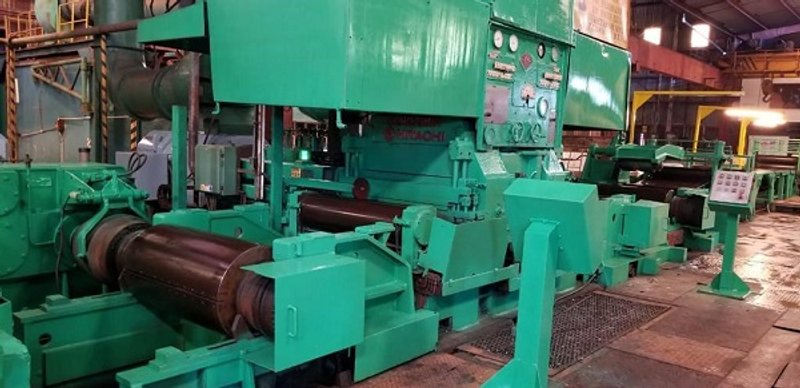

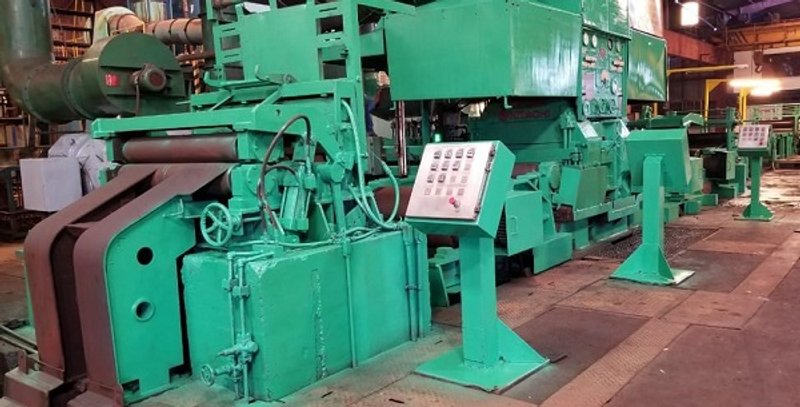

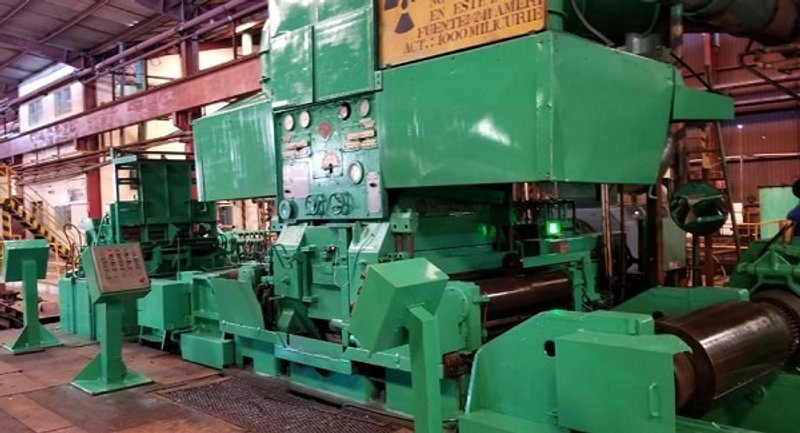

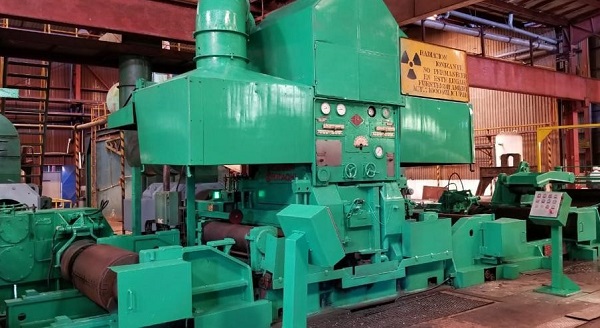

Manufactured By Hitachi - Japan
Major Mechanical / Electrical Upgrade by I2S USA IN 1996
Electrical Upgrade by I2S USA Completed in 2013

Thickness Range: 3mm - .075mm (.120" - .003")
Max Speed: 300 Meters/Min (1000 FPM)
Max Strip Width: 1040mm (41")
Min Strip Width: 500mm (20")

Winder ID: 610 mm (24")
Max Winder OD: 1670 mm (66")
Max Coil Weight @ Max width & OD = 18 metric tons or 40,000#
Strip Tension - 12,000 KG or 26,400#
Tension Control by Load Cell Tensiometers

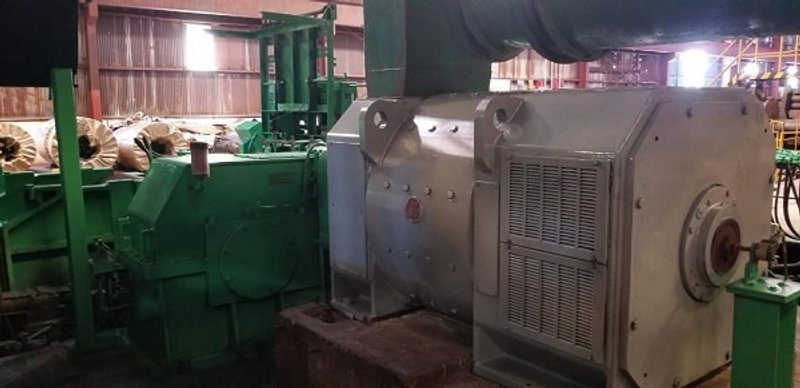

Mill Power: 600 kw / 800 HP DC
Winder Type: Solid Block
Winder Power: 600 kw / 800 HP DC
Thickness Gauges - Gamma Americium @ I curie
Shape Adjustments:
1st Intermediate Roll Shifting
10 Adjustable B&C Shaft Crowns
Lateral Adjustment
Coolant Filtration System: Water Soluble Oil

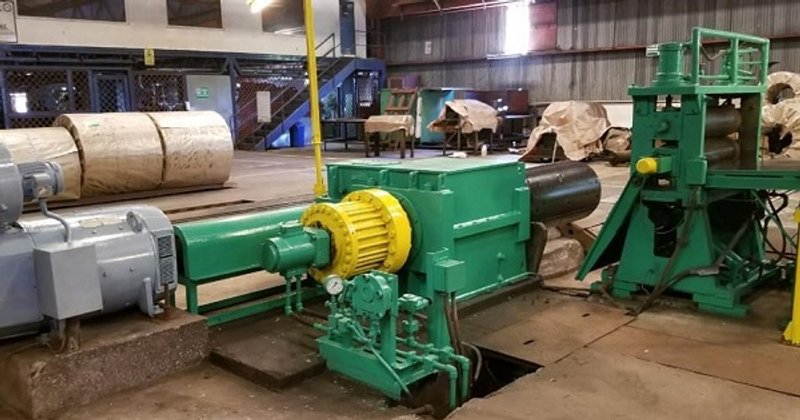

Windon from an Expand/Collapse Segmented Payoff to solid block
Windoff from a solid block to an Expand/Collapse 4 segment winder

Automation:
Digital Position Moog Servo Controlled Hydraulic Screwdown
Mass Flow/Feedforward/Feedback Auto Gauge Control
Automatic Slowdown and Stopping System
Automatic Pass Schedule Generation, Storage, and Loading
SPC Statistical Process Control and Coil Quality Recording System
Drives - ABB DCS800 PLC - GE RX3i in 2013


Spares:
Many Spares electrical and mechanical are included
Large Quantity of Spare Rolls

Roll Grinder
