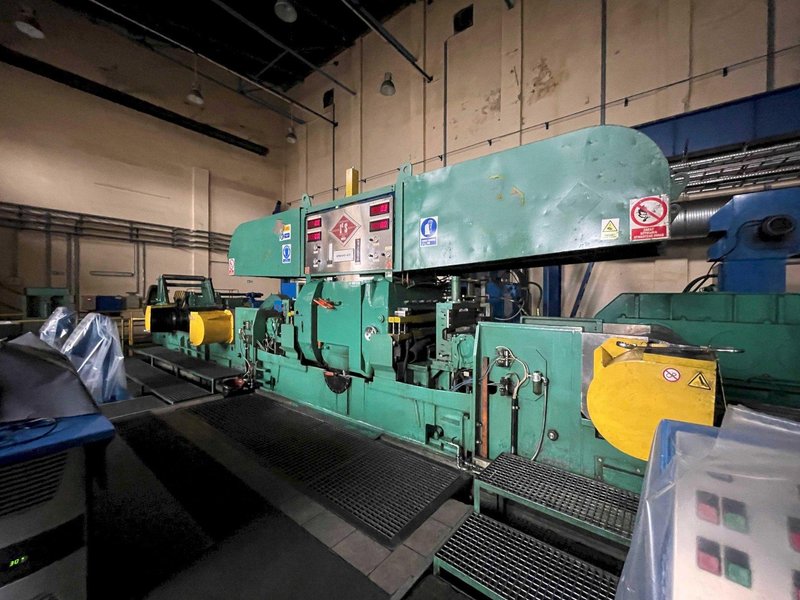

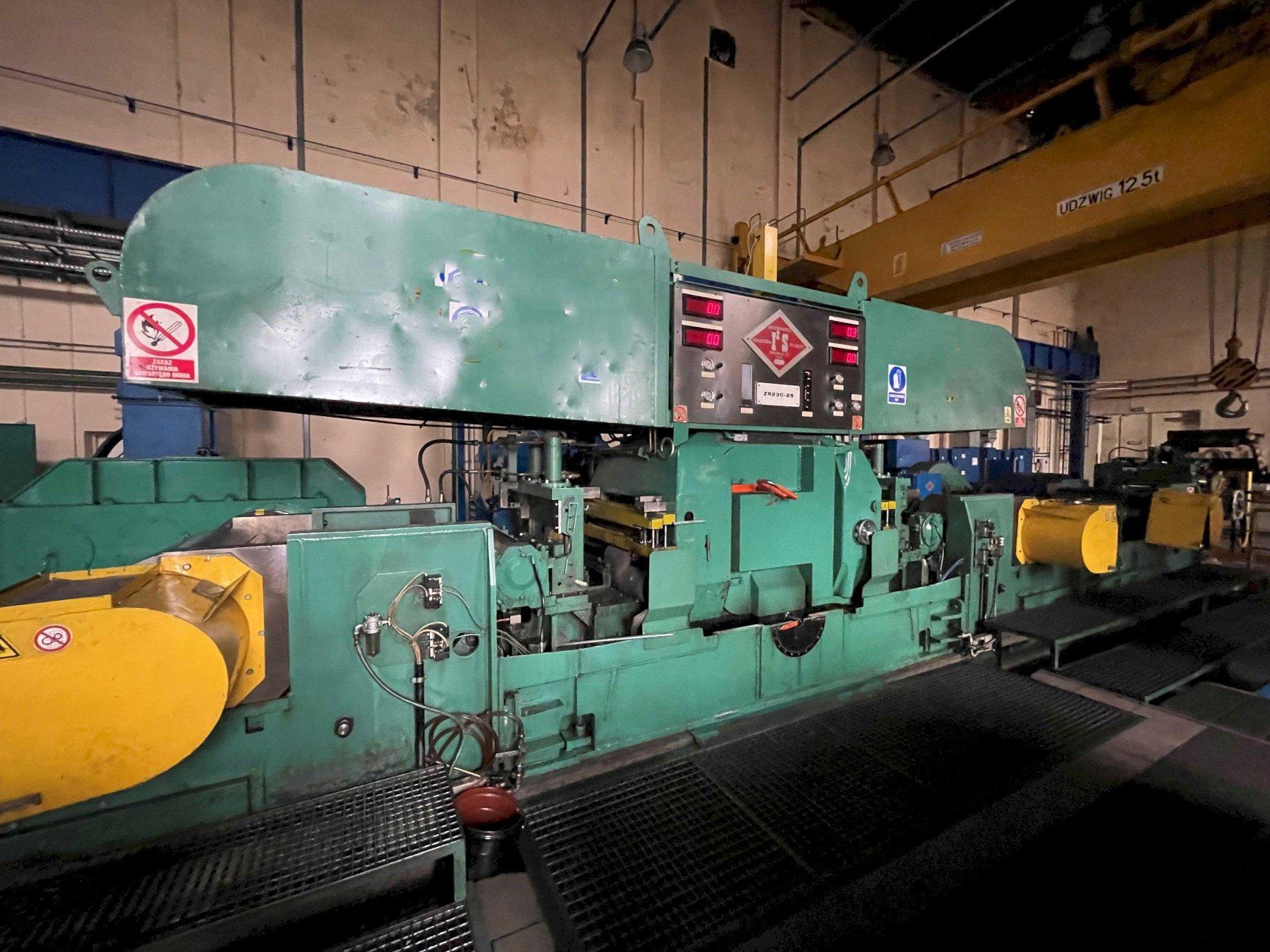

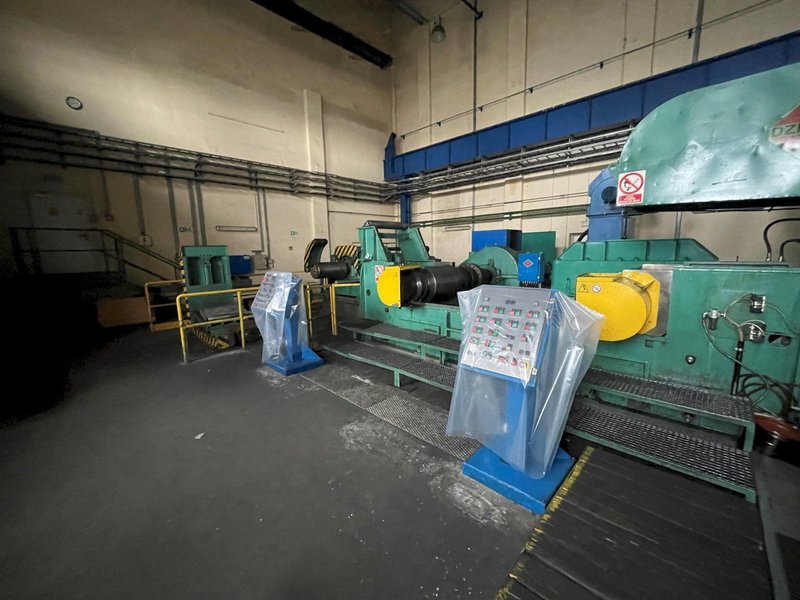

(Used) ZR23-25 Sendzimir 20 Hi Rolling Mill

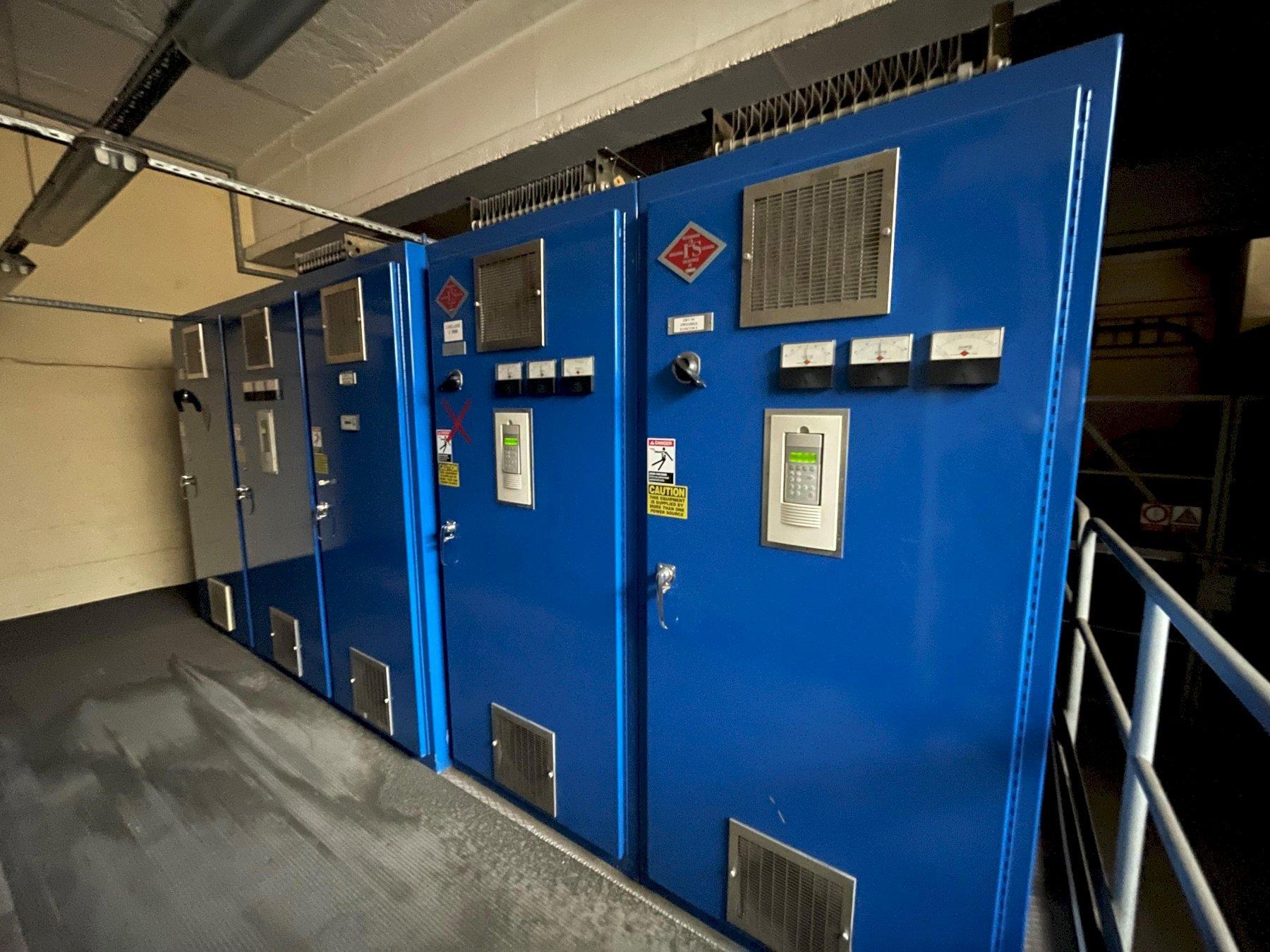

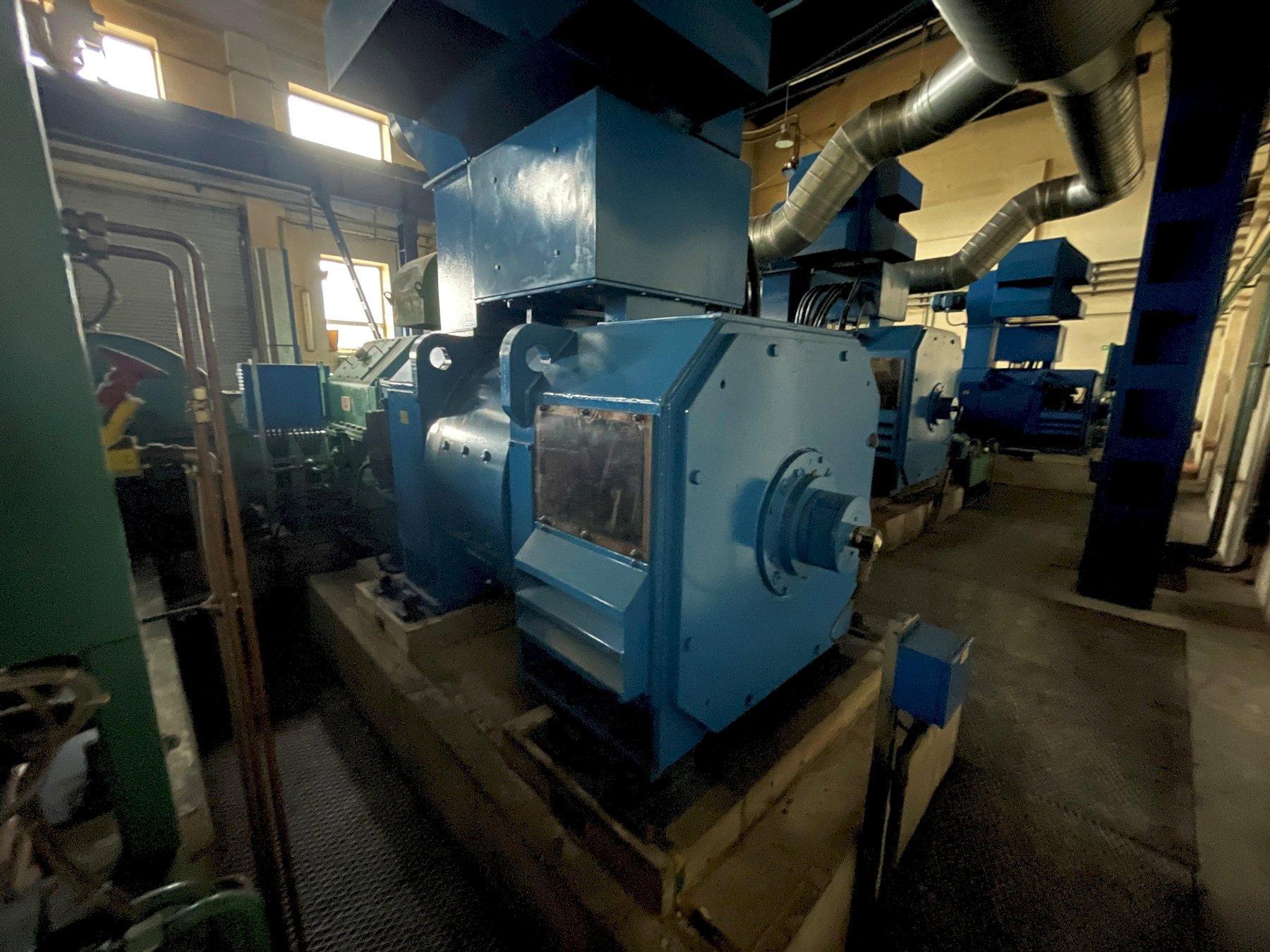

Stock # 14214 Sendzimir rolling mill Characteristics of the Sendzimir rolling mill type ZR23-25: Input tape thickness range 0.05-3.5 mm Rolled strip width range 280-625 mm Rolling speed 1st gear - 0-165 m/min 2nd gear - 0-280 m/min 2nd gear - 0-280 m/min Diameter of backing rollers ø 225 mm Diameter range of second row backing rollers ø 124-131 mm Diameter range of first row backing rolls ø 65-78 mm Diameter range of working rolls ø 32-48 mm Diameter of scrolling drums ø 609 mm coil diameter after winding on the drum ø 1825 mm Uncoiling drum diameter ø 400 mm, ø 600 mm Winding drum diameter ø 400 mm, ø 600 mm Tension and counter-pull force 1st gear - max 16,600 kg (at 165 m/min) 2nd gear - max 9,750 kg (at 280 m/min) Mill drive motor 600 HP, 230/700 rpm - 450kW/DC (500V, 1035A) Left drum motor 600 HP, 400/1200 rpm - 450kW/DC (480V, 1030A) Right drum motor 600 HP, 400/1200 rpm - 450kW/DC (480V, 1030A) Winder motor in front of the rolling mill (decoiler) 60 HP, 400/1600 rpm - 45kW/DC (250V, 205A) Rewinder motor before rolling mill 200 HP, 300/900 rpm - 150kW/DC (250V, 665A) Rewinder motor behind the rolling mill (decoiler) 200 HP, 300/900 rpm - 150kW/DC (250V, 665A) Rewinder motor after rolling mill 20HP, 650/2000 rpm - 15kW/DC (240V, 72A) Control system Visualization on a DOS computer Roll setting control system implemented by a PC computer equipped with specialized cards SAF controller - controlling drives for optical fiber GE FANUC controller - IC697CPX782 with islands - rolling mill control **Temporary Specifications Subject to Revisions** **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE** **ALL SPECIFICATIONS ARE SUBJECT TO PRIOR SALE** |
