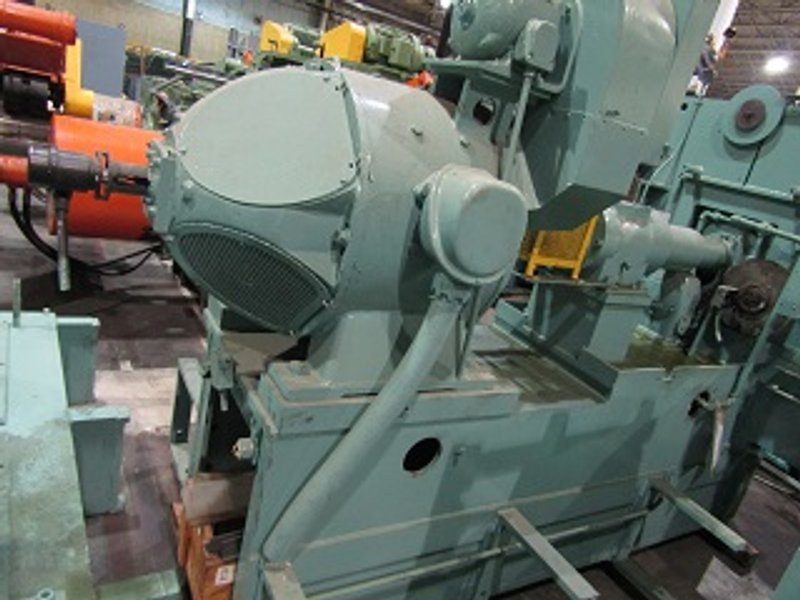

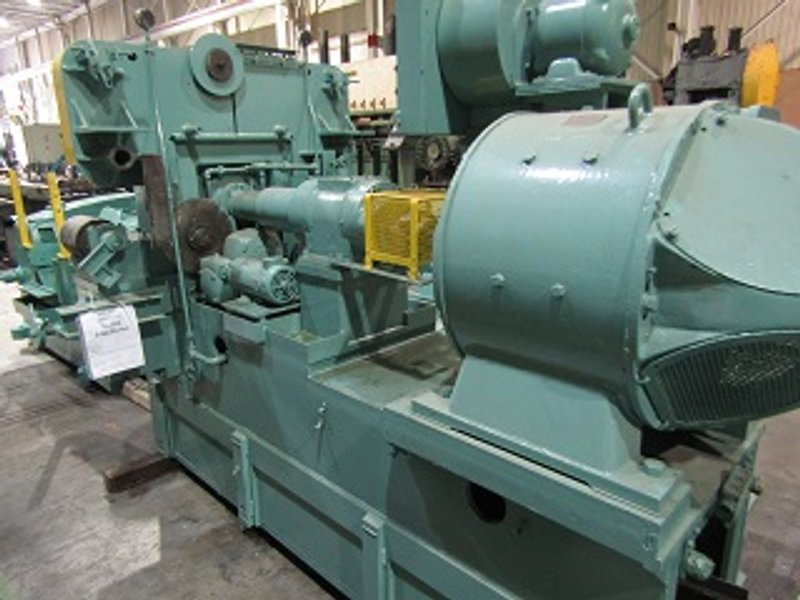

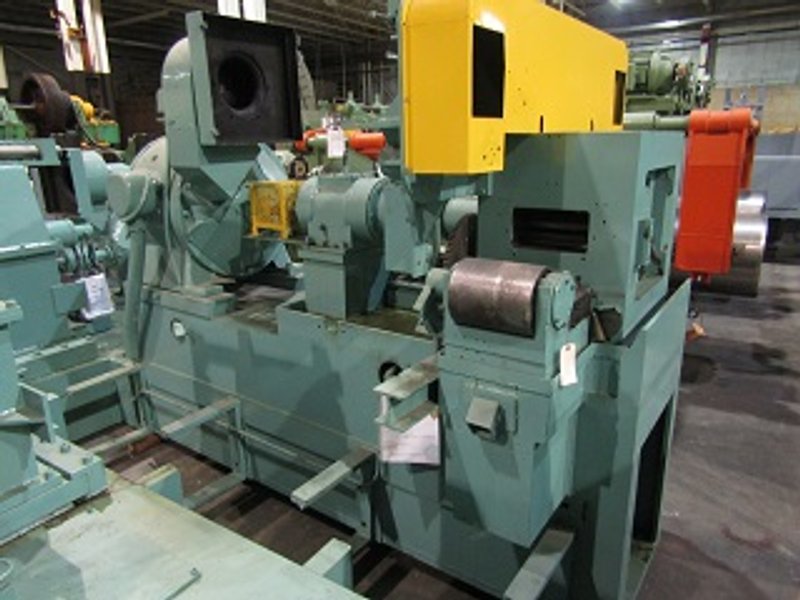

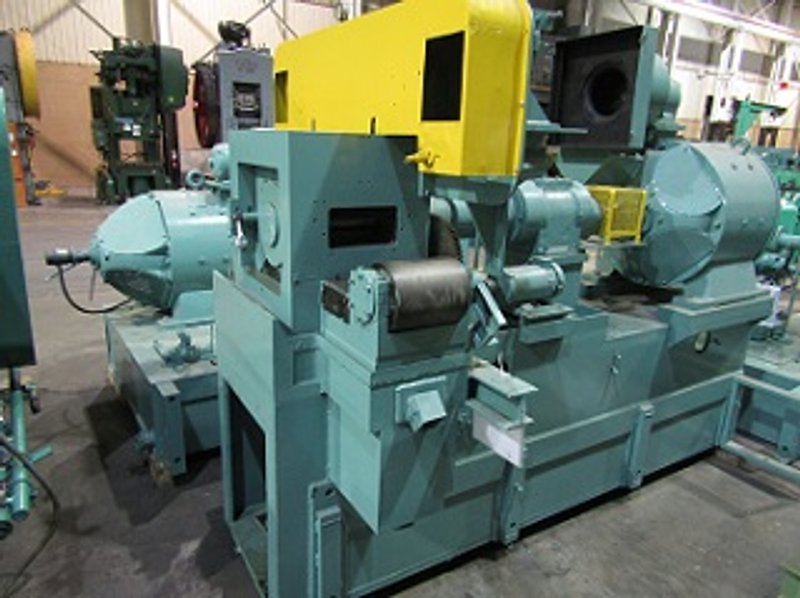

WATERBURY FARREL ZR16-8.5 SENDZIMIR 12-HI ROLLING MILL

WATERBURY FARREL ZR16-8.5 SENDZIMR 12-HI ROLLING MILL


Mill Strip Width Max. 8.5" (216mm)
Min strip width 4" (100mm)
Max. Incoming Thickness .080" (2.0mm)

Min. Out Finishing Thickness .0016" (0.040mm)
Max. Tension 4,000 lb (1800 kg)

Max. Mill Motor Power 50HP (37.5 Kw) 575 / 1175 RPM; 240V

Winder Power 40HP (30 Kw) 300 / 600 RPM; 240V



Coil Size:

ID = 16" (406 mm)
OD = 48" (1,219 mm)
Estimated max line speed 500 FPM (150 MPM)

Work Roll Diameter (Nominal) 0.8'" (20.32 mm)

Drive Roll Dia. (Nominal) 1.625" (41.27 mm)
Backing Bearing Dia. (Nominal) 4.724" (120 mm)
Separating Force Max. 30,920 Kg (143.15 kg/mm for 216mm width

Maximum Strip Tension 2640 LBS (1200 KG)
