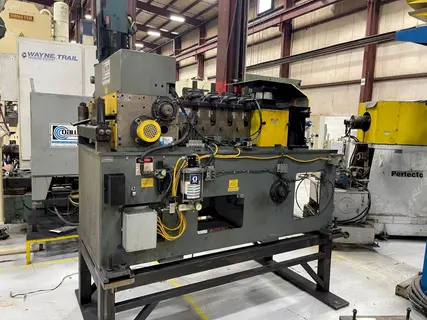

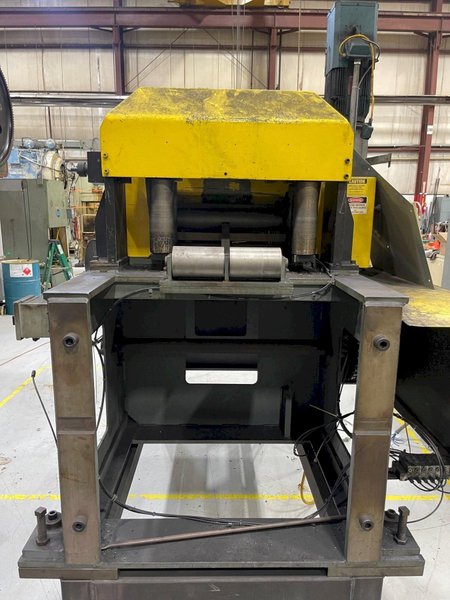

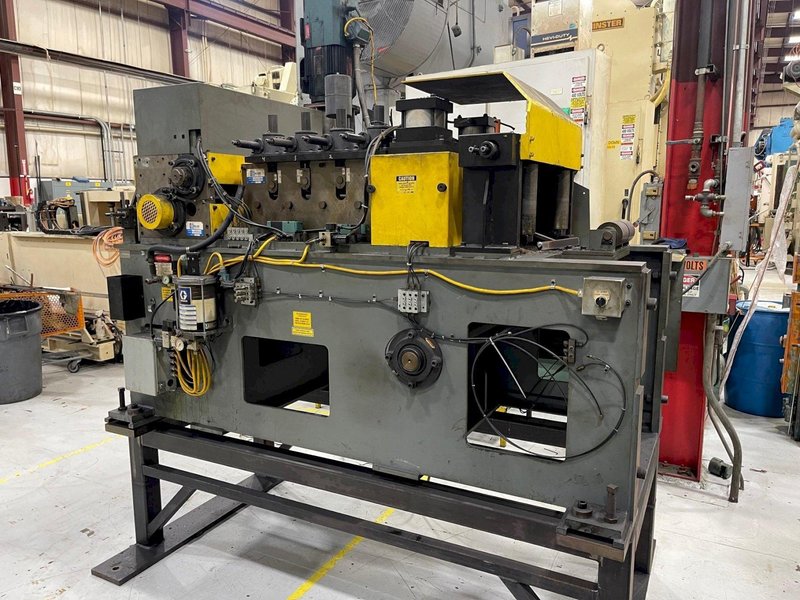

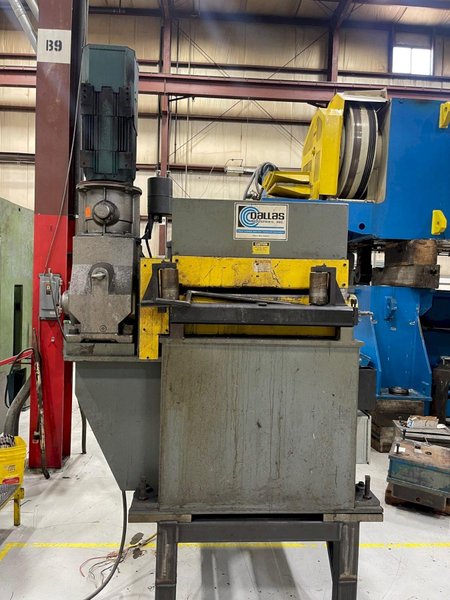

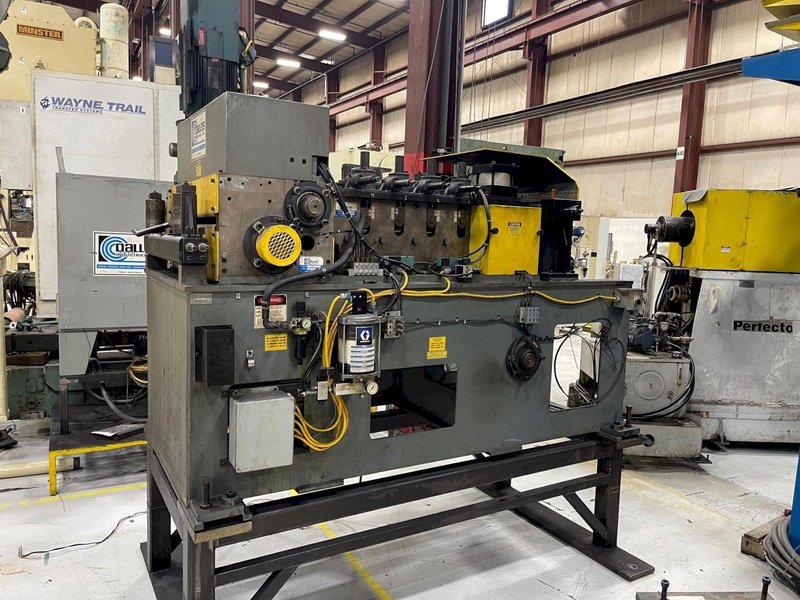

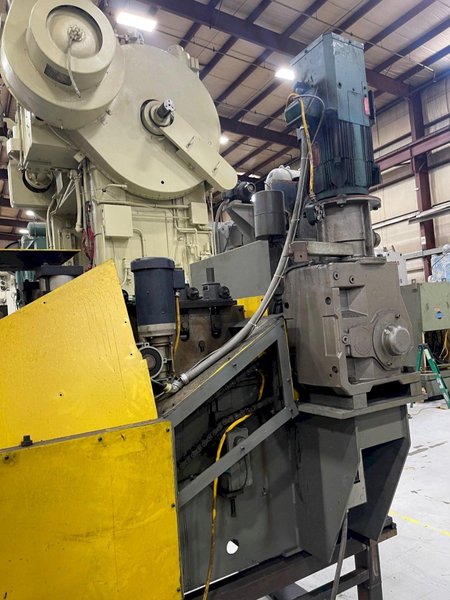

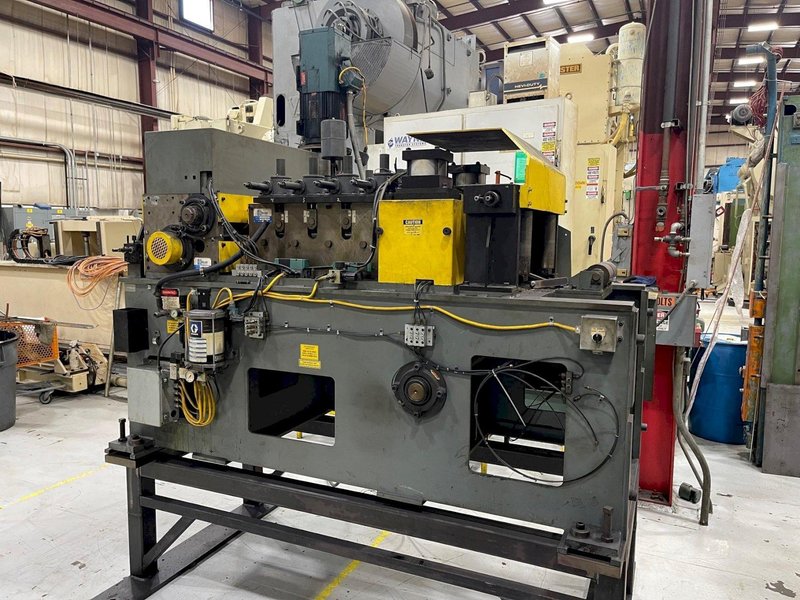

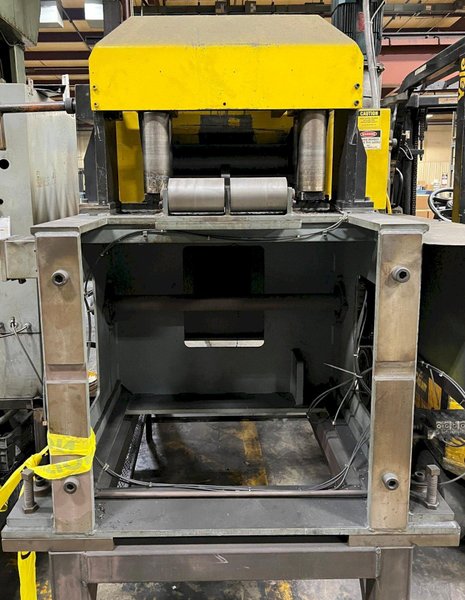

18" Dallas Servo Feed Straightener (High Strength Material) Model #DRFXS-618
Brand
Category
Model
DRFXS-618
Stock #
2772
Year
2011
Condition
Good
Location
Michigan
| Coil Width | 18 inches |
| Coil Thickness | .156 inches |
|
Standard Specifications:

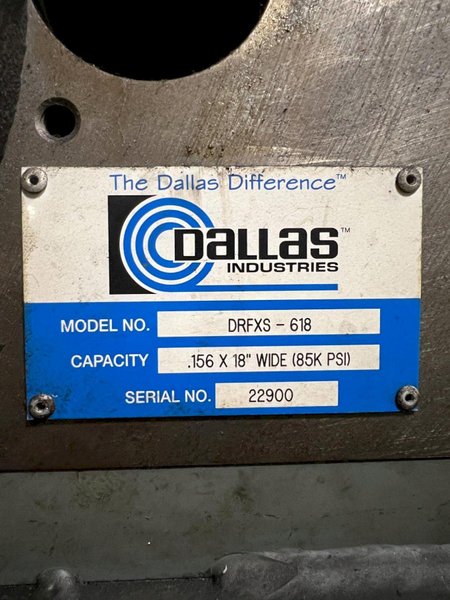

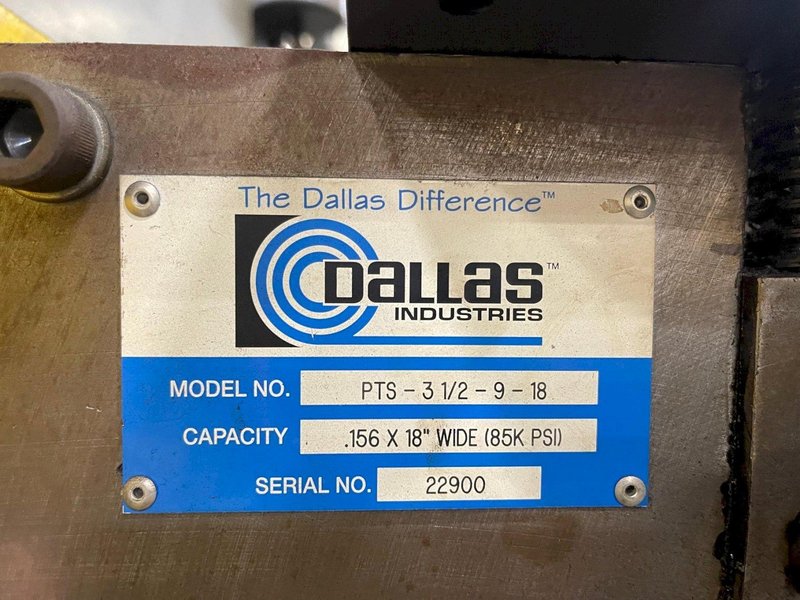

Dallas Servo Feed Model # DRFXS-618 18" Max Coil Capacity 18" @ .156" Thickness Capacity (@ 85k PSI) .375" Maximum Material Thickness .065" Minimum Material Thickness sn/ 22899 / 22900 Equipment and Features Dallas Pull Thru Straightener Model # PTS 3.5-9-18 9 Roll Pull Thru Straightener Right To Left Feed Direction Cabinet Base Mounted Heavy Duty Pass Line Adjustment Six inch diameter full width upper and lower feed rolls
Outboard Drive for Feed Rolls
30 HP AC Drive Assembly @ 1750 RPM
Matte chrome finish on upper and lower feed rolls
Heavy duty hand crank stock width edge guides
Nine straightening rolls x 3.5 inch diameter with screw jack adjustments
7” Centerdistance
Air operated upper pinch roll adjustment
Air clutch pinch roll engagement

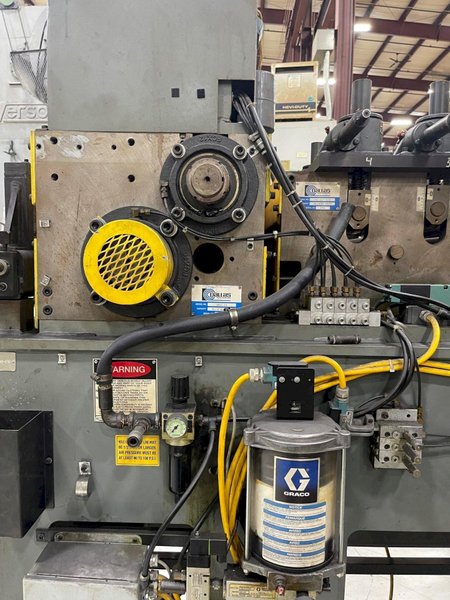

Out board lubrication points

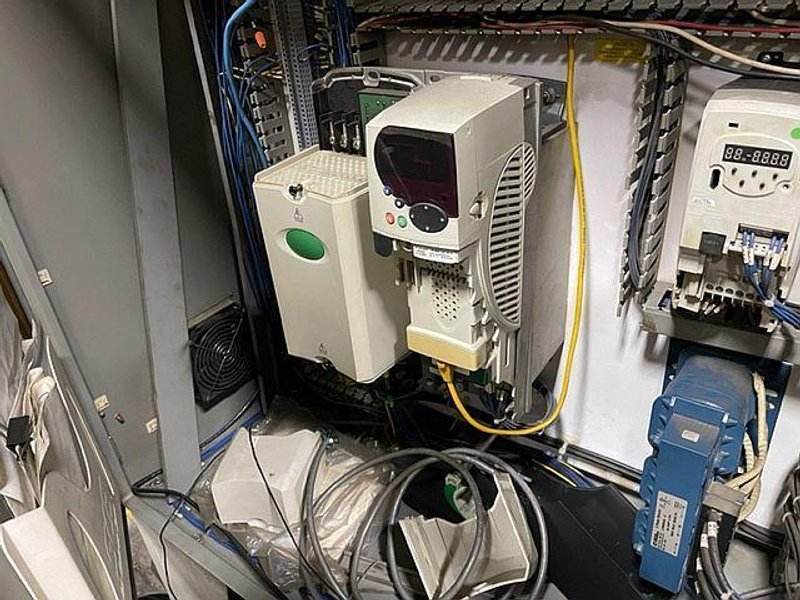

Motors and Controls
Remote pendant control for jog forward and reverse
Emergency Stop
|
|
