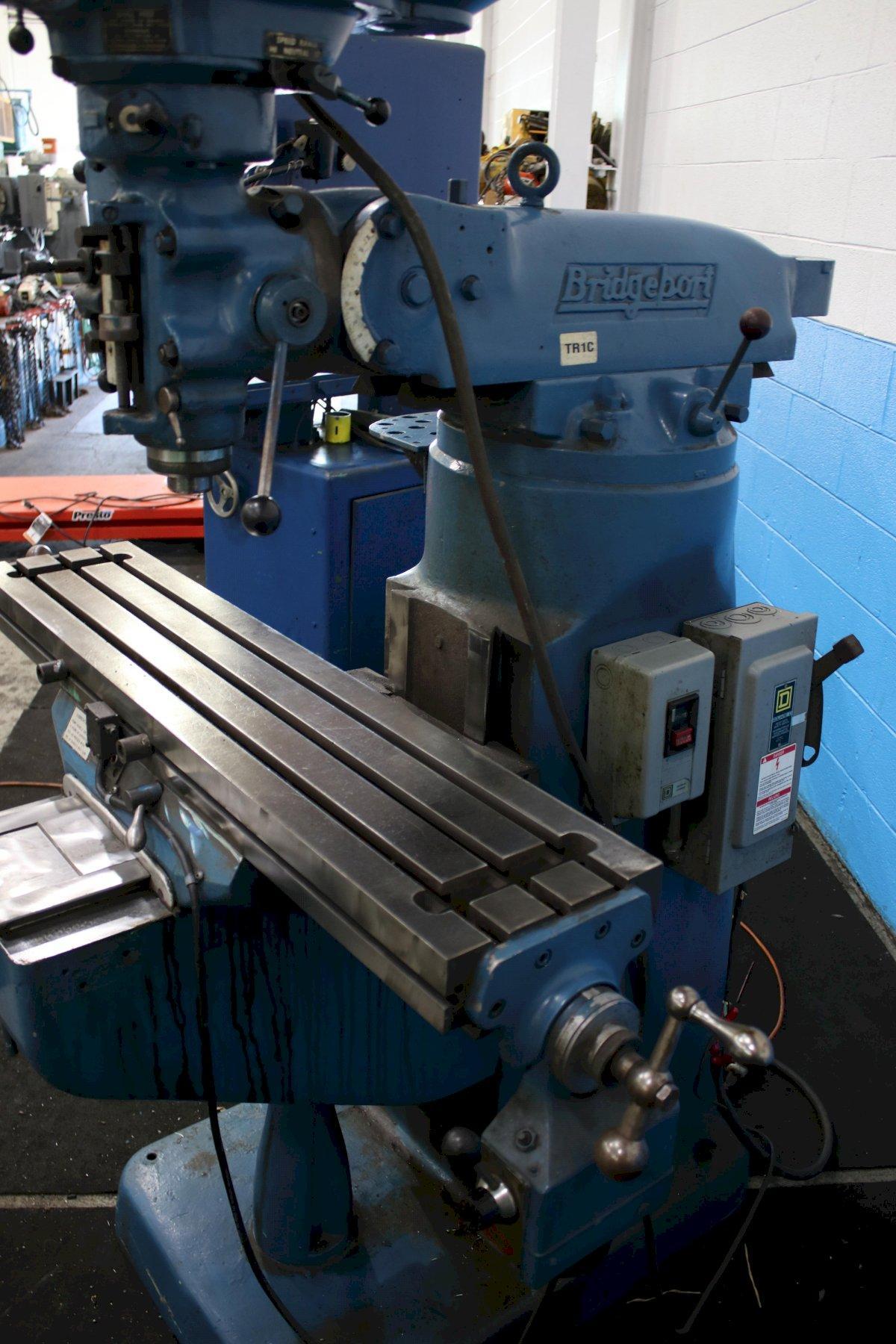

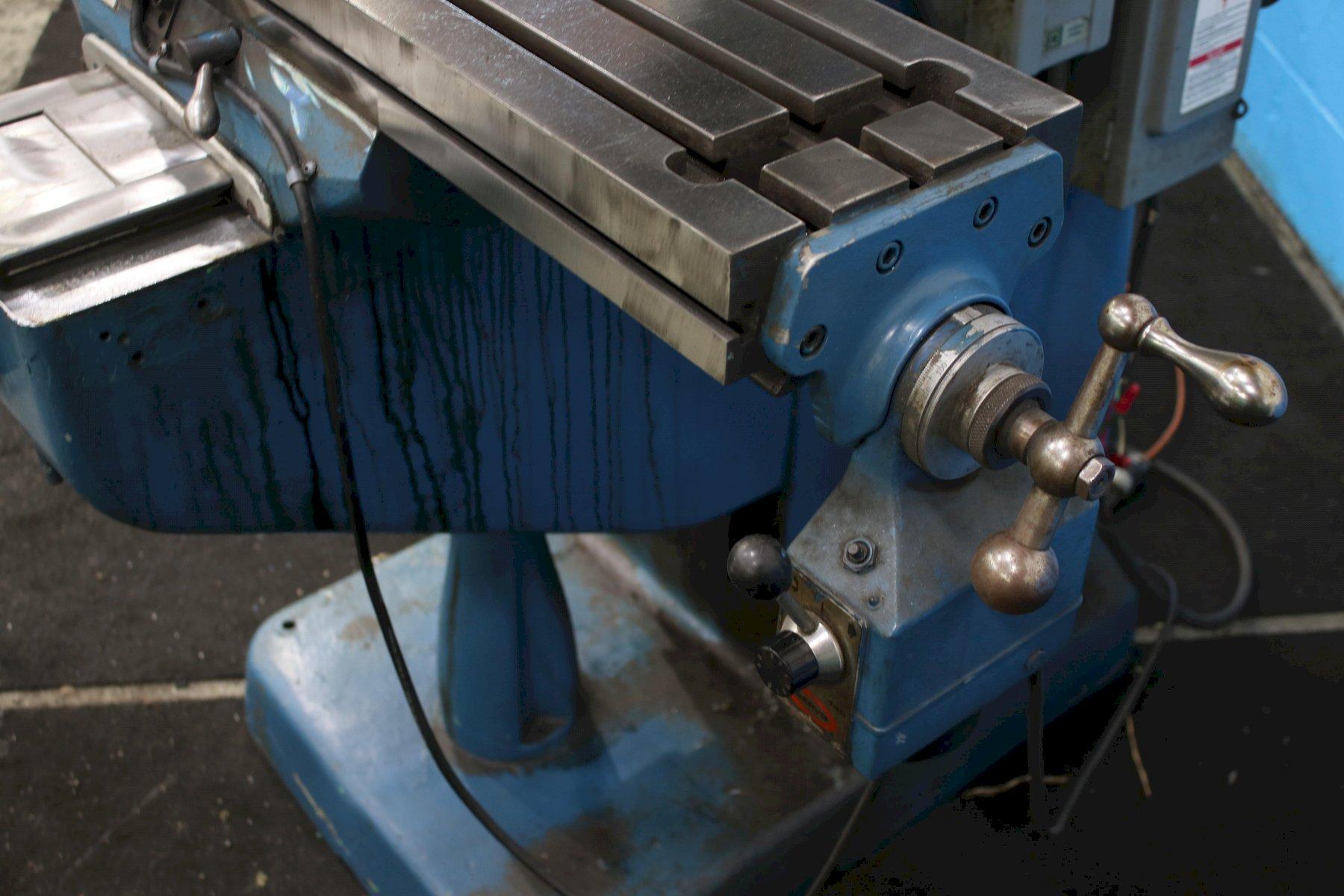

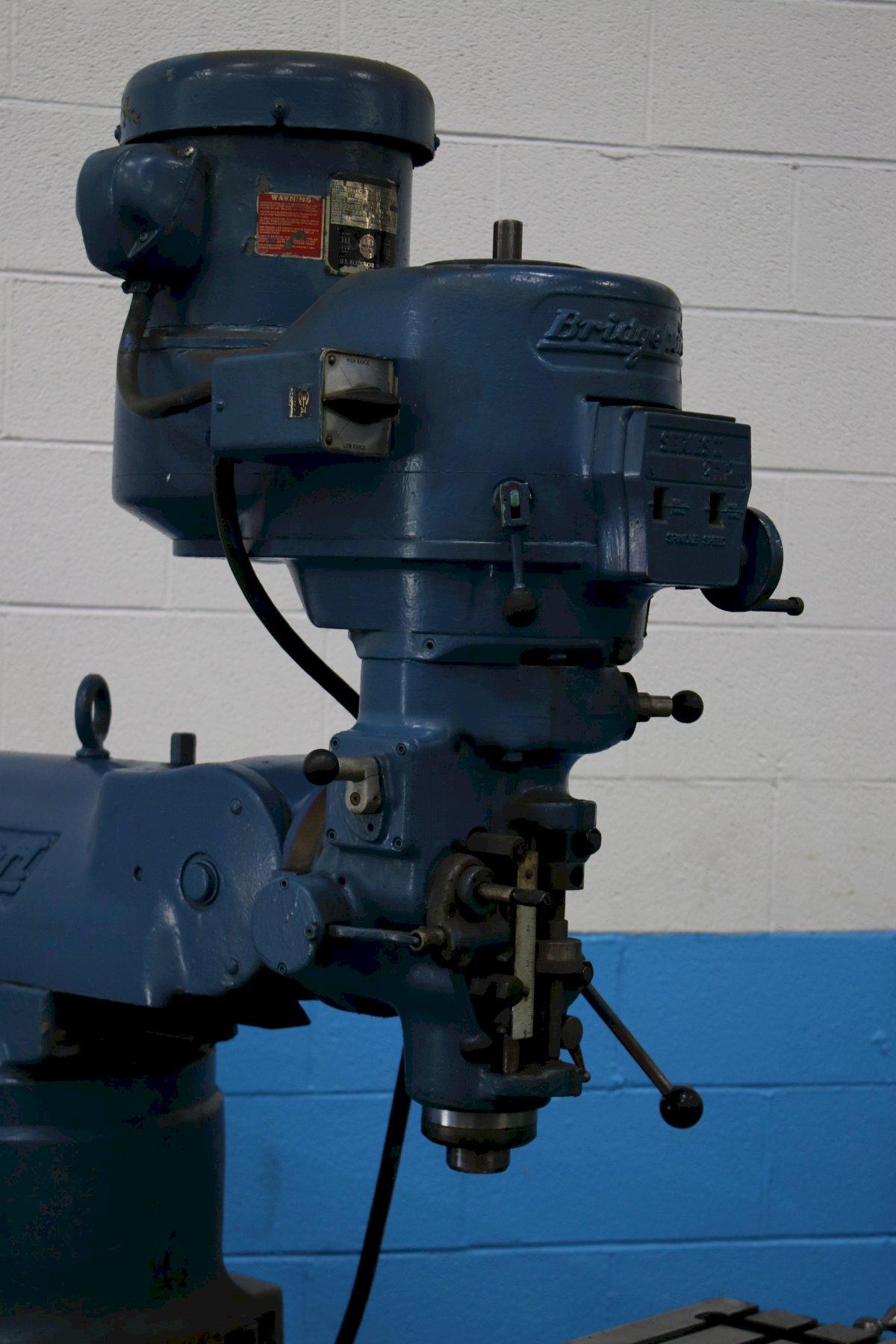

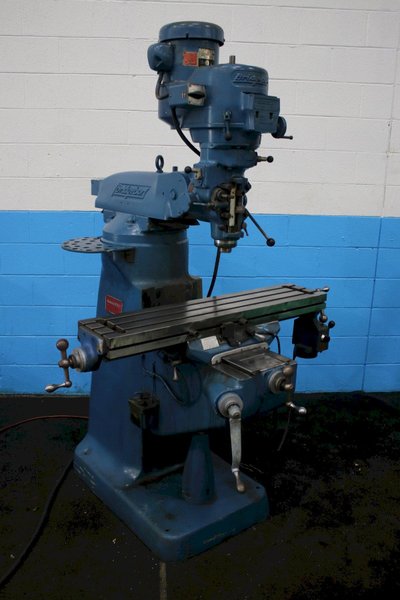

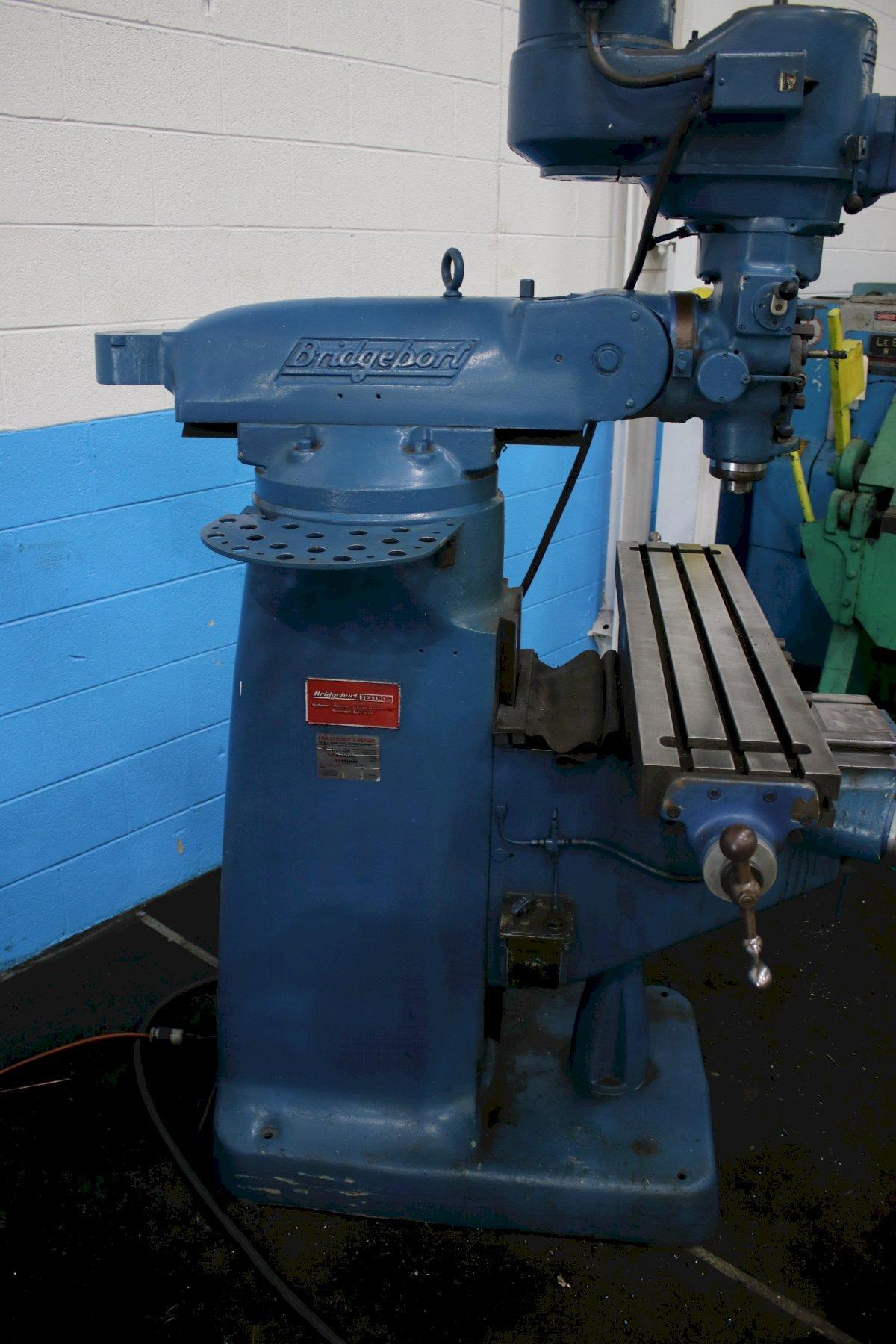

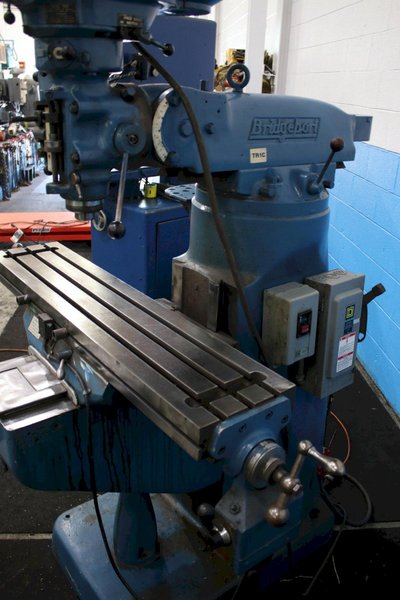

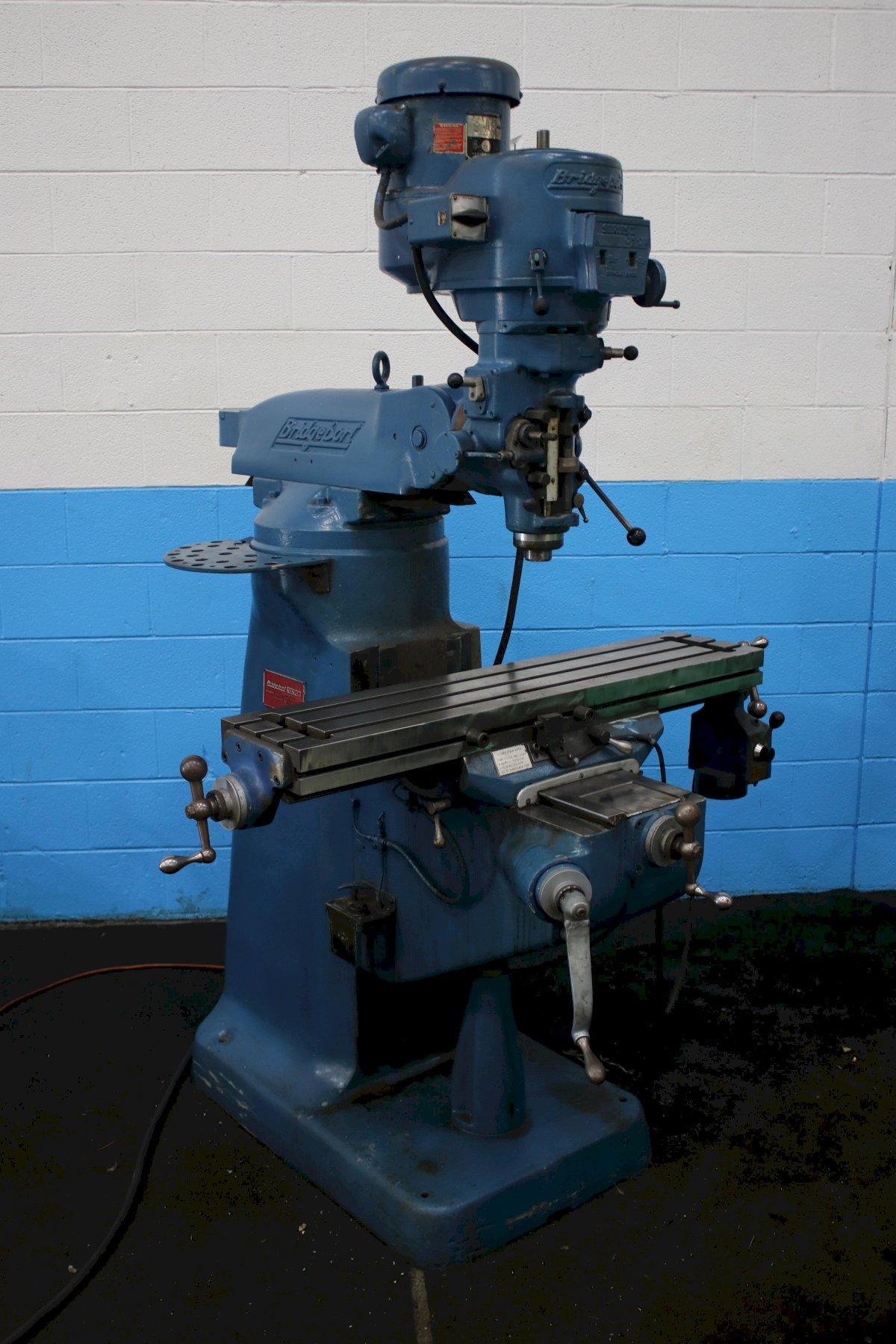

2 HP BRIDGEPORT RAM TYPE VERTICAL MILL: STOCK #75296

SERIAL .............................. 11094251

MODEL ............................... SERIES I

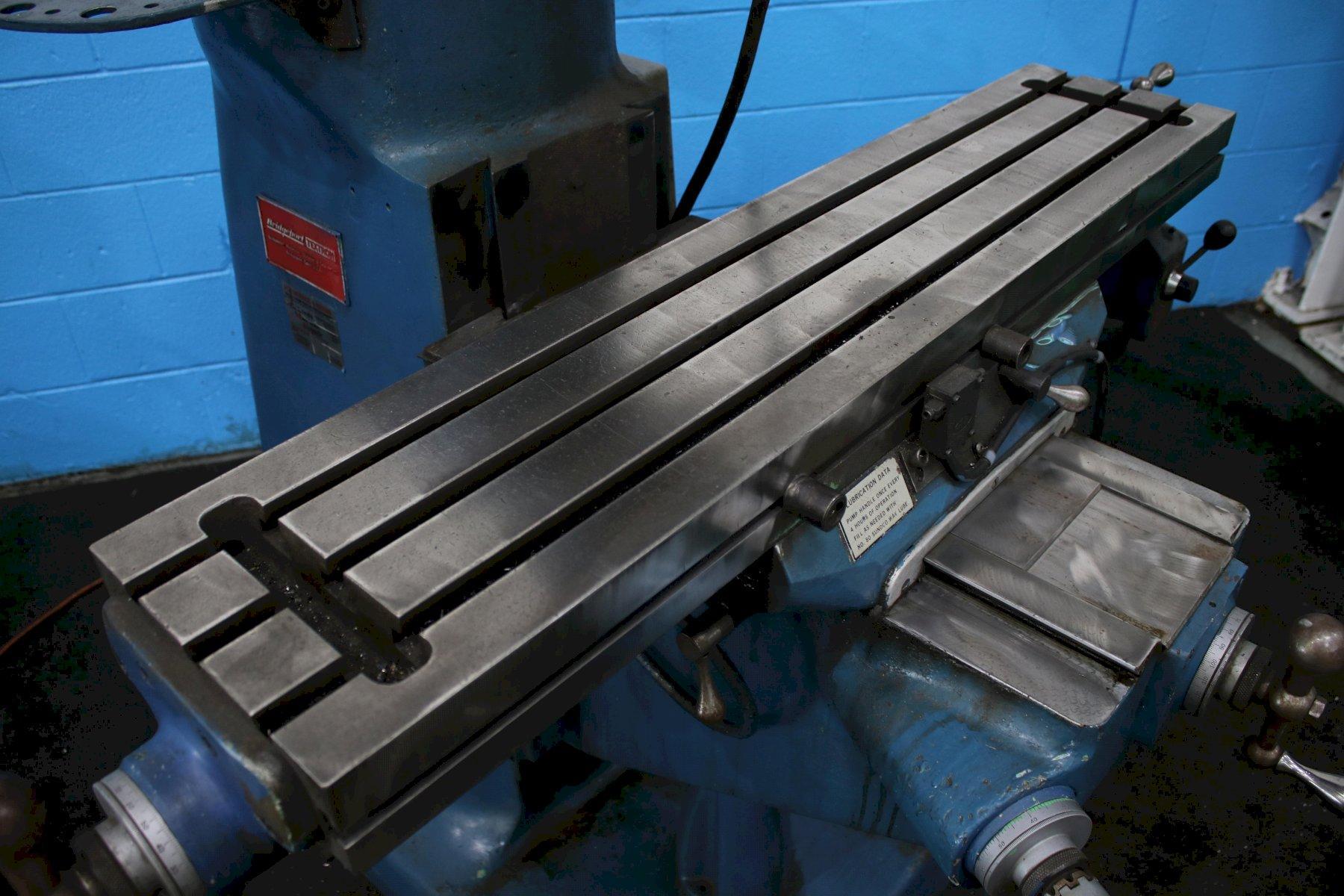

AREA OF TABLE ....................... 42" X 9"

SPINDLE SPEEDS, VARIABLE ............ 60 TO 4200 RPM

SPINDLE FEEDS ....................... .0015, .003, .006 IPR

LONGITUDINAL TABLE TRAVEL ........... 30"

CROSS TRAVEL ........................ 12"

VERTICAL KNEE TRAVEL ................ 16"

QUILL TRAVEL ........................ 5"

RAM TRAVEL .......................... 12"

DEPTH OF THROAT ..................... 6-3/4" TO 18-3/4"

TAPER IN SPINDLE .................... R8

HEAD TILTS, FRONT/BACK .............. 45 DEGREE EITHER WAY

HEAD SWIVELS, LEFT/RIGHT ............ 90 DEGREE EITHER WAY

1 SHOT LUBE ......................... YES

CHROME WAYS ......................... YES

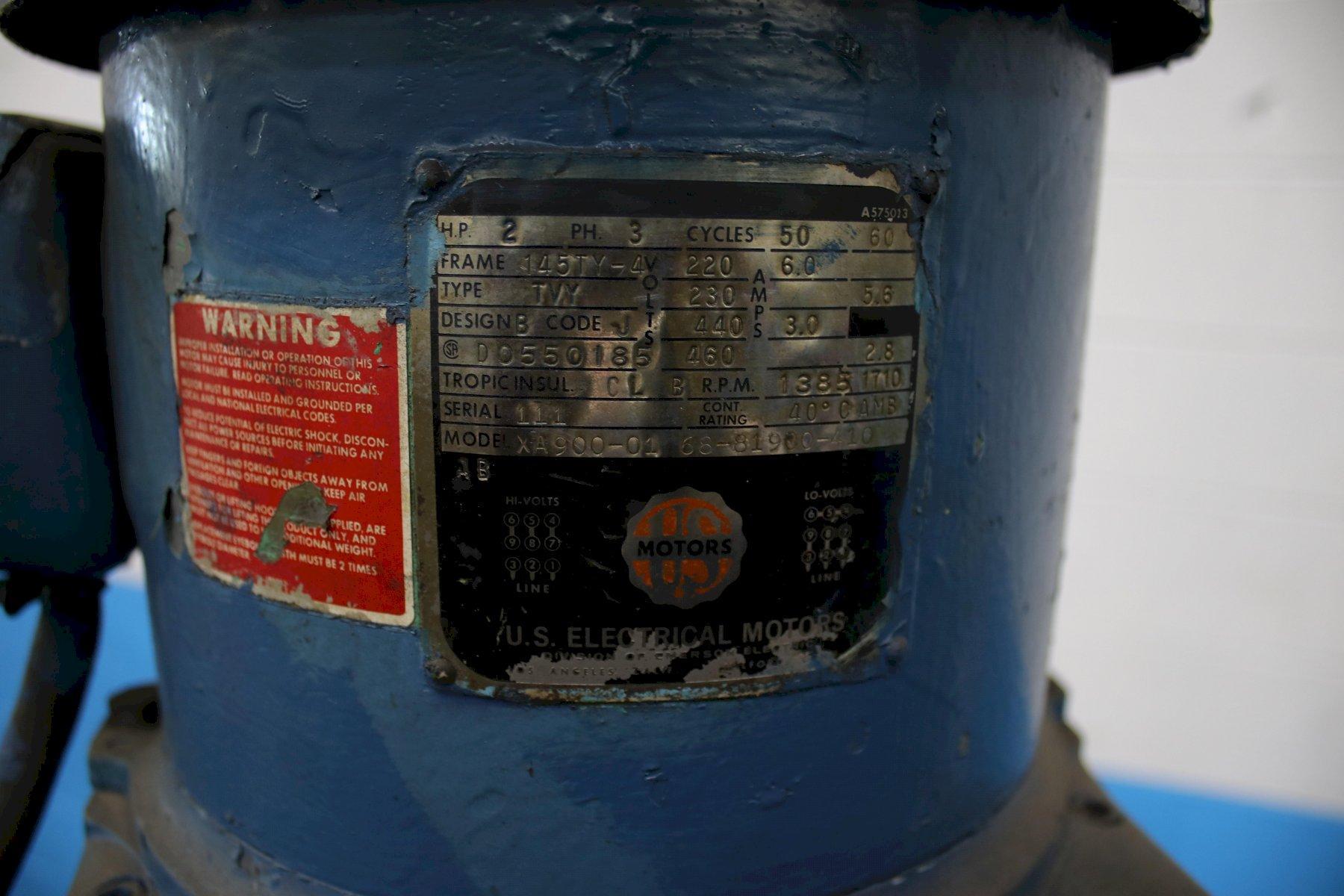

MOTOR ............................... 2 HORSEPOWER
