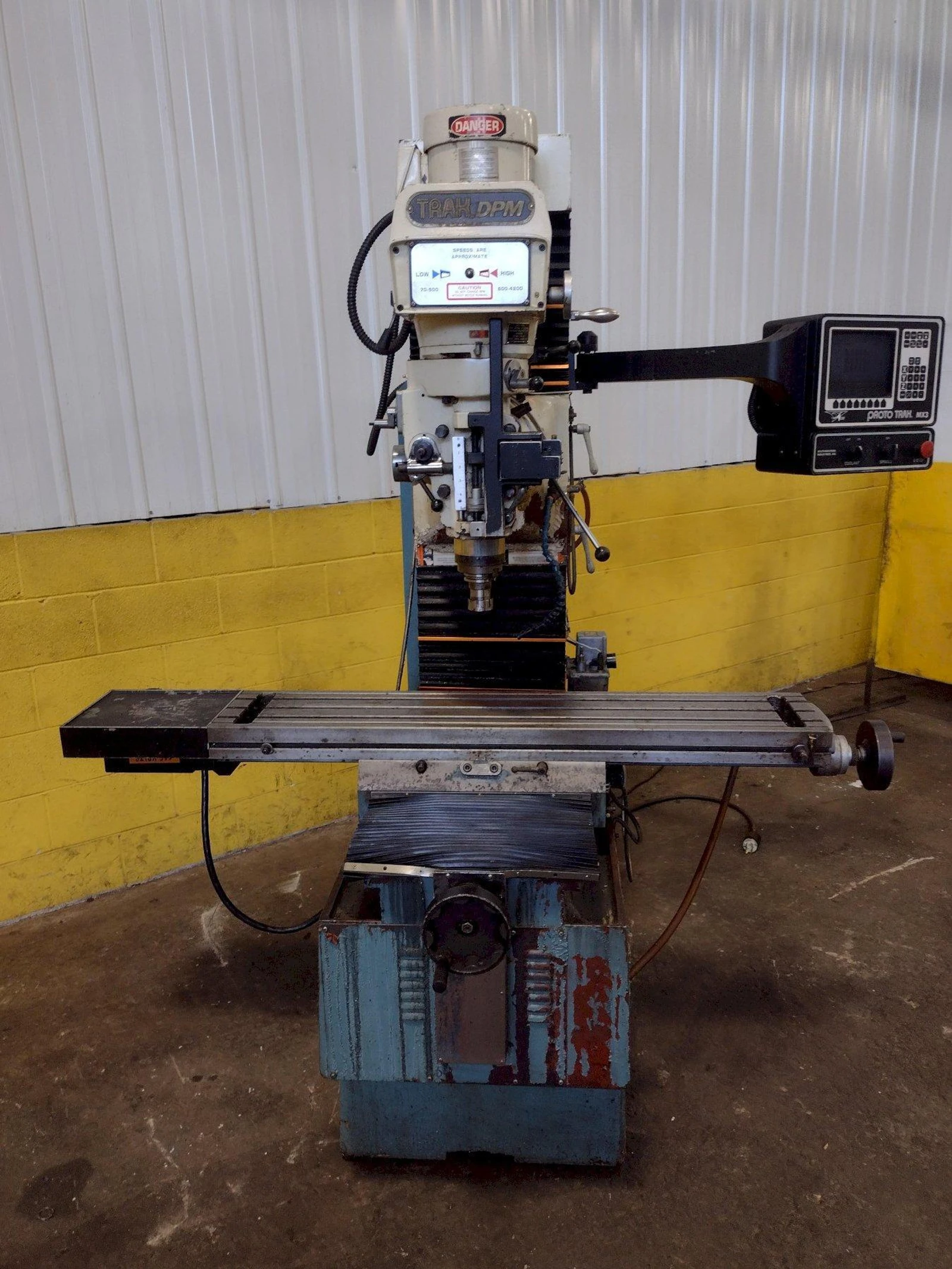

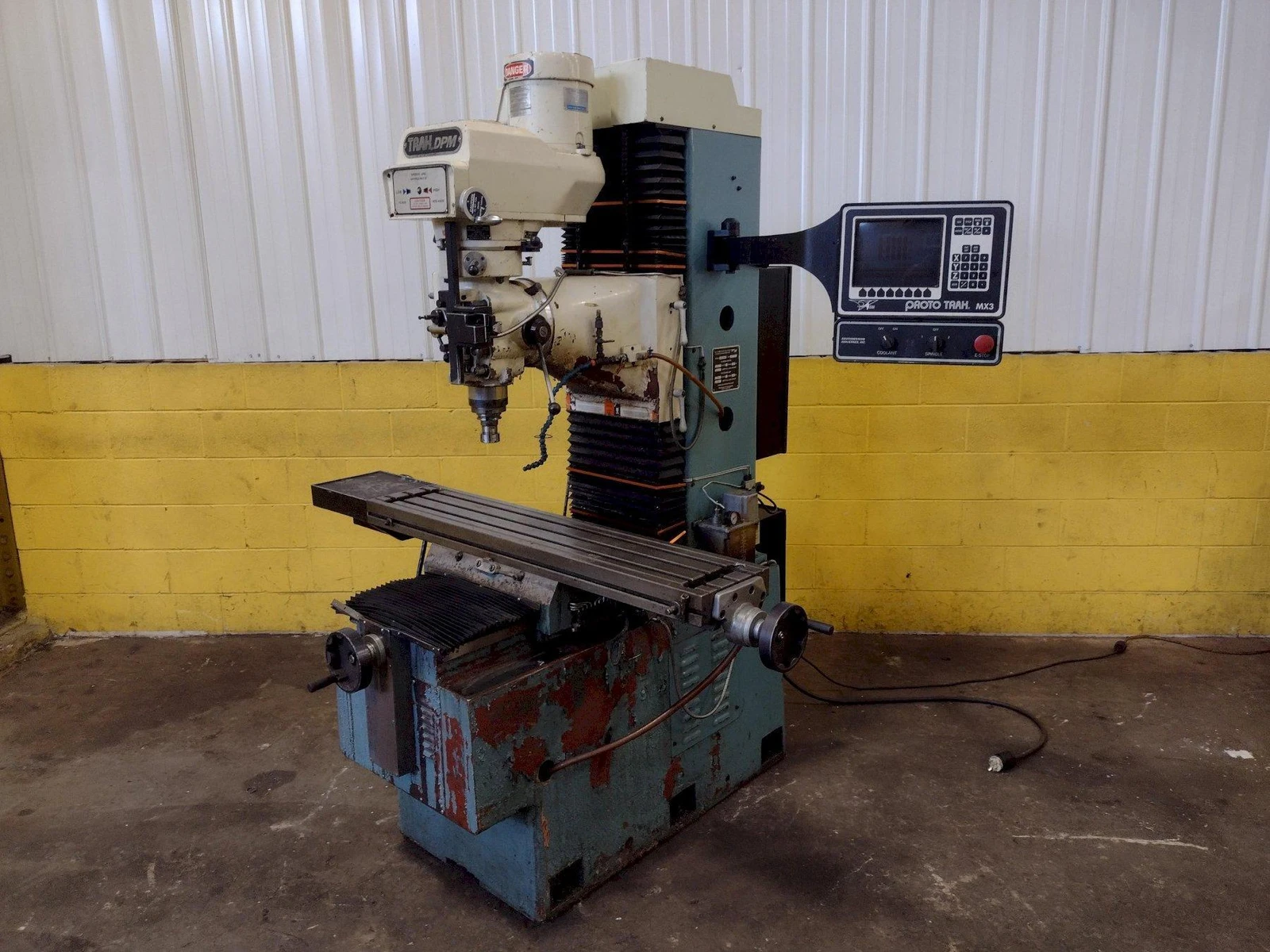

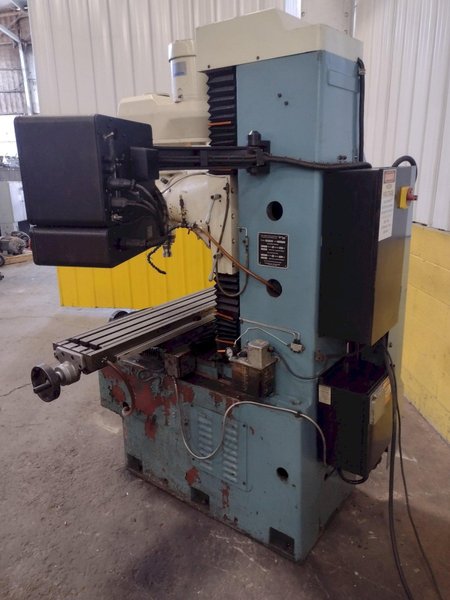

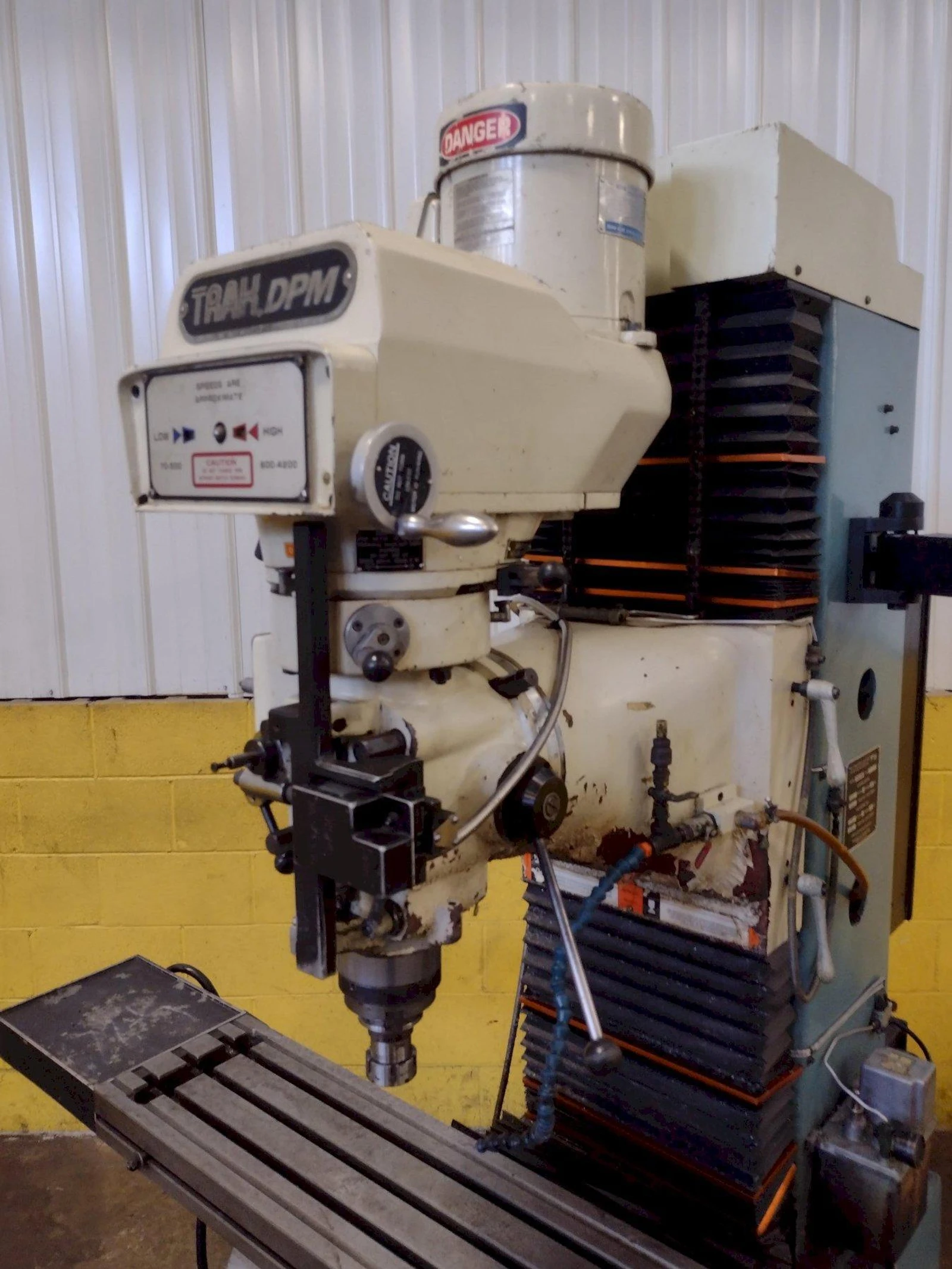

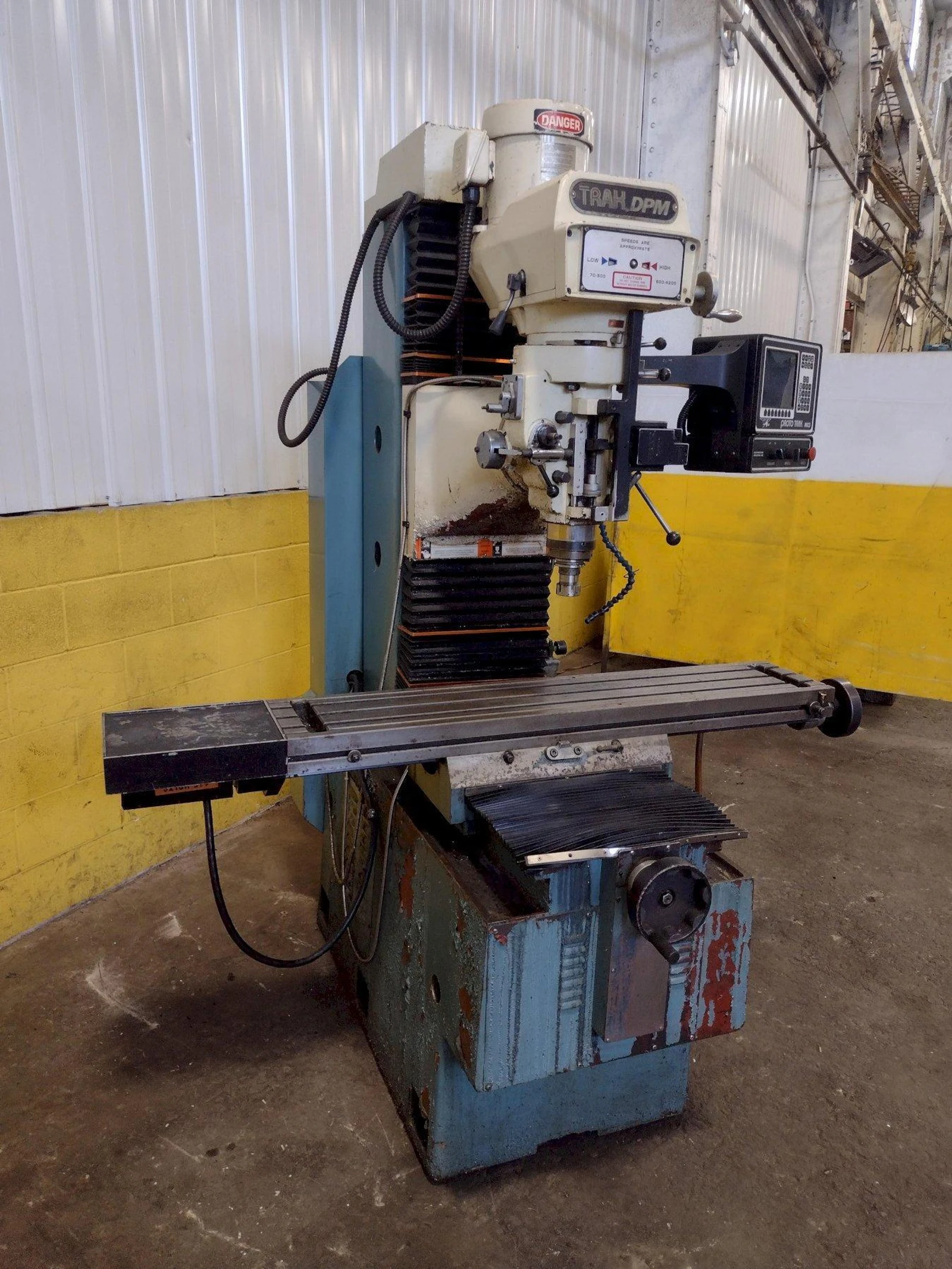

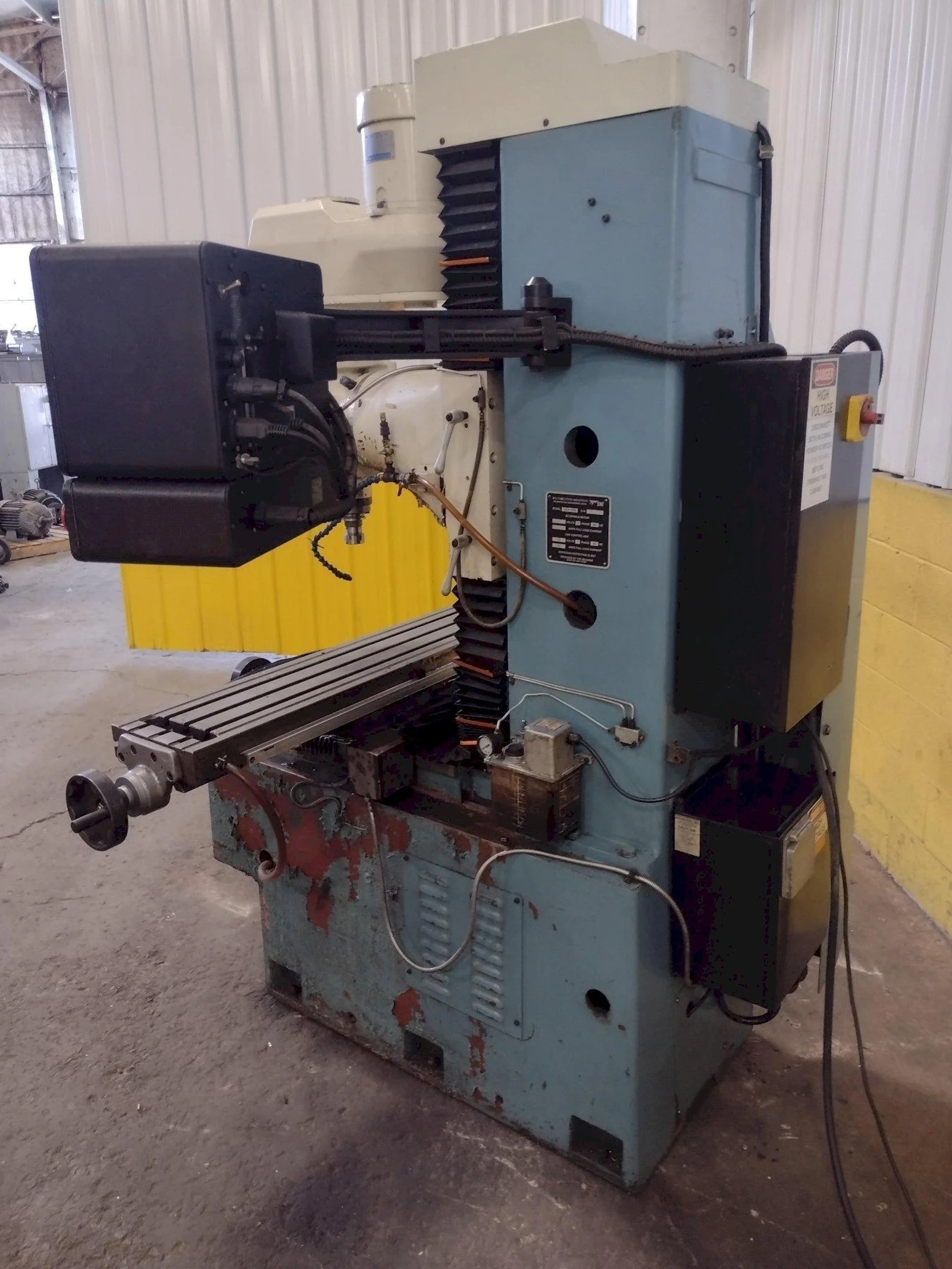

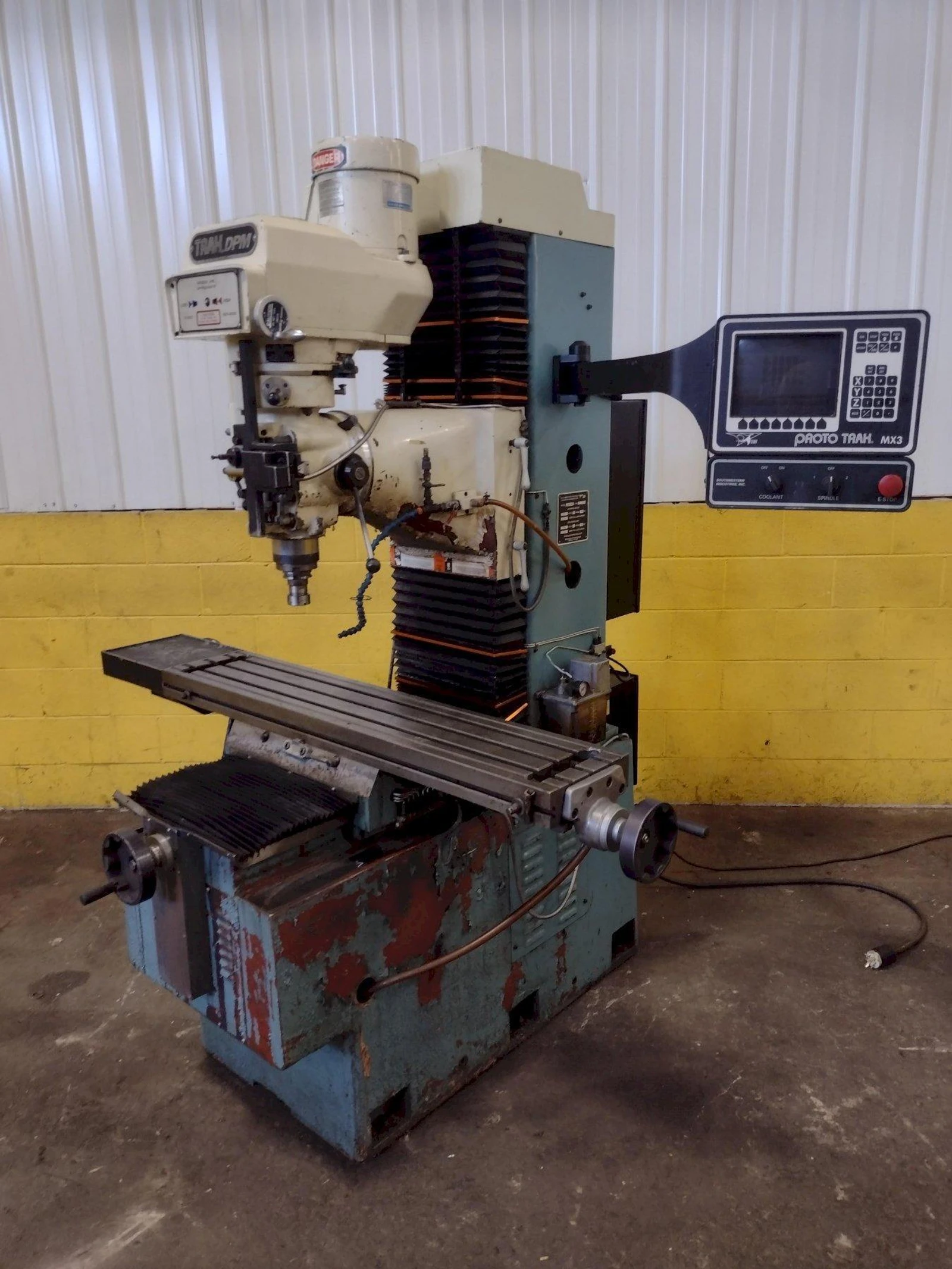

3 AXIS SWI SOUTHWEST INDUSTRIES MODEL #TRAK DPM MILL WITH PROTOTRAK MX3 CONTROL: STOCK 16893
Brand
Category
Type
Model
TRAK DPM
Stock #
16893
Year
Not specified
Condition
Good
Location
Ohio
|
MODEL ..................................... DPM

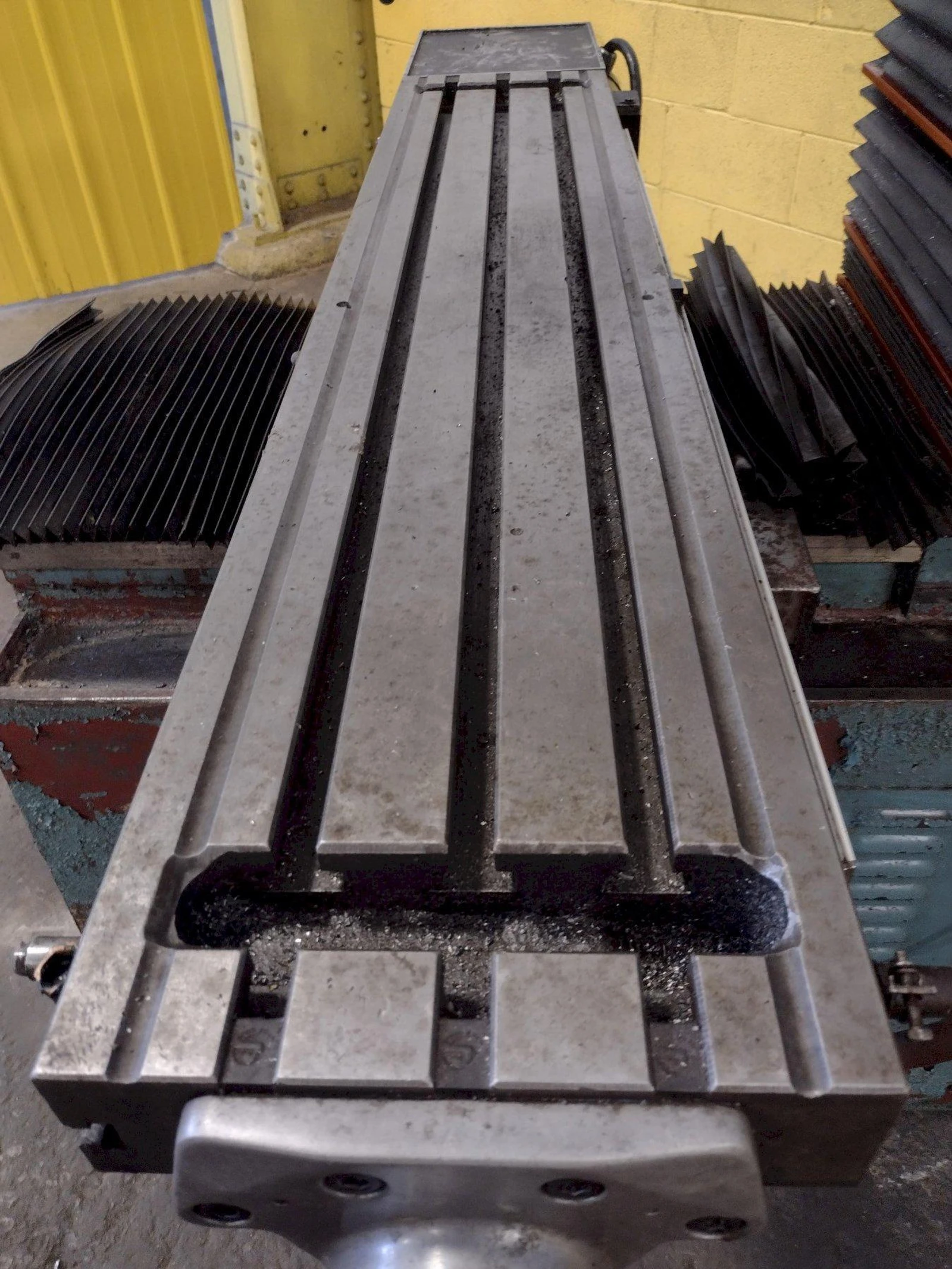

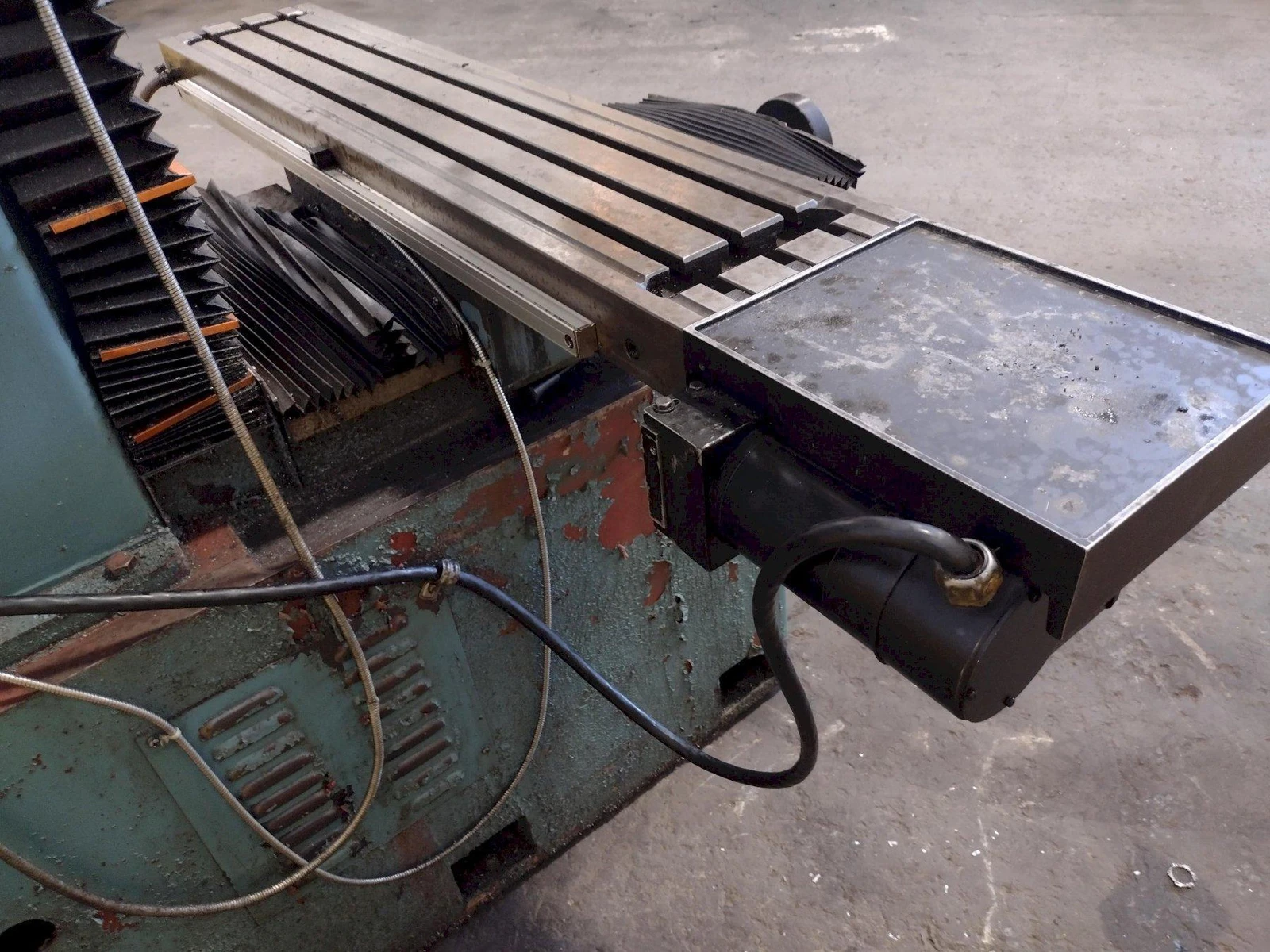

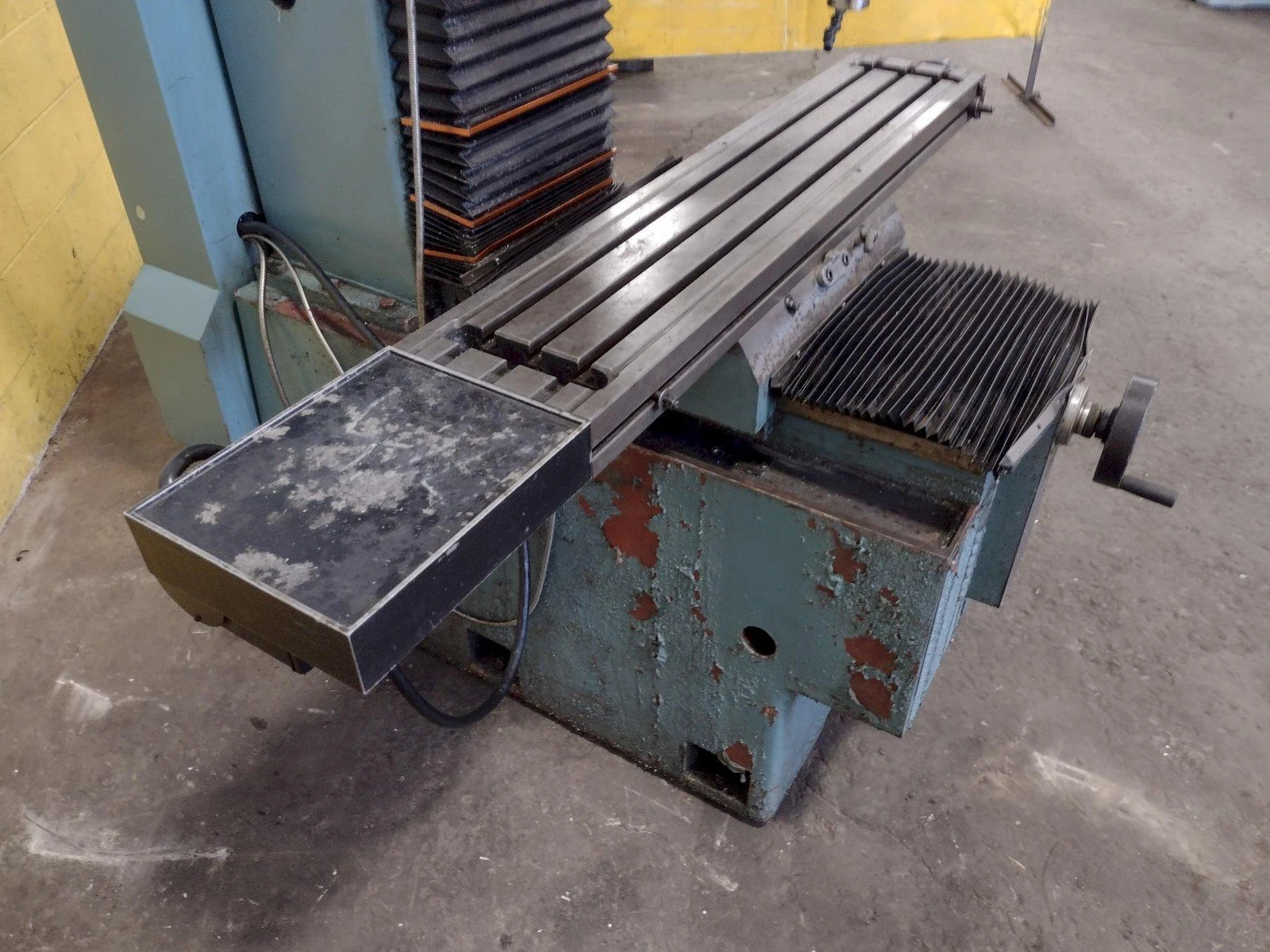

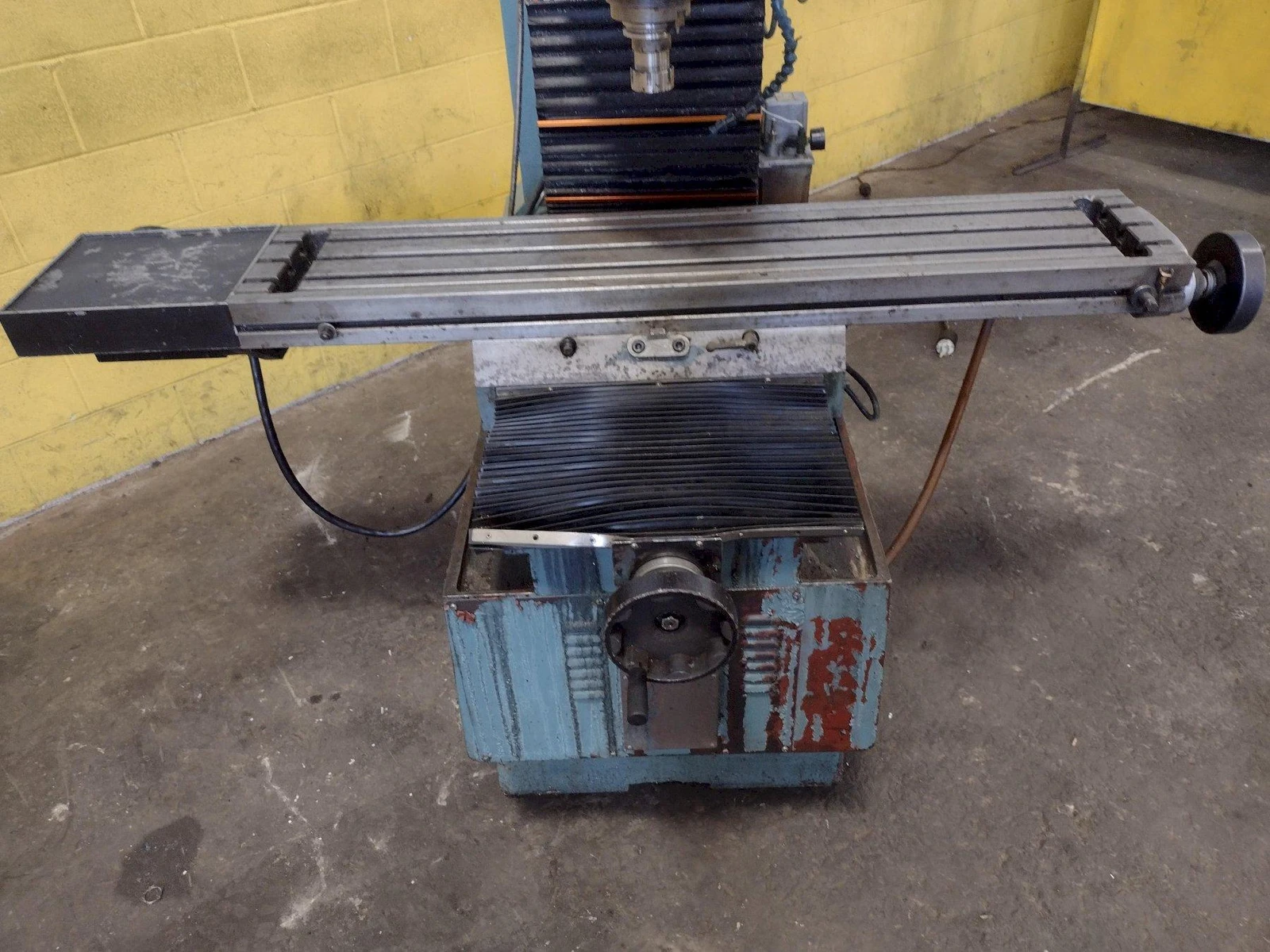

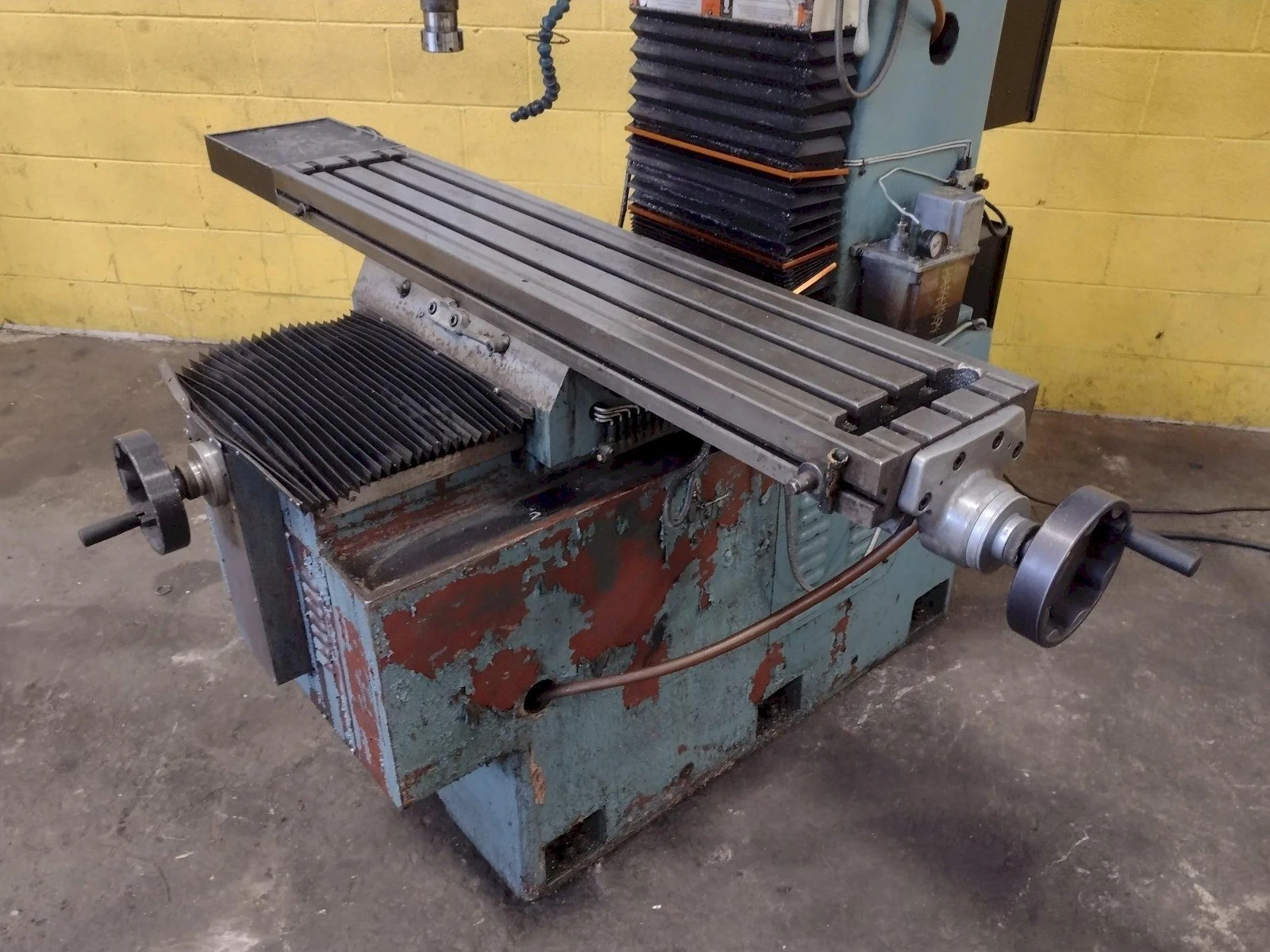

TABLE SIZE ................................ 10" X 50"

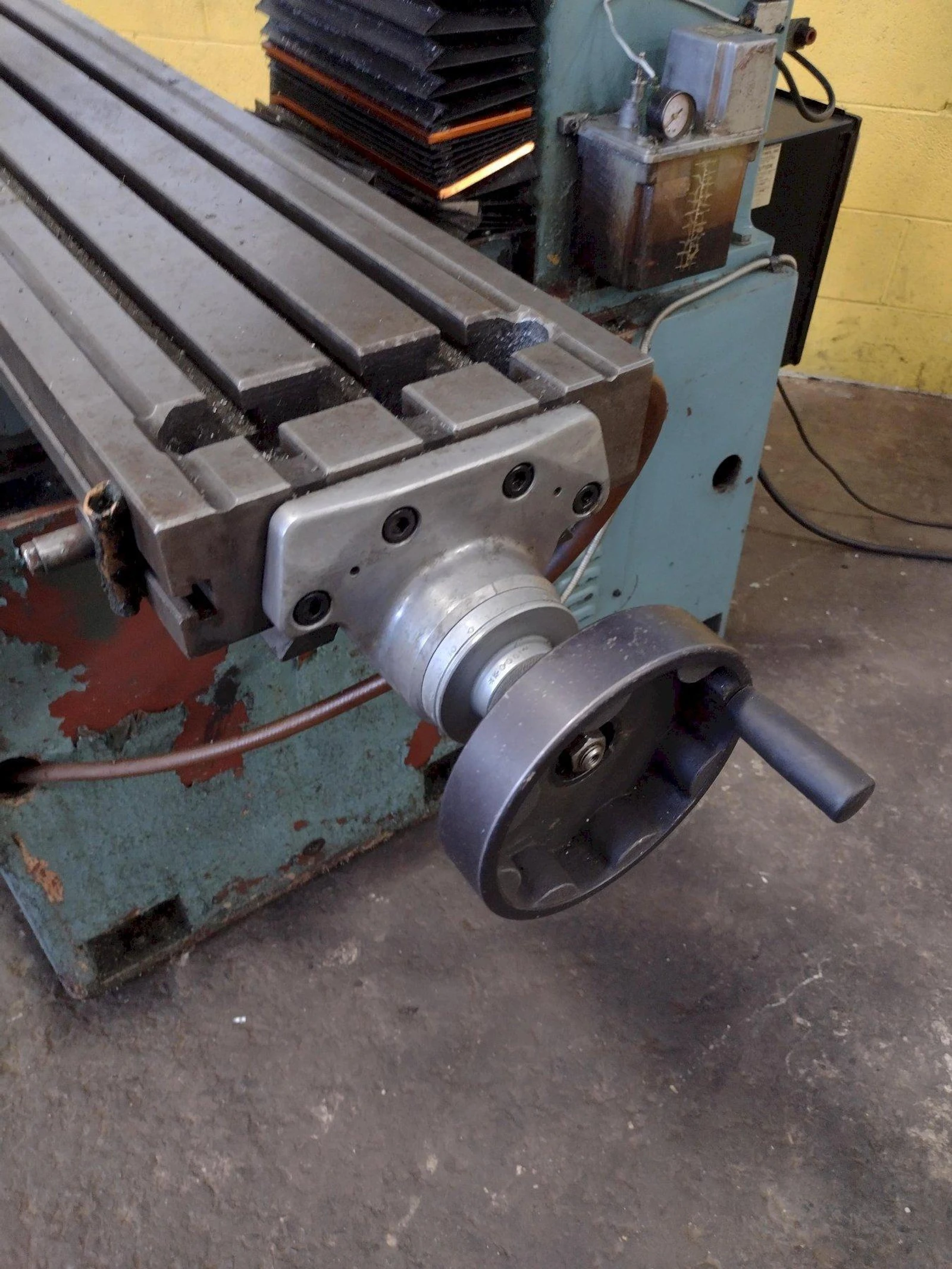

TABLE TRAVEL .............................. X 30"

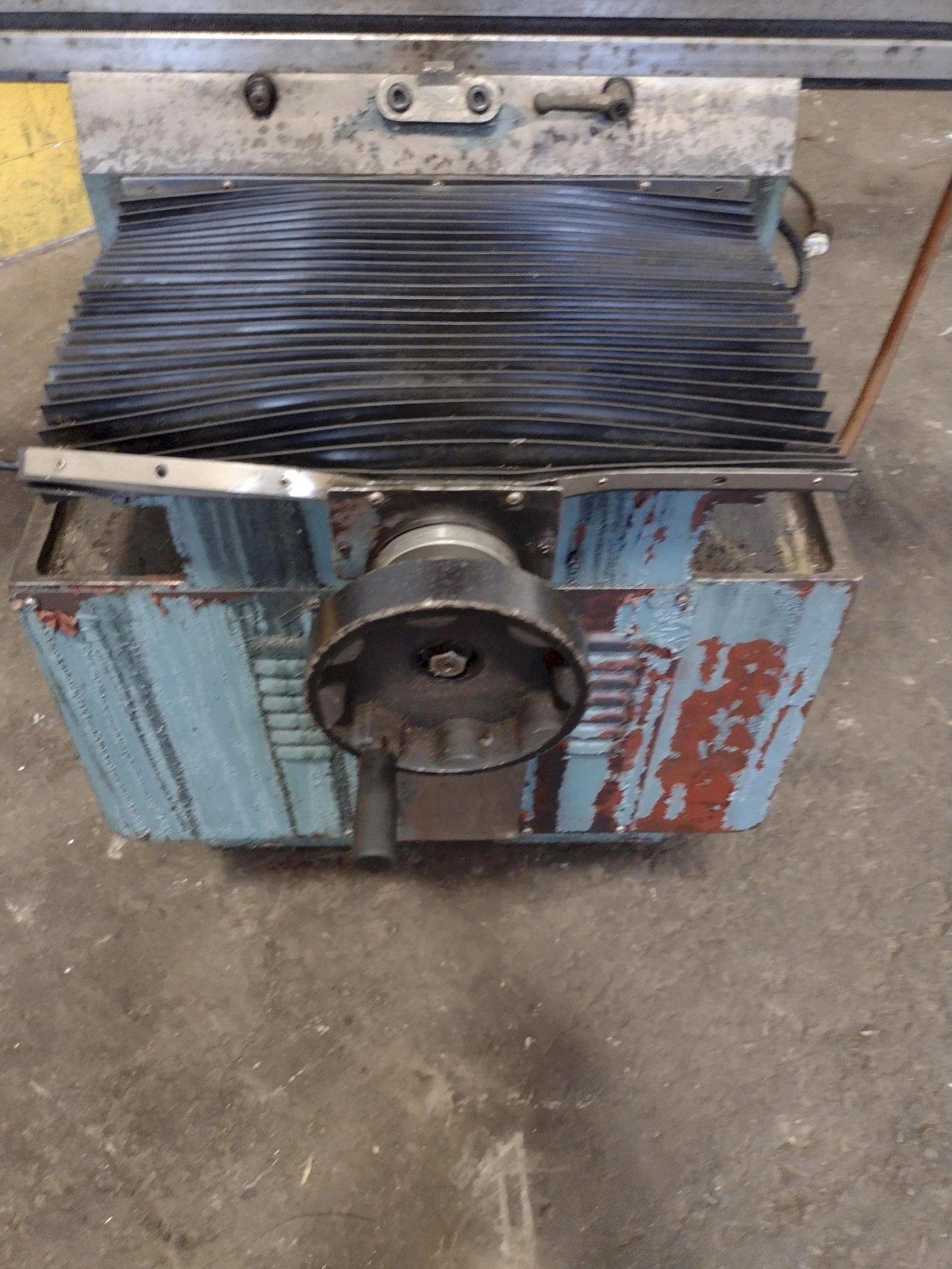

TABLE TRAVEL .............................. Y 17"

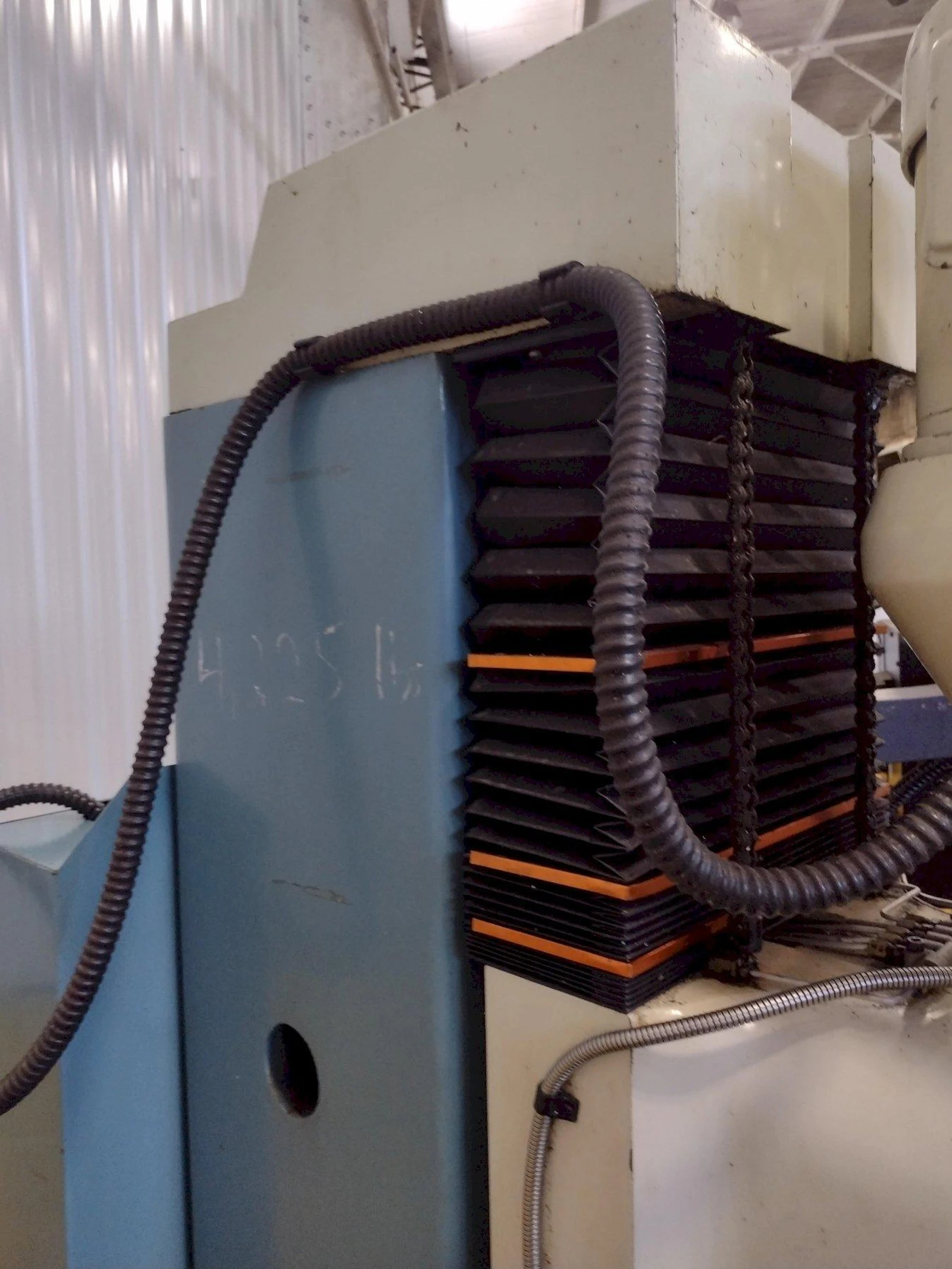

HEAD TRAVEL ............................... Z 23.5"

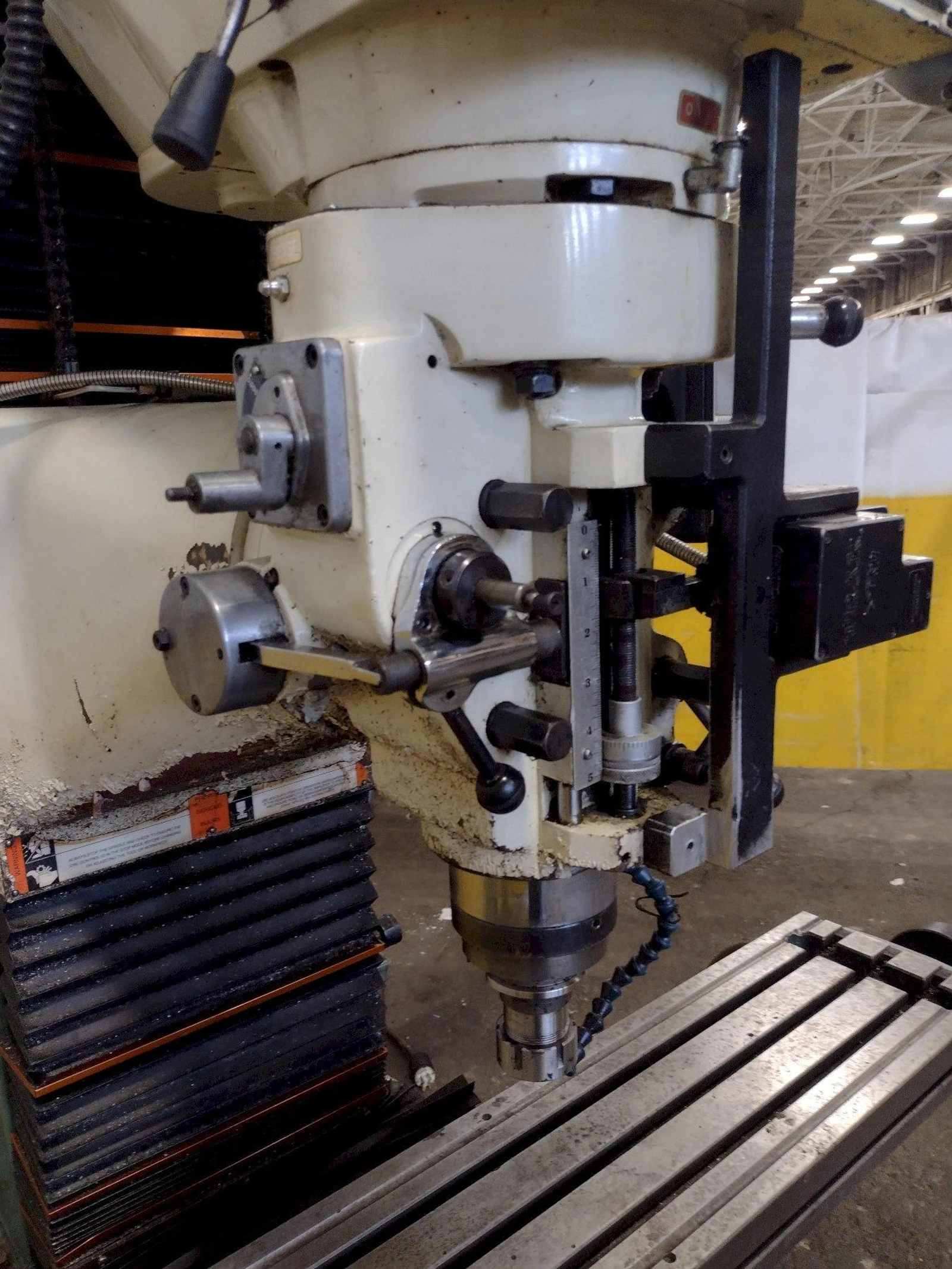

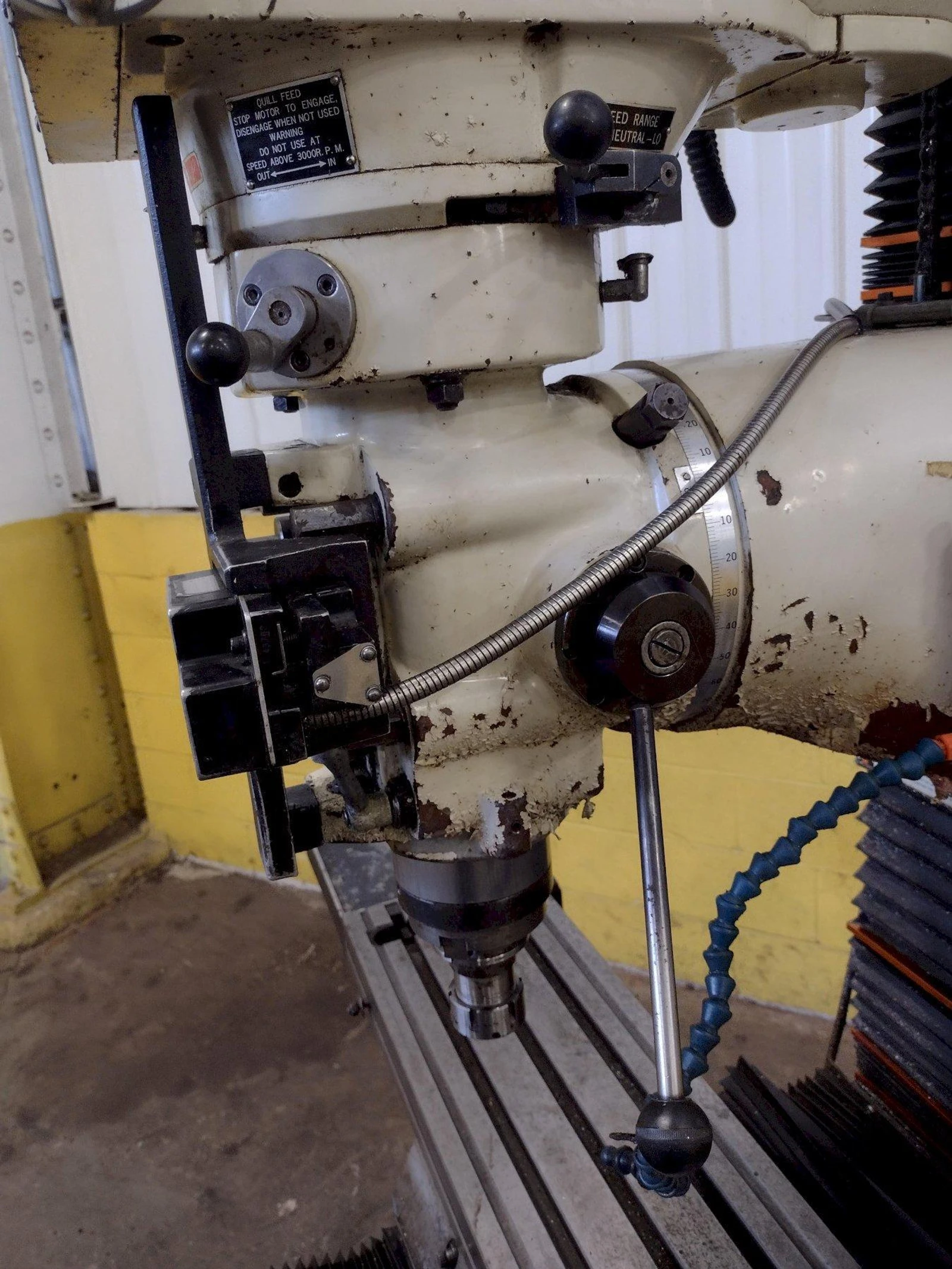

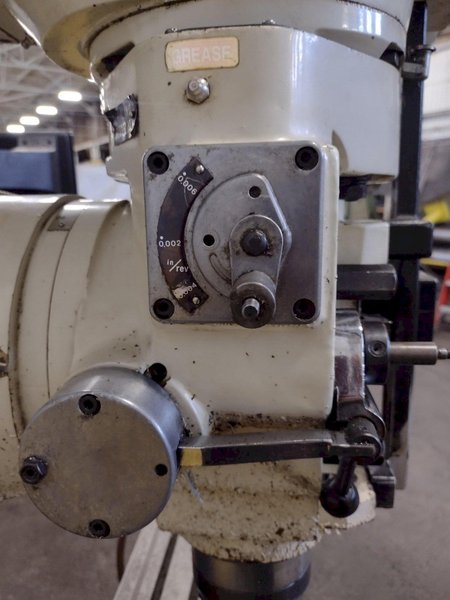

QUILL DIAMETER ............................ 3-15/16"
SPINDLE TAPER ............................. #40 NST

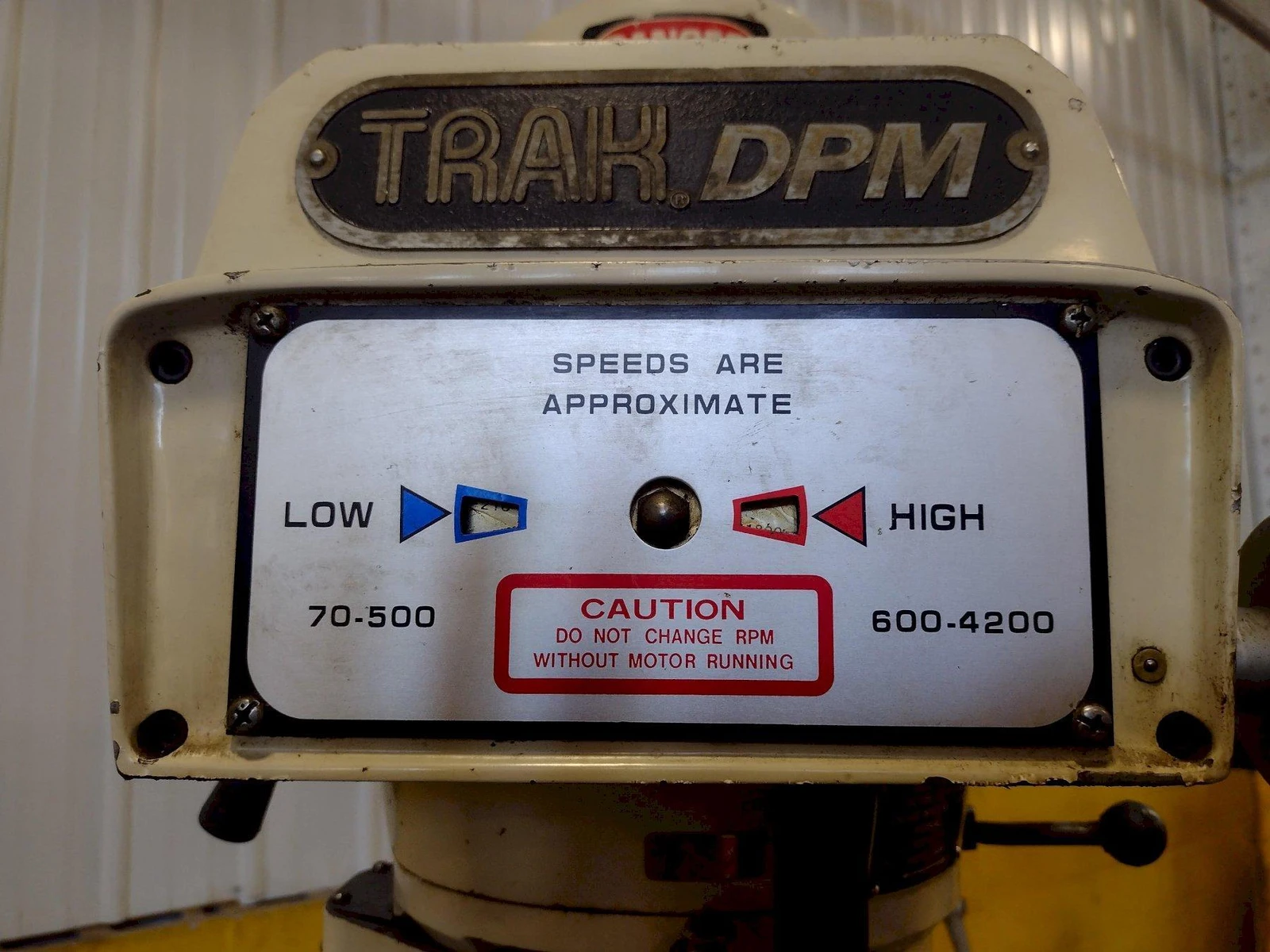

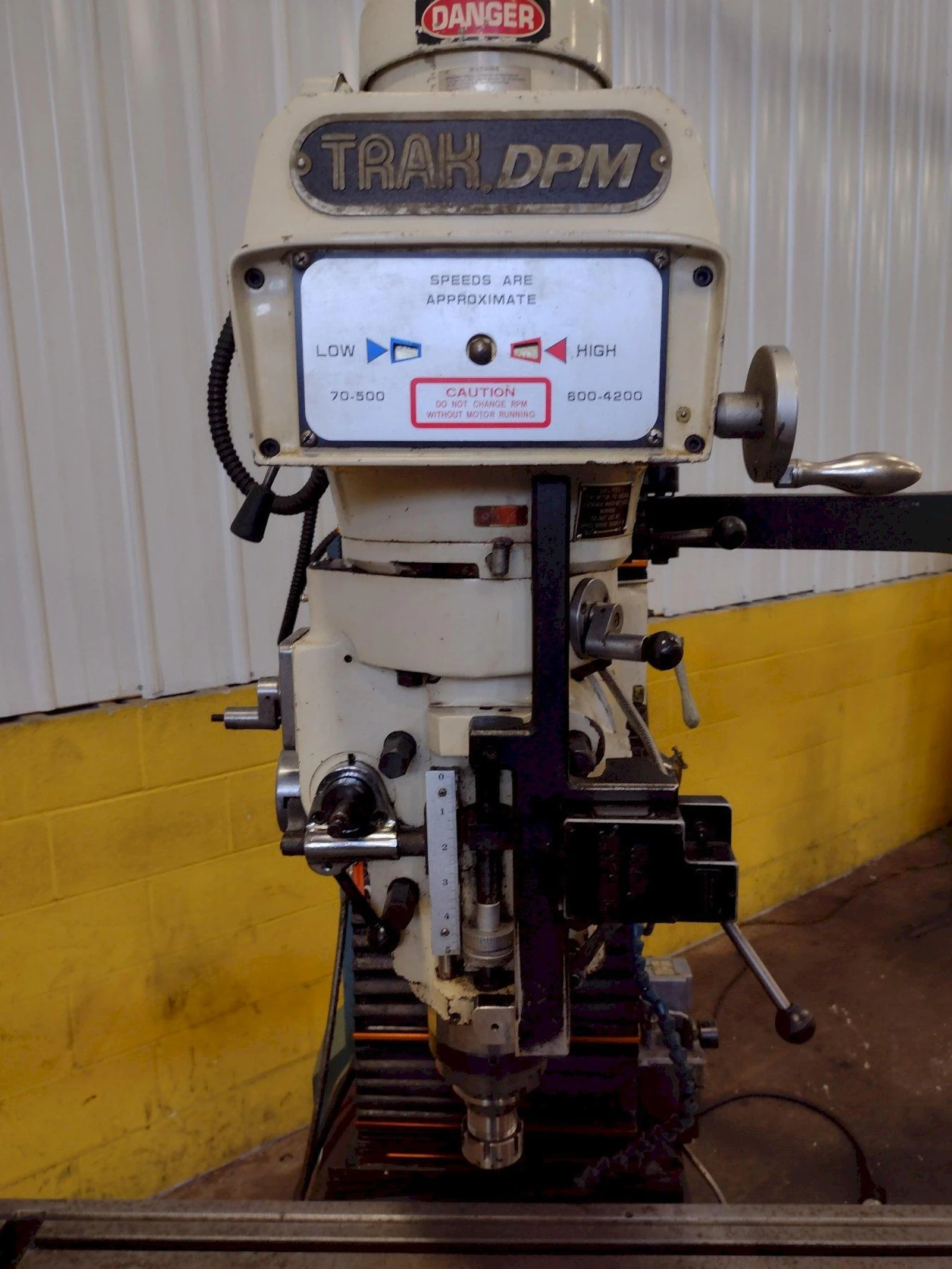

SPEED RANGE ............................... 70 TO 4200 RPM
SPINDLE NOSE TO TABLE ..................... 0 TO 23-1/2"
SPINDLE CENTER TO COLUMN FACE ............. 19"

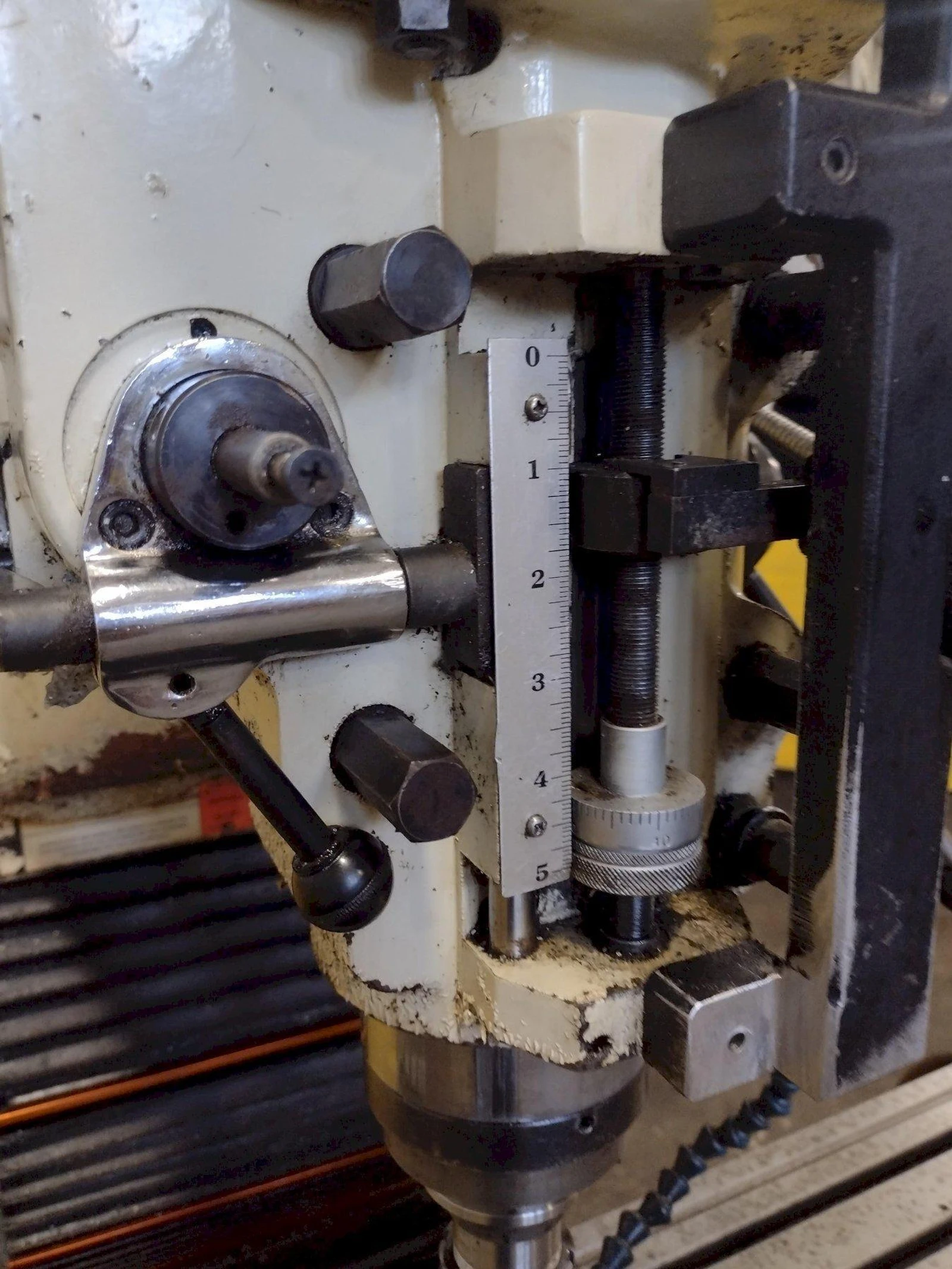

QUILL TRAVEL .............................. 5"

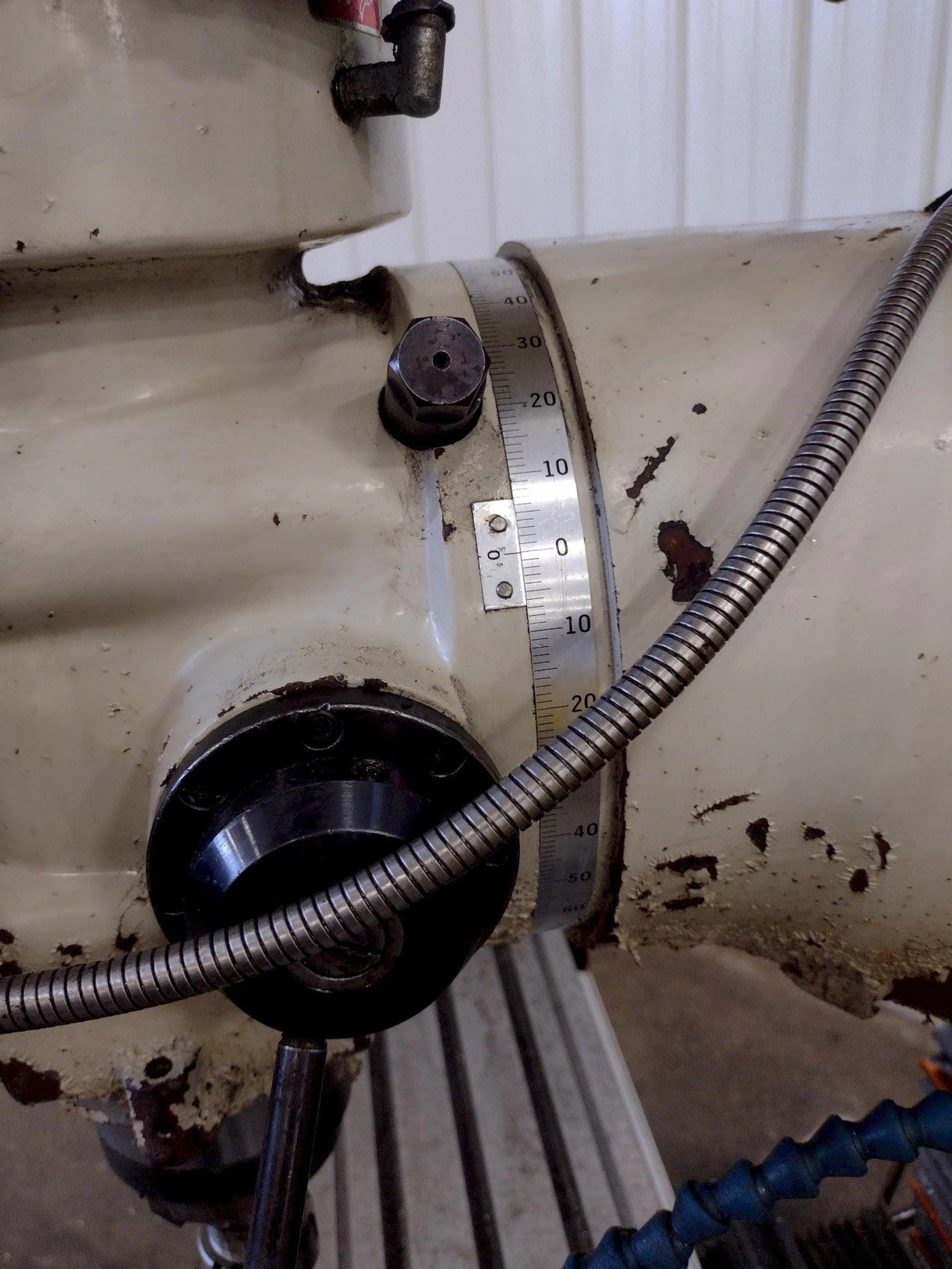

HEAD SWIVEL LEFT/RIGHT .................... 90 DEG.
MAXIMUM WORKPIECE WEIGHT .................. 1320 LBS.

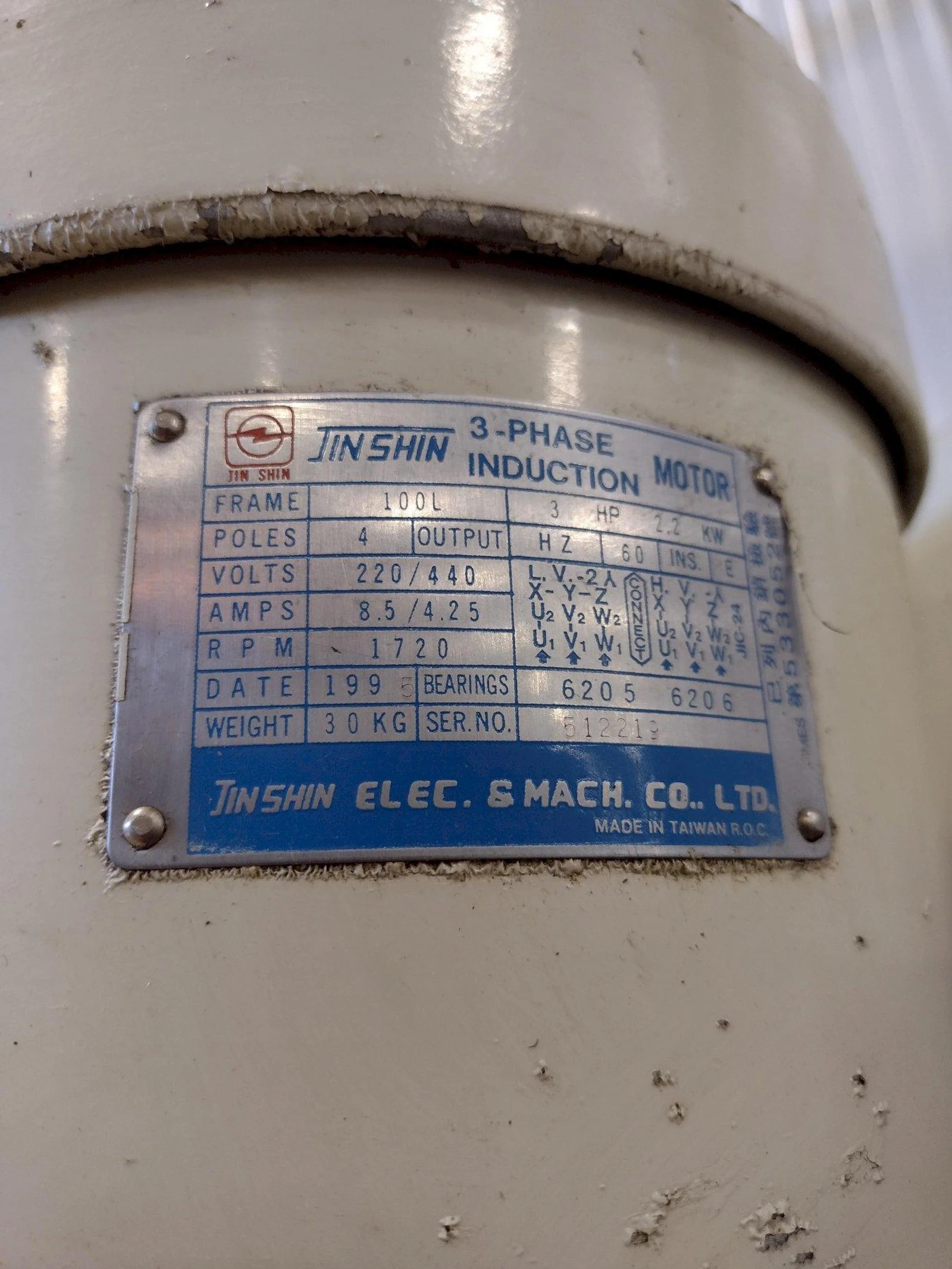

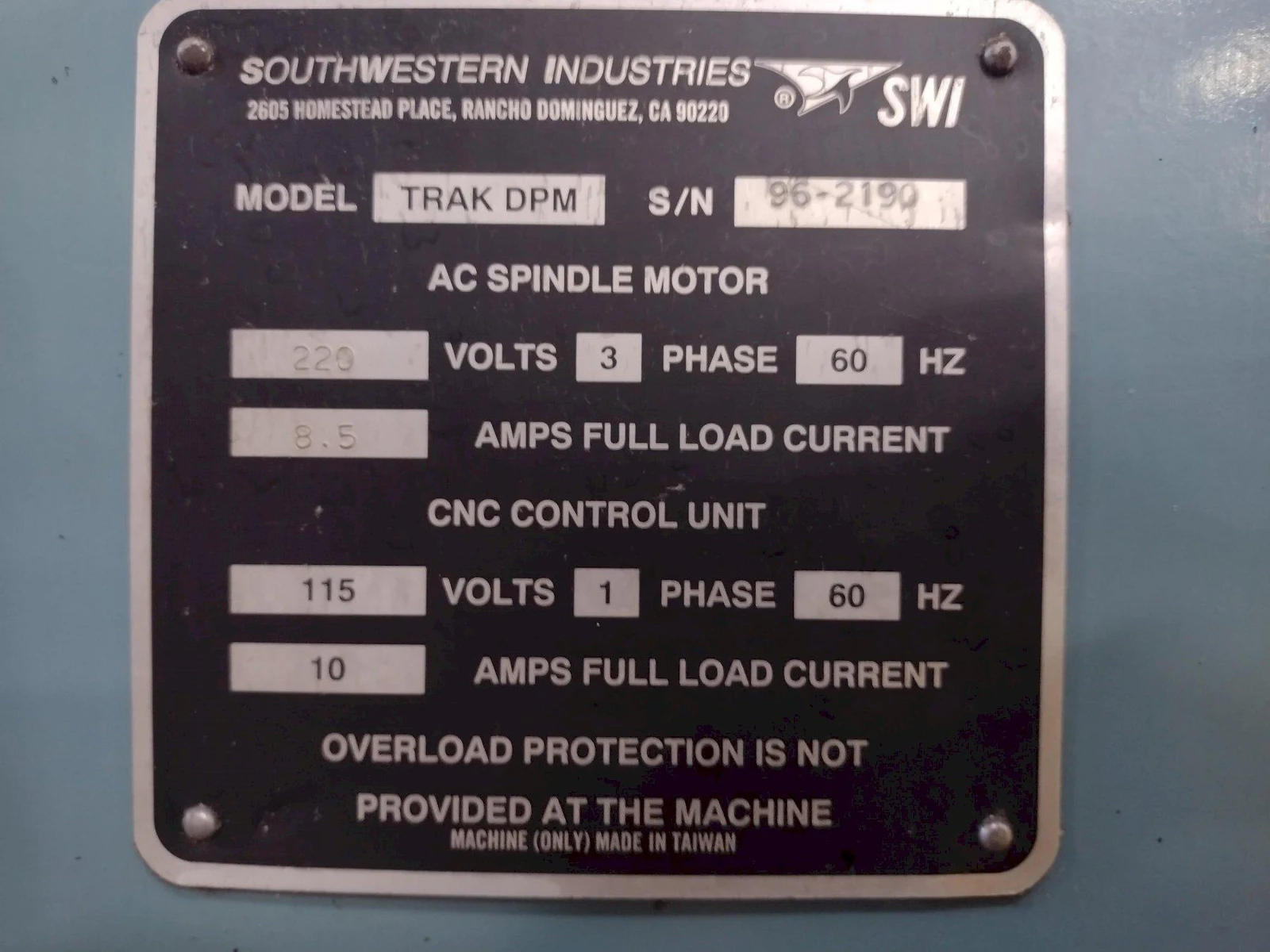

SPINDLE DRIVE ............................. 3 HP

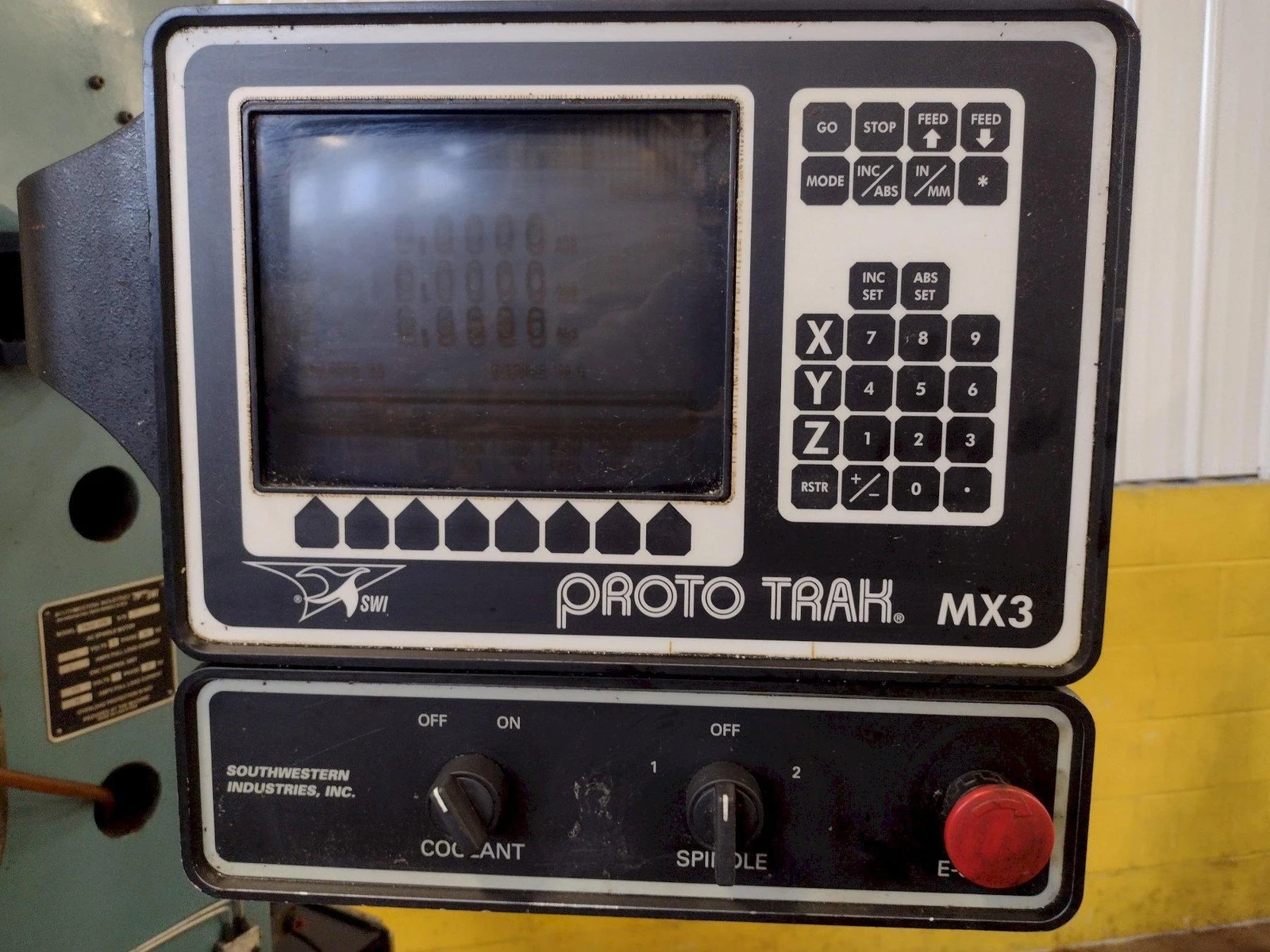

CONTROL ................................... PROTO TRAK MX3
POWER DRAW BAR ............................ YES
AUTOMATIC LUBRICATION SYSTEM .............. YES
GLASS SCALES .............................. YES
|
