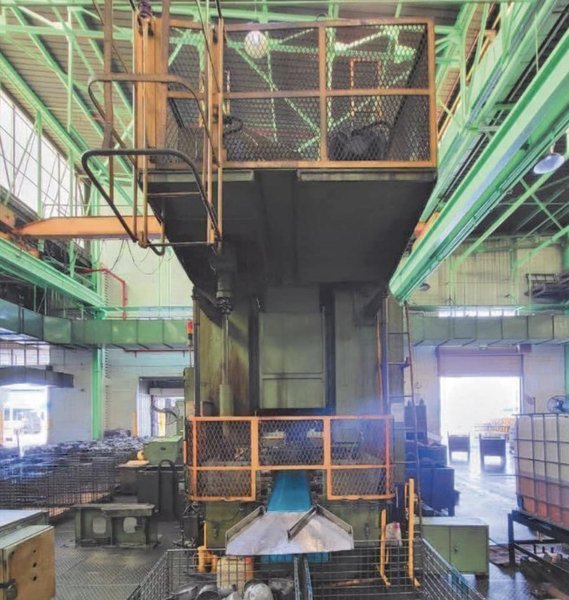

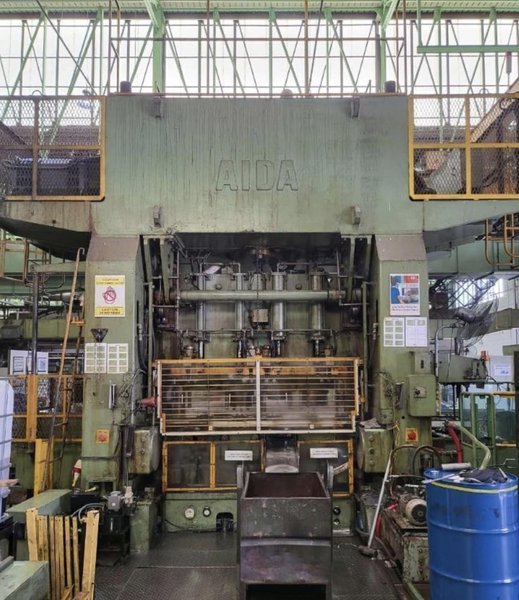

300 Ton Aida Transfer Press, Model F2-30G, 16" STR, 27" Die Height, 4" ADJ, 79" X 39" BA, 12-23 SPM VARI, 4 Stage Trans, Cushions
Brand
Category
Type
Model
F2-30G
Stock #
7602
Year
1985
Condition
Used
Location
Not specified
| Tonnage | 300 tons |
| Stroke | 400 millimeters |
|
Preliminary Specifications
AIDA Transfer Press (4) Stages Model: F2-30G Year: 1985 300 Ton Capacity 15.74" Stroke (400 mm) 27.56" Die Height (700 mm) 3.93" Adjustment (100 mm) 78.74" x 39.37" Bolster Area (2,000 mm X 1,000 mm) 78.74" x 39.37" Slide Area (2,000 mm X 1,000 mm) 18-35 SPM Variable 17.72 Feed Pitch (450 mm) 10 Ton Die Cushion 1st Stage 5 Ton Die Cushion 2nd, 3rd & 4th Stage Pictures coming soon, In Plant Under Power, Inspections by Appointment Only! Specifications Subject To Verification; Subject To Prior Sale & Price Change |
|
