2250 Ton/1000 Ton Rotem Hyundai Straight Side Transfer Press STOCK# 4303
Brand
Not specified
Category
Type
Model
Not specified
Stock #
4303
Year
Not specified
Condition
Not specified
Location
Ohio
|

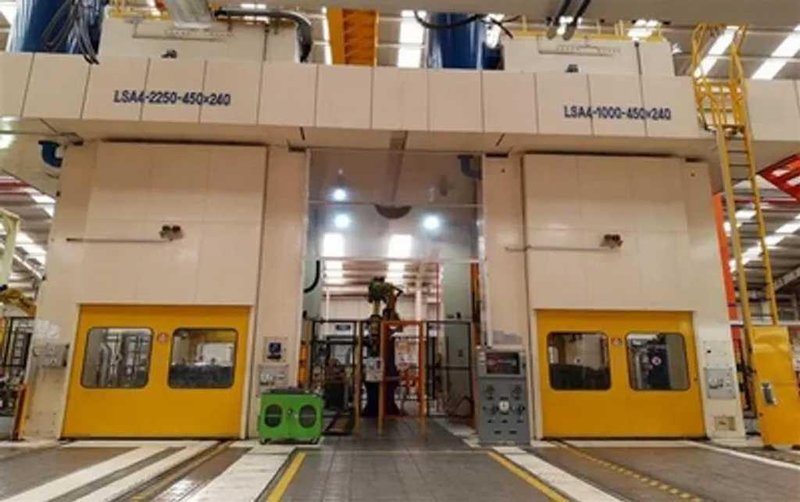

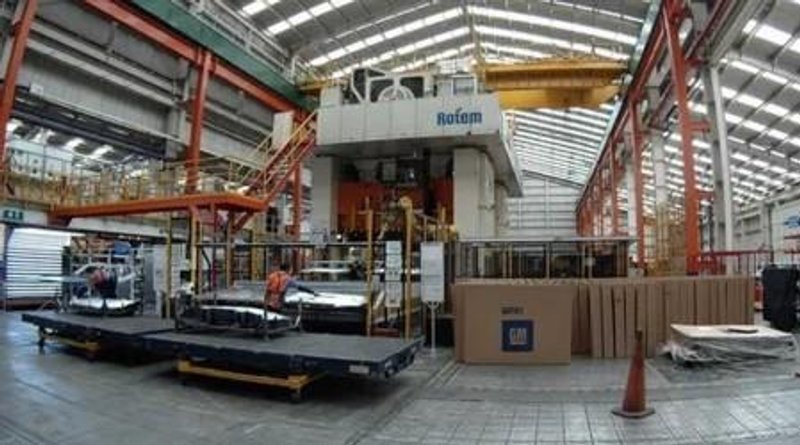

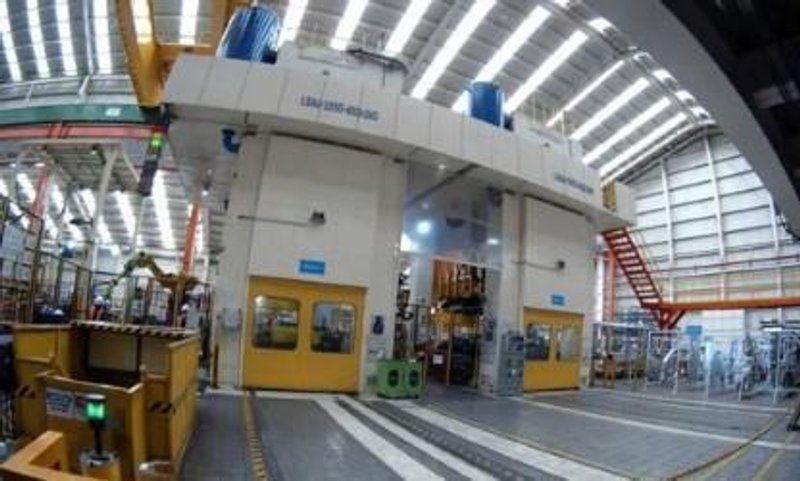

Rotem-Hyundai 2250 ton / 1000 ton Straight Side Transfer Press Line
Model: SL4-2250-4500x2400MB / SL4-1000-4500x2400MB
Main Press Specifications:
Press Type: Single-action, 4-point eccentric overdrive Mechanical Press
Capacity: Press (#1) 2250 ton and Press (#2) 1000 ton
Entry loading robot
Robot Transfer from Press #1 to Press #2
Frame:
Type: Stress-relieved welded steel plate
Frame Components:
Crown: One (1)
Slide: One (1)
Uprights: Four (4)
Bed: One (1)
Moving Bolster: Two (2)
Tie Rods: Four (4)
Drive Position: Crown
Number of Plungers: Four (4)
Maximum Power @ 12.5 mm before the bottom of the stroke
Slide Stroke: 1200 mm (+20 mm, -0 mm)
Stroke Frequency:
Continuous: 7 to 16 SPM
Single Stroke: 12 SPM
Inching: 327 SPM
Micro-inching: 7 SPM (full tonnage available)
Slide Area: 4500 mm x 2400 mm
Bolster Area: 4500 mm x 2400 mm
Slide Adjustment: 350 mm / 250 mm
Shut Height: 1550 mm / 1450 mm (stroke down, slide adjustment up)
Bolster Height: 750 mm (from the top of the bed)
Vertical Opening:
Front: 4800 mm
Side: 2700 mm x 2700 mm (with the door open)
Maximum Die Weight:
Total: 45,000 kg / 40,000 kg
Upper Die: 25,000 kg / 21,000 kg
Cushion:
Number of Cushions: Two (2) per press
Arrangement: Left-to-right crossbar
Type: Ejection press only
Tonnage: 500 kN - 4500 kN
Usable Drawing Depth: 20 mm - 300 mm
|
