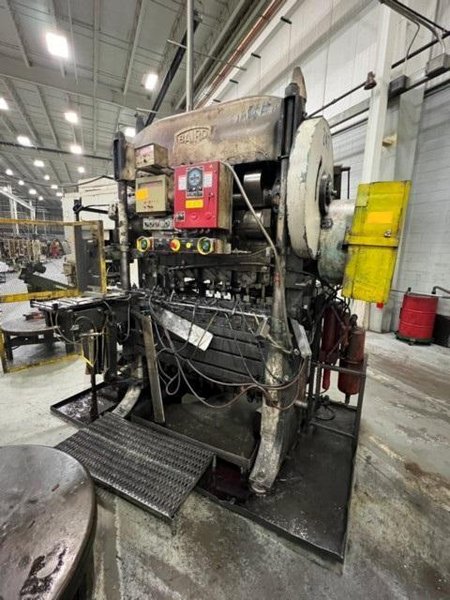

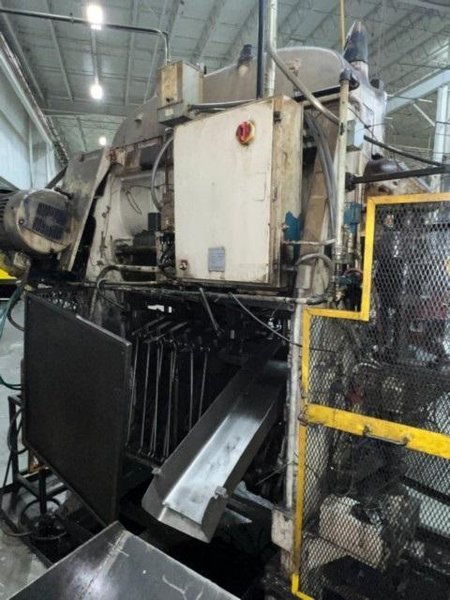

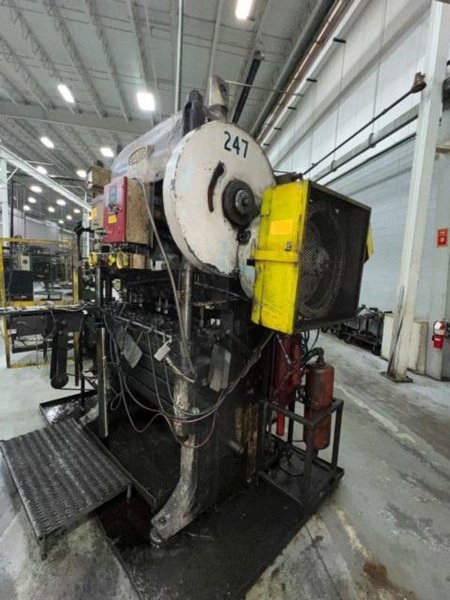

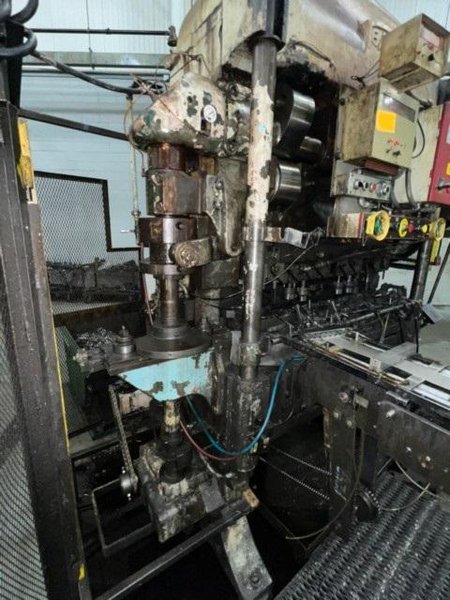

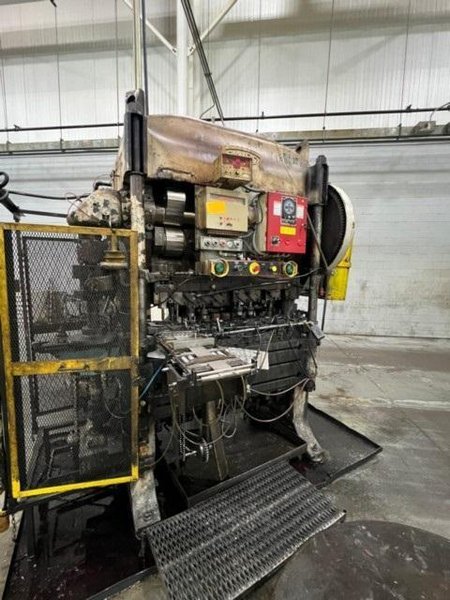

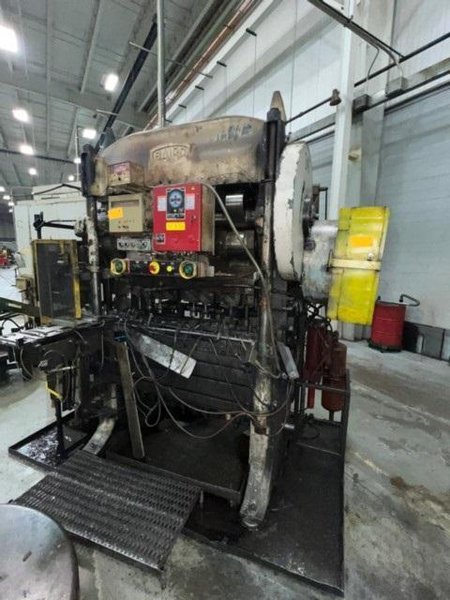

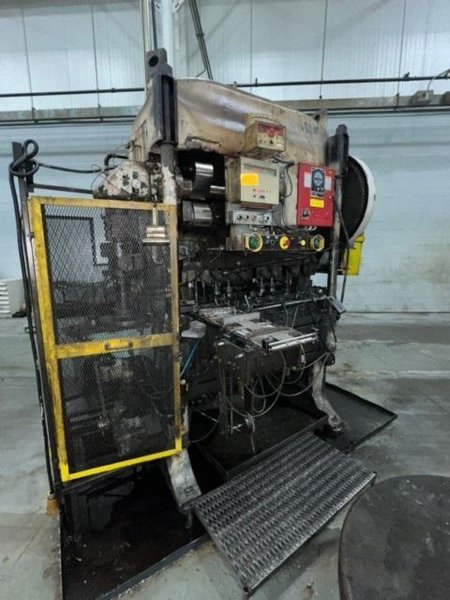

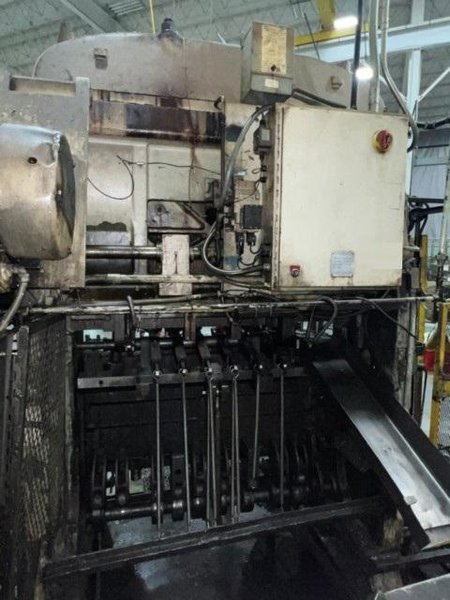

US BAIRD #5-51 MULTIPLE TRANSFER PRESS
Brand
Category
Type
Model
5-51
Stock #
117154
Year
Not specified
Condition
Used
Location
Not specified
|
Tonnage: 75
Stroke: 5"
SPM: fixed - 240 V
Slide Adj.: None (Individual Punches Only)
Die Set Size: 11 - Station with 4.5" center distance
Transfer Length: 4-1/2"
Type and Mfg. of Press Controls: U.S. Baird Original
Punch stripping frame mounted 3-10
Bottom shaft config.
1st PD,2&3 Sg K-UP,4&5 Db K-up,
6-10 Sg K-UP 11 Off set
WPC 2000 Wintriss press control
Clarktron die protection
Bijur Lube System
Minster Clutch
T-slots front and rear
Pressmate PG-5 front to back
|
