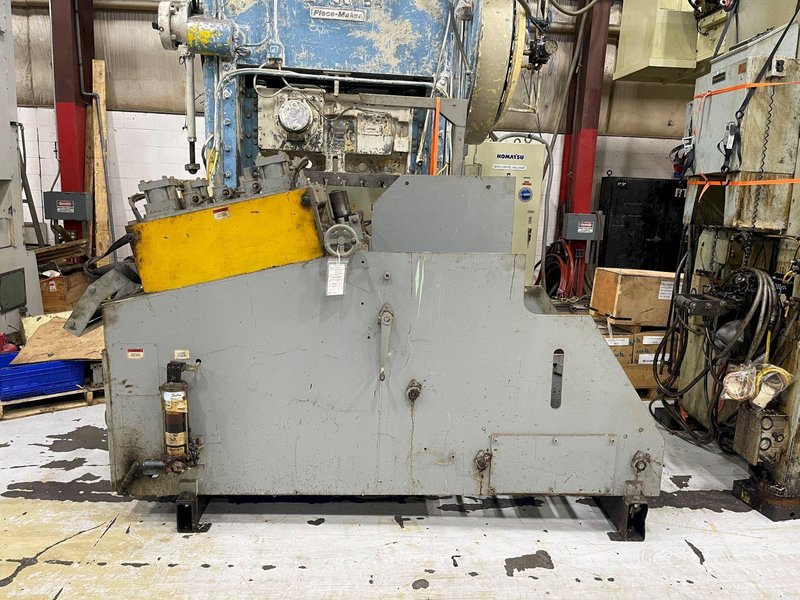

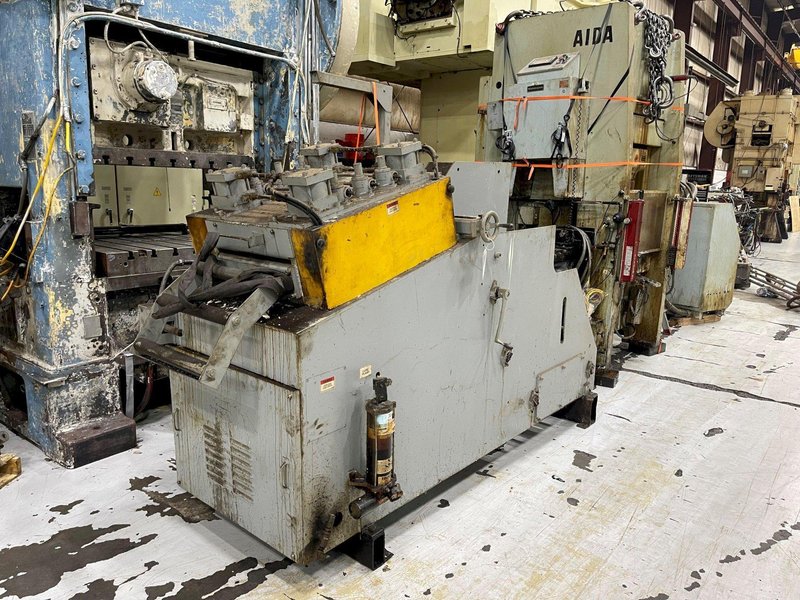

6,000 lbs x 18" Coe Press Equipment Coil Cradle Straightener Model# CPCC-6018
Brand
Category
Model
CPCC-6018
Stock #
2756
Year
Not specified
Condition
Good
Location
Michigan
| Coil Weight | 6000 pounds |
| Coil Width | 18 inches |
| Coil Thickness | .125 inches |
|
Coe Press Coil Cradle Straightener Combination Uncoiler Specifications:
Coil weight capacity: 6,000 Lbs. Coil width capacity: 18" Stock thickness capacity: .125" x 18" Wide Stock thickness capacity: .187" x 06" Wide Coil O.D. capacity: 60" Coe Press Coil Cradle Straightener Combination Uncoiler Equipment and Features: Coil cradle straightener entry and exit pinch rolls with air operated adjustments Seven coil cradle straightening rolls Individual upper coil cradle straightening roll adjustments via screw jacks Roll position indicators (Reference Scales) Inclined coil cradle straightening head Adjustable stock width edge guides Exit cascade loop support rollers Adjustable coil side plates Outboard air pressure regulators and gauges Variable speed drive Operator's control console Jog forward and reverse Auto / Run cycle Loop control |
|
