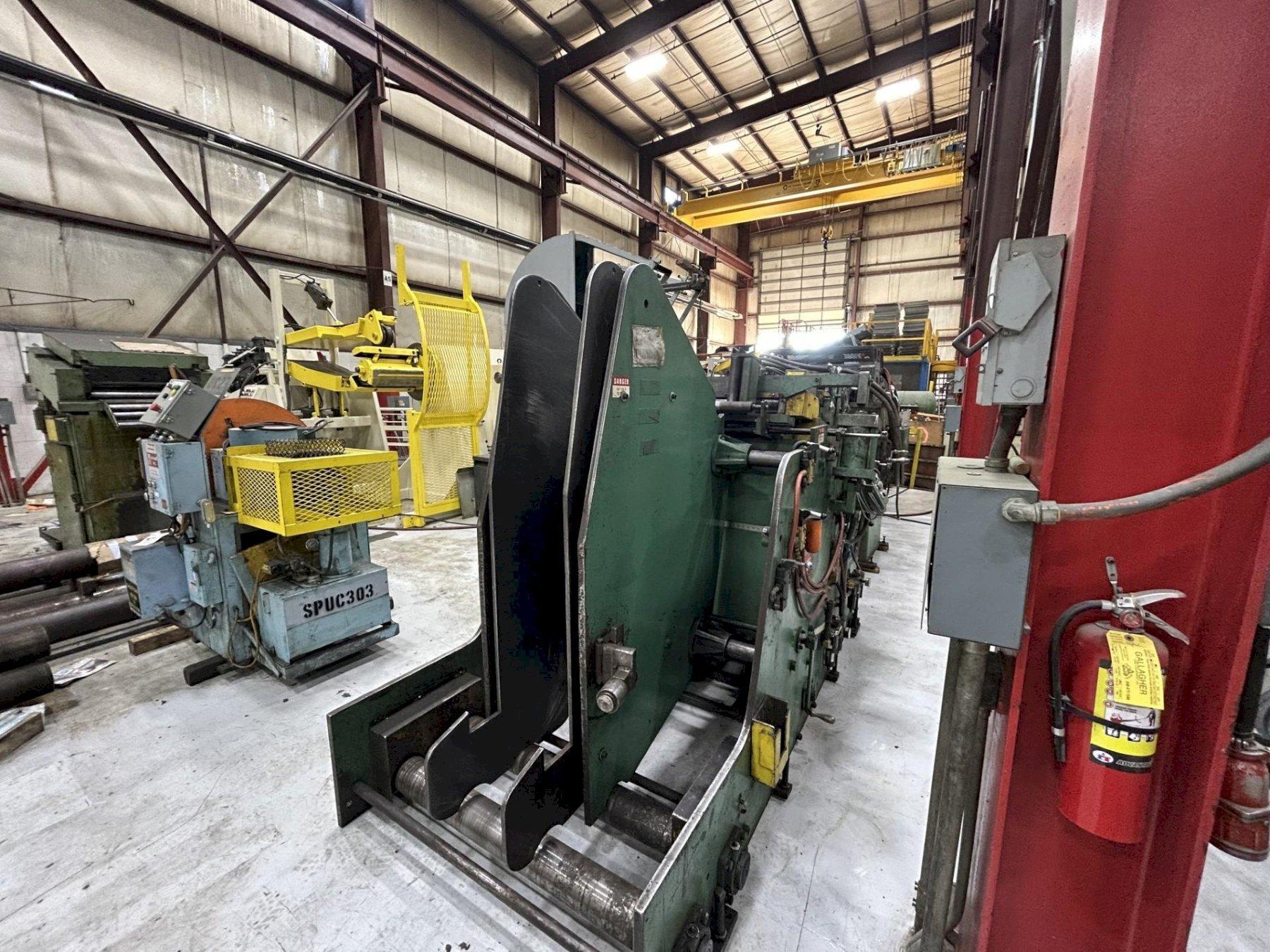

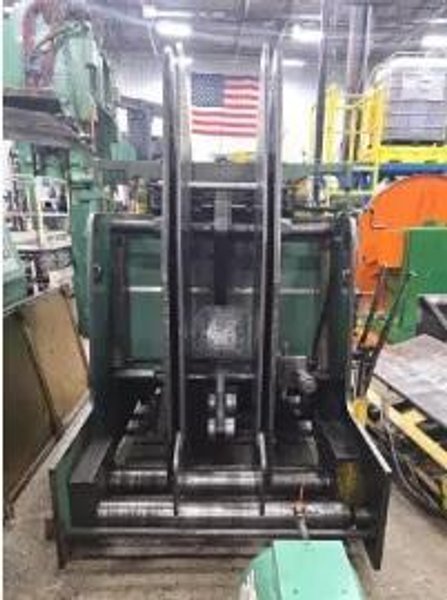

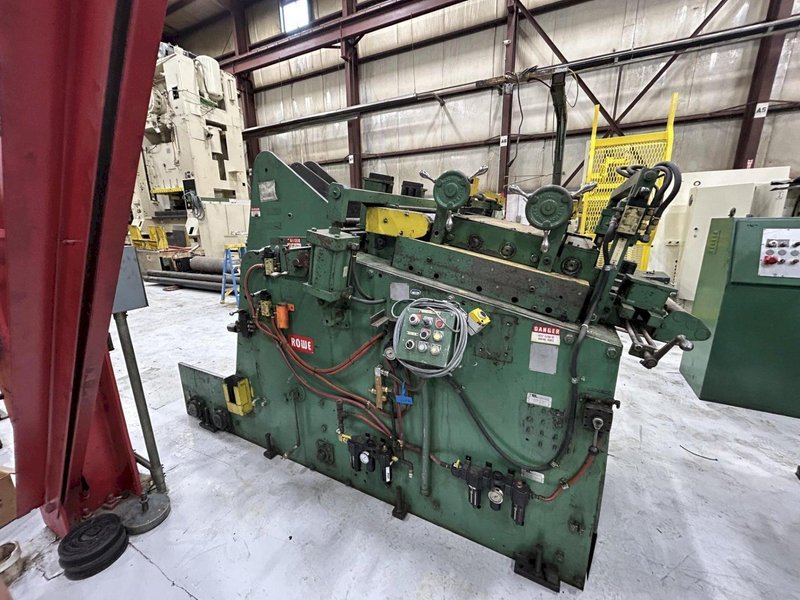

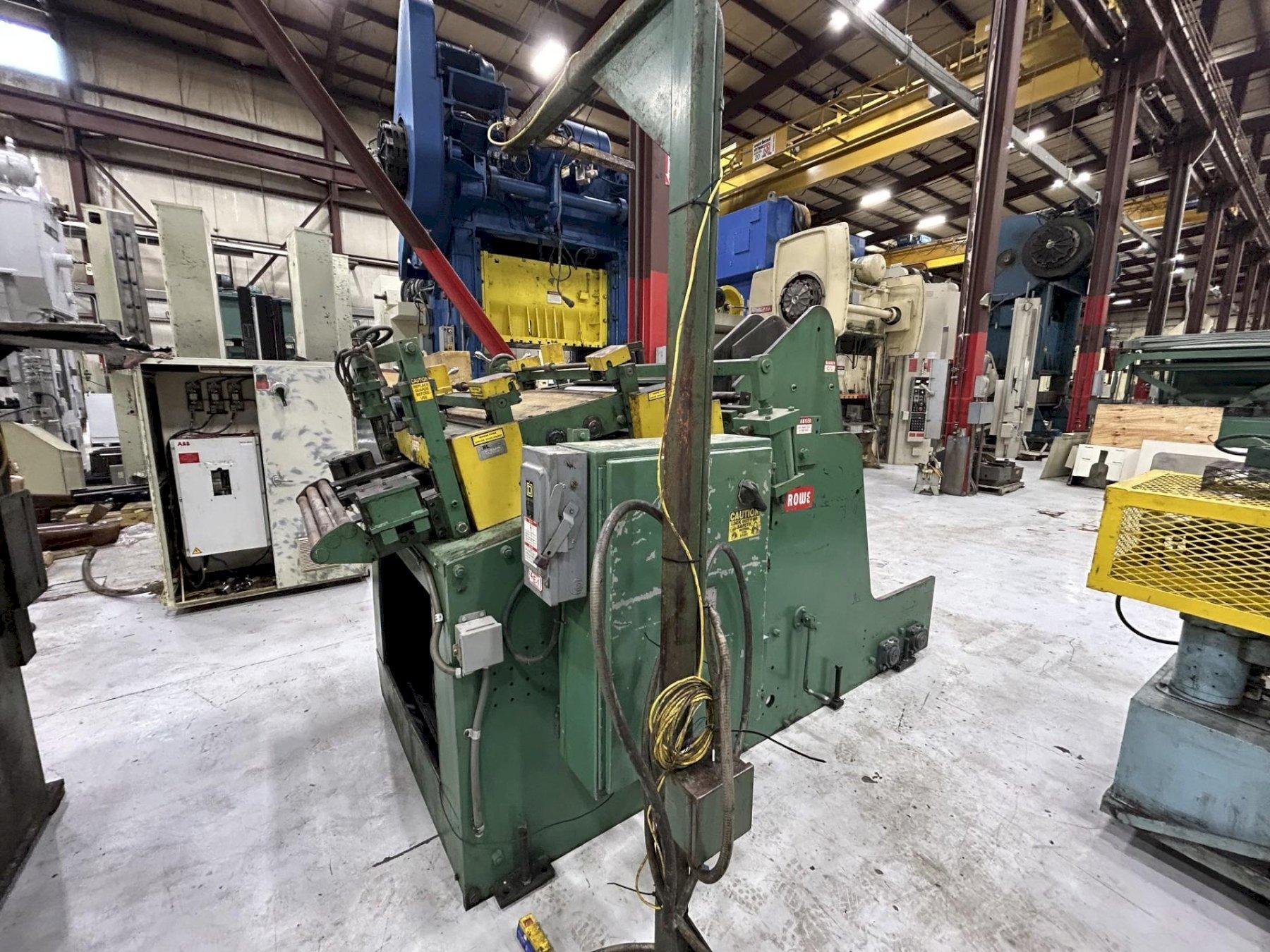

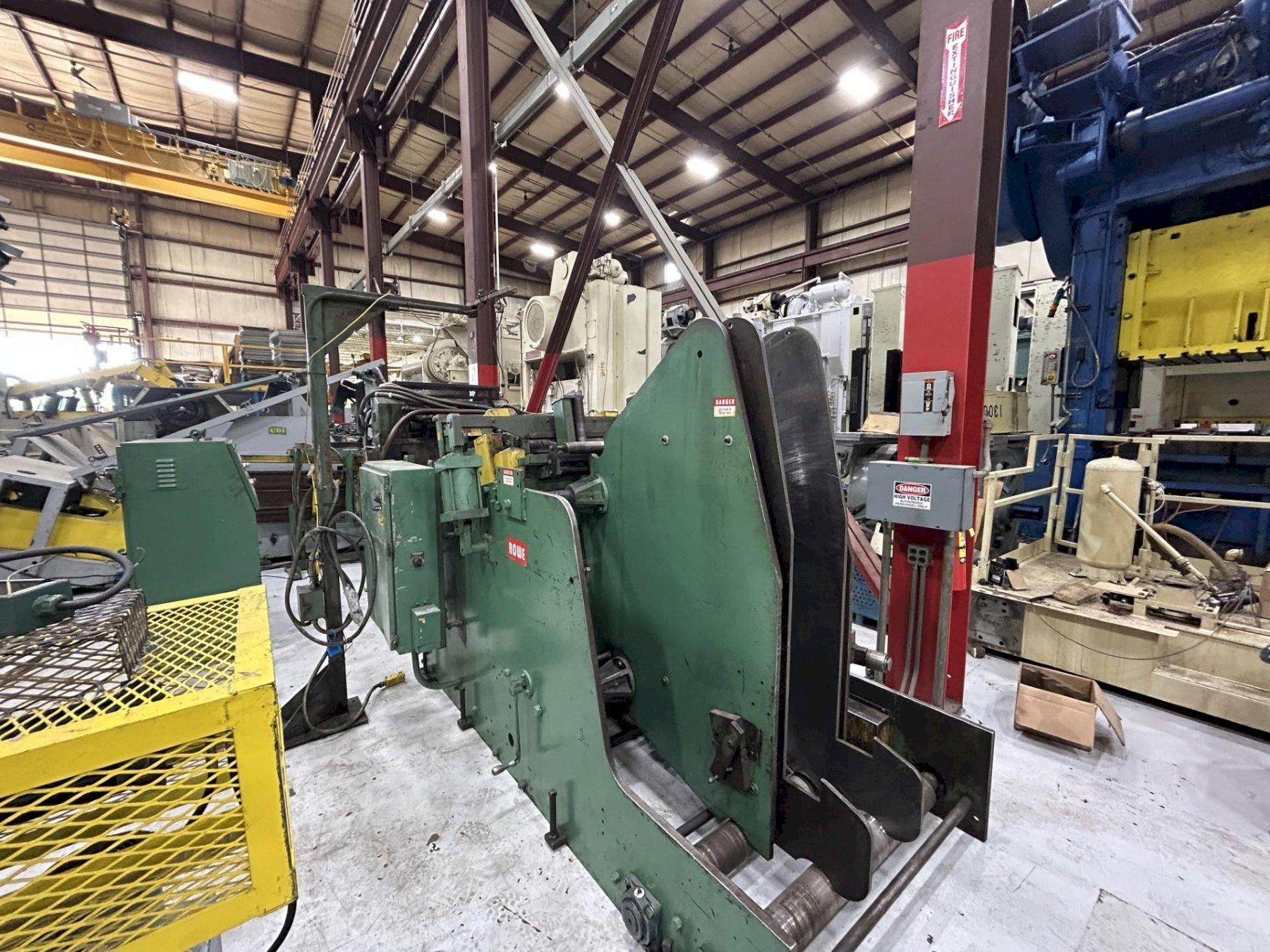

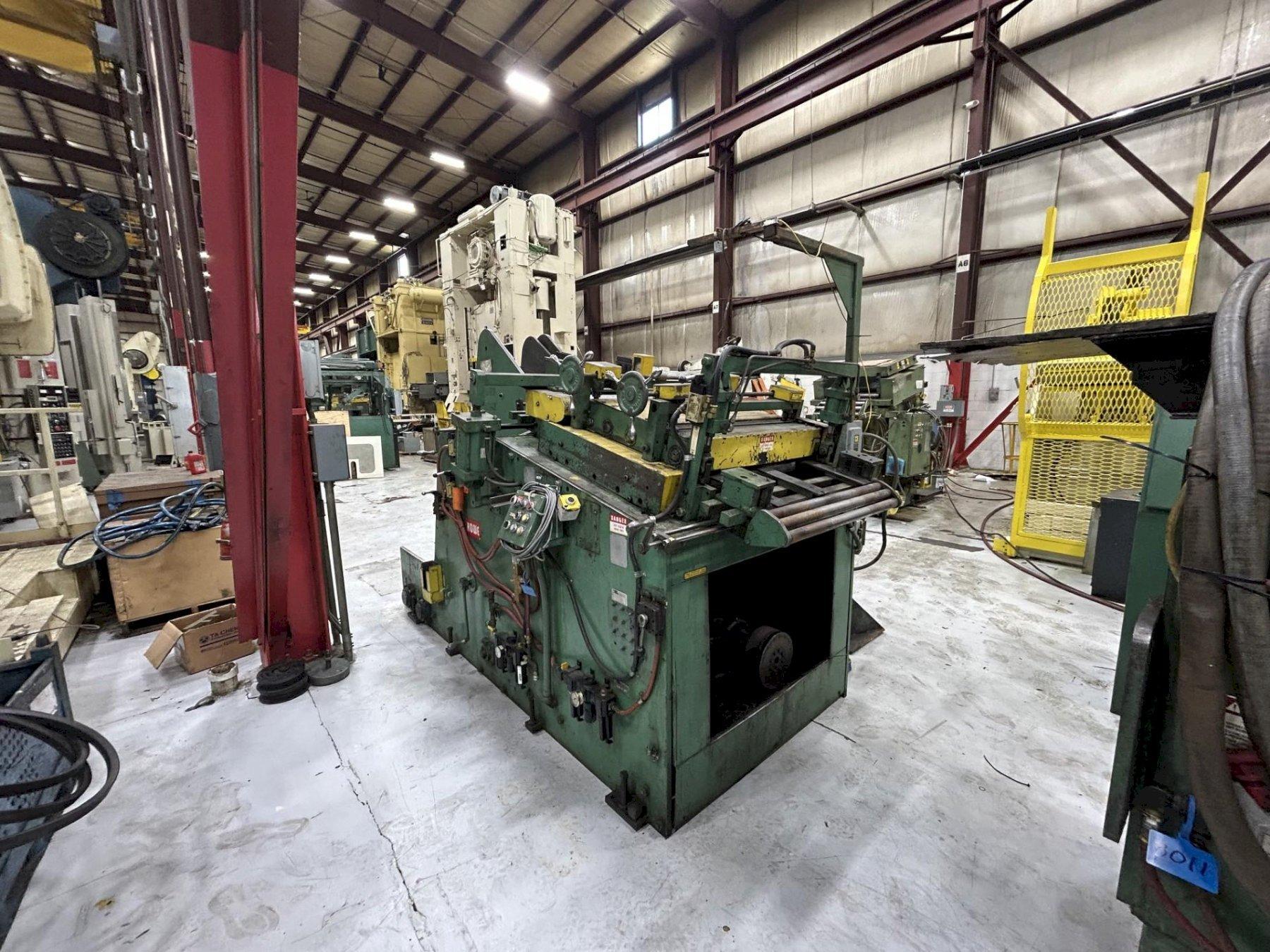

8,000 Rowe Cradle Straightener For Sale - 30 inch Wide x .187 Maximum Thickness Capacity

Coil Cradle Straightener - Rowe Equipment
Model No.: C8-30/16J
Serial No.: 8868

Rowe Coil Cradle Straightener Specifications:

Coil weight capacity: 8,000 lb
Coil width capacity: 30"
Stock thickness capacity: .187" x 30" Wide
Coil O.D. Capacity: 60"

Rowe Coil Cradle Straightener Equipment and Features:

Powered coil cradle straightener nest rolls
Coil cradle straightener entry four roll coil breaker assembly with air operated adjustment
Coil cradle straightener exit pinch rolls with air operated adjustment
Seven coil cradle straightening rolls
Bank type coil cradle straightening roll adjustments
Inclined coil cradle straightening head
Adjustable stock width edge guides
Variable Speed  - Eddy Current
7-100 Feet Per Minute Speed
Exit cascade loop support rollers
Adjustable coil side plates
Outboard air pressure regulators and gauges
Operator's control console
Jog forward and reverse
Auto / Run cycle
Loop control

440 volt / 3 ph / 60 hz

Contact your S&G Press sales person to schedule your inspection under power today at the S&G Press Warehouse.

Rowe C8-30/16J Coil Cradle Straightener

Optimize your coil processing line with this heavy-duty Rowe Equipment Coil Cradle Straightener (Model C8-30/16J). Engineered for high-capacity stamping and fabrication environments, this rugged combination machine flawlessly handles heavy master coils up to 8,000 lbs and widths up to 30 inches. Designed to eliminate coil set and ensure a perfectly flat payout, it features a precise .187" maximum stock thickness capacity and an expansive 60" outer diameter capability. Perfect for space-saving press feed systems, this precision-built Rowe straightener features a 7-roll configuration, an inclined straightening head, and air-operated pinch rolls.
