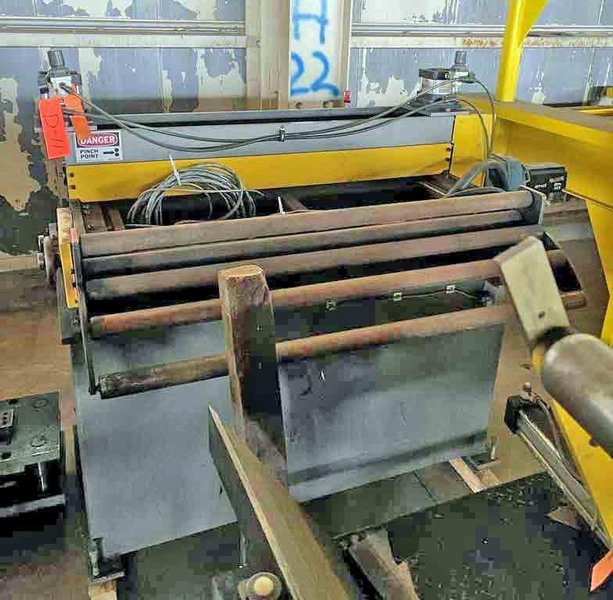

Capacity: 48" wide x 0.075" thick Slear Line
Coil Weight Capacity: 10,000 lbs.
Line Direction: Left to Right
Consisting of:

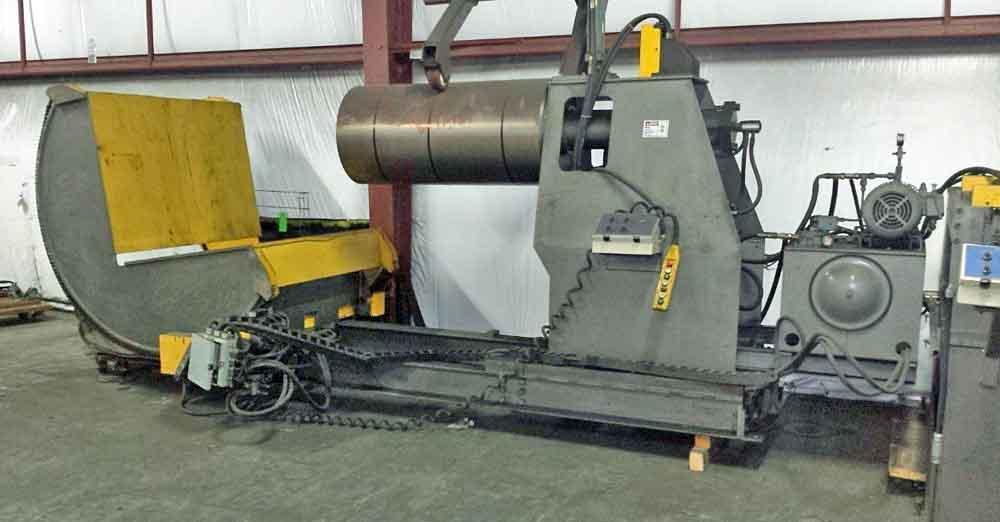

-Coil Car / Tipper:
S/N: A3021-02
40" x 40" Flat Deck and V Deck
Hydraulic Lift
Hydraulic Travel
Hydraulic Motor Chain-Type Tipping

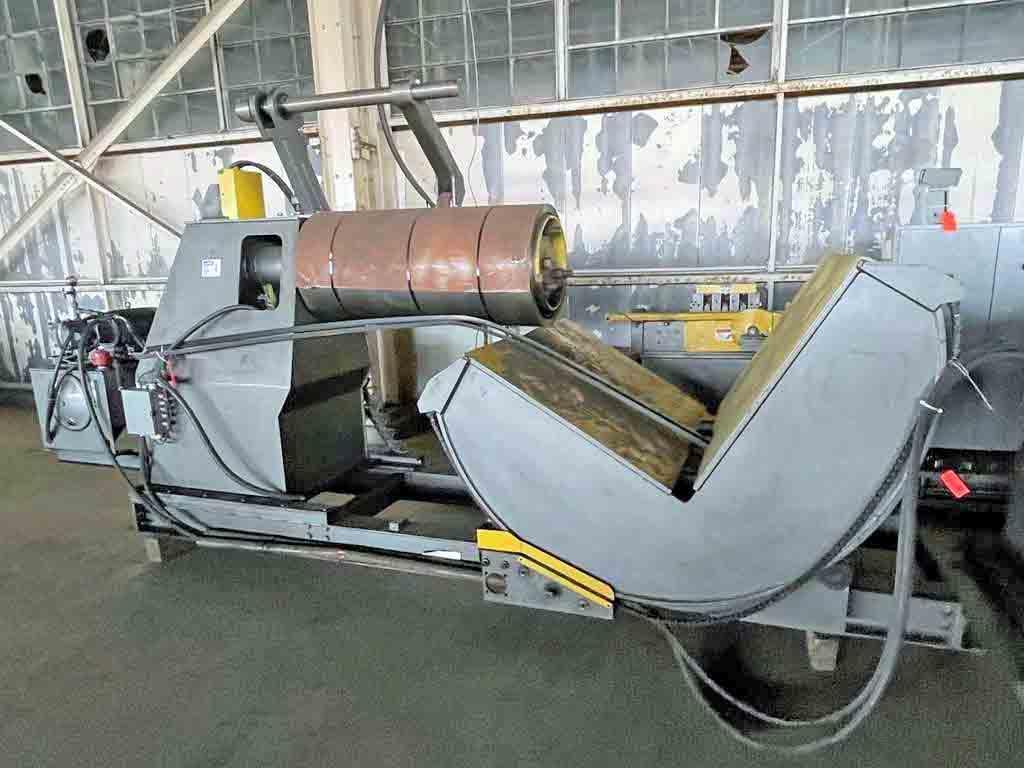

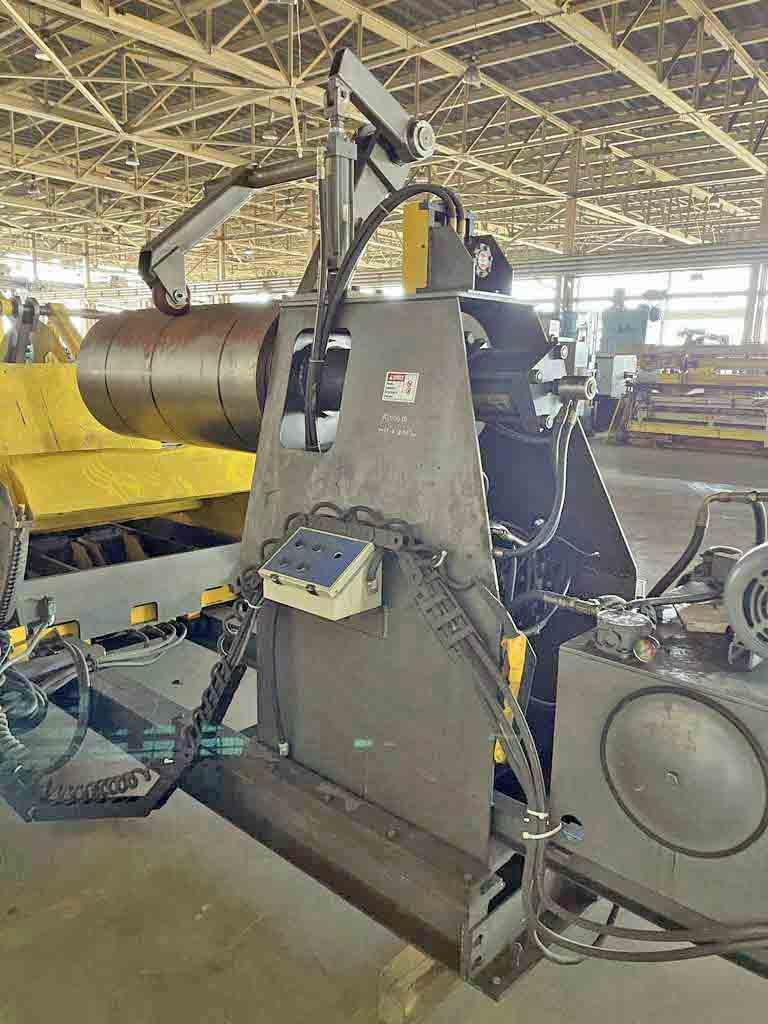

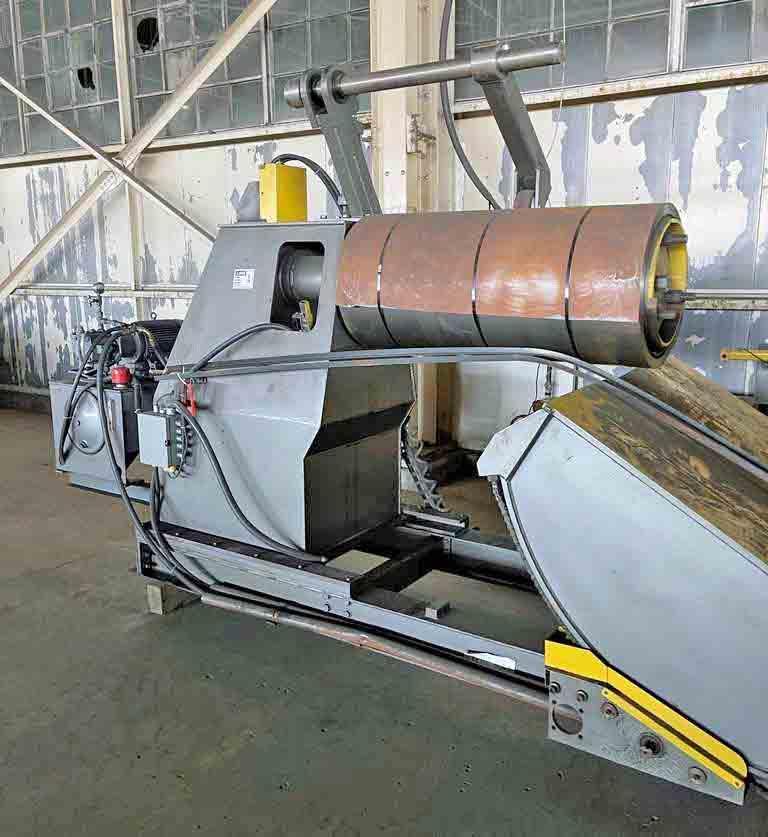

-Uncoiler:
Model: SR 10
S/N: A3021-01
10,000 lb. Capacity
48" Wide
16" to 20" Coil I.D.
Hydraulic Expansion
Slide Base
Hydraulic Motor Drive
Overarm Holddown Roll
Proximity Switch Loop Control

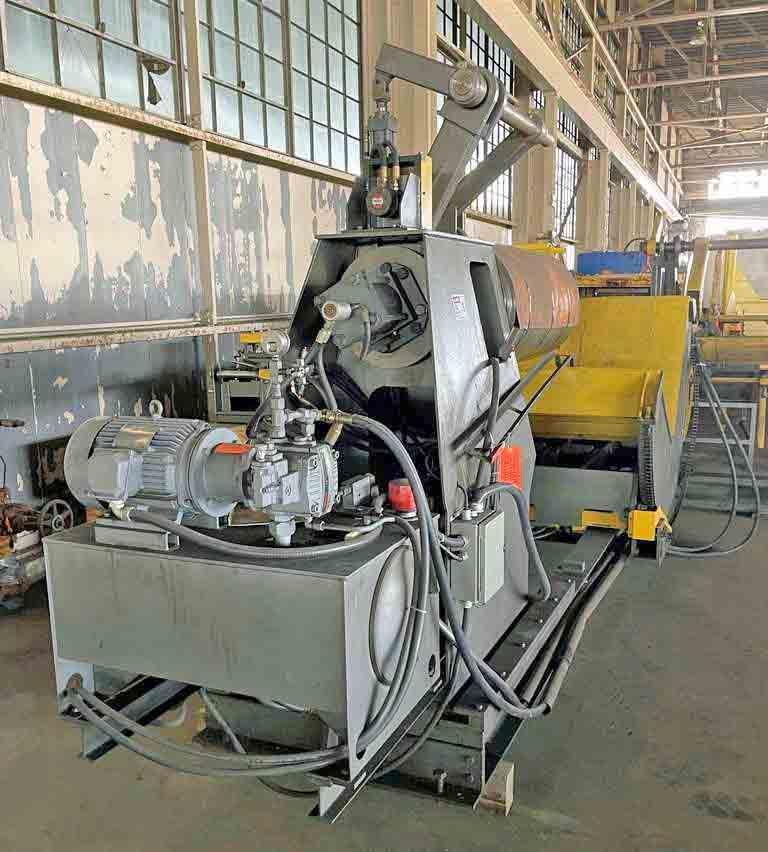

Self Contained 10 HP Hydraulic Power Unit
-Operator Station mounted on the Uncoiler:

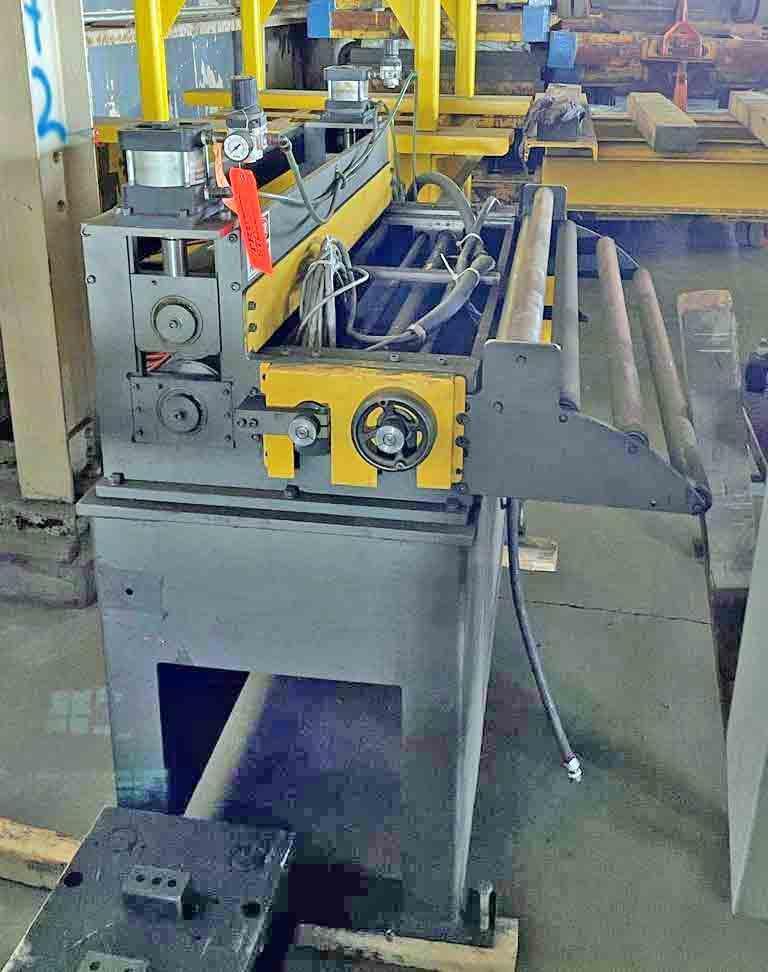

-Slear Unit:
S/N: A3021-04
Catenary Rolls:
Entry Side Guides:
Manual Hand Crank Adjustable
Slitter Head:
6" Dia. Arbors
Jack Screw Upper Arbor Adjustment
Hub Type Knives
Pinch Rolls:
Air Cylinder Operated
Straightener:
54" Roll Face
4" Diameter Rolls
3 over 4 Design
Manual Adjustment of Top Rolls
AC Servo Motor Drive
-Operators Panel mounted on Slear:
Allen-Bradley Panel Mate

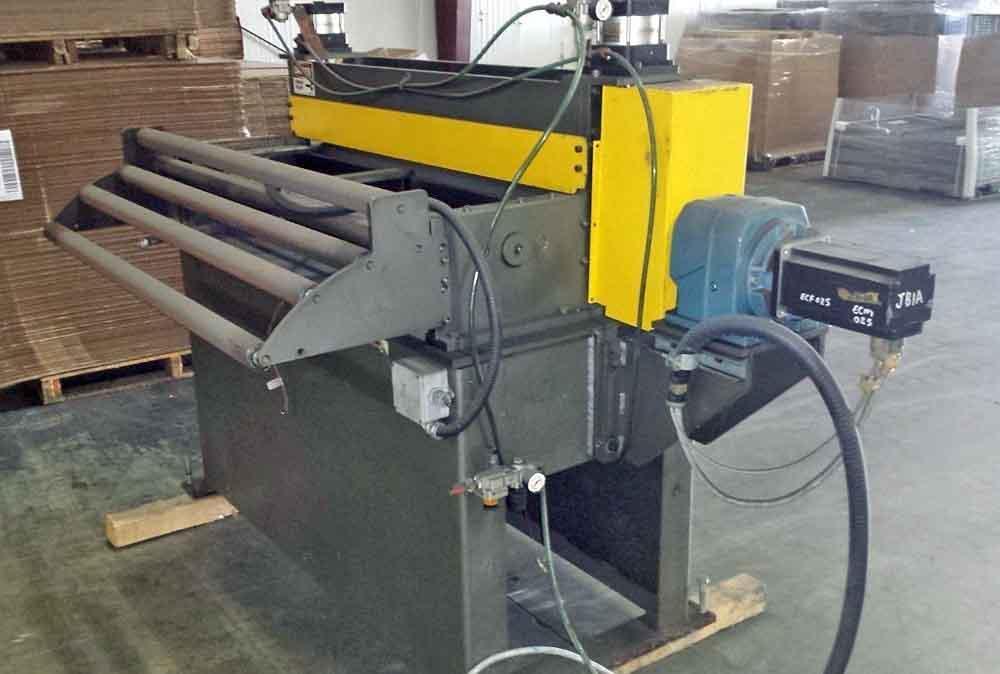

-48" Wide x 0.075" Servo Feed
49" Roll Face
5" Diameter Roll
Entry Catenary Rolls
Adjustable Side Guides
1.45 KW, 3000 RPM Servo Drive Motor
-Shear Blade Die: (Cut-Off Press not included)
54" Wide Blade
Bump Type Die
Overall Dimensions: 13.5" Wide x 62" Long x 9" High
-Main Electrical Panel:
Emerson Servo Control
Allen-Bradley PLC |
