60" x 20,000 LB Slear 1 Blanking Line STOCK# 4121

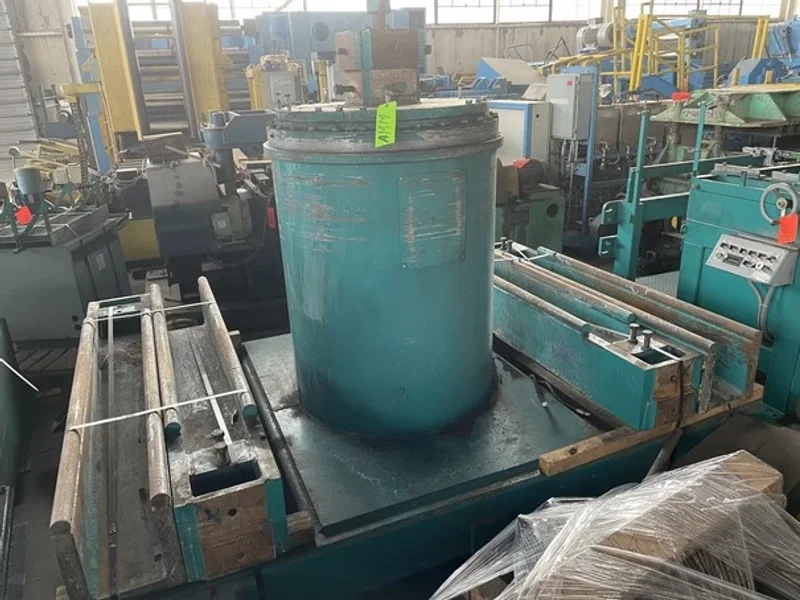

Entry Turnstile
Four (4) arms x 20,000# per arm
Powered Rotation
Slotted for C-Hook

Entry Coil Car
Low Boy Type
Floor Mounted
Powered Lift and Traverse

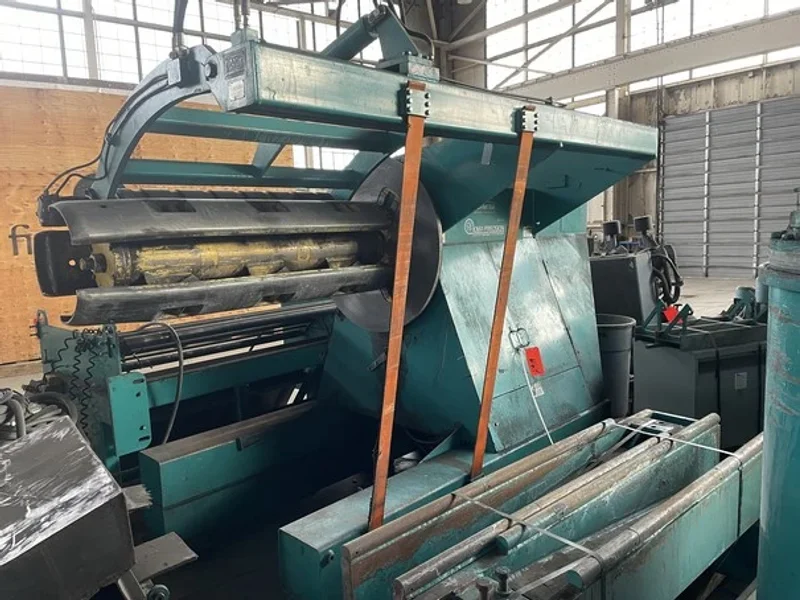

Uncoiler
Mandrel Type
Powered Expansion
Feed-up Drive
Hold-down with Powered Snubber
Loop Control with Dancer Arm
Self-contained Hydraulic Unit

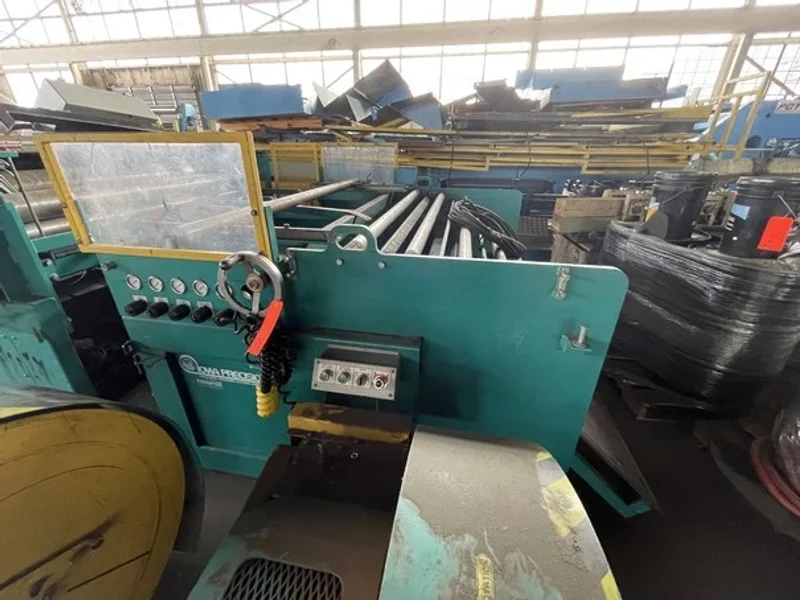

Entry Unit
Extending Blade Peeler
Powered Entry Pinch Roll
Manual Side Guides

Pit Section

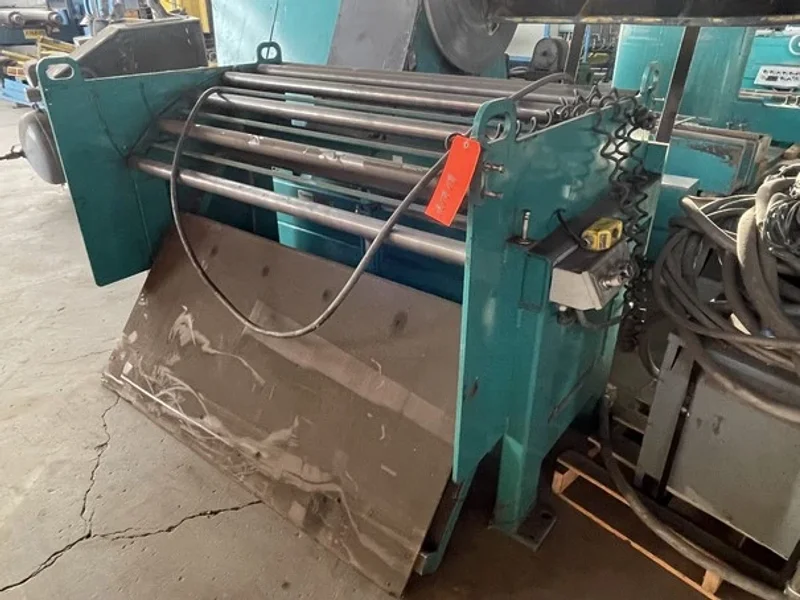

Entry/Exit Cascade Rolls with Cross-over Tables
Sonic Loop Control
Manual Side Guides

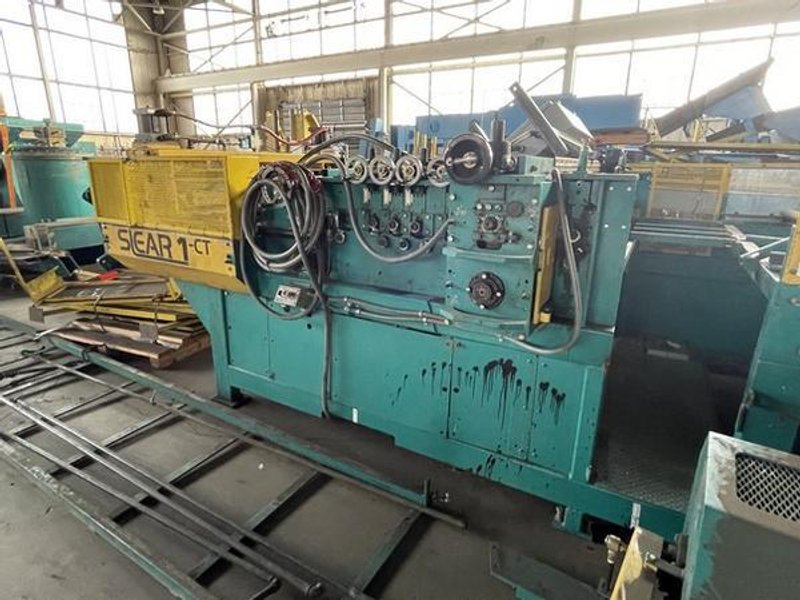

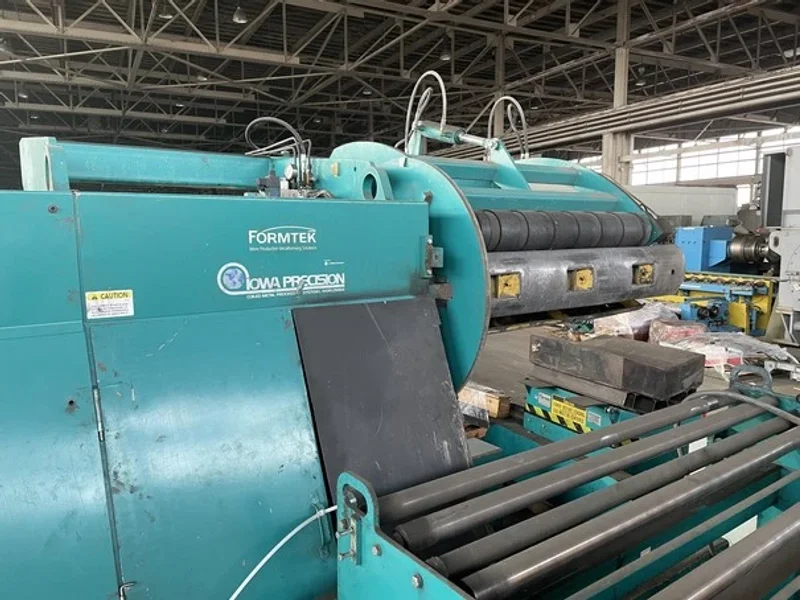

SLEAR Unit
Powered Entry Pinch Rolls
Slitter Head with Hub Type Tooling (5” diameter Arbor)
Fifteen (15) Slitter Knives
Powered Pinch Rolls #2

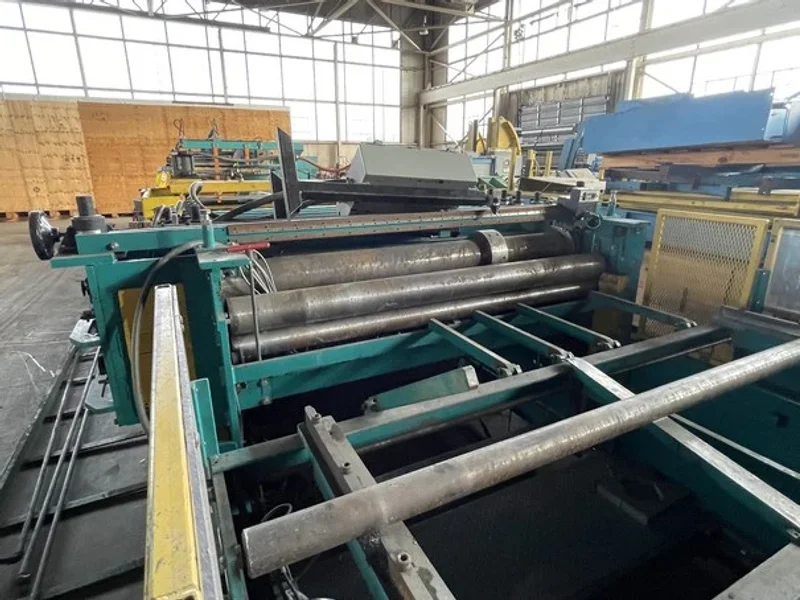

Flattener with six (6) Work Rolls in a 3/3 Configuration
Powered Exit Pinch Rolls

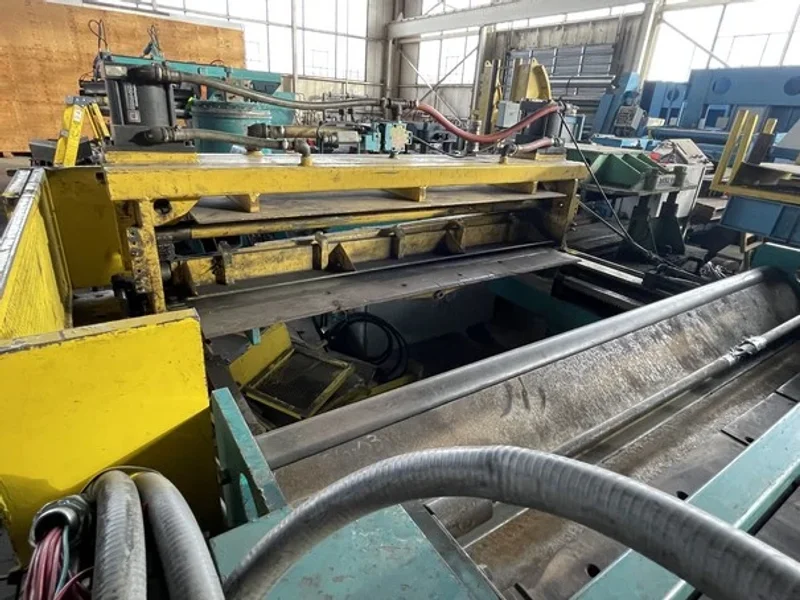

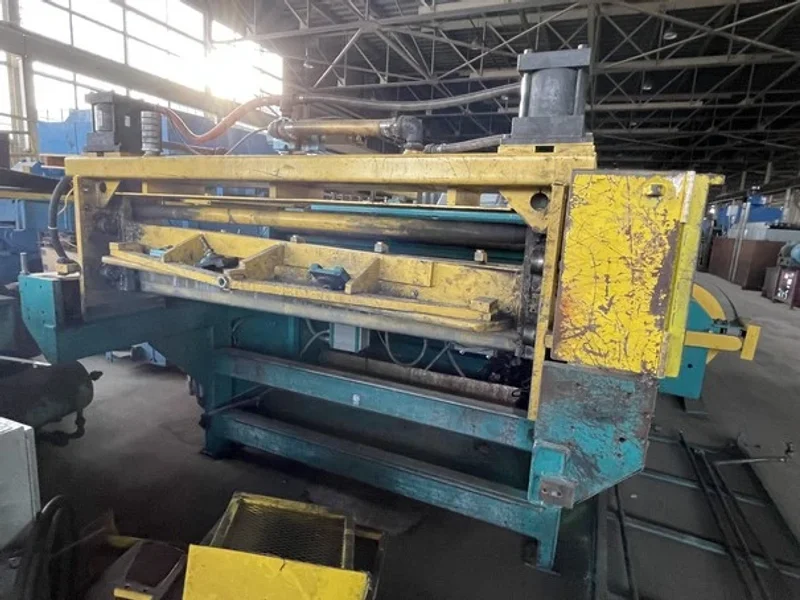

Down-cut Shear on Traversing Track (Single Rake Blade)

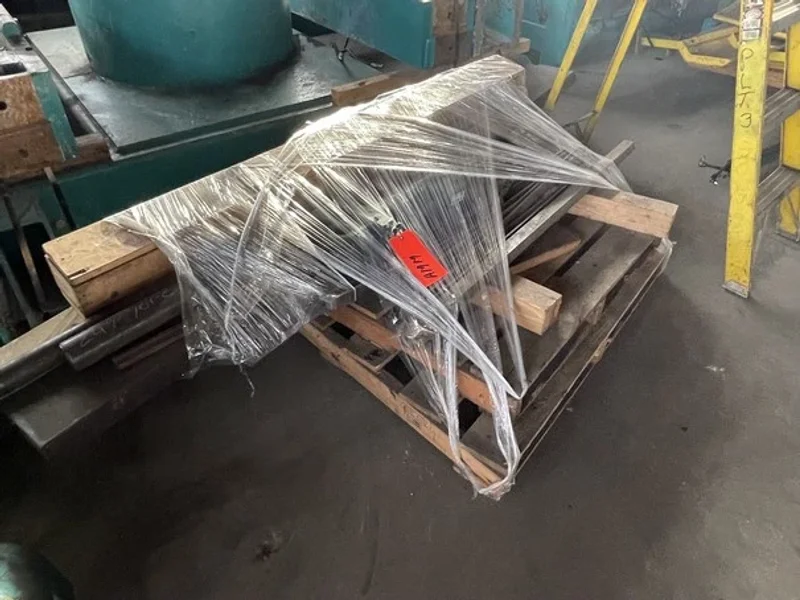

One (1) spare set of Shear Blades
Converted to Servo Motor

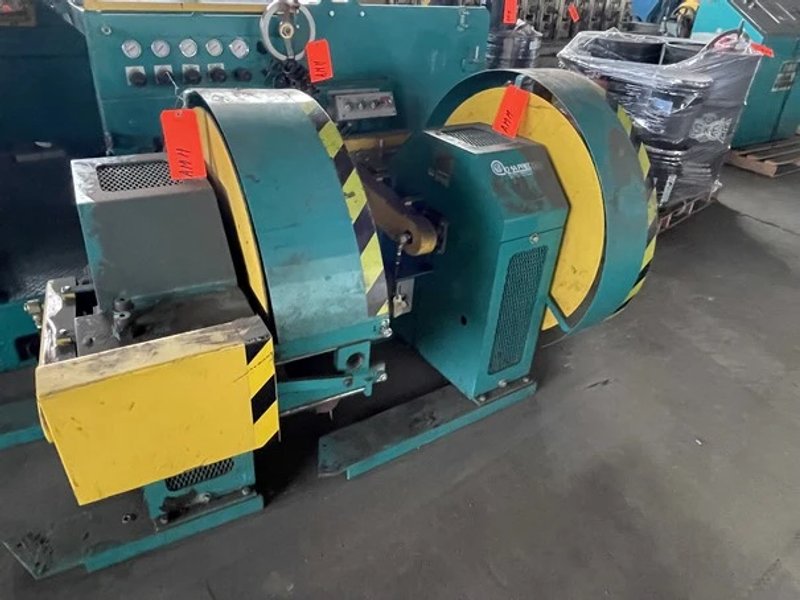

Scrap Winders
Min./Max. Scrap Width: .250- 1”
Level Wind
Automatic Scrap Dump

Stacker (New in 2013)
Manual Adjustable End Stop
Manual Adjustable Side Tampers
Avon Scissor Lift Table with Powered Roller Conveyor Top
Three (3) Sheet Tampers
Five (5) Blank Dividers
Lift Table with Powered Conveyor Top

Powered Side Discharge Conveyor (New in 2013)
12’ Length
20,000# Capacity
Twin Powered Rubber Belts

Electronics

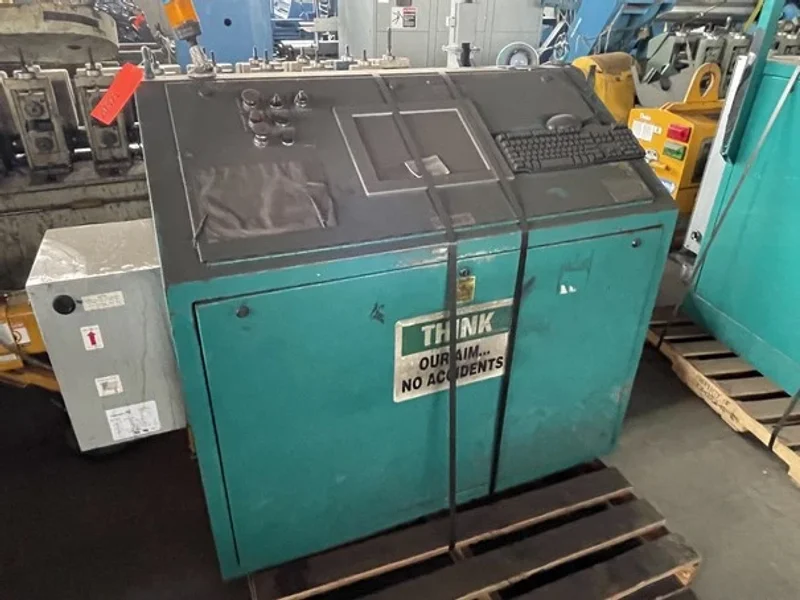

Main Operators Console with Allen Bradley Touch Screen and PLC
Aux. Control Consoles

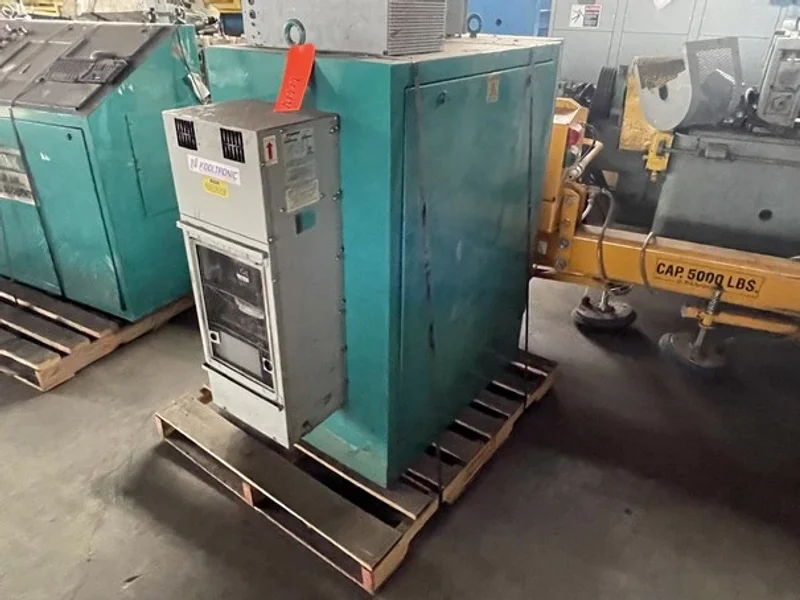

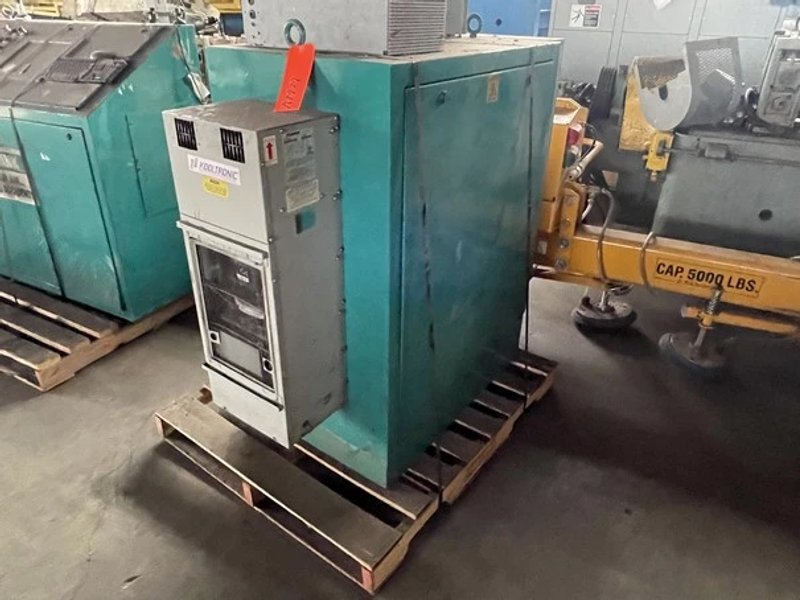

AC/DC Cabinet
Misc. Transformers
