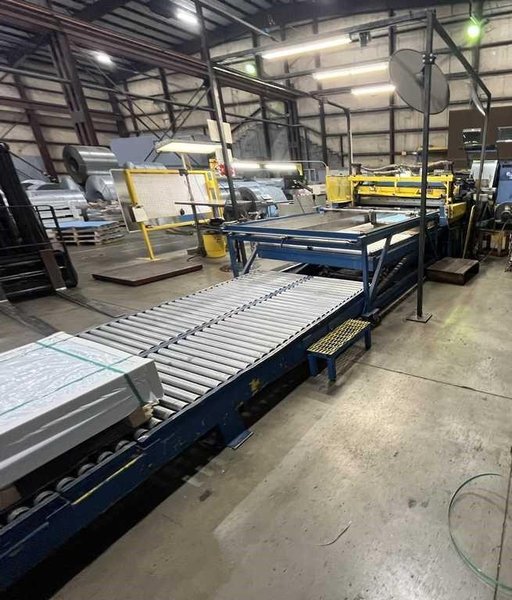

MAKE ........ IOWA PERCSION
MODEL ....... SLR 7216-1-CT-150
SERIAL ...... 60203

Width:                          72"

Weight Capacity:                40,000#

Thickness Range:                0.024" - 0.060"

Coil I.D.:                      19" - 24"

Line Speed:                     150

Line Direction:                 Left to Right

Consisting of the following:

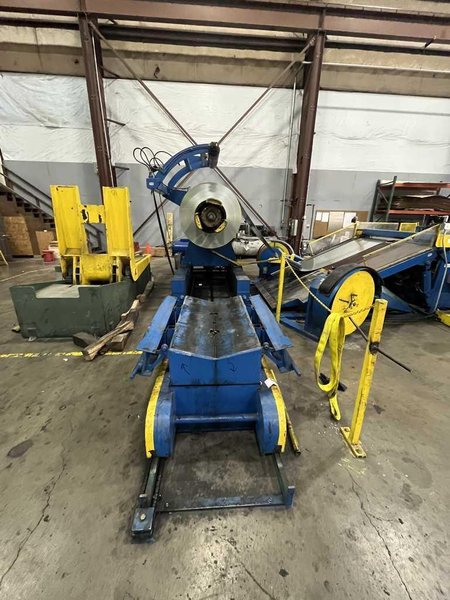

-Entry Coil Car:

  40,000# Capacity

  Hydraulic Lift and Travel

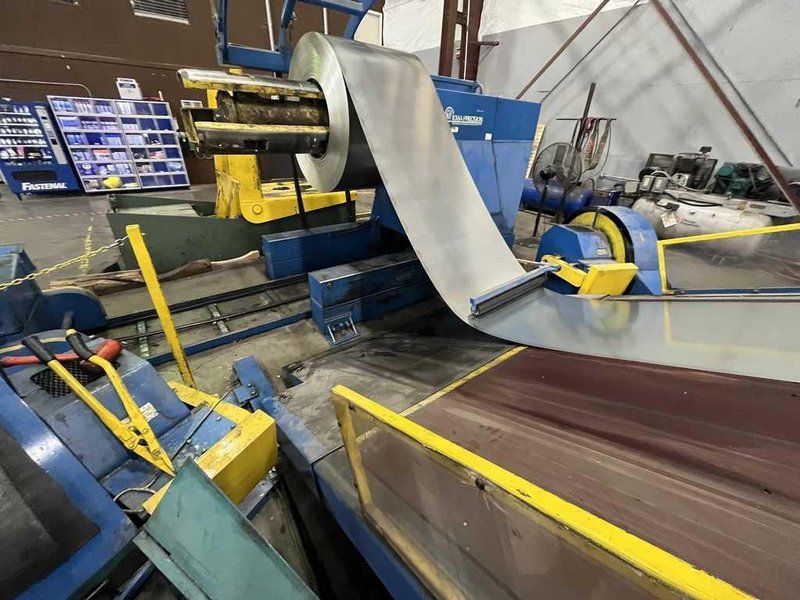

-Mandrel Uncoiler:

  Model:  UCR40M72

  Powered Overarm Holddown

  Powered with Loop Control

  Hydraulic Expansion

-Peeler Table:

  Hydraulic Lift

  Hydraulic Cylinder Blade Extend

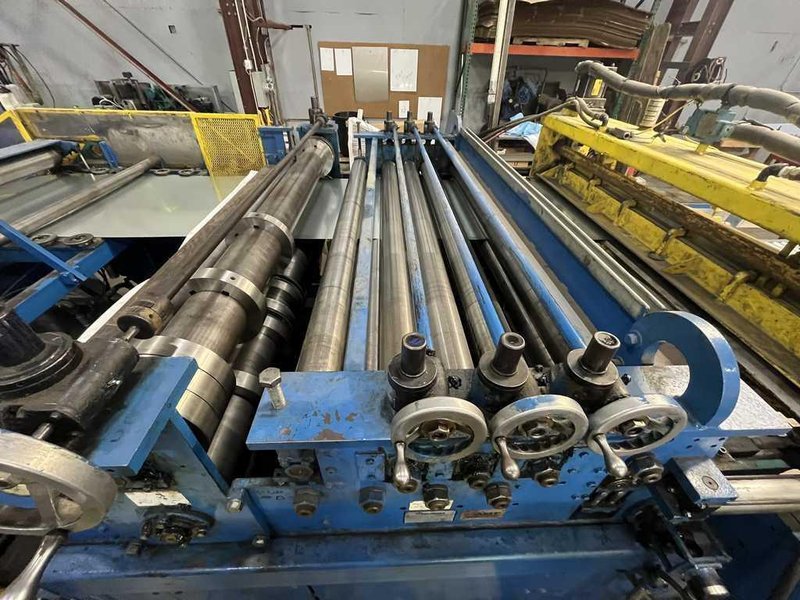

-Slear Unit:

  Entry Strip Edge Guide

  6 Roll Straightener

  Independent Roll Adjustment

  6" Arbor Slitter Head

  Hub Type Knives

  4 Cuts in 16 Ga. Max.

  Measuring Roll

-Flying Shear:

  Hydraulic Shear

  Drive System from the Straightener

  Air Cylinder Return

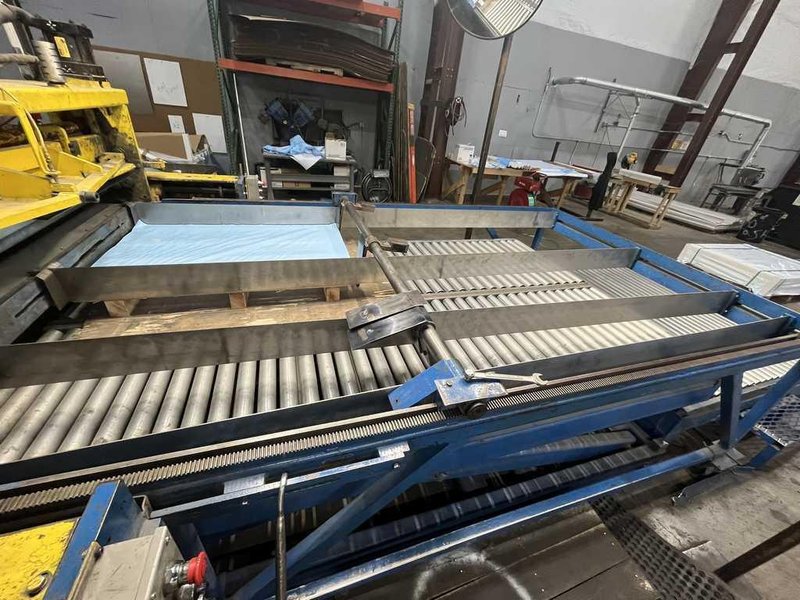

-Auto Stacker:

  10' Long Stacker

  5 Dividing Pans for Multi Blanking

  Hydraulic Scissor Lift

-Runout Conveyor:

  In Line Conveyor

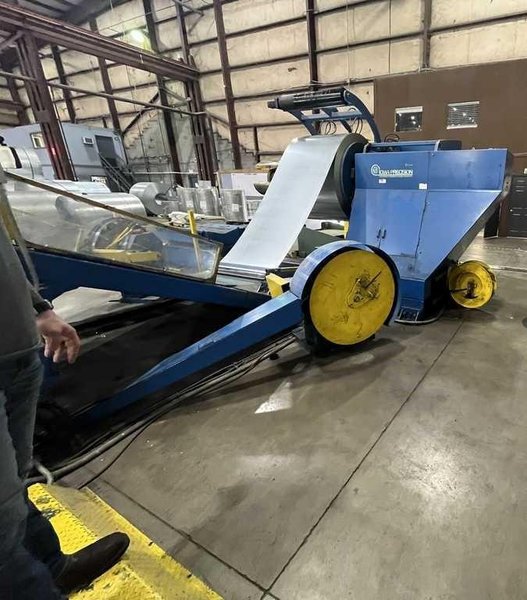

-Dual Scrap Winders:

  Hydraulic Motor Drive

Level Wind
