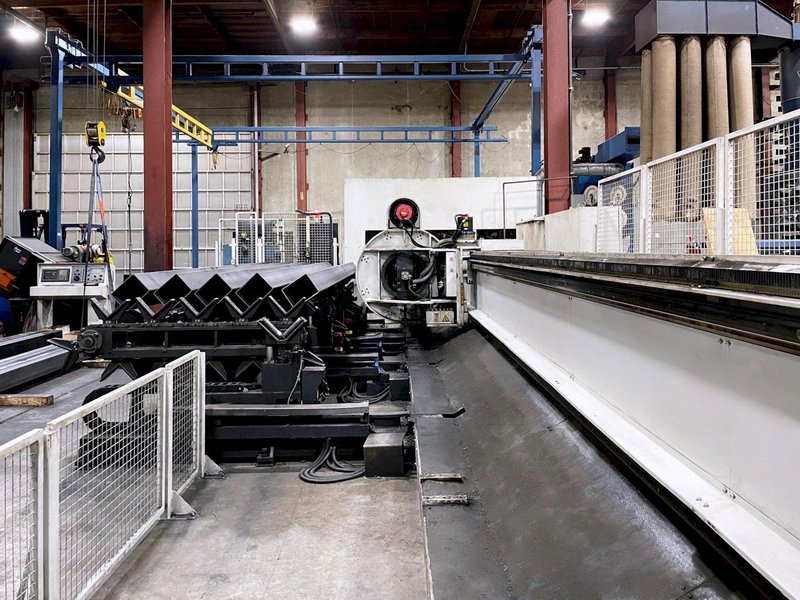

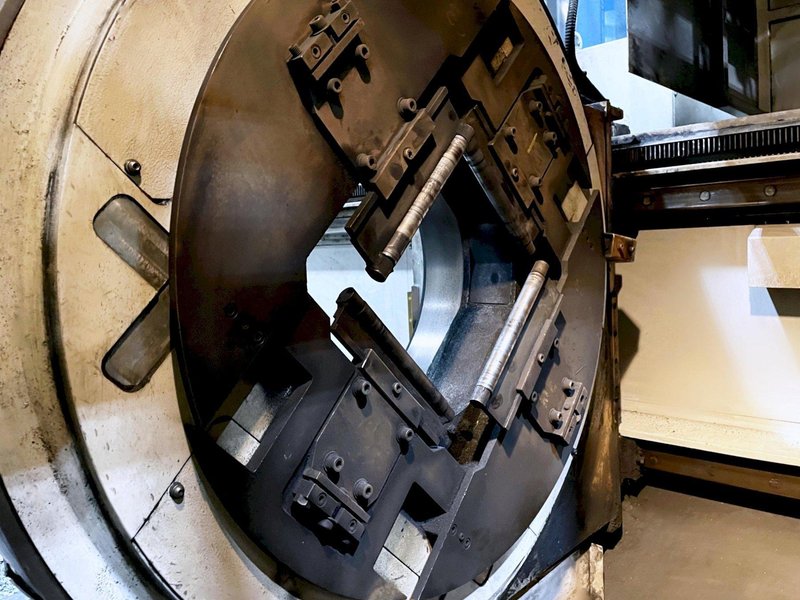

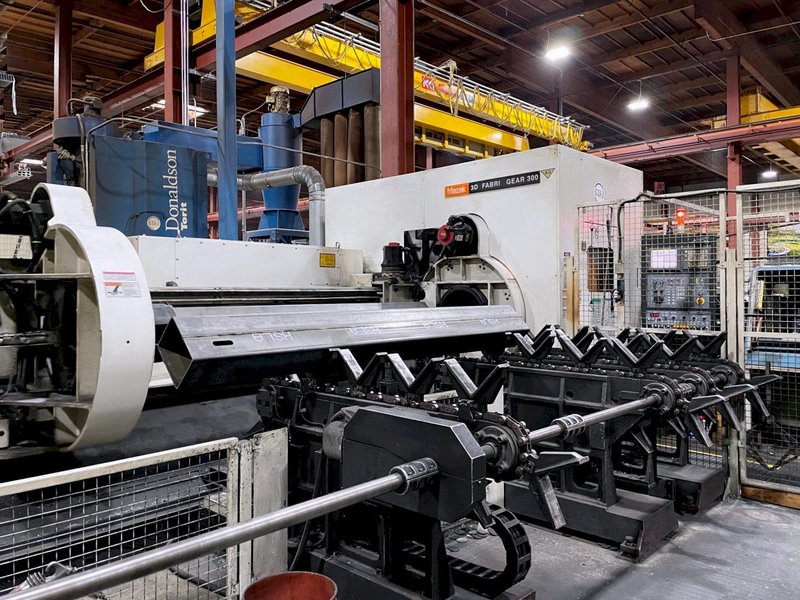

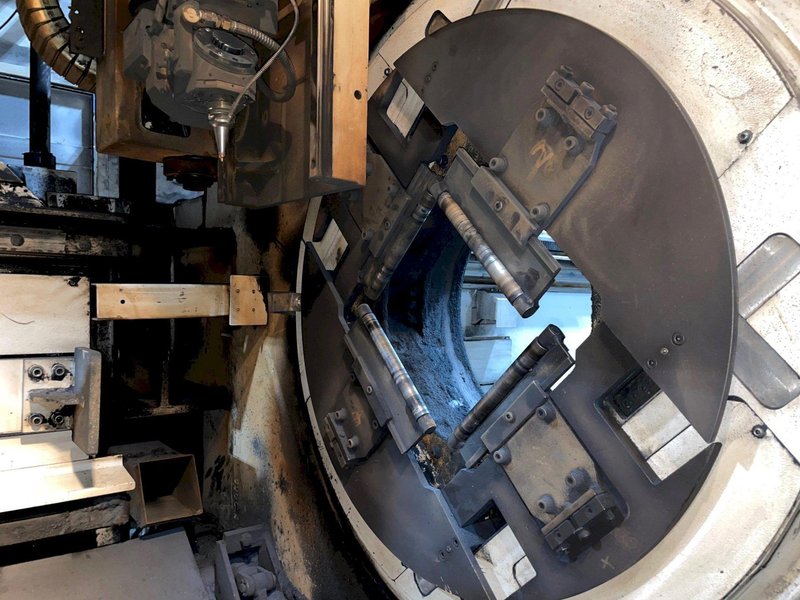

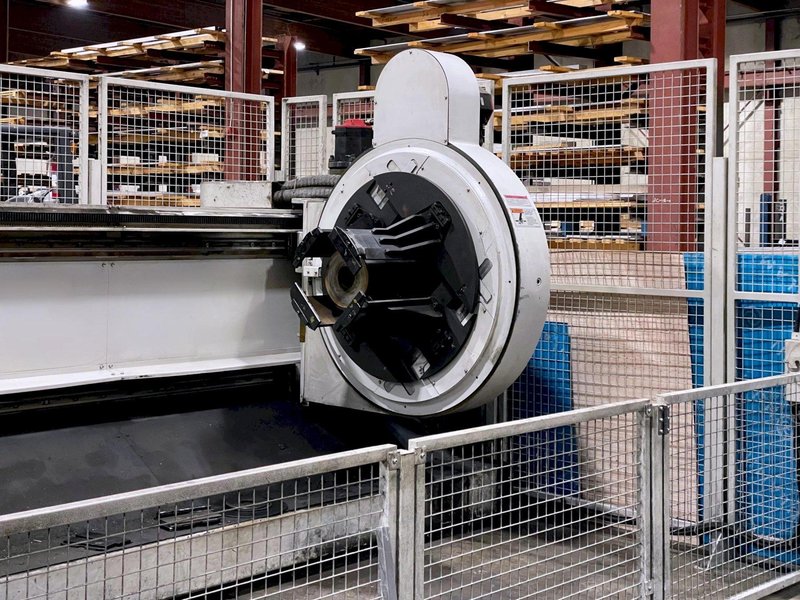

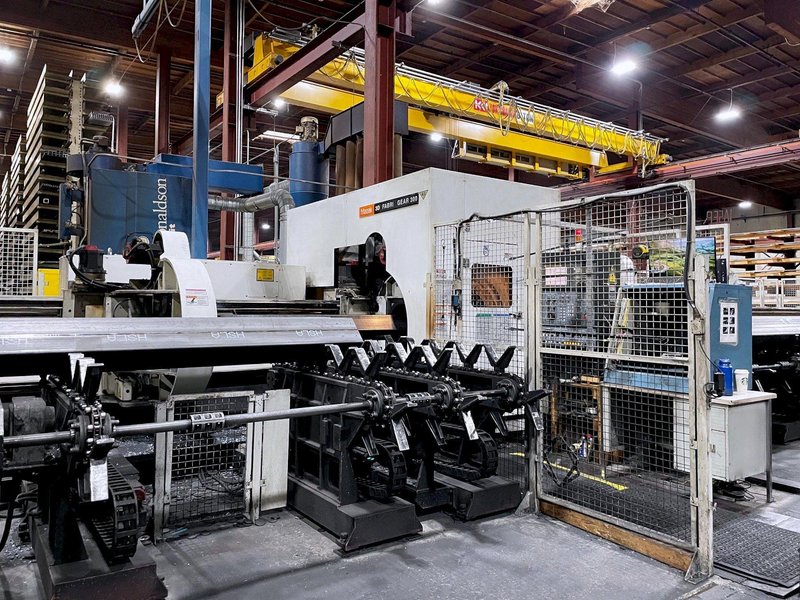

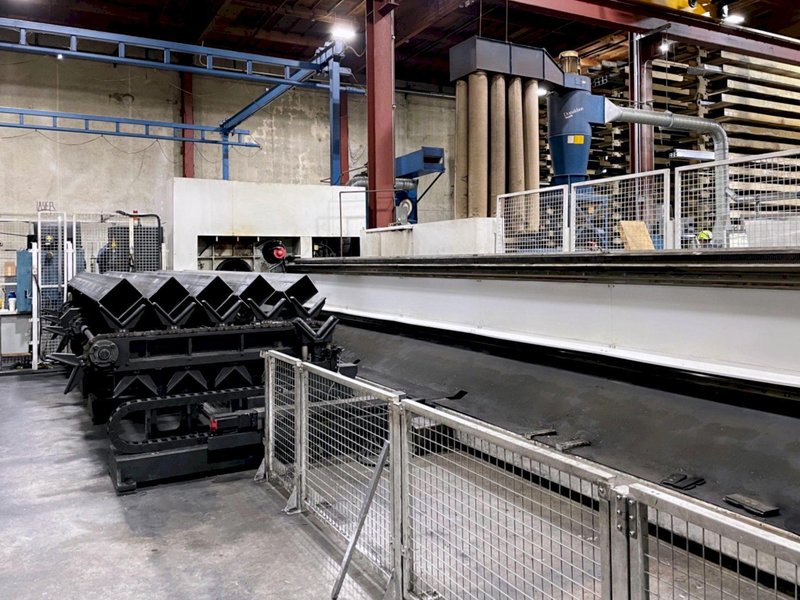

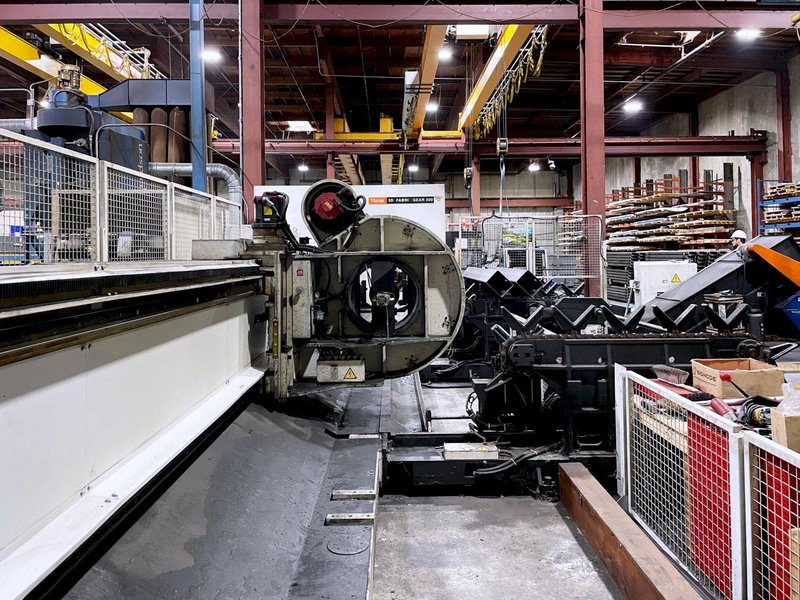

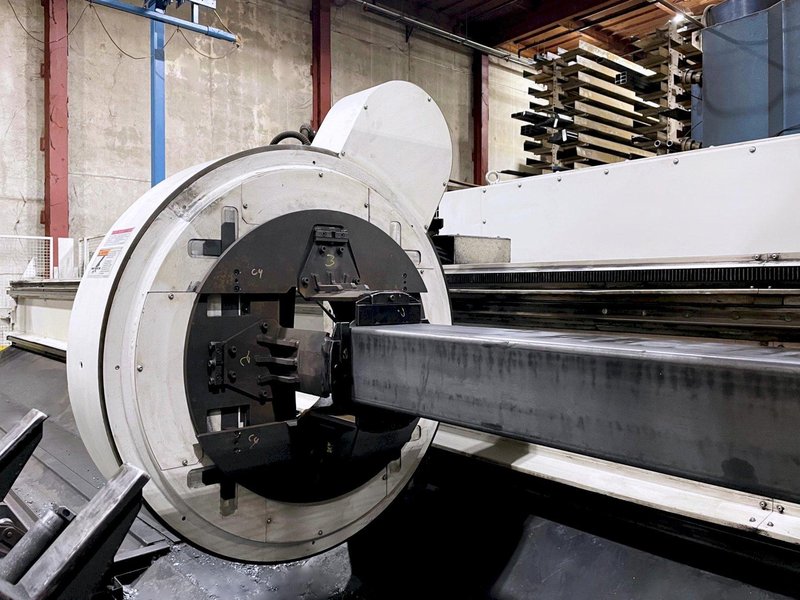

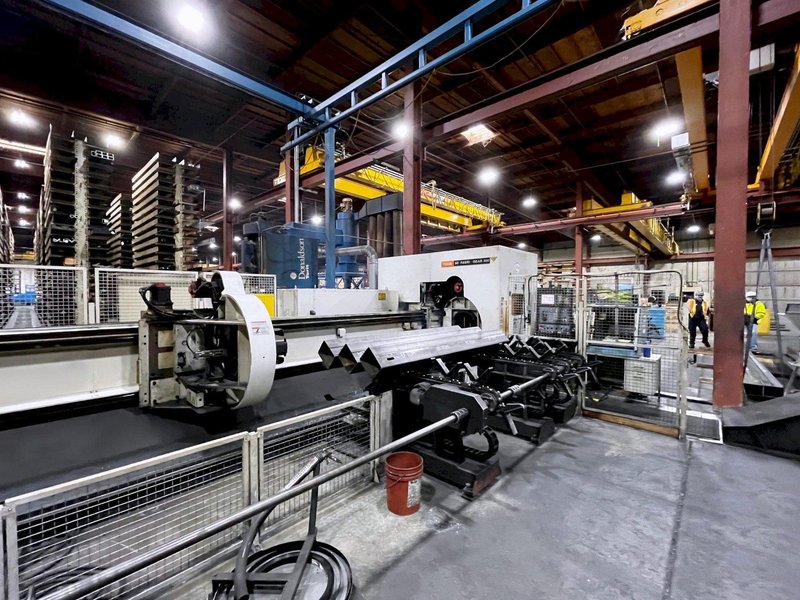

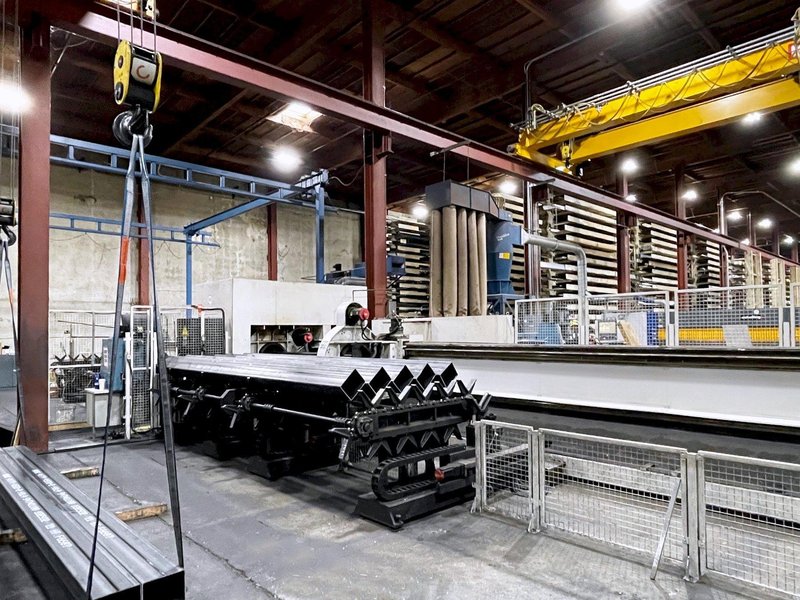

Mazak Fabri Gear 300 Tube Laser

Brand
Model
Fabri Gear 300
Stock #
100320
Year
2007
Condition
Very Good
Location
Not specified
Control Fanuc L-64
Laser Type CO2
Laser Power 4,000 Watts
Laser Gas Mixed Gases He, Ni, CO2
Max Cut Thickness 0.87” Mild Steel
Max Cut Size Round Tube 0.79” - 10.51"
Max Cut Size Square Tube 0.79” - 8.00”
Other Material Type I Beam, Angle, Channel
Max Tube Weight 1,052 Lbs
Material Loading Automatic 5 Stations
Tube Auto Load Length 135.83" - 314.96"
Tube Auto Unload Length 27.56” - 314.96"
Small Parts Up To 27'’ Unload Small Parts Catcher
Axis Stroke X-Axis 344.49"
Axis Stroke U-Axis 358.27"
Axis Stroke V-Axis 91.14"
Axis Stroke Y-Axis 50.00"
Axis Stroke Z-Axis 14.57”
Axis Stroke A-Axis +/- 360 Degrees
Axis Stroke B-Axis +/- 135 Degrees
Max Machining Feed Rate 349 IPM
Axial Drive System AC Servo Motor, Digital Servo Drive
Axial Drive System X-Axis Rack & Pinion
Axial Drive System Y,Z-Axis Ball Screws
Cutting Head 3D With 7.5” Focal Distance
Power Source AC 200V •/-10% or AC 220V •/-10% 60HZ
Power Supply 3-phase AC 98 kVA
Total Weight (Main Unit, Chiller, Transformer, Loader, Unloader) 71,970 Lbs.

Equipped With:

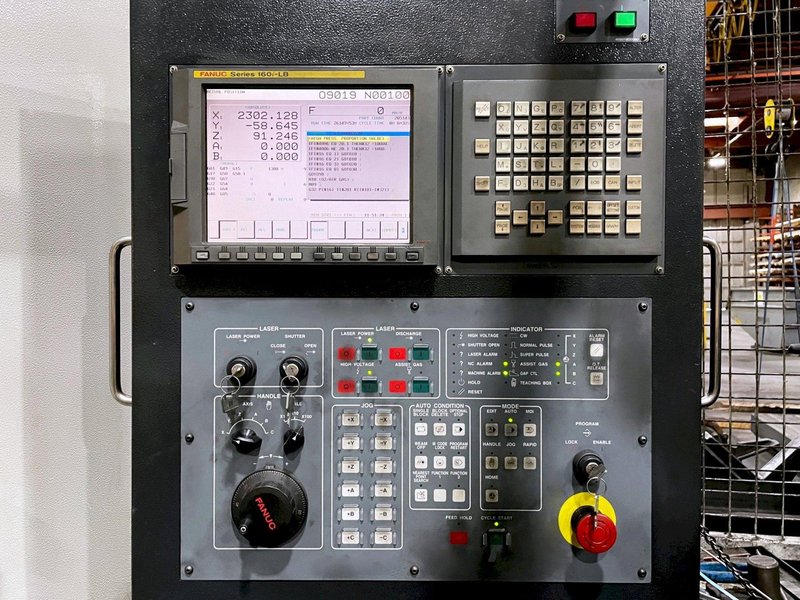

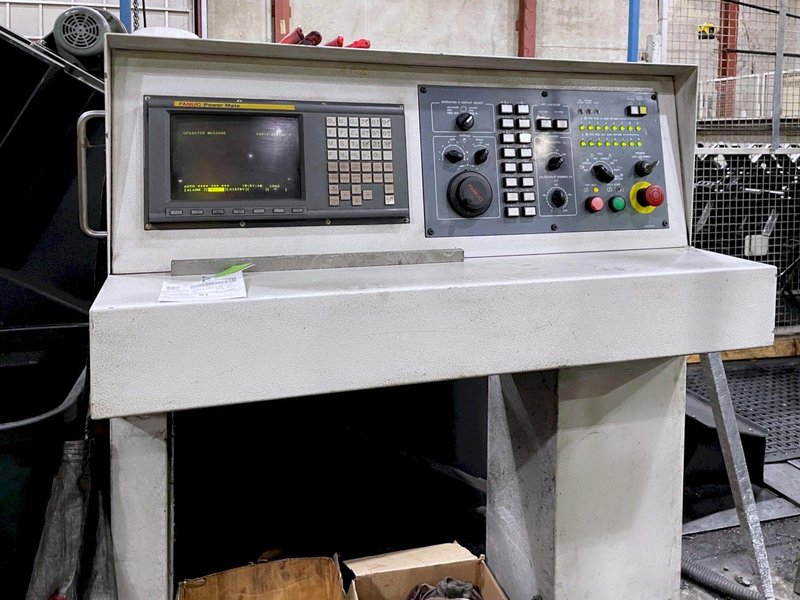

Fanuc L-64 CNC Control
4,000 Watt Resonator

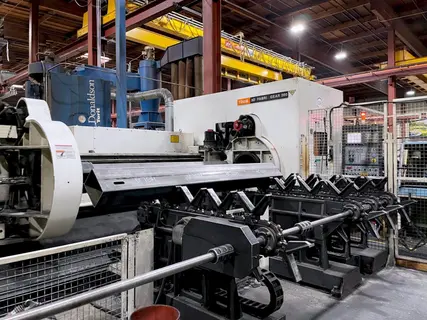

Auto Load/Unload

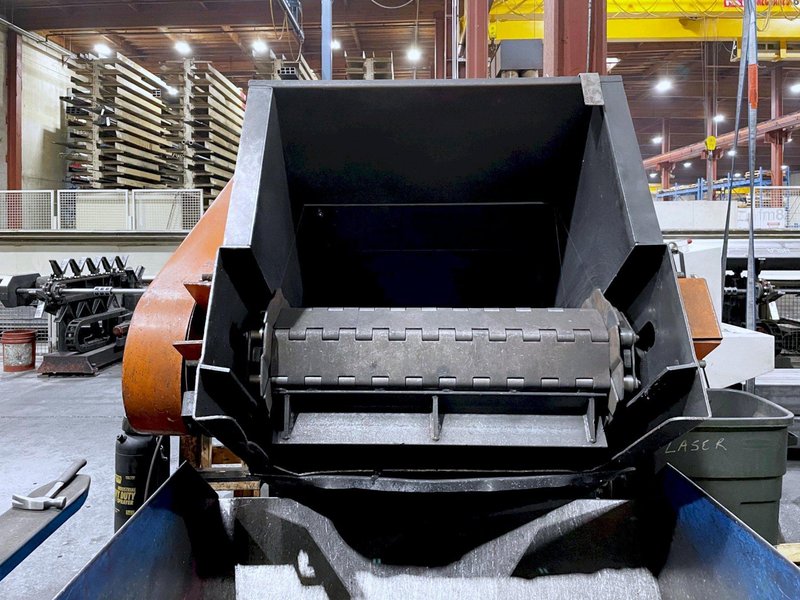

Scrap Conveyor
Small Parts Catcher
Chiller Unit

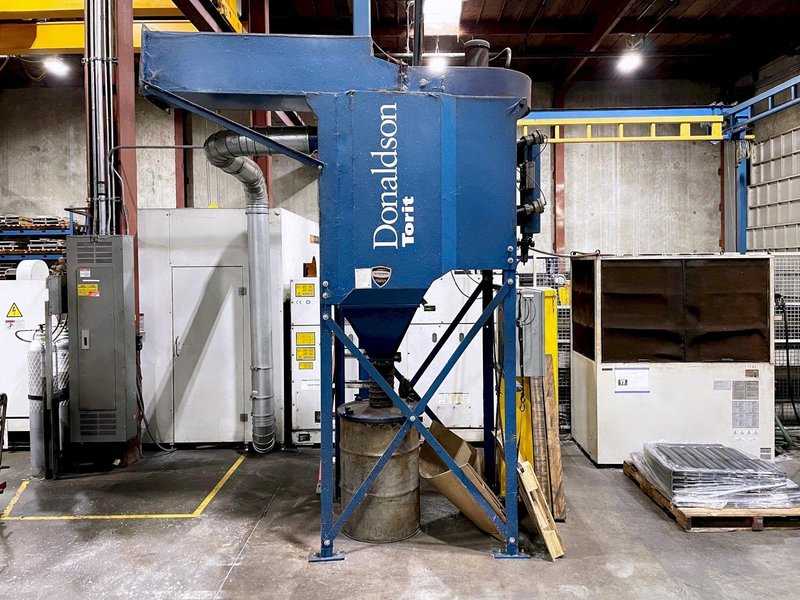

Dust Collector
Spare Parts
Manuals
